Product Description

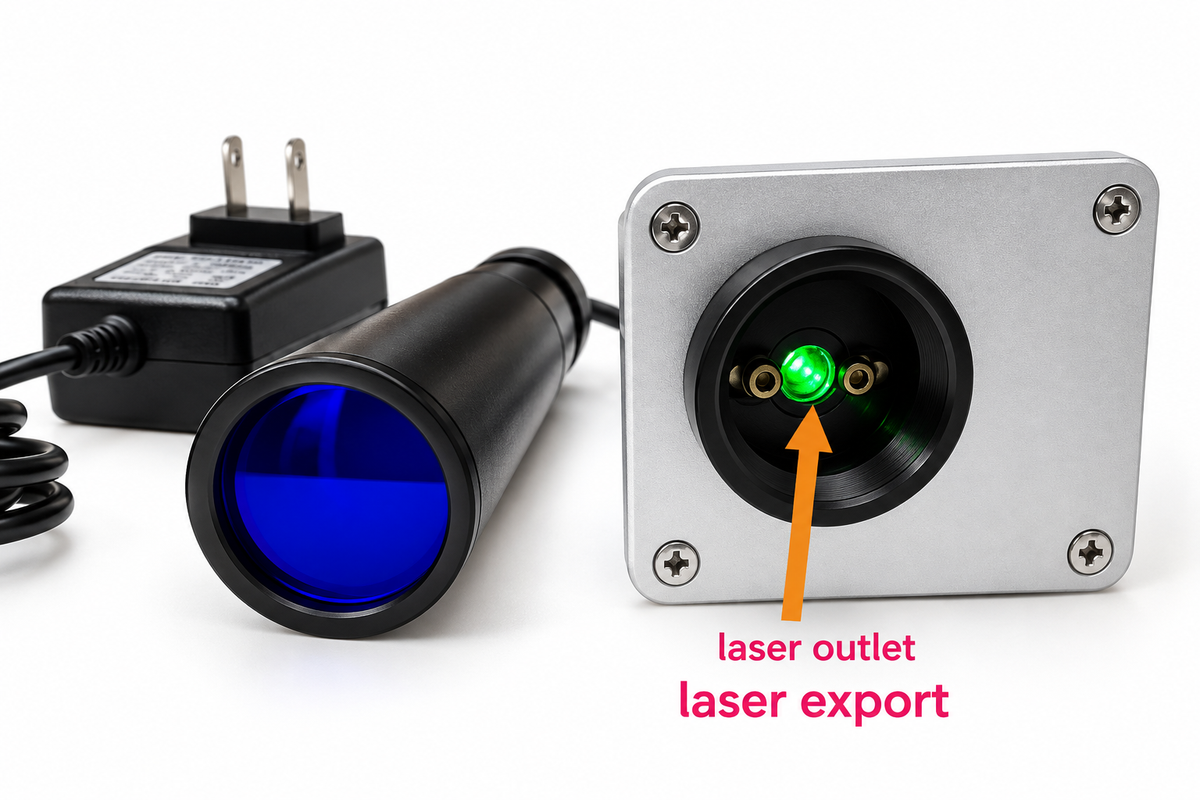

915nm 130W Portable Laser Igniter with 20X Focusing Lens
This 915nm 130W portable laser igniter combines high optical output with a compact rechargeable design for controlled ignition, testing, and other professional applications.
The unit features a 20X adjustable focusing lens with an effective working distance of approximately 0.5–15 meters, depending on target material, focus adjustment, environmental conditions, and operating conditions.
A built-in 5000mAh rechargeable battery provides approximately 30–60 minutes of operating time. Three integrated high-speed cooling fans start automatically when the unit is powered on to help manage operating temperature.
For additional protection, the system incorporates 45°C over-temperature protection. If the internal temperature reaches the protection threshold, laser emission stops automatically and can resume after the unit has cooled.
A switchable green aiming light assists with positioning and focusing before operation.
Key Features
-
Wavelength: 915nm near-infrared
-
Optical Output Power: 130W
-

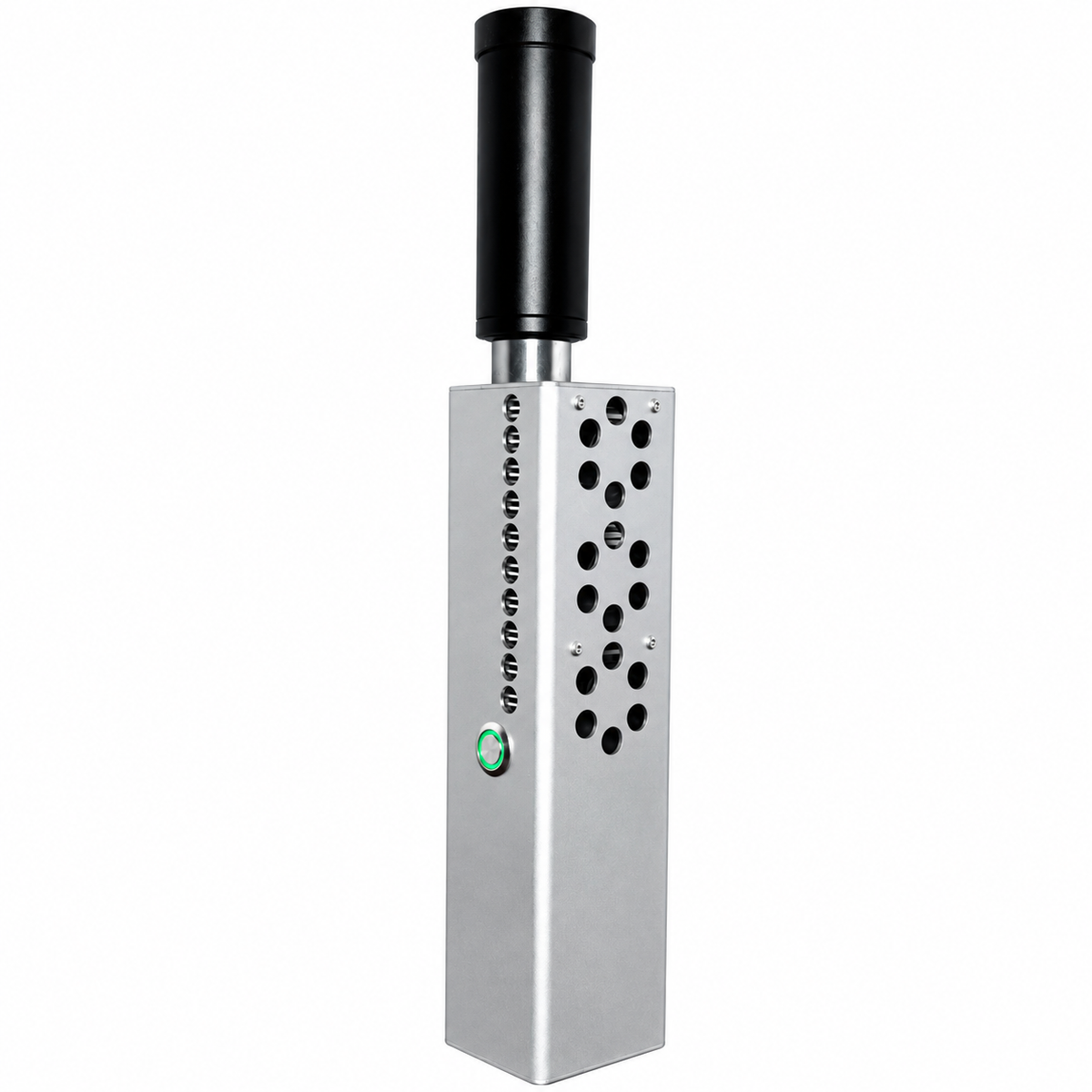

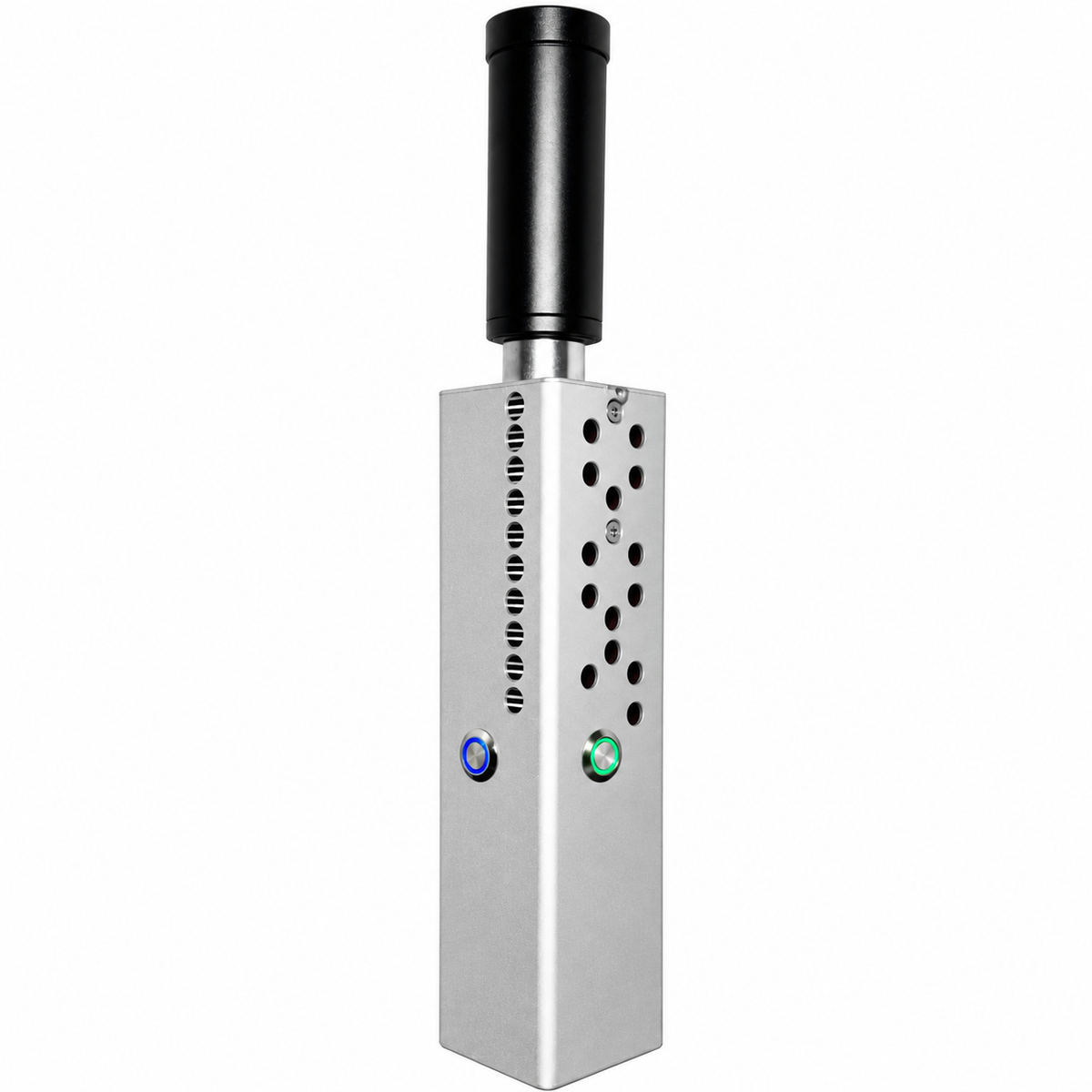

Focusing Lens: 20X adjustable focusing lens
-
Effective Working Distance: Approx. 0.5–15 m
-
Battery: 4S3P 50S 5000mAh rechargeable battery
-
Battery Runtime: Approx. 30–60 minutes
-
Aiming Light: Green, independently switchable
-
Cooling System: 3 built-in high-speed cooling fans
-
Automatic Cooling: Fans start when the unit is powered on
-
Continuous Operating Cycle: Approx. 25–50 seconds, depending on temperature
-
Over-Temperature Protection: Approx. 45°C
-

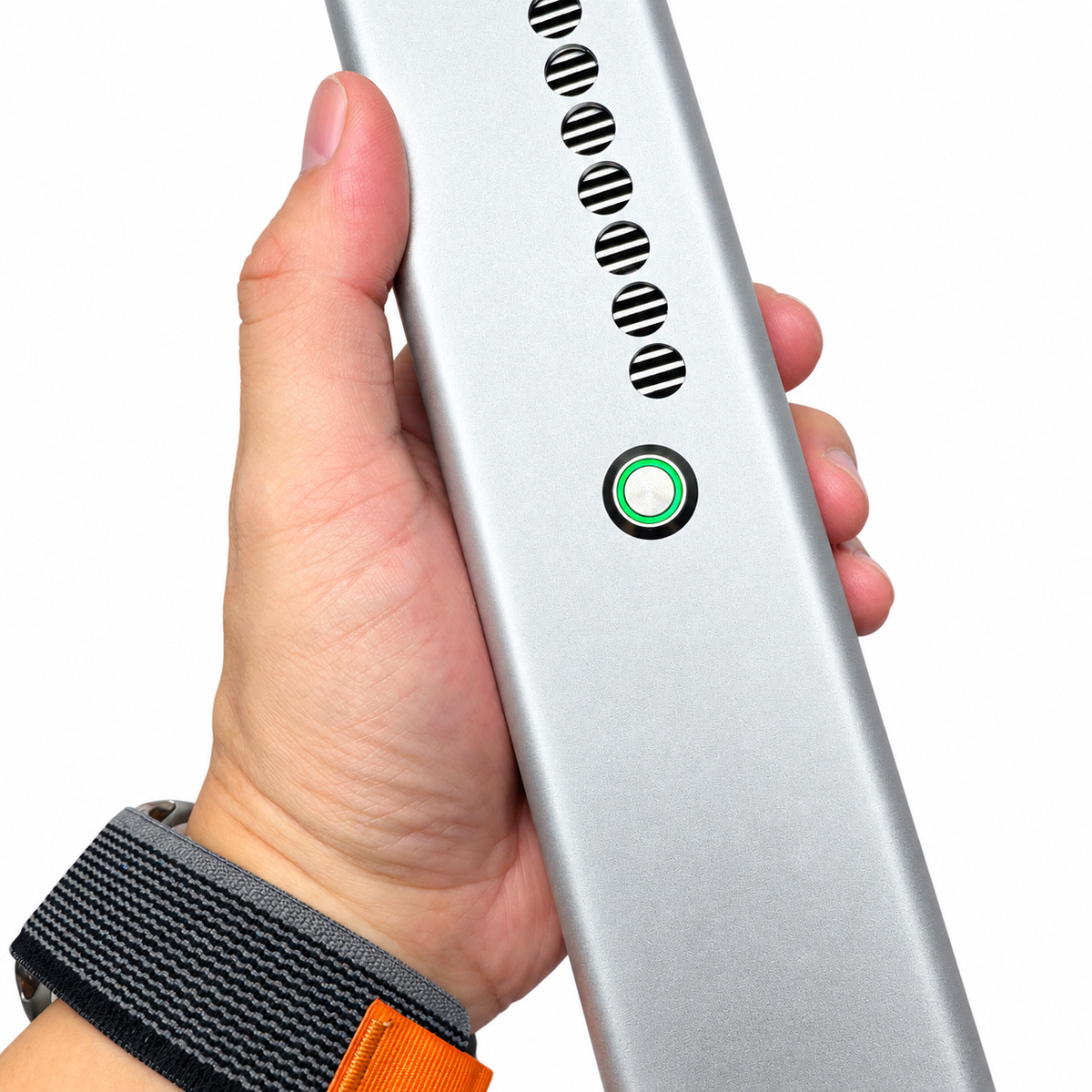

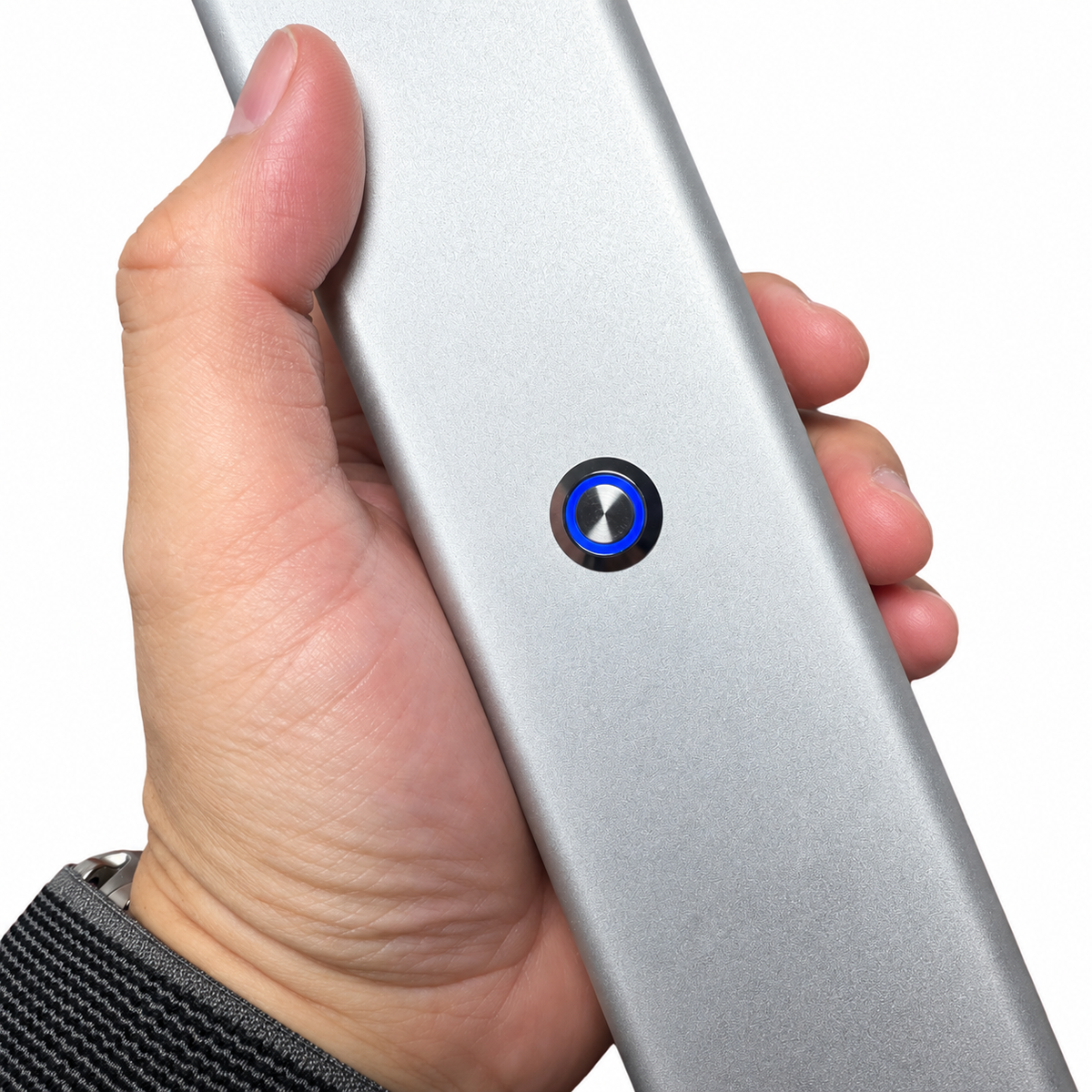

Controls: Main power switch and laser emission button
-

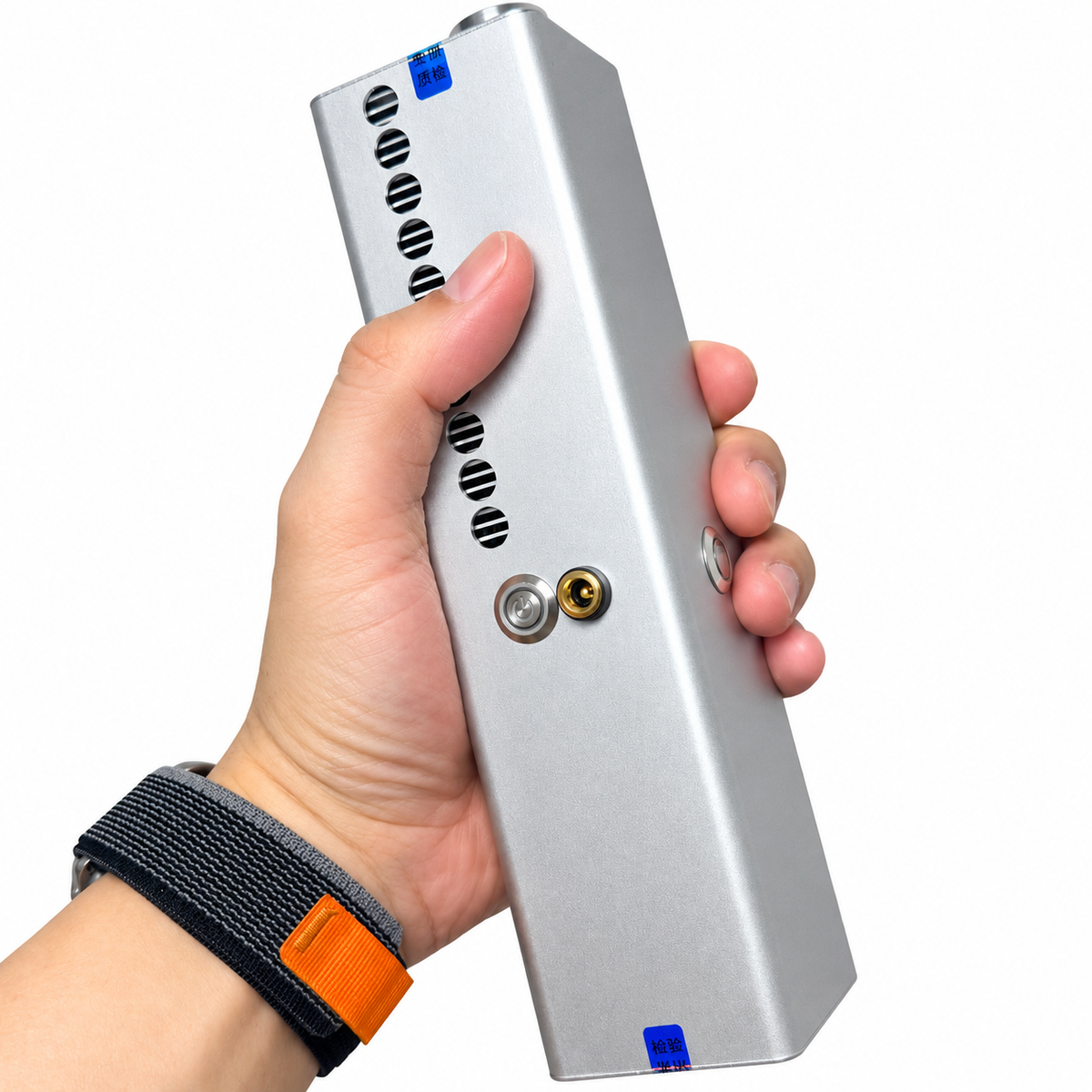

Charging: DC charging port
-
Charger Input: AC 100–240V
Product Dimensions & Weight
- Main unit size: 20.3 × 5.2 × 5.2 cm
- Main unit weight: Approx. 1,000 g
- Package size: 27.2 × 10.8 × 20 cm
- Gross weight: Approx. 1,758 g
Package Options
Standard Package
- 915nm 130W portable laser igniter
- 20X focusing lens
- Charger
- Standard protective packaging

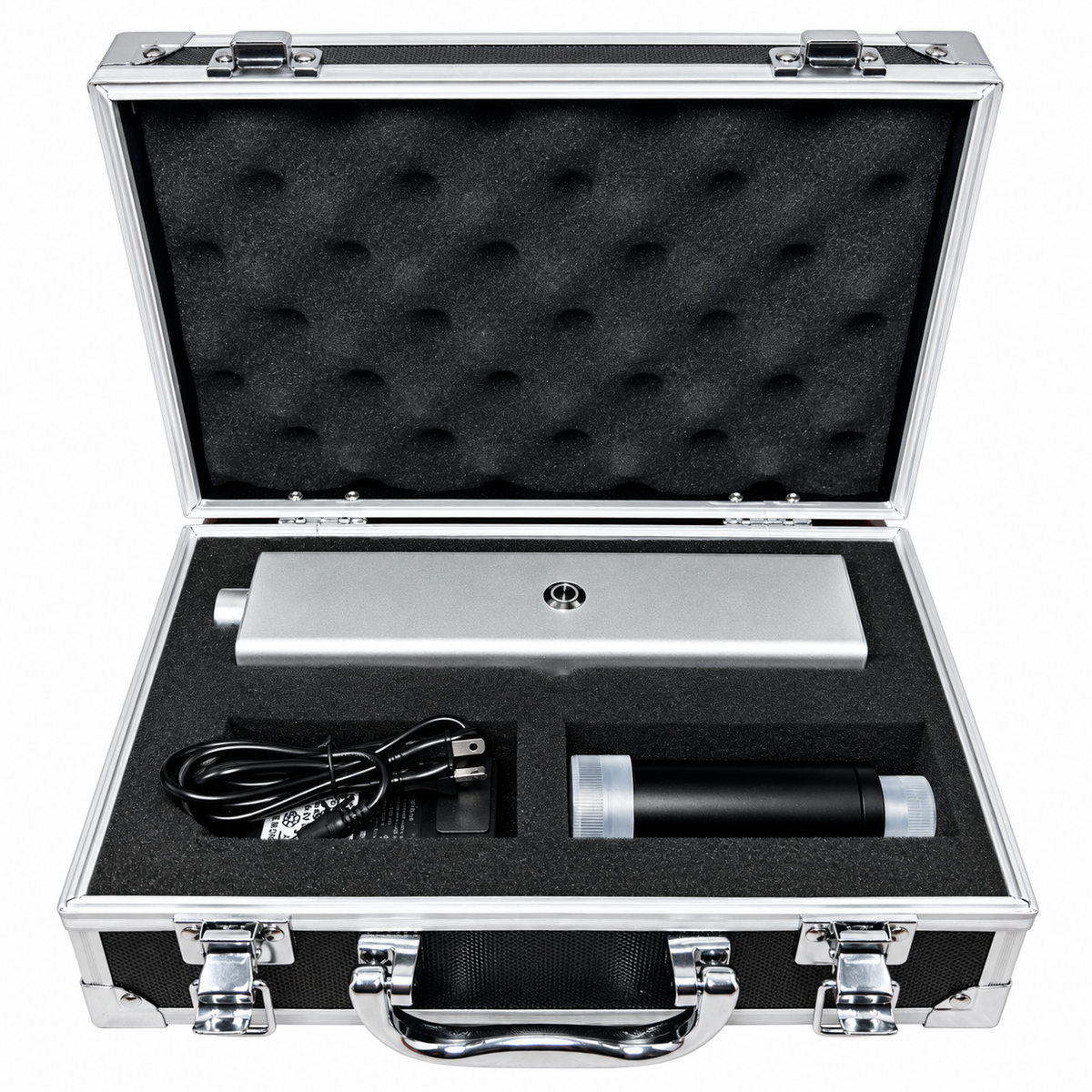

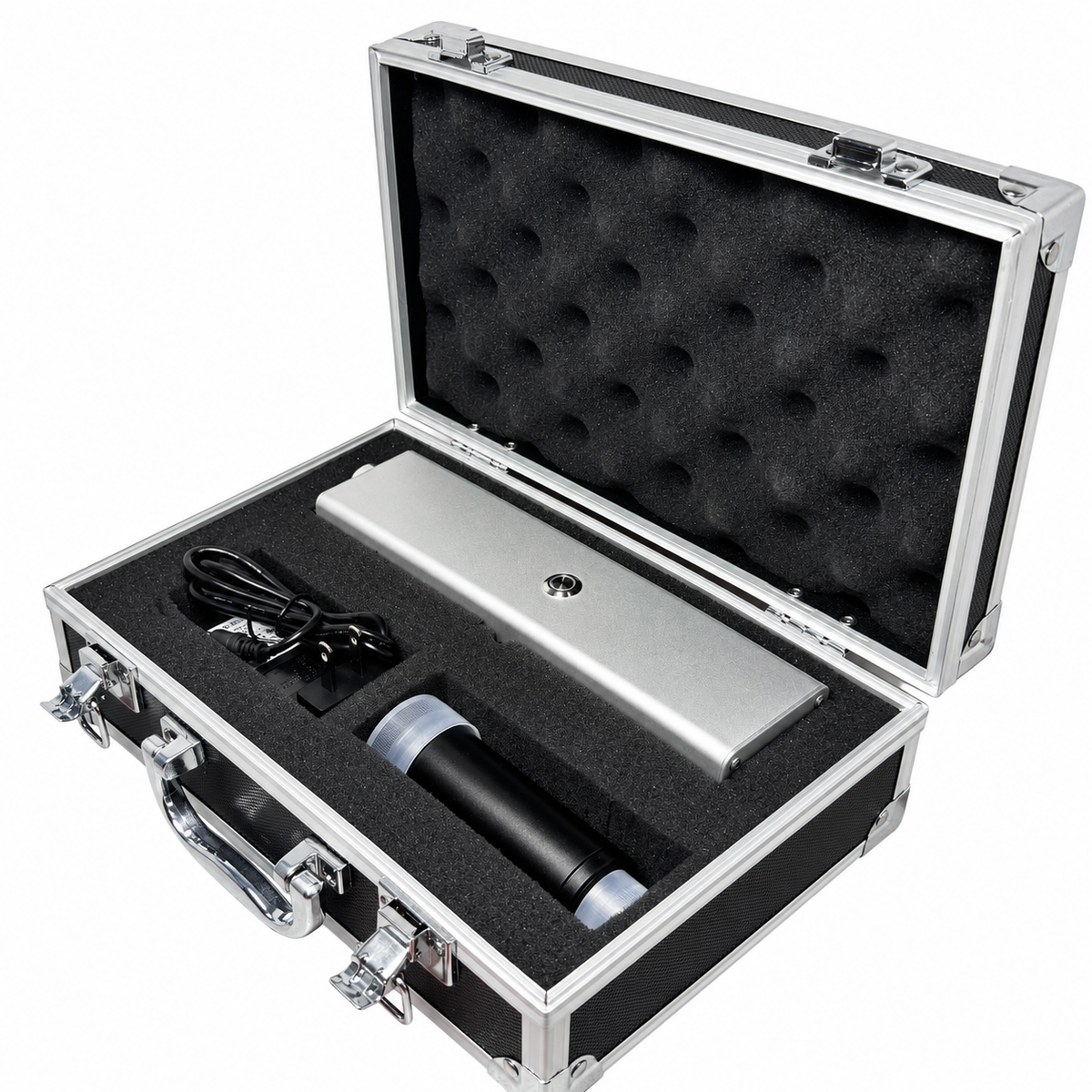

With Carrying Case
- 915nm 130W portable laser igniter
- 20X focusing lens
- Charger
- Protective carrying case
A compatible power plug adapter can be supplied according to the destination country when required.
⚠️ Professional Use Only – Not a Toy
This is a high-power professional laser device and is NOT a toy. It is intended only for trained professional users in controlled environments.
The 915nm infrared laser beam is largely invisible to the human eye and can cause serious and permanent eye or skin injury. Never aim the device at people, animals, vehicles, aircraft, reflective surfaces, or unintended targets.
Appropriate laser safety eyewear rated for 915nm and suitable protective measures are required during operation. Keep out of reach of children and unauthorized users. Use only in accordance with applicable laws and regulations.
