980nm 300mW Infrared Light Laser Module High Power Laser Light Adjustable Focus
Specifications:
Wavelength:980nm
Output Band: Infrared Invisible Light
Power:300 mW
Spot Mode:Dot (rectangular)
Working Voltage:9-12VDC
Working Current:<1A
Modulation Frequency:TTL
Output Port:0-5V
Input:1HZ-100KHz
Working Temperature:-10 ° C ~ 32 ° C

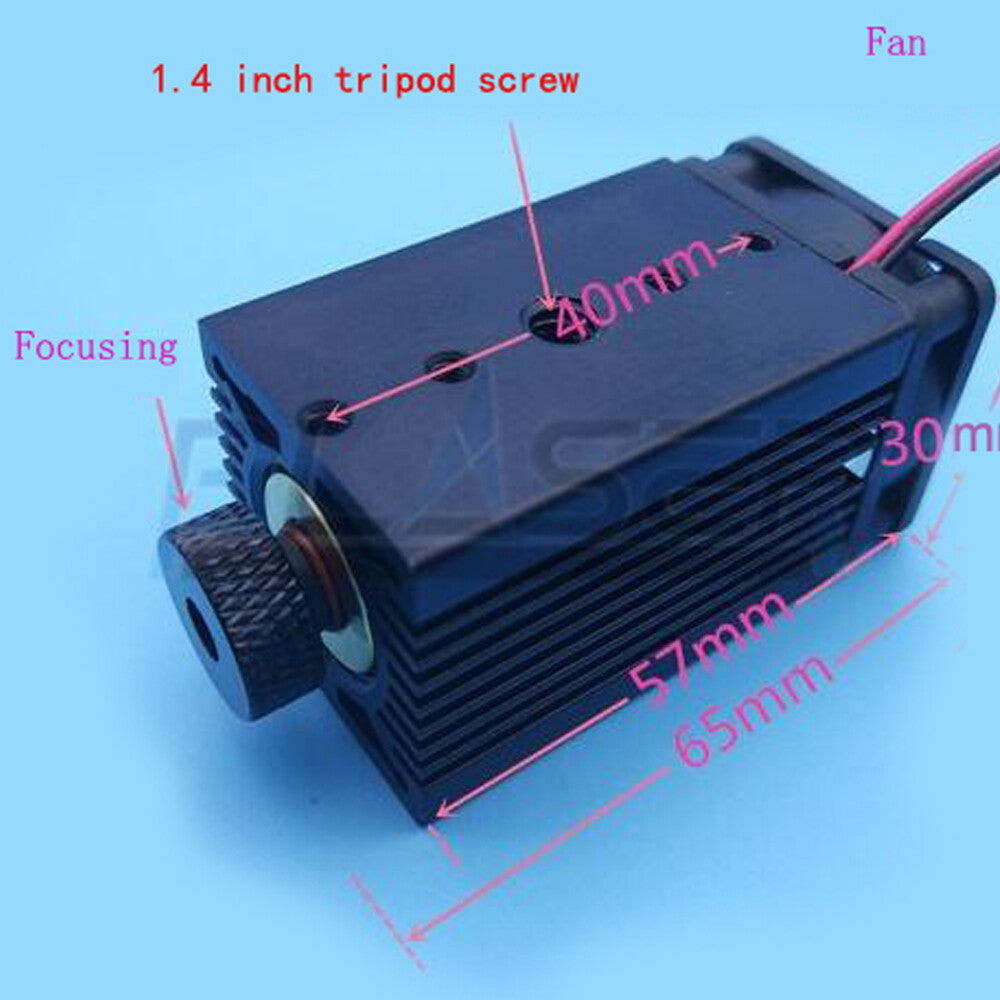

Dimensions:30*30*55/65mm
Storage Temperature:-20 ° C ~ 85 ° C

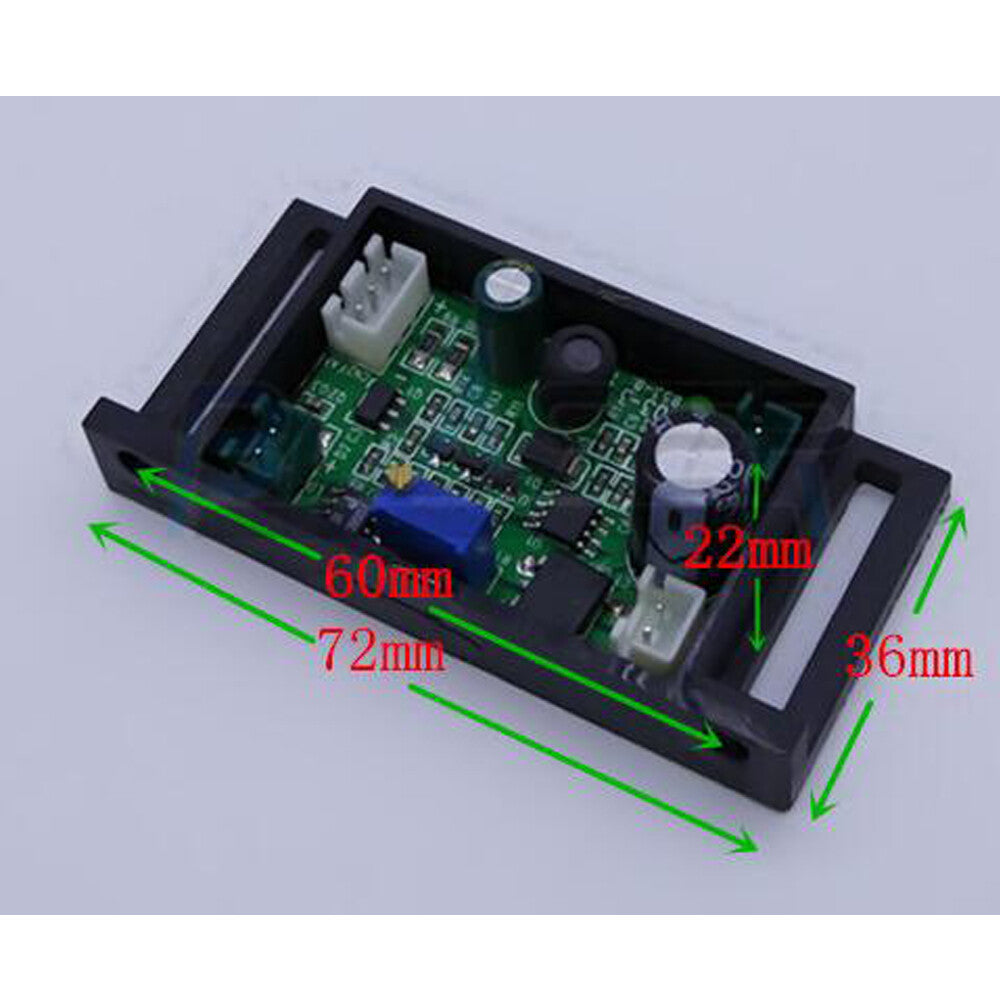

Power Supply Size:72*36*22mm
Service Life:5000~8000H
Material Color:Alumina Black
Mode of operation:continuous laser
Product Description:
1. The lens adopts F40 flat convex
2. Working distance 100mm-3000 meters
3. Can adjust the spot size as needed
Prompt:
When the laser is working for a long time, it needs to add metal heat sink, fan or bracket to make the surface temperature of the module below 35 degrees. If the temperature exceeds this temperature range, the laser will age rapidly. Wear laser safety glasses when using.
Package:
1*980nm 300mw Infrared Light Laser Module
