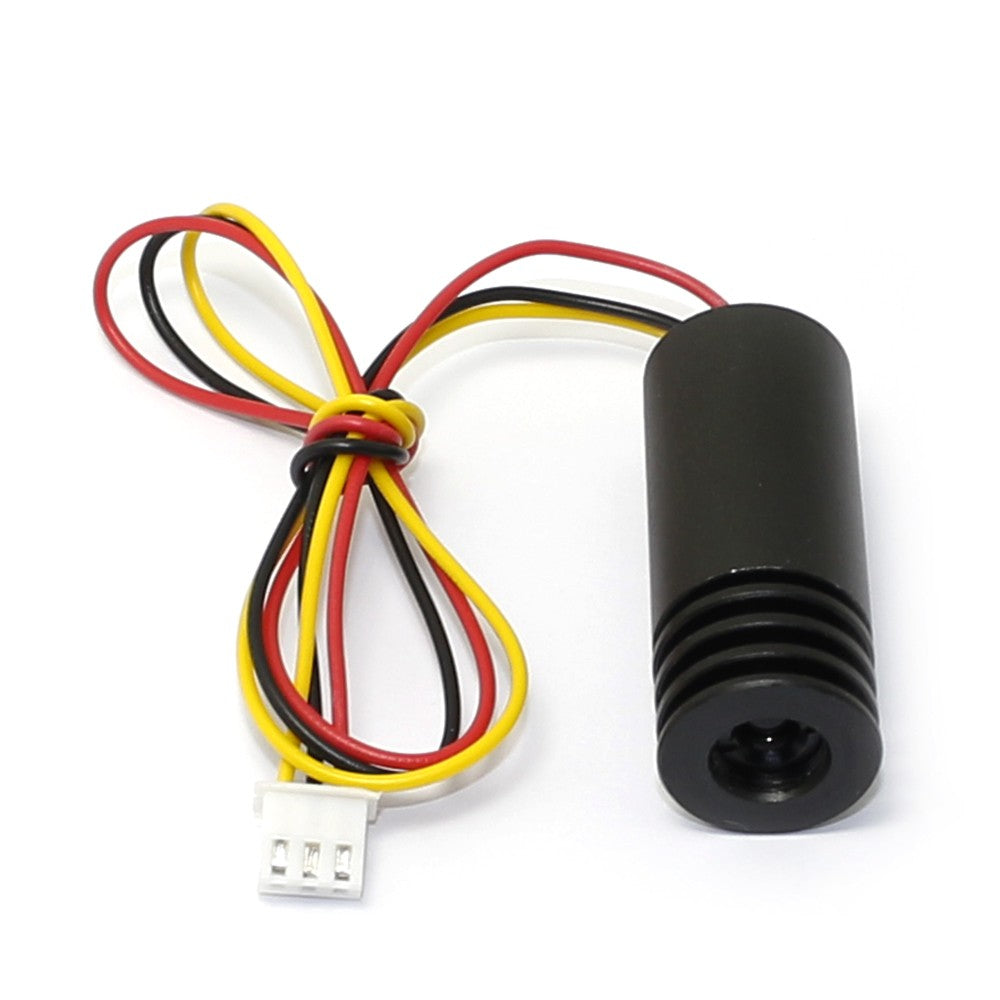

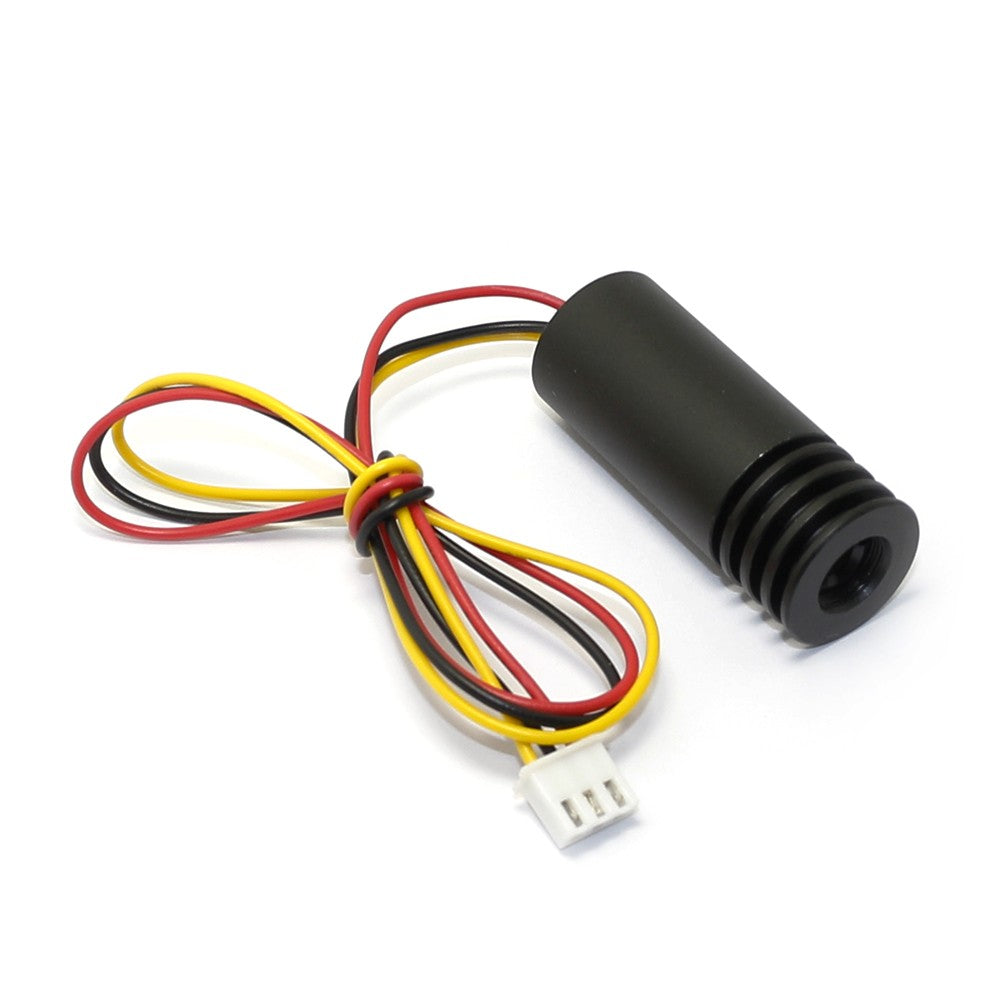

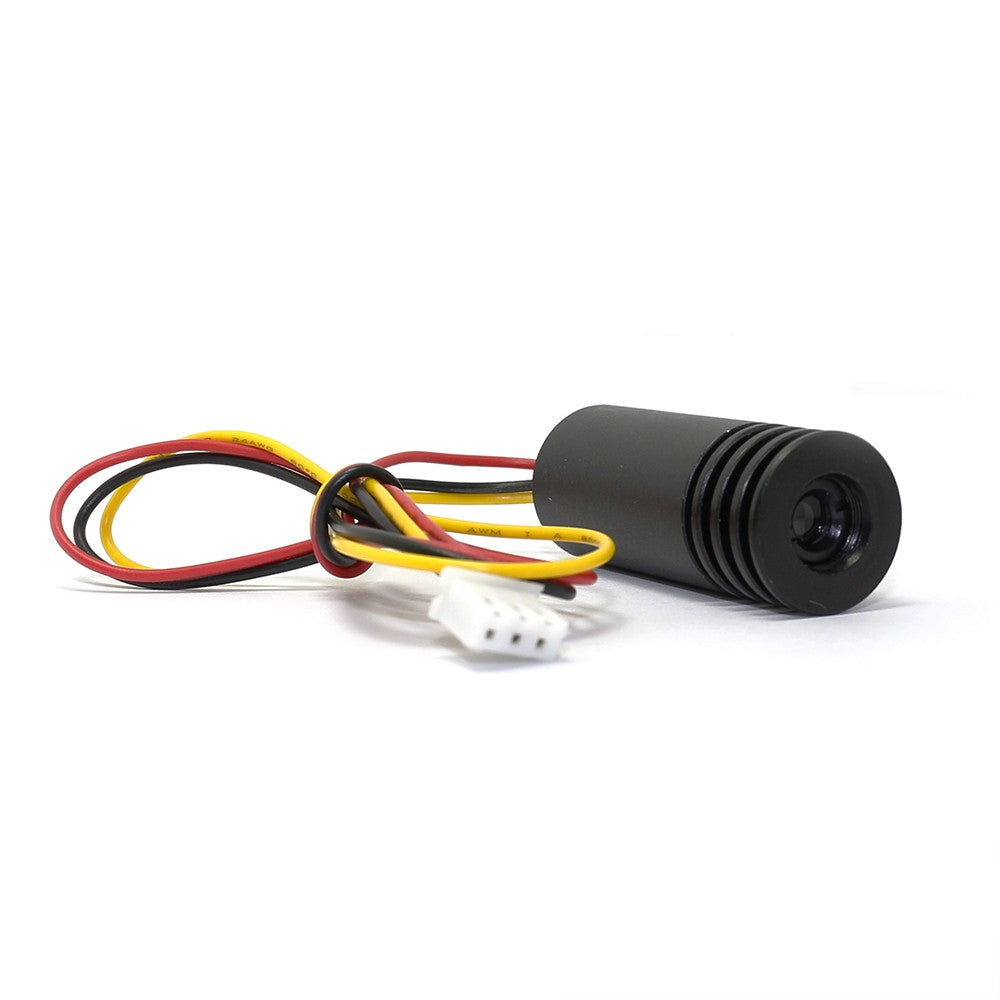

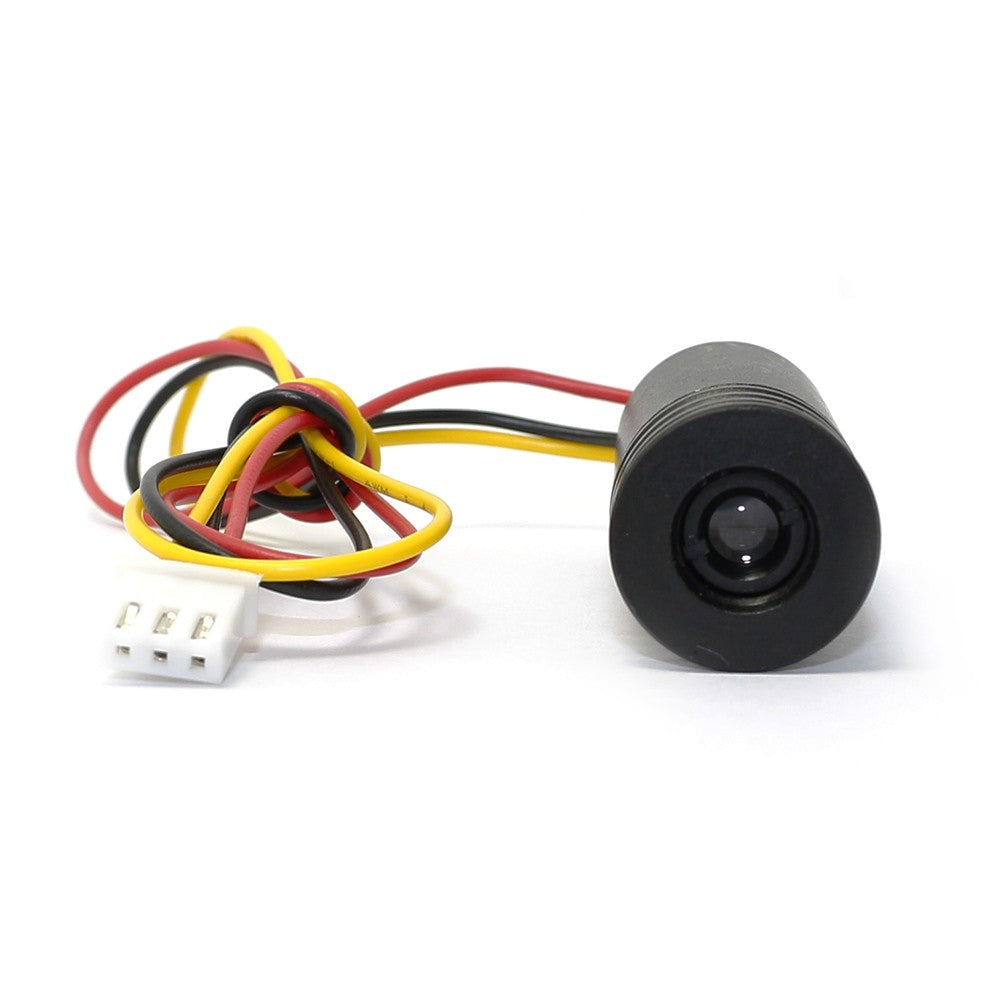

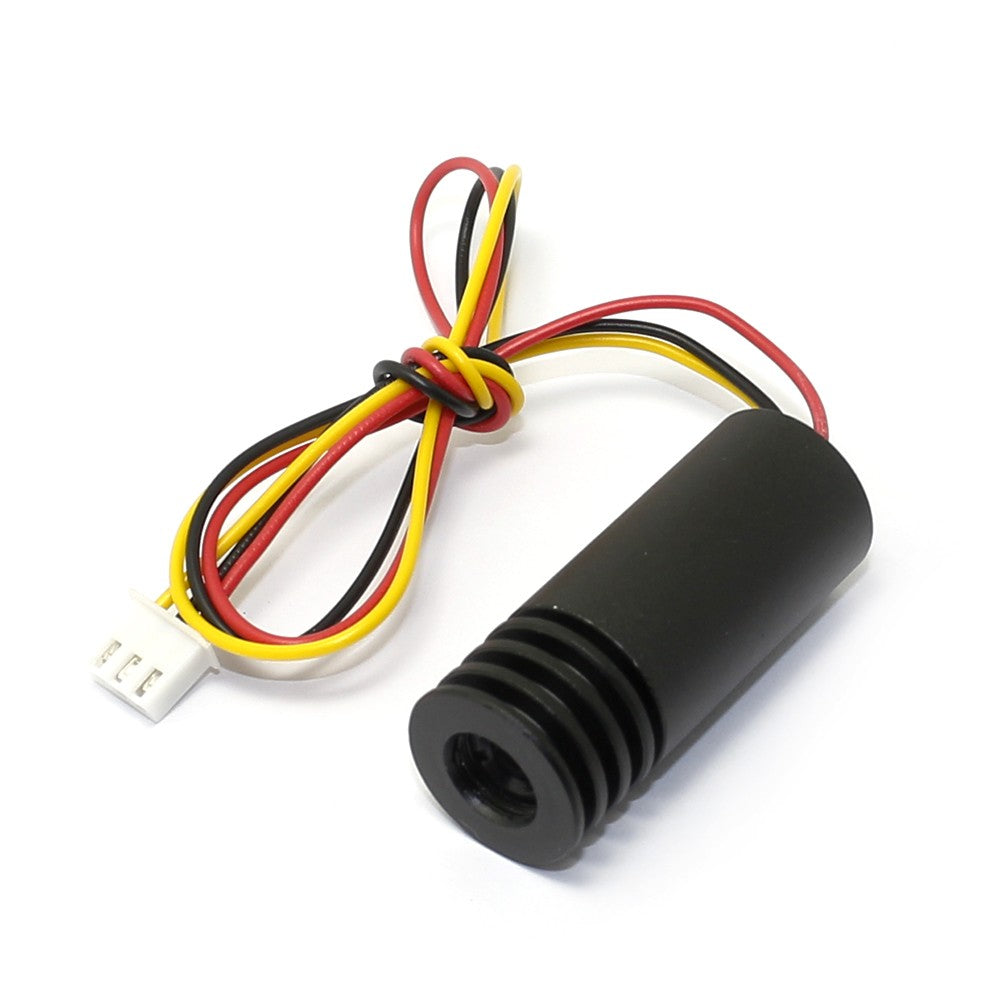

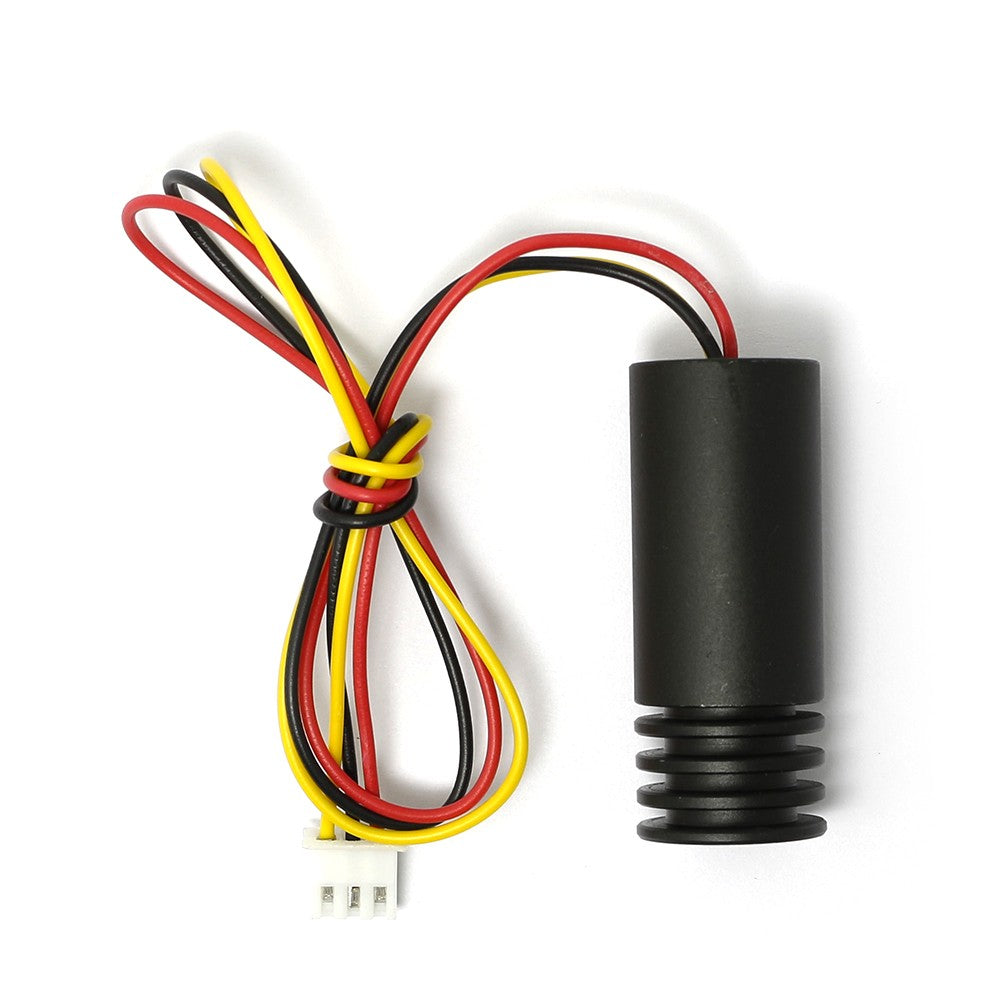

980nm Infrared IR Laser Dot Module 5VDC 120mw with TTL 100KHz

Specification

Wavelength 980nm

Ouptut Power 120mW

Current <200mA

Power supply 5.0VDC

TTL modulation Voltage 0-5V

TTL frequency 0-100KHz

Dimension: 18mmx45mm

The Lens focus is adjustable, not fixed, can adjust to an appropriate spot size, and then fix it.

Off low, high open, normal status open

Three-wire input, the red line is positive, black line is negative,  TTL signal yellow line is positive

Features:

This 980nm laser module with driver built-in is an industrial electronic component and  used for Industrial testament, Lab.

The laser module is and precise and sensitive optical instrument. Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray. Be sure the operator has experience in optics DIY or testing.

Package

1 x  980nm 120mw Infrared IR Laser Dot Module w/TTL 100KHz
