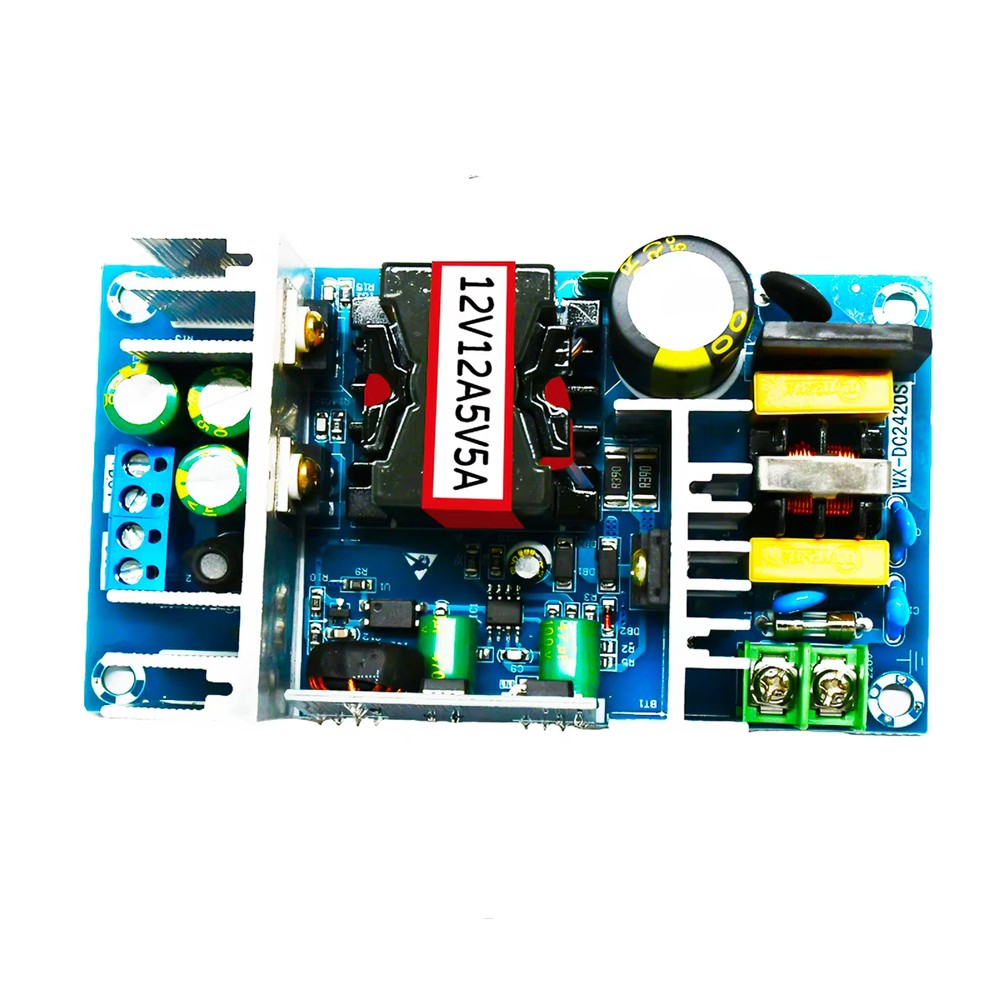

AC-DC Isolated Dual Channel Power Board Module 12V12A/5V5A Switching Supply

$25.00

~~$29.00~~ $25.00

Sale Sold out

Shipping calculated at checkout.

Output Voltage DC12V12A/5V5A DC24V6A/5V5A DC24V6A/12V5A DC36V5A/5V5A DC36V4A/12V5A

Quantity

Product Description (DC2420S Dual Isolated AC-DC Power Module)

Model: DC2420S
Condition: New

This DC2420S is a compact dual-channel isolated AC/DC switching power supply with integrated built-in power board, ideal for equipment that requires two different DC voltages simultaneously.

Input Specifications

Wide universal AC input: 110V~245V, compatible with 50Hz/60Hz mains power worldwide.

Output Specifications

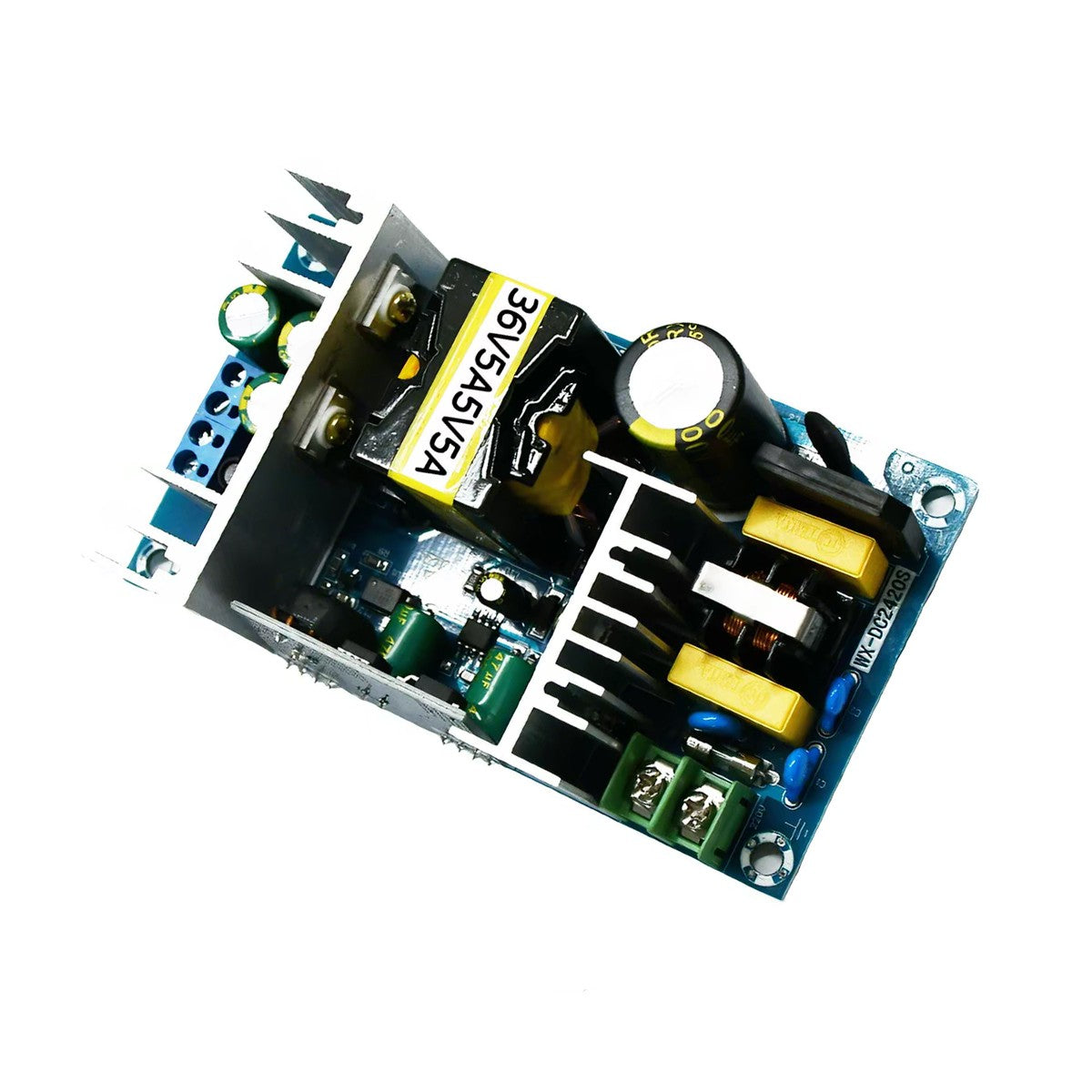

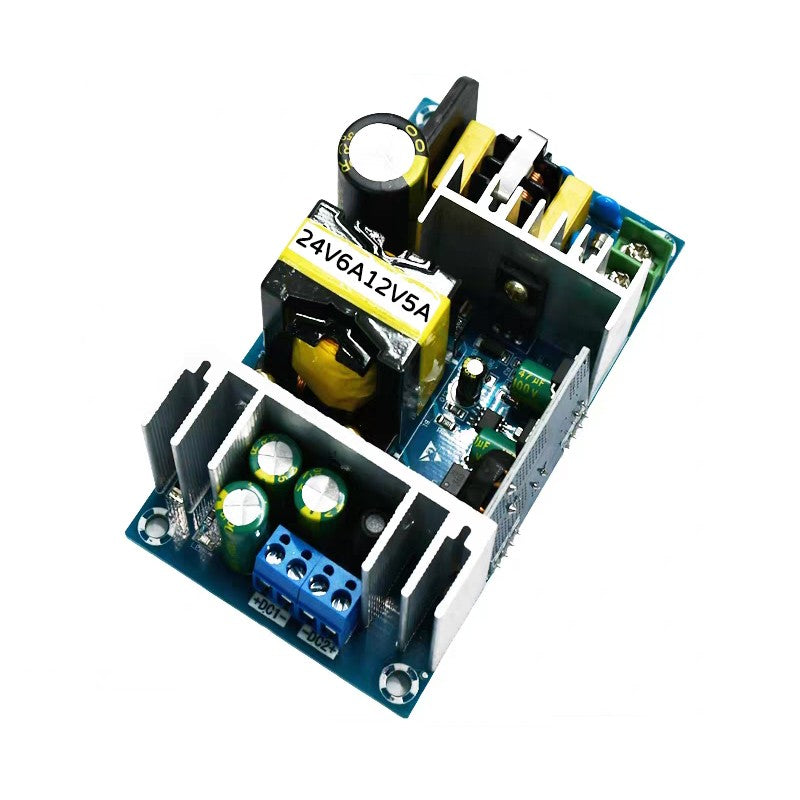

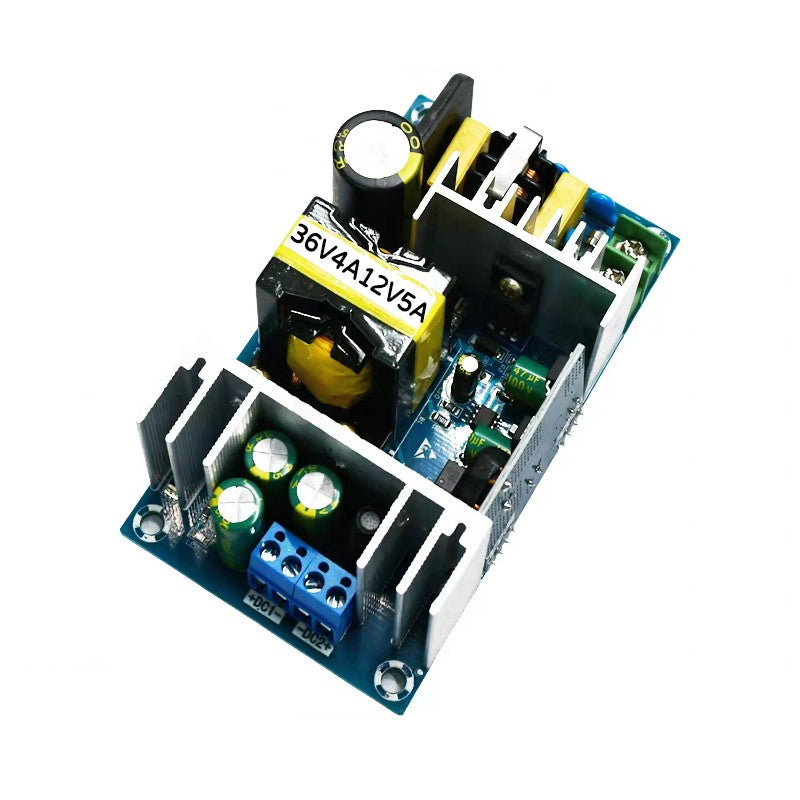

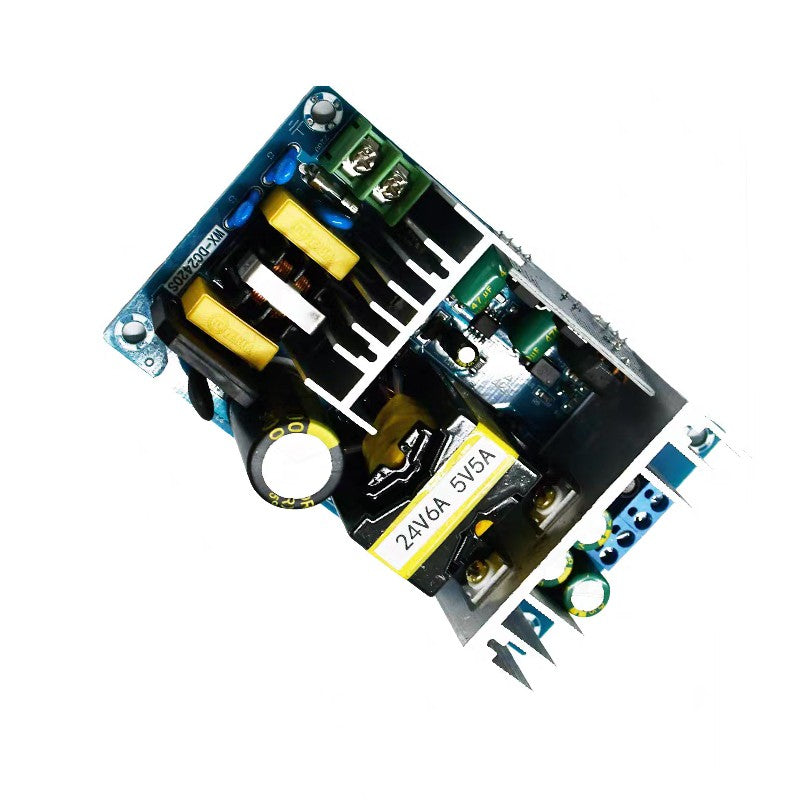

DC12V12A (main) / 5V5A (auxiliary); DC24V6A(main) / 5V5A(auxiliary); DC24V6A(main) / 12V5A(auxiliary); DC36V5A(main) / 5V5A(auxiliary); DC36V4A(main) / 12V5A(auxiliary) (Optional)
Peak Power: 200WDual isolated outputs deliver clean, stable voltage with low ripple, and the two channels work independently without mutual interference.

Full Protection Functions

Built-in complete protective circuits against overload, short circuit and over-temperature. The power supply will automatically cut off output under abnormal conditions to protect the power unit and your connected loads from burnout and damage.

Compact Size & Easy Installation

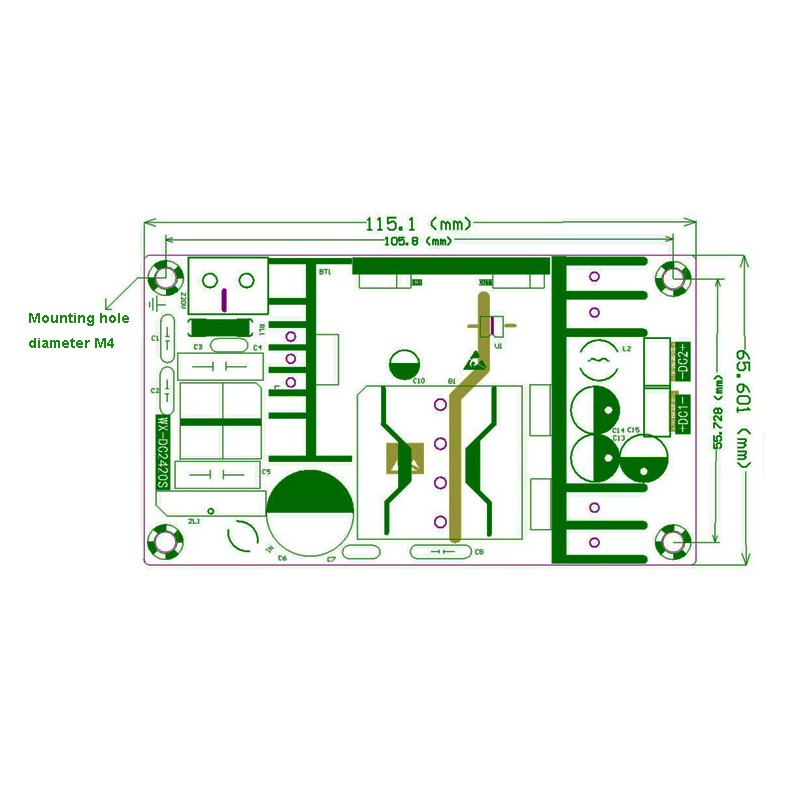

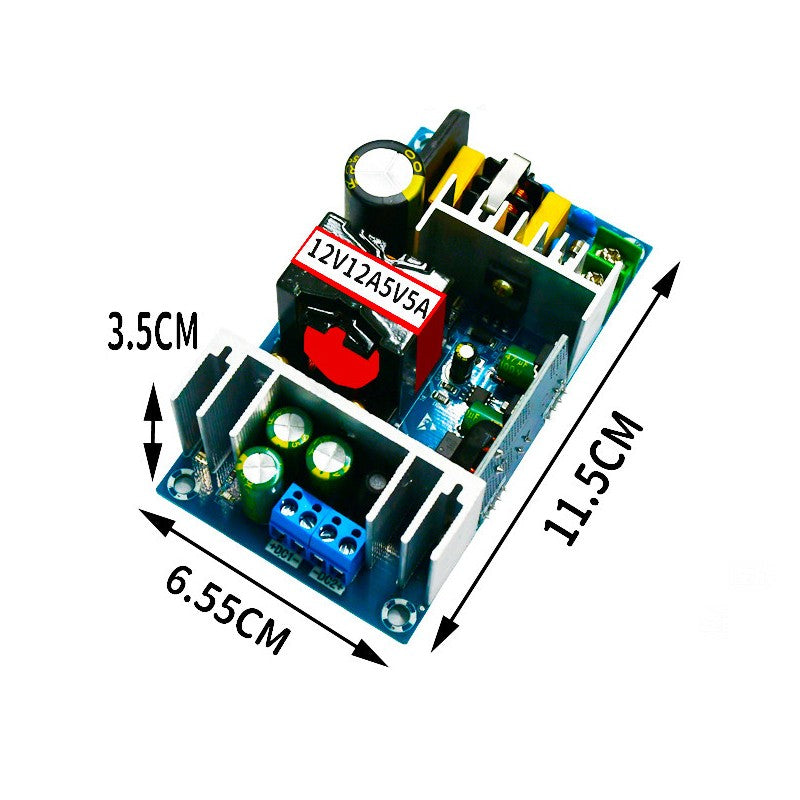

Overall dimension: 11.5cm × 6.5cm × 3.5cm, ultra-small footprint perfect for built-in installation inside limited-space devices. Standard M4 mounting holes are reserved for quick, secure fixation.

Widely applicable to industrial control systems, monitoring equipment, smart home devices and other dual-voltage powered devices.

Parameters

Model: DC2420S
Condition: New
Input: AC 110~245V 50/60Hz
Dual Isolated Output: DC12V12A (main) / 5V5A (auxiliary);DC24V6A(main) / 5V5A(auxiliary); DC24V6A(main) / 12V5A(auxiliary); DC36V5A(main) / 5V5A(auxiliary); DC36V4A(main) / 12V5A(auxiliary)
Peak Power: 200W
Protections: Overload / Short Circuit / Over Temperature
Size: 11.5*6.5*3.5cm
Mounting Hole Diameter: M4
