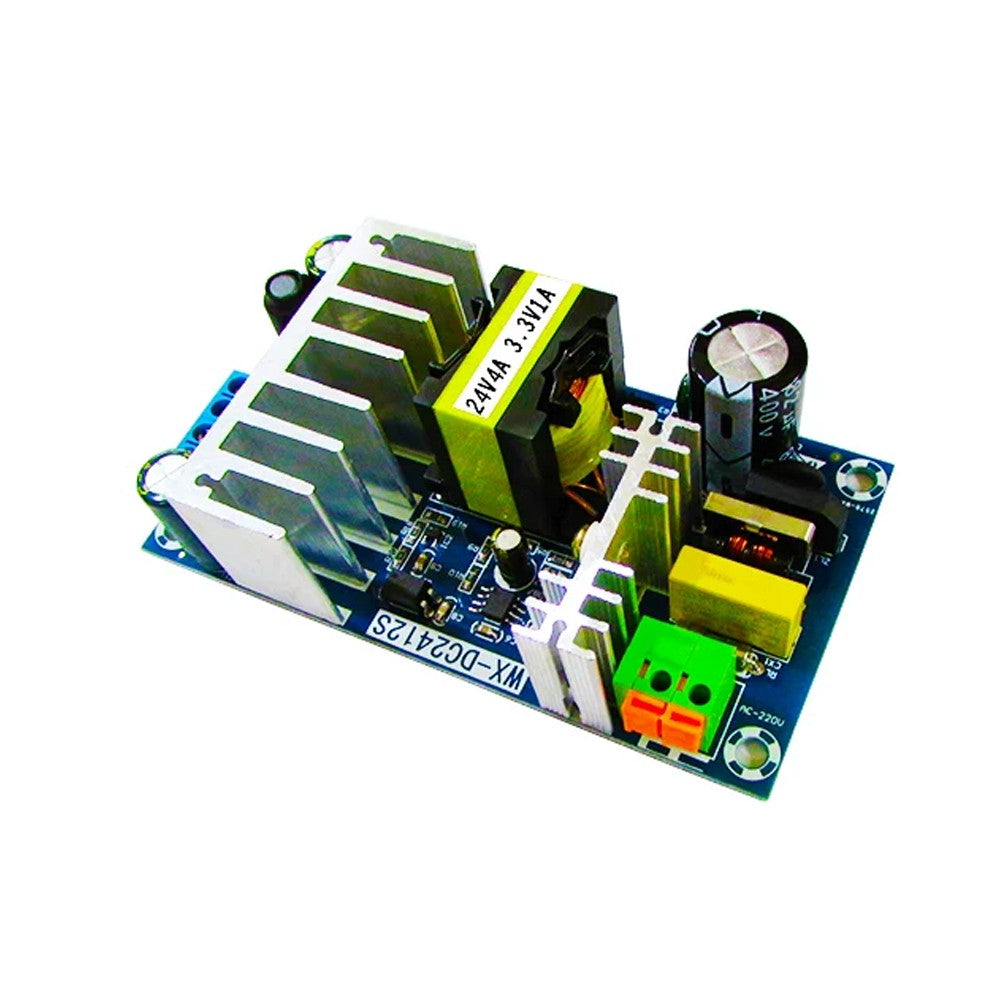

AC-DC Isolated Dual Output Switching Power Supply Bare Board Module 24V 4A & 3.3V 1A, 120W Peak Dual Channel Power Module DC2412S

AC-DC Isolated Dual Output Switching Power Supply Bare Board Module 24V 4A & 3.3V 1A, 120W Peak Dual Channel Power Module DC2412S

$23.00
$26.00 $23.00
Sale Sold out
Shipping calculated at checkout.

Product Description

Model：DC2412S Isolated Dual-Channel Switching Power Supply Bare Board Module

This AC-DC isolated bare board power module features dual independent outputs: main channel 24V 4A and auxiliary channel 3.3V 1A, with 120W peak power. Wide AC input range makes it suitable for global industrial, automation, equipment control and DIY electronic projects.


✅ Key Features

  • Isolated AC-DC dual output design

  • Wide universal input: AC 90V ~ 265V, 50/60Hz

  • Dual channel output: Main DC 24V 4A, Auxiliary DC 3.3V 1A

  • Built-in multiple protection circuits: Overload protection, short-circuit protection, overtemperature protection

  • Bare board open-frame structure, easy to install and integrate into devices

  • Stable output, low ripple, high conversion efficiency

  • Compact size, saves installation space


📌 Specifications

  • Model: DC2412S

  • Input Voltage: AC 90~265V

  • Input Frequency: 50Hz ~ 60Hz

  • Output 1 (Main): DC 24V, Rated 4A

  • Output 2 (Auxiliary): DC 3.3V, Rated 1A

  • Peak Power: 120W

  • Protection: Overload / Short Circuit / Overtemperature Protection

  • Structure: Bare Board Module

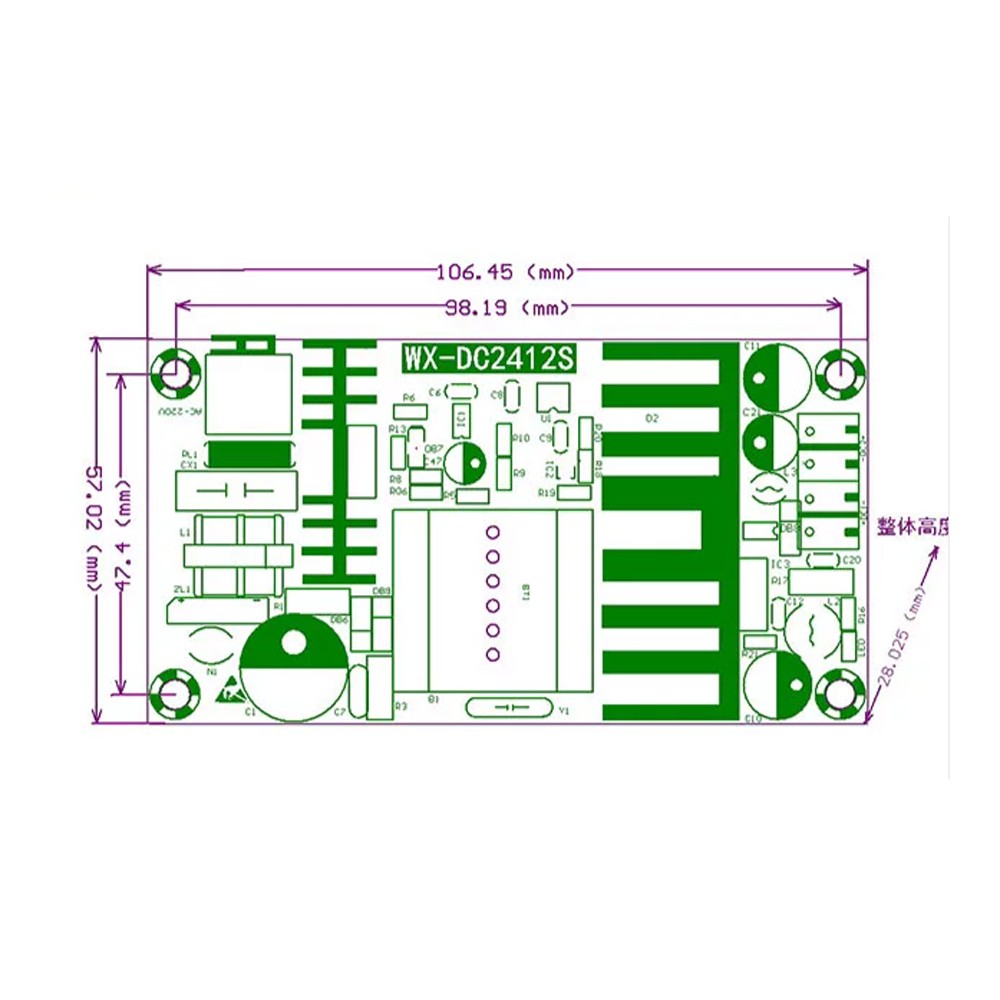

  • Overall Dimension: 10.65 × 5.7 × 2.8 cm (L × W × H)



⚠️ Notes

  1. Please confirm voltage matching before power on; avoid long-term operation under continuous peak load.

  2. Ensure good heat dissipation during long-time working.

  3. Professional wiring operation is recommended for industrial equipment installation.
