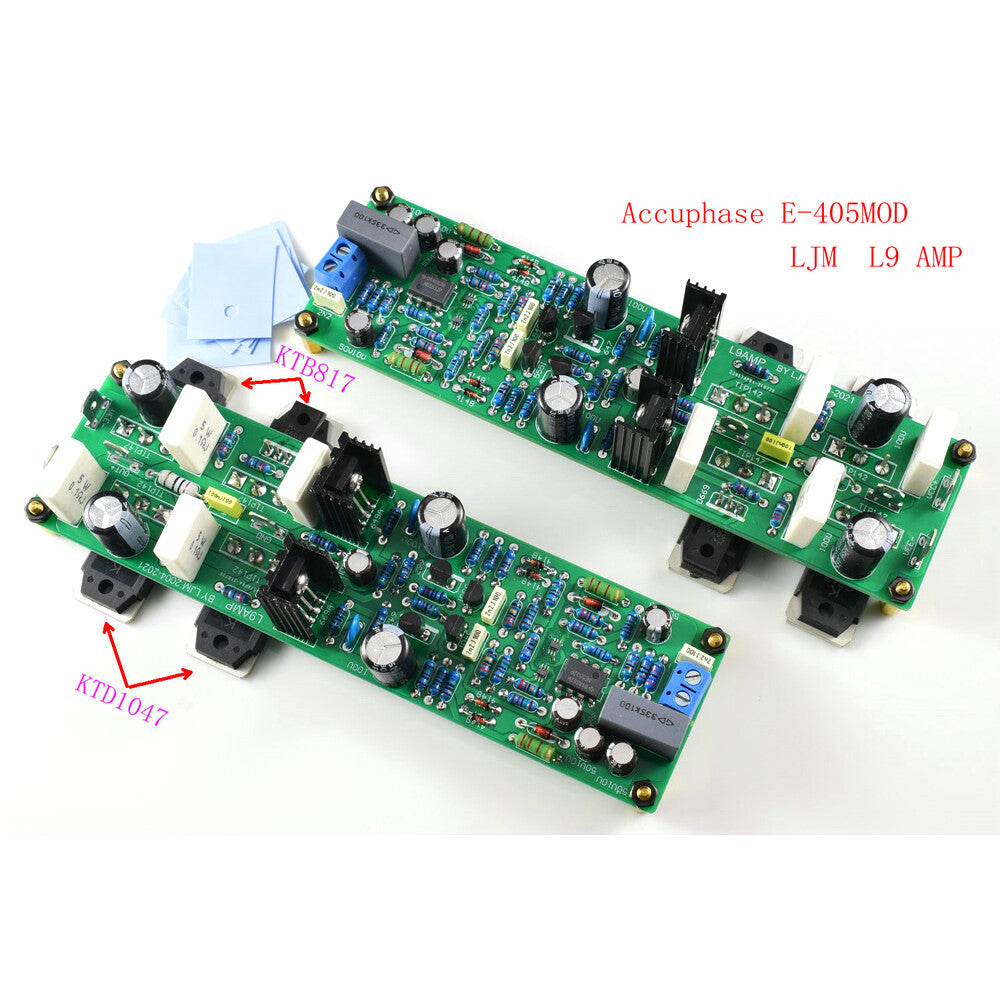

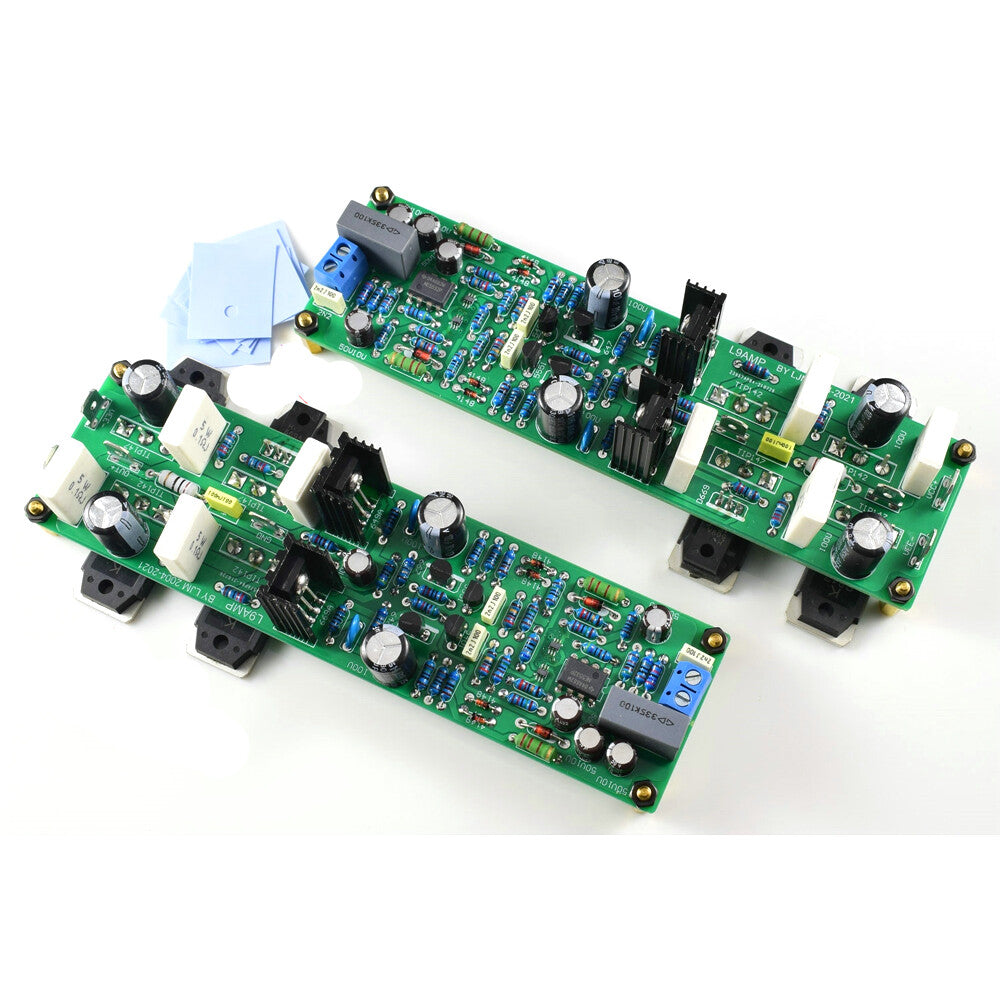

E405-MOD Modified Front and Rear Merged Power Amplifier Loose Parts Or Finished Product Board
Specification:
Power supply voltage:+-25V to+-55V
Maximum output power: 150W 8 R
Voltage gain: 90

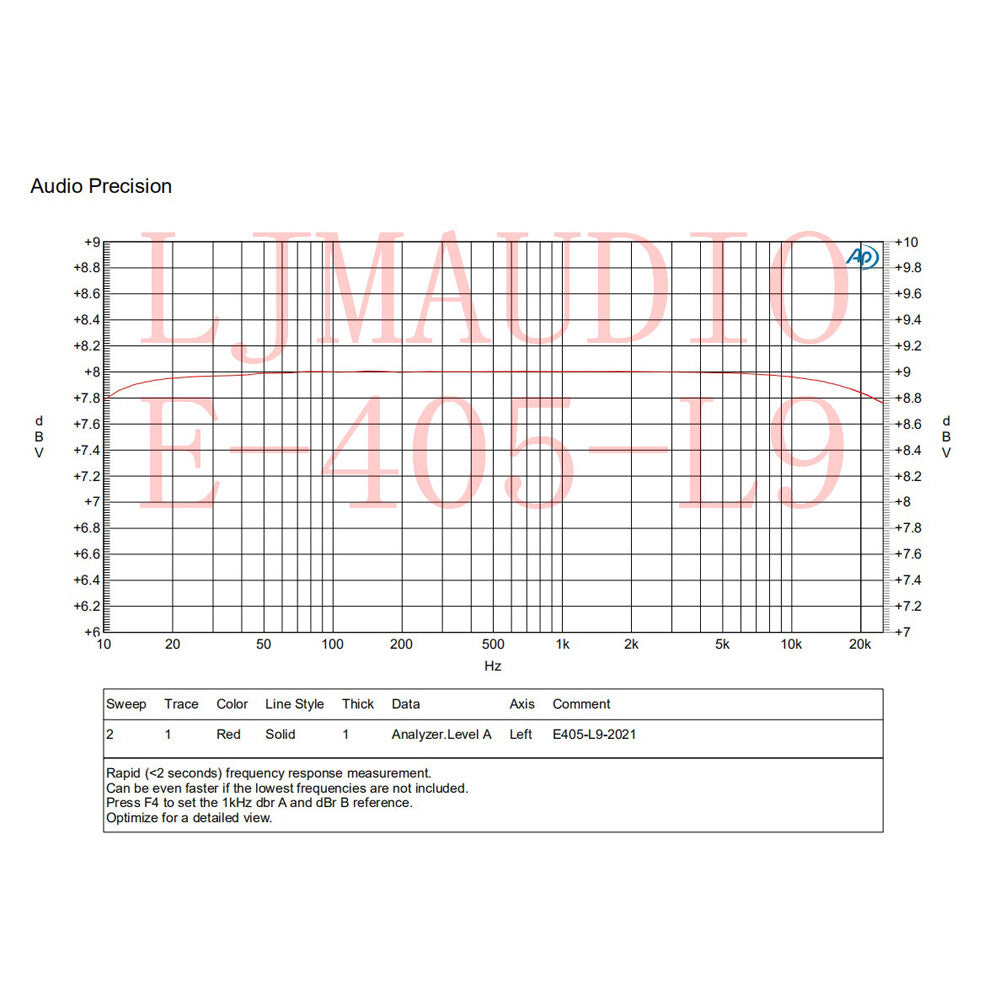

Frequency response: 20HZ-0.05DB/20KHZ -0.15DB.

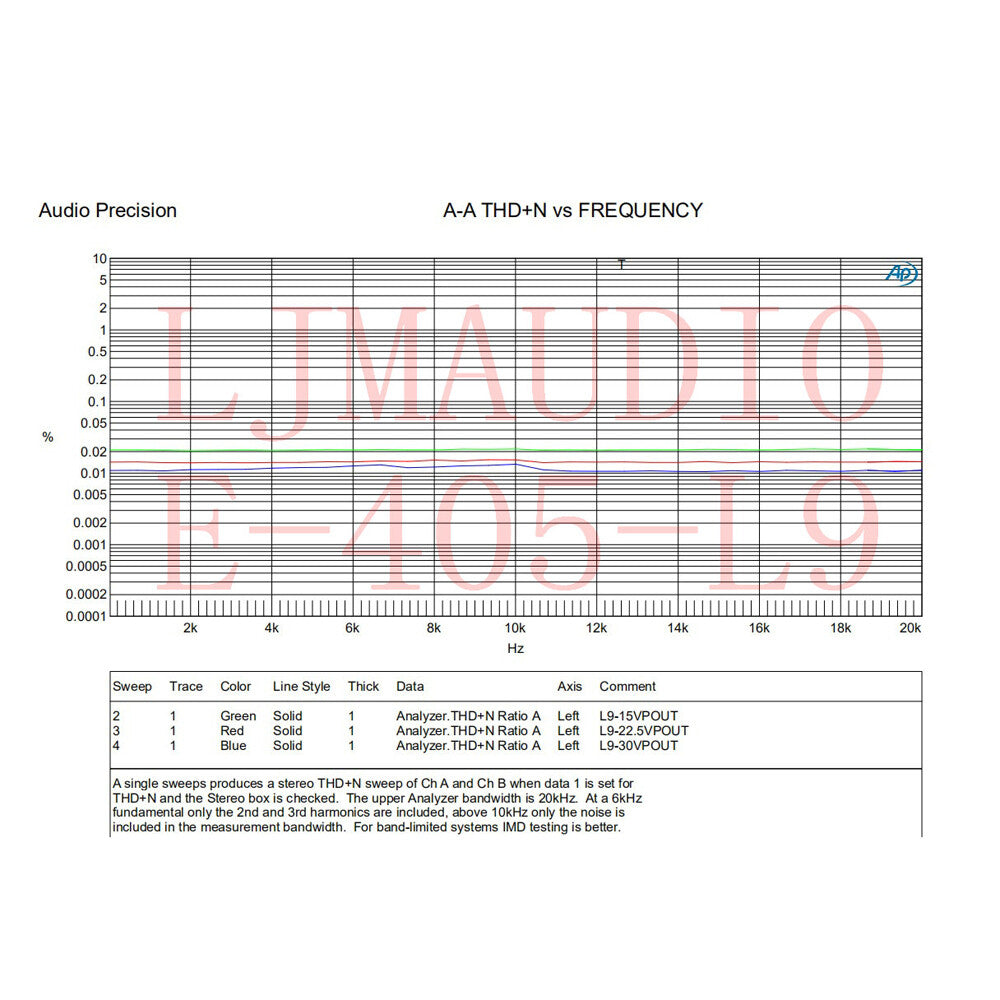

THD+N:<0.02% 50W8R

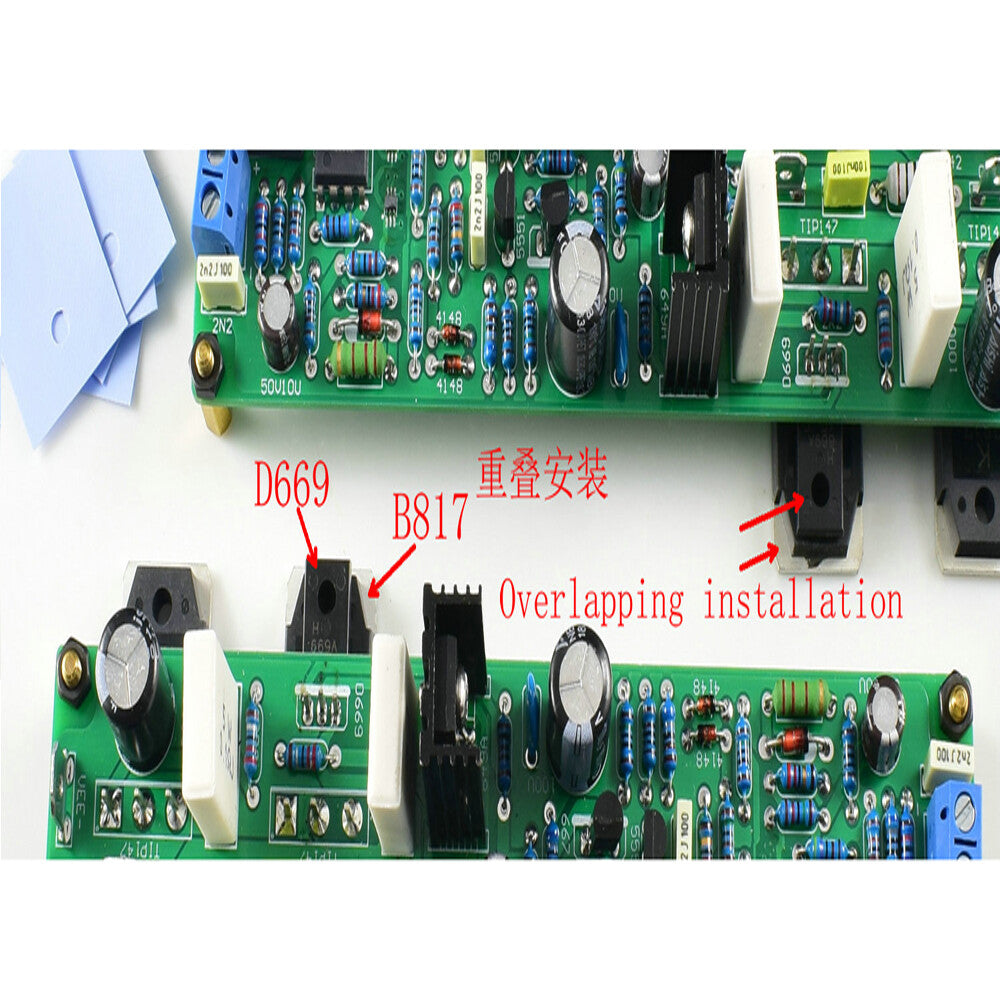

Using imported original NE5532 as the front-end amplifier, DC servo DC SERVER circuit. The output power tube can be paired with the original KTB817 and KTD1047 pair tubes.
Package:
1x Power Amplifier
