AD16-bit 500kSPS Single/Bipolar Input 8-Channel SAR/ADC Data Acquisition Module

AD16-bit 500kSPS Single/Bipolar Input 8-Channel SAR/ADC Data Acquisition Module

$99.00
$109.00 $99.00
Sale Sold out
Shipping calculated at checkout.

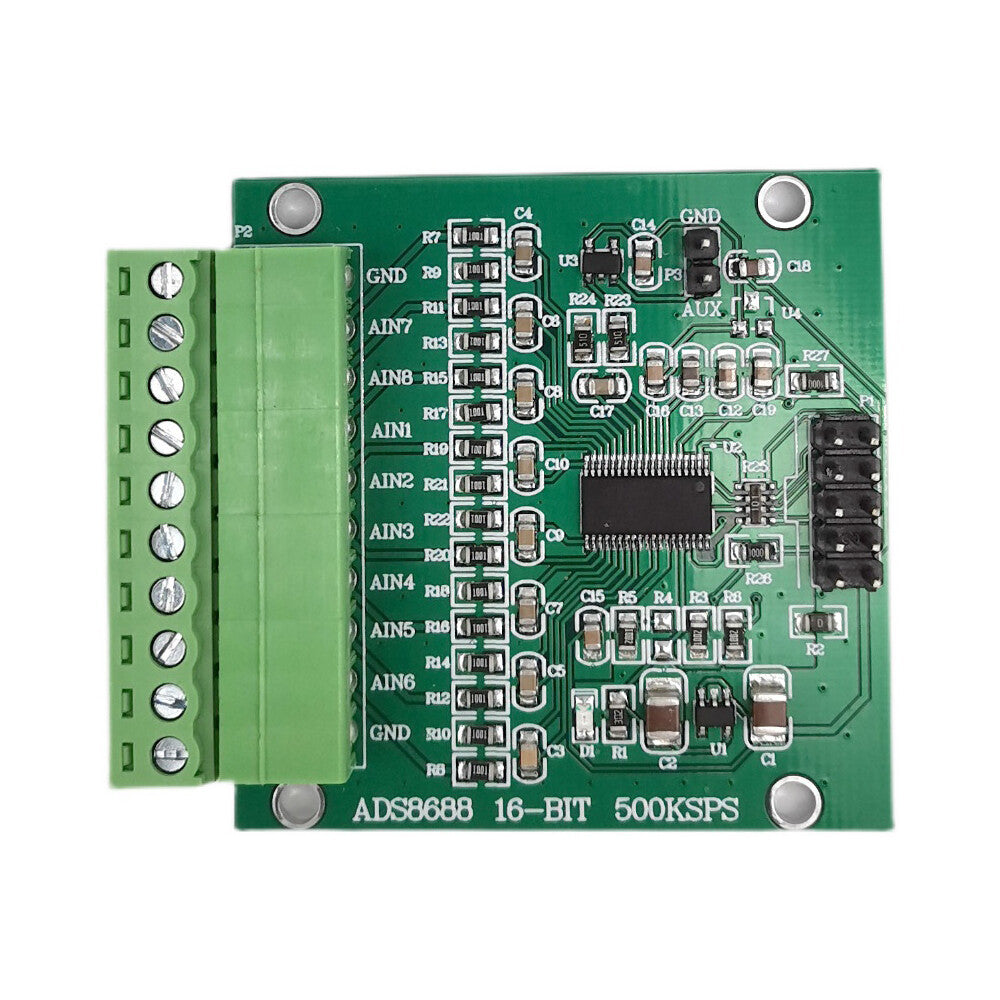

ADS8688 AD16-bit 500kSPS Single/Bipolar Input 8-Channel SAR/ADC Data Acquisition Module
Specification:
Module type: analog-to-digital conversion module (ADC)
Module power supply: 5V
Static power consumption: <2.2mA
Module communication protocol: SPI serial
Input impedance: 1M ohm
Input channels: 8

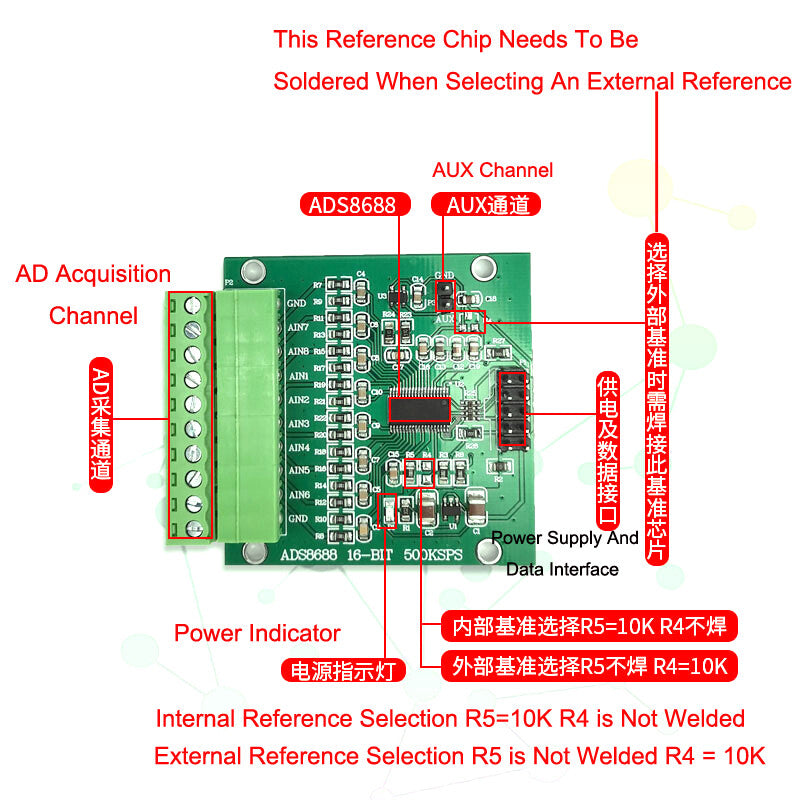

Reference voltage: default internal 4.069V (weldable SOT-23 package external input reference)
Input range: bipolar/unipolar: ±10.24V, ±5.12V, ±2.56V/0V to 0.24V and 0V to 5.12V (software switching range)
Resolution: 16 bits
Chip maximum sampling rate: 500kSPS (total throughput)
The module provides routines: STM32F103RBT6 (analog SPI)


Package:
1*Analog-to-digital conversion module
