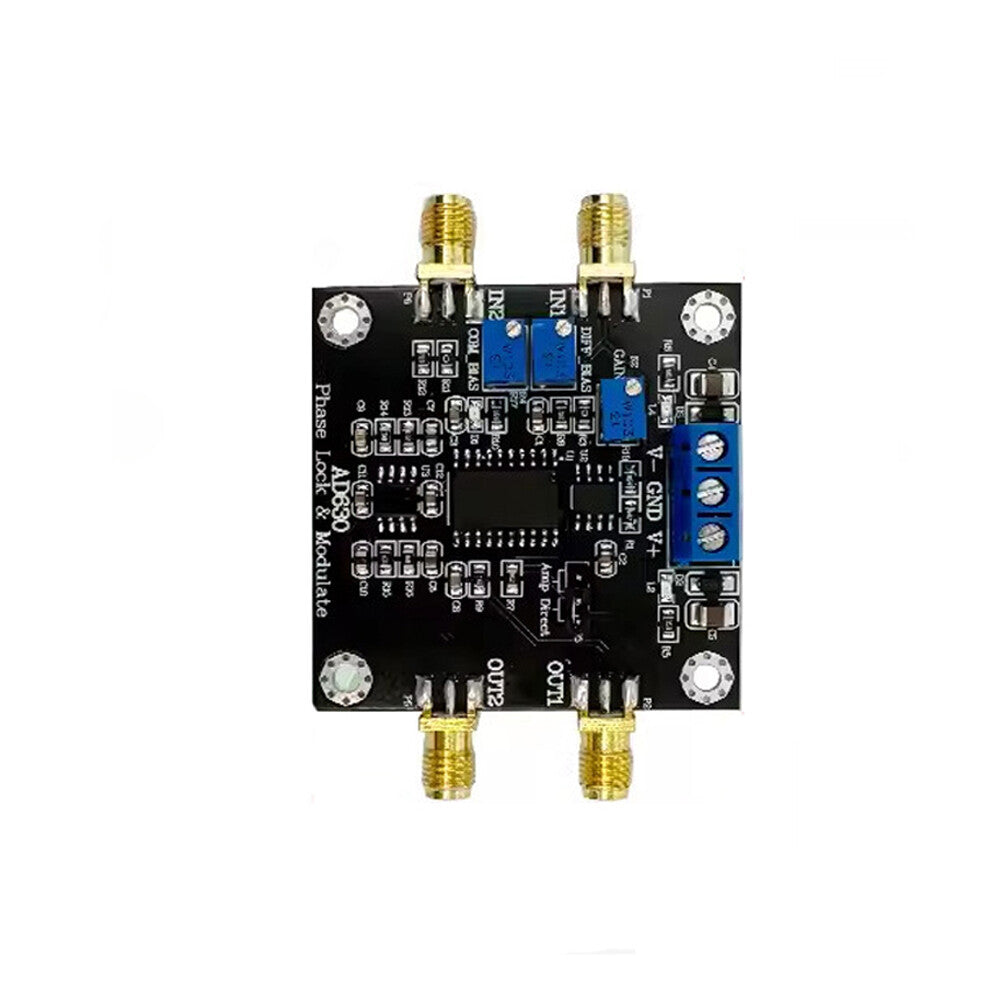

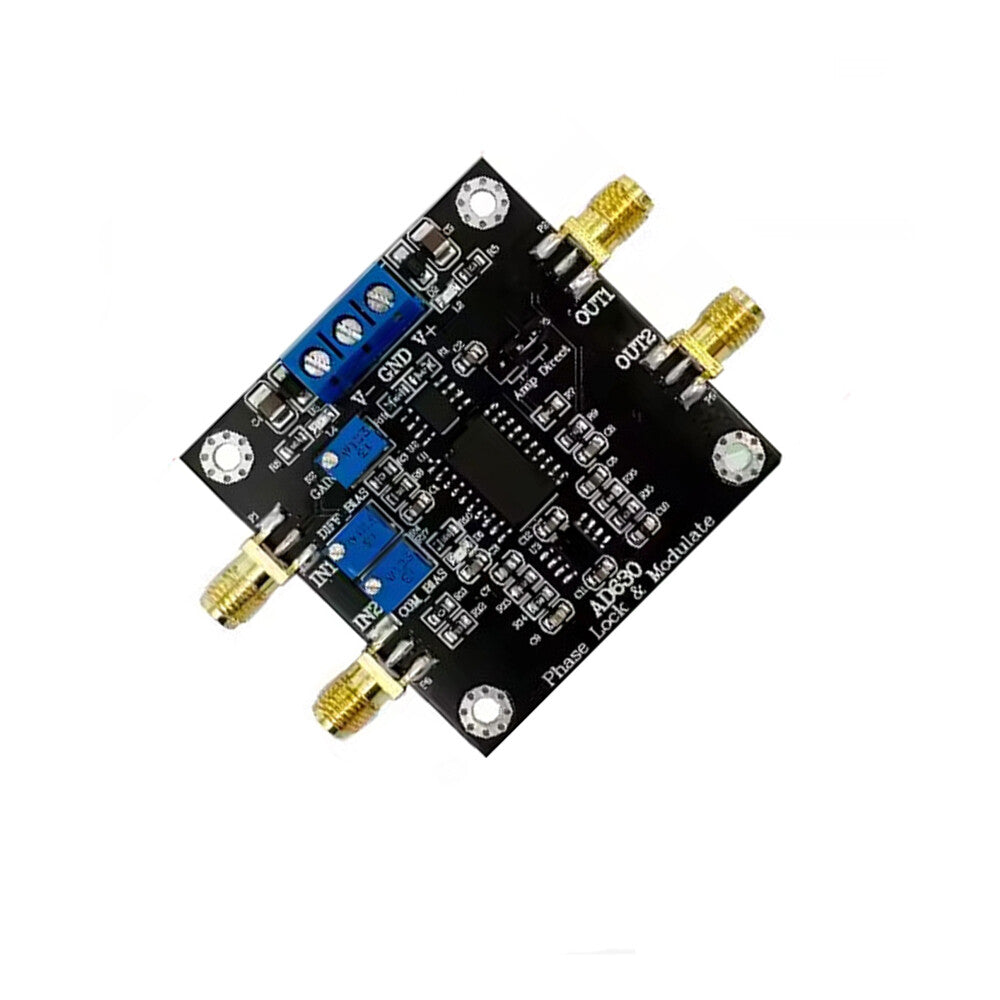

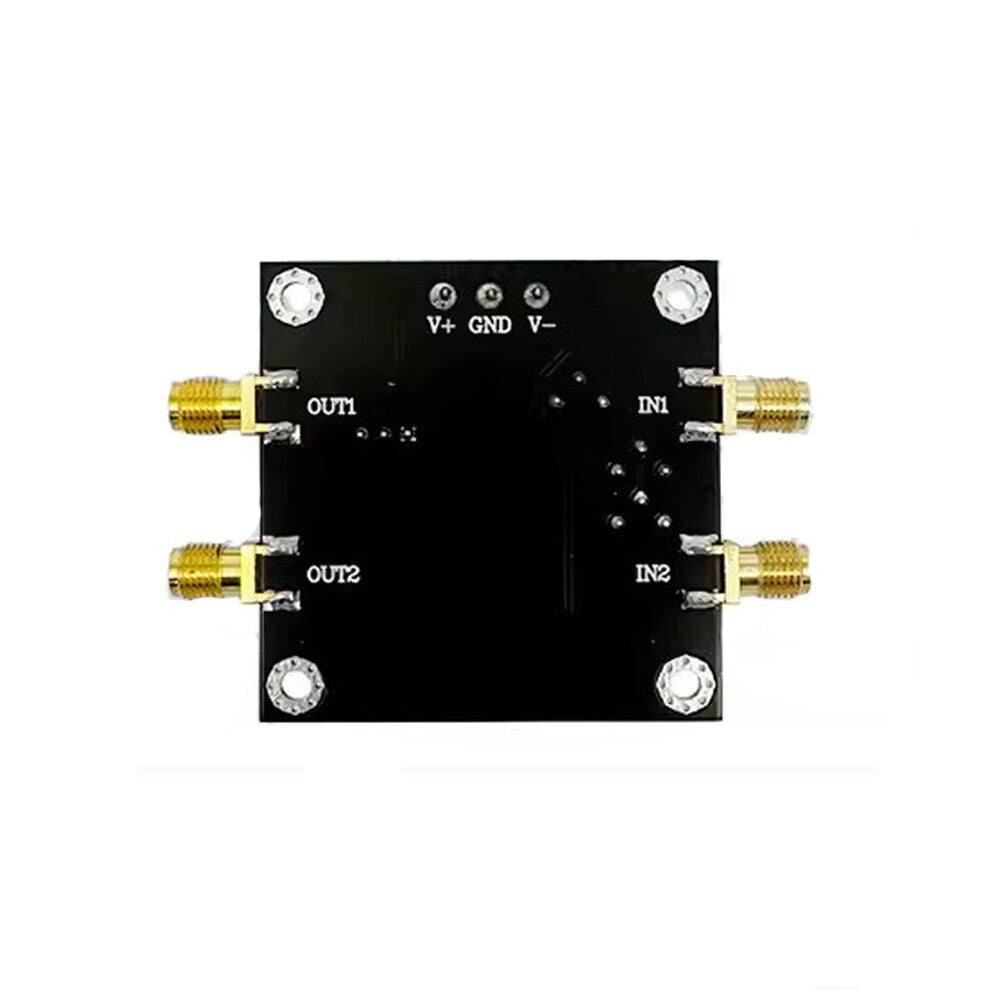

AD630 Balanced Modulator Lock-in Amplifier Signal Modulation Detection Module
AD630 Balanced Modulator Lock-in Amplifier Signal Modulation Detection Module
Regular price
$176.00
Regular price
Sale price
$176.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
AD630 Chip Balanced Modulator Lock-in Amplifier Weak Signal Modulation Detection Module
Specifications:
Name: AD630 Balanced Modulation Amplifier

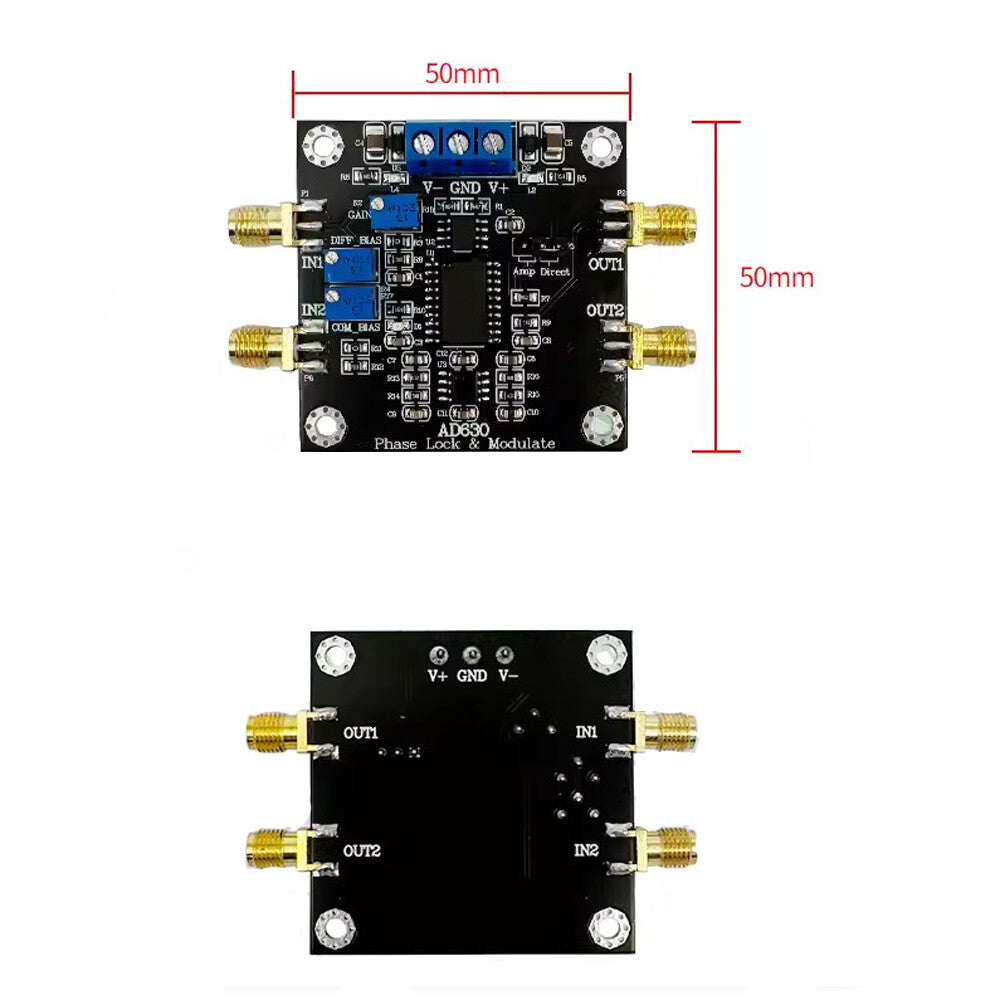

Product size: 50mmx50mm
Power supply voltage: ± 5V~± 15V
Working temperature range: -25~75 ℃
Working current: ± 10mA
Gain bandwidth product: 2MHz
IN2 input range: (V -)+3 to (V+) -1.5 (e.g. positive and negative 5V power supply, reference signal input range: -2+3.5V)
OUT1 output range: 26Vpp, i.e. -13V~+13V (measured under positive and negative 15V power supply)
OUT2 output range: -8V~+8V (output after low-pass filtering, measured under positive and negative 15V power supply)
IN1 input impedance: 10K Ω
IN2 input impedance: 10K Ω
OUT1 output impedance: 51 Ω
OUT2 output impedance: low resistance
Low pass cutoff frequency: 10 Hz
Differential mode offset adjustment:+25mV (equivalent to fine-tuning the input DC offset)
Common mode offset adjustment:+25mV (equivalent to fine-tuning the output DC offset)
Module protection: power supply anti reverse connection protection

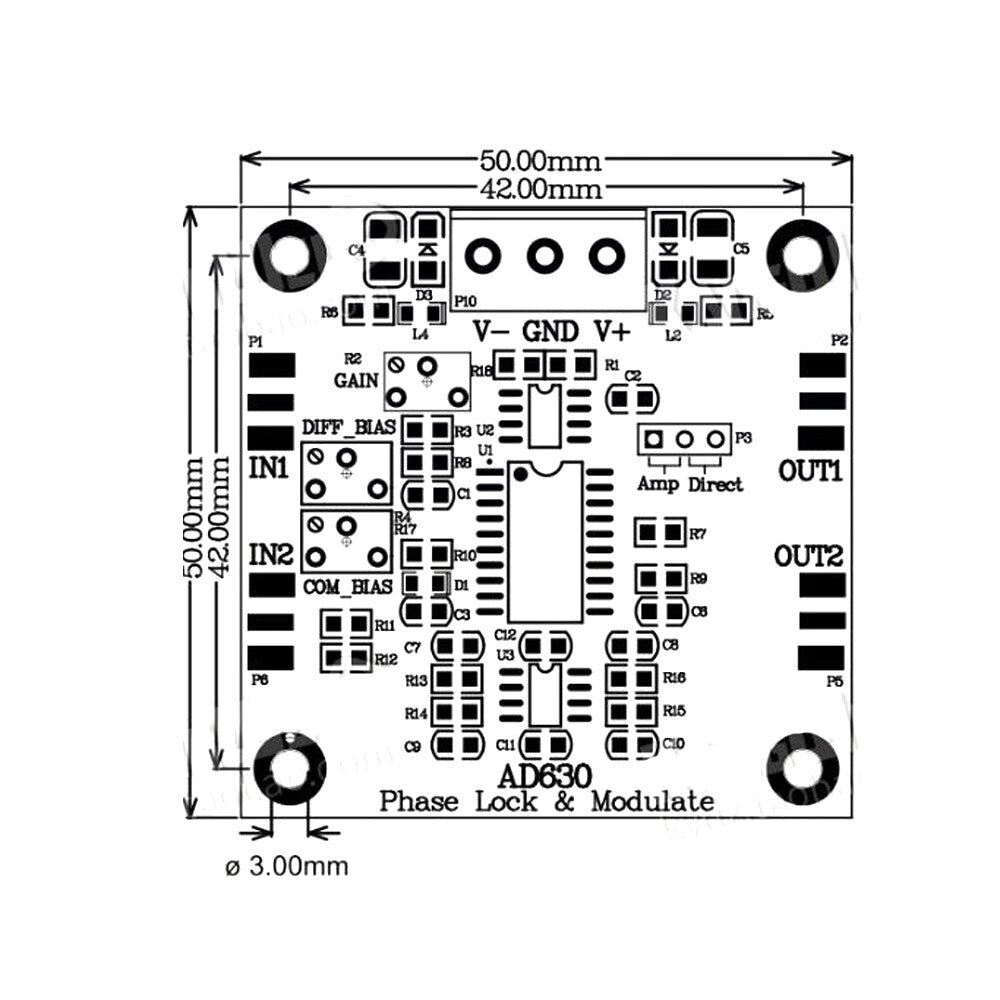

Module size: 50 * 50 millimeters (length * width - PCB size)
Module heating: No heat sink (no heat dissipation required for normal operation)
Module heating factor: Normal operation without overheating (chip damage due to excessive power supply voltage or module damage)

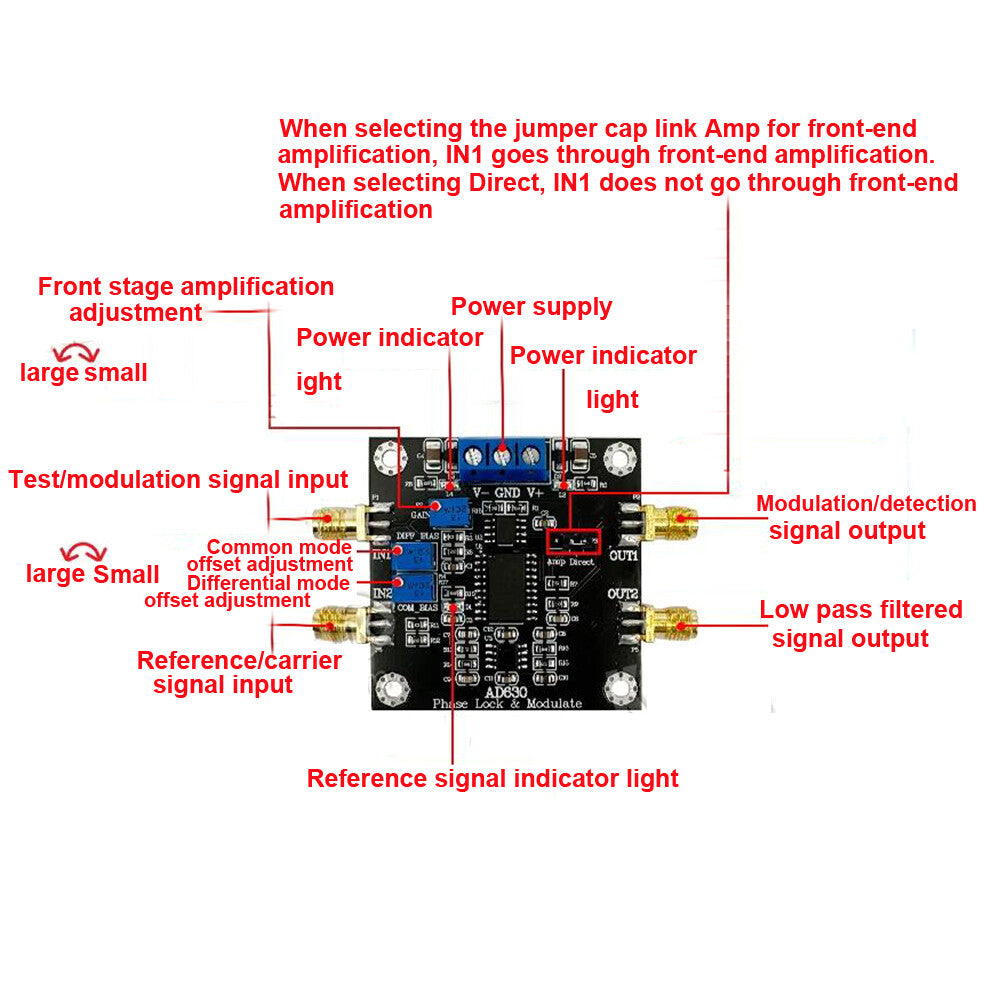

Module features: Both gain and bias can be adjusted
