AD637 RMS Detection Module Peak Voltage Detector AC Signal Data Acquisition

AD637 RMS Detection Module Peak Voltage Detector AC Signal Data Acquisition

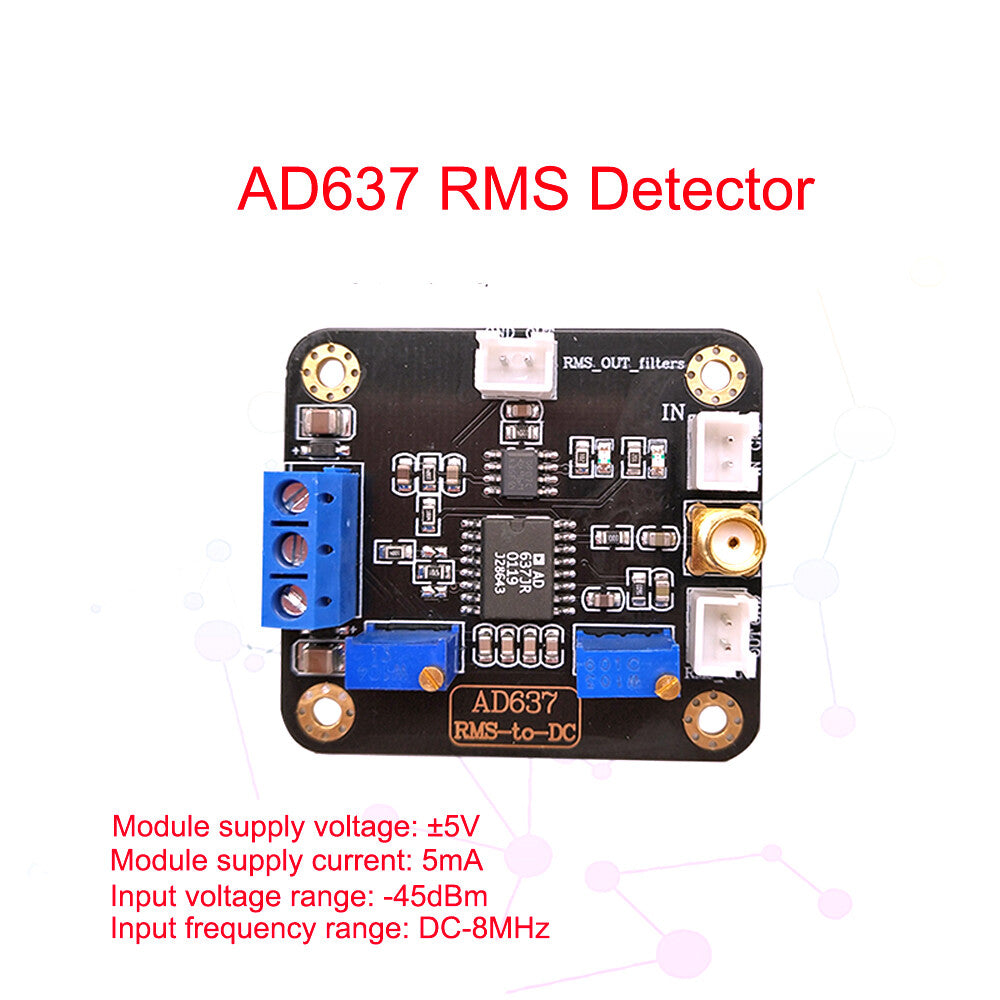

Specification:

Module model: AD637

Module Type: RMS Detector

Module supply voltage: ±5V~±15V(MAX±18V)

Module supply current: 5mA

Input signal formation: single-ended

Input voltage range: -45dBm--+30dBm (within 7VRMS)

Input frequency range: DC-8MHz

Input impedance: 0.85V-2.6V

Output current: 2mA(MAX)

Module dynamic range: 60dB

Module weight: 16g

Module protection: reverse polarity protection, unlimited current protection

Module size: 50x45x14mm

Module operating temperature: -0℃ -- +75℃ (industrial grade)

Application range: peak voltage detection, data acquisition, etc.

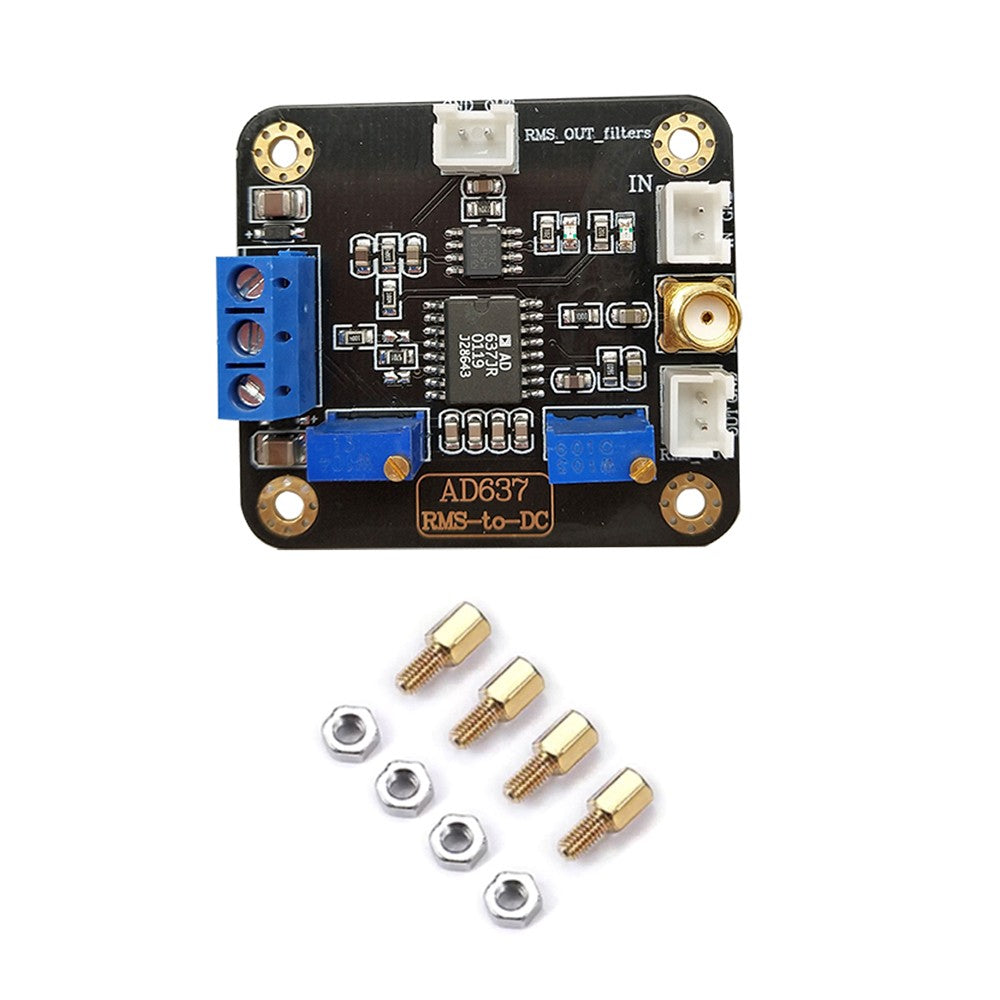

Package:

1*RMS detector
