AD7616 Analog-to-Digital Conversion Module 16 bit 16 Channel High-Speed ADC Data Acquisition 1MSPS Sampling High Performance
Module Introduction:
The AD7616 is a 16 bit data acquisition system with dual synchronous sampling capability for 16 channels, supporting input ranges of ± 10V, ± 5V, and ± 2.5V. It uses a single 5V power supply, has oversampling and digital filtering functions, and flexible serial/parallel interfaces.
Widely used in power line monitoring, protection relays, multiphase motor control instruments and control systems, data acquisition systems (DAS)
Specifications:
Module Type: Analog to Digital Converter Module
Power supply: DC 5V
Static power consumption: 193mW
Input channel: 16 channels
ADC bit count: 16 bits
Sampling rate: 1MSPS @ per pair of channels
Input voltage range: ± 10V, ± 5V, ± 2.5V
Reference voltage: Internal reference voltage 2.5V
Input impedance: 1M Ω
Communication Protocol: Parallel Communication, Serial Communication
Communication level: 3.3V
Module provided routine: STM32F103RCT6
Routine platform: STM32F103X-M3
Module input interface: Double layer wiring terminal XK15EDGRH
Power protection: Anti reverse power protection
Module features: High speed ADC acquisition

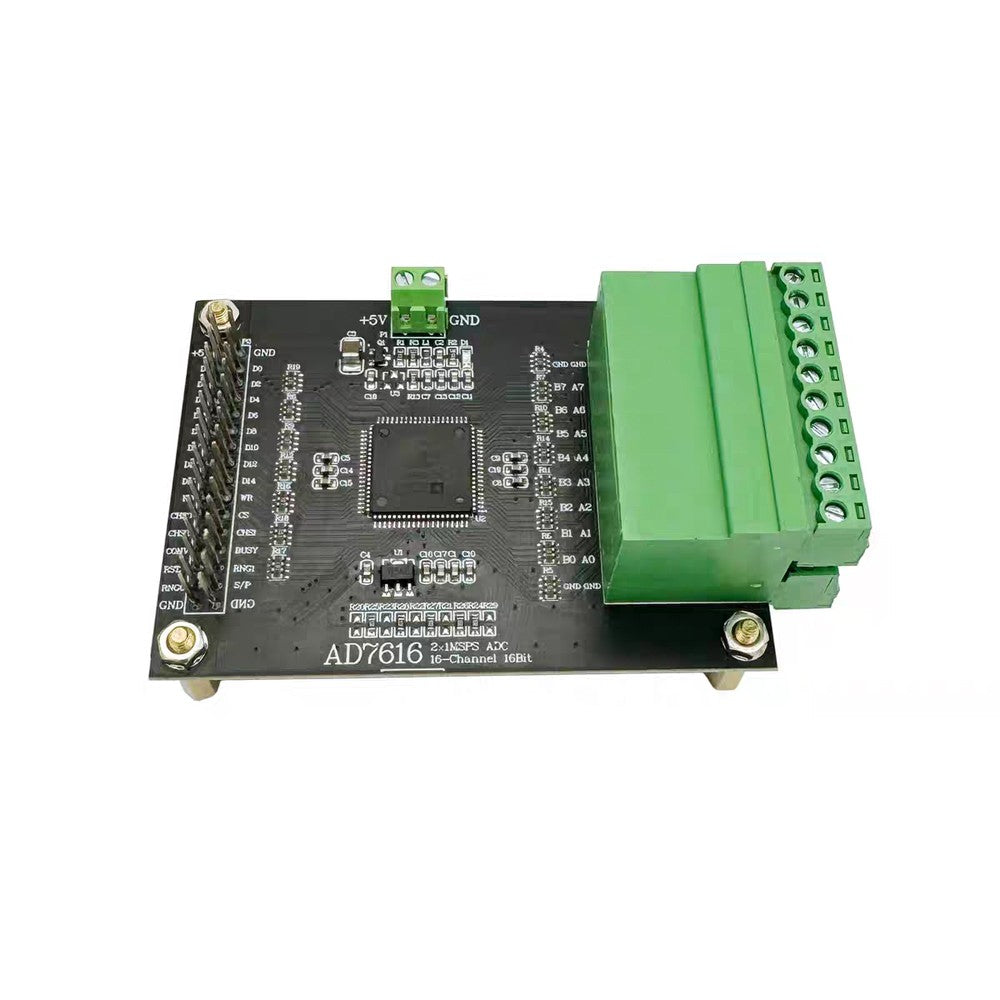

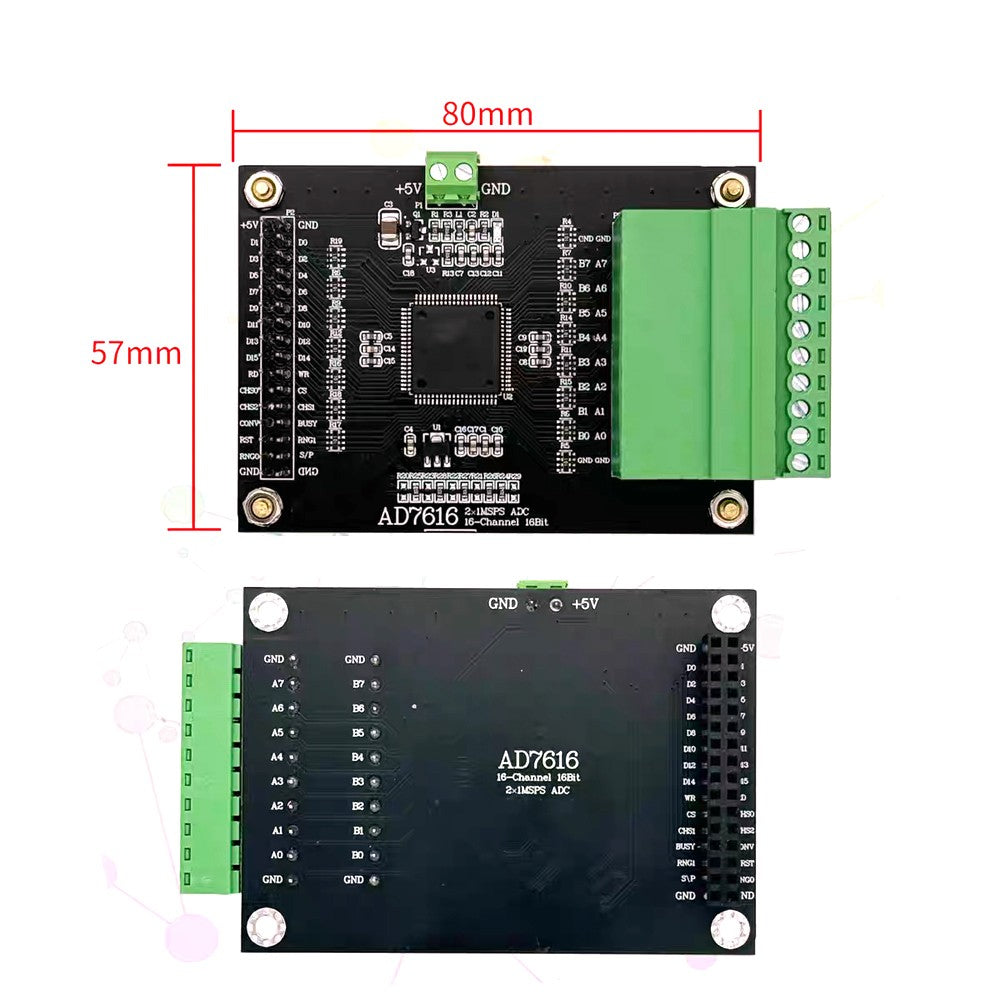

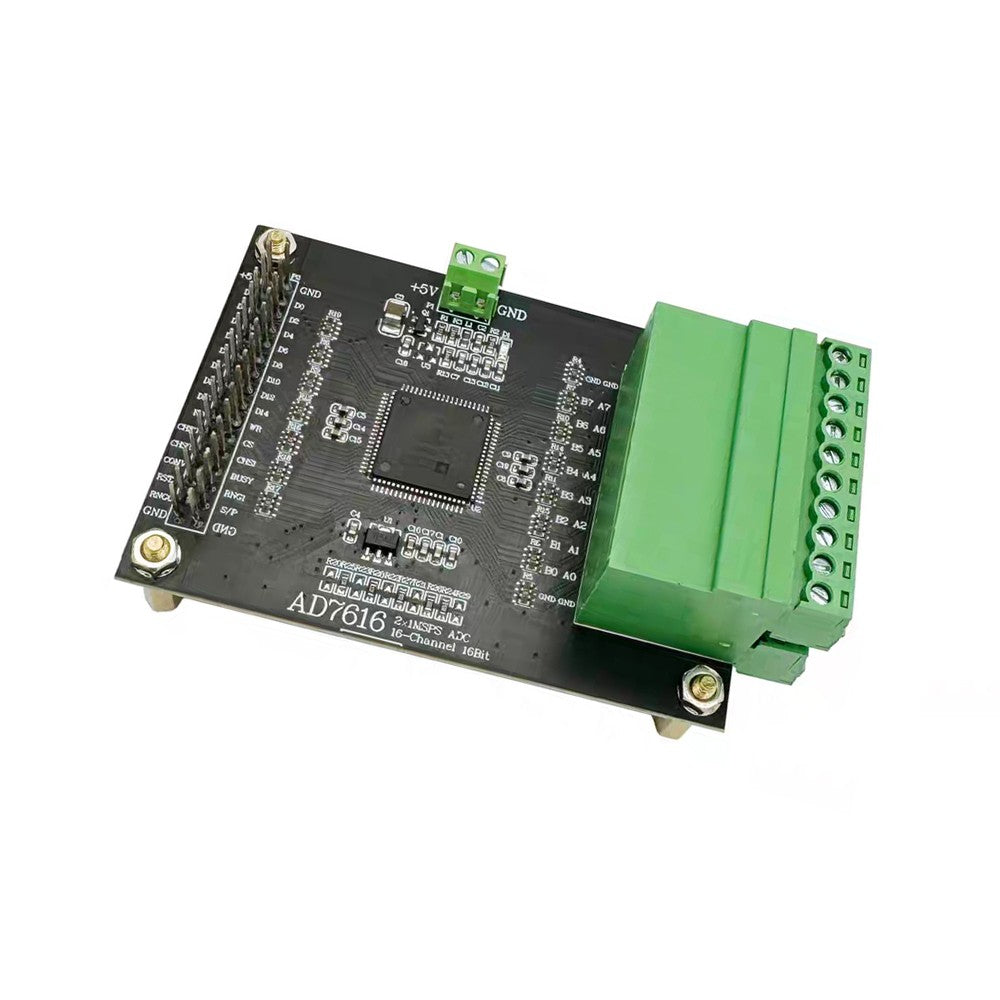

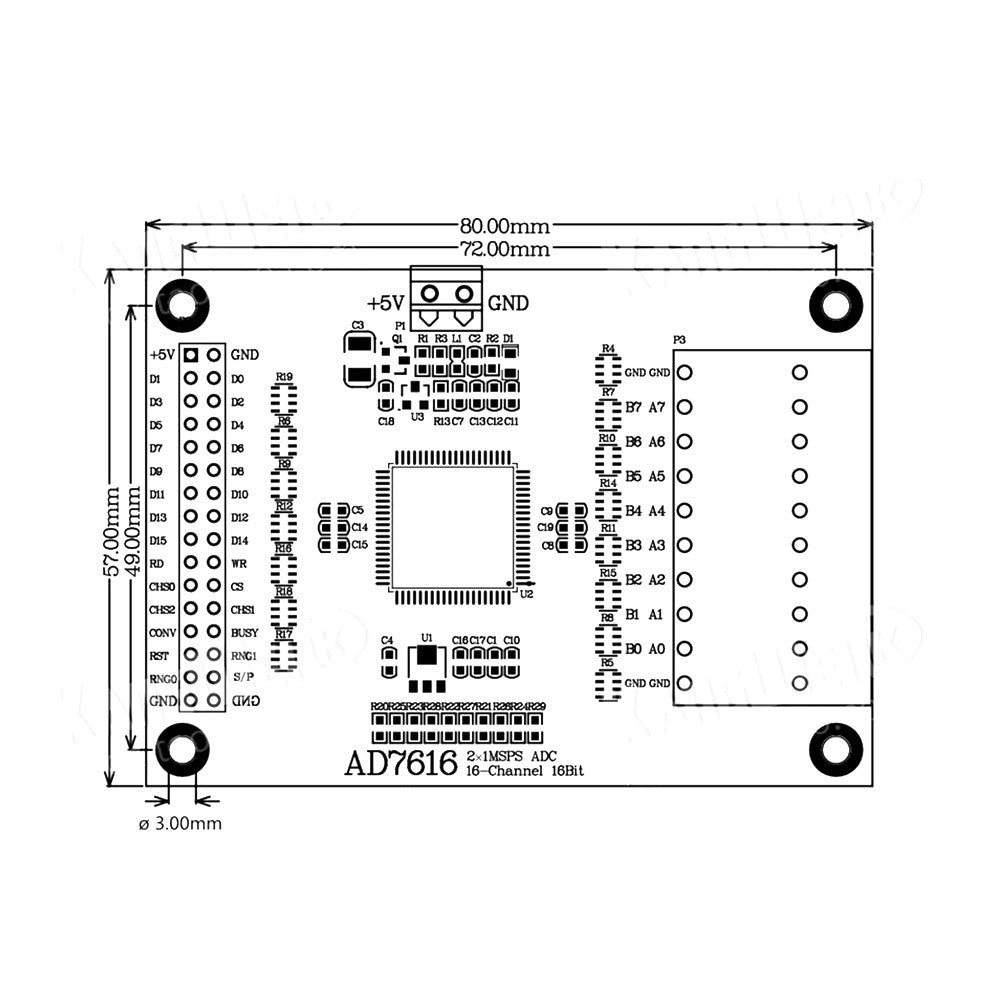

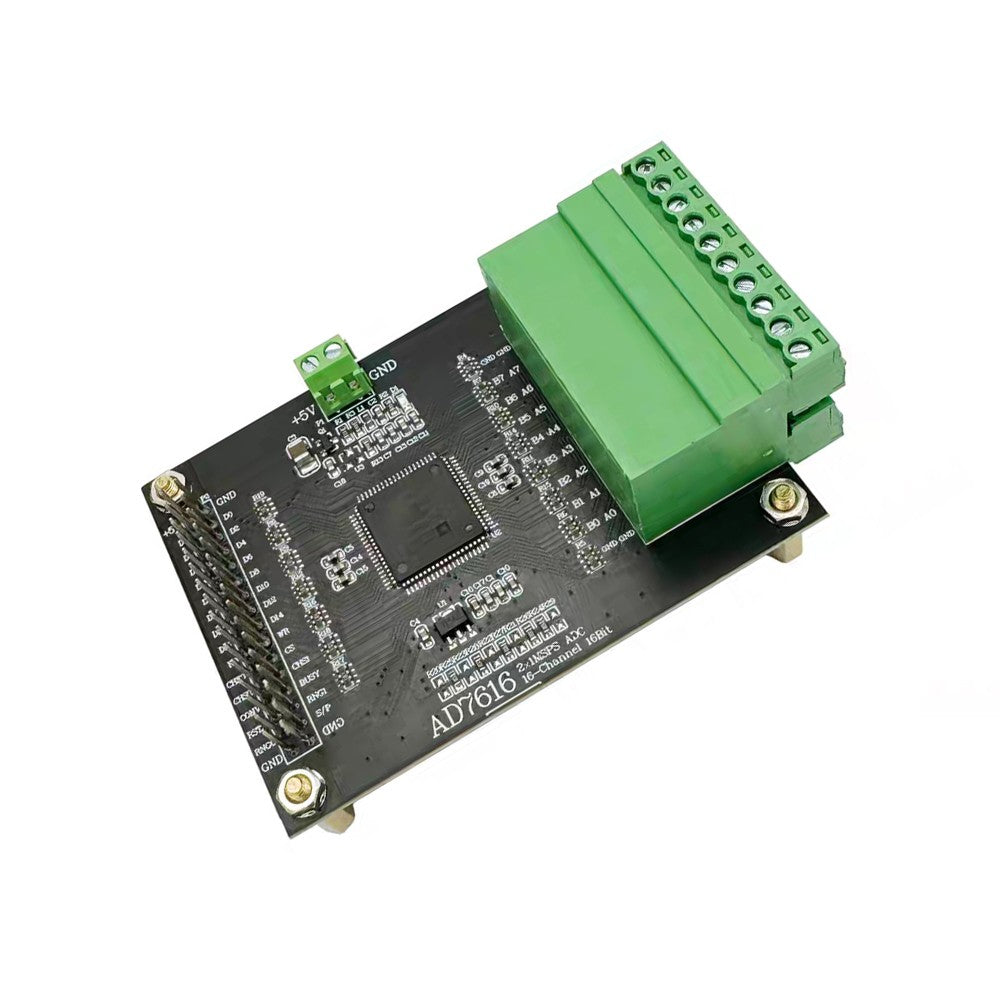

Module size: 80mm * 57mm
Package: 1 * Analog to Digital Converter Module
