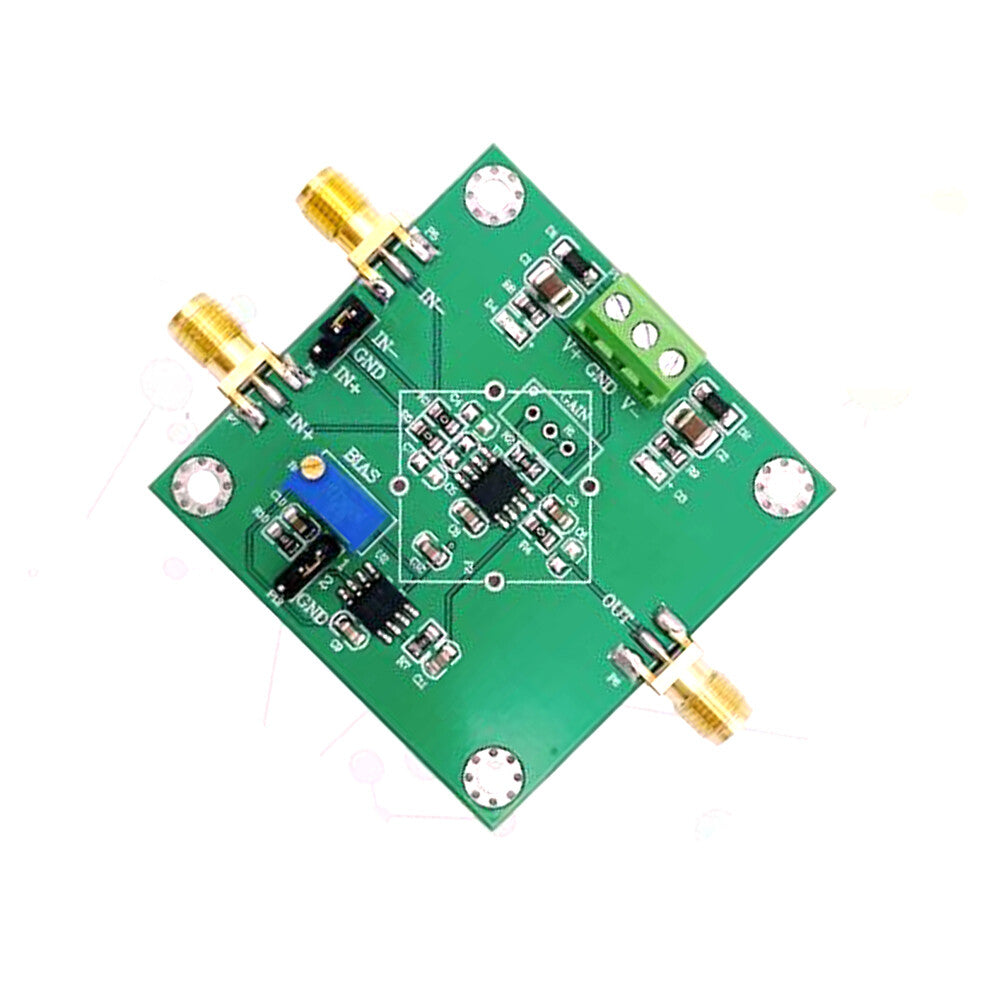

AD8421 AD8429 Small Signal Millivolt Microvolt Voltage Instrument Amplification Module Single Terminal Differential
Specification:
Module model: AD9821 AD8429
Module type: weak signal amplifier
Module power supply: ± 3V -- ± 16V
Module working current: ± 3mA
Module bandwidth: 10MHz, G=1 (AD8421) ,15MHz, G=1 (AD8429)
Pressure swing rate: 35V/us (AD8421) , 22V/us (AD8429)
Module gain range: 1-10000 (AD8421 defaults to 11 times) , 1--10000 (AD8429 defaults to 7 times)
Gain calculation formula: G=1+(9.9 K Ω/RG) (AD8421) , G=1+(6 K Ω/RG) (AD8429)
Output transfer function: VOUT:=G x (VIN+- VIN -)+VREF
Output impedance: high resistance

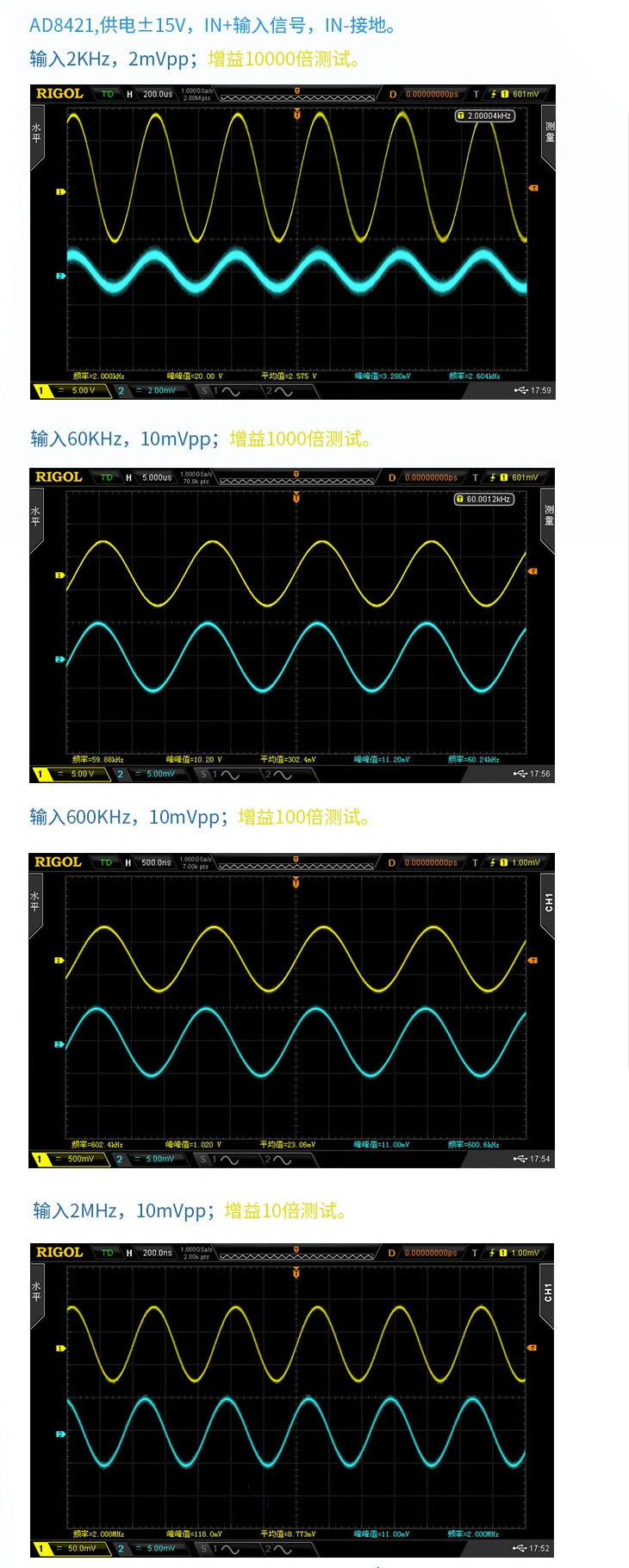

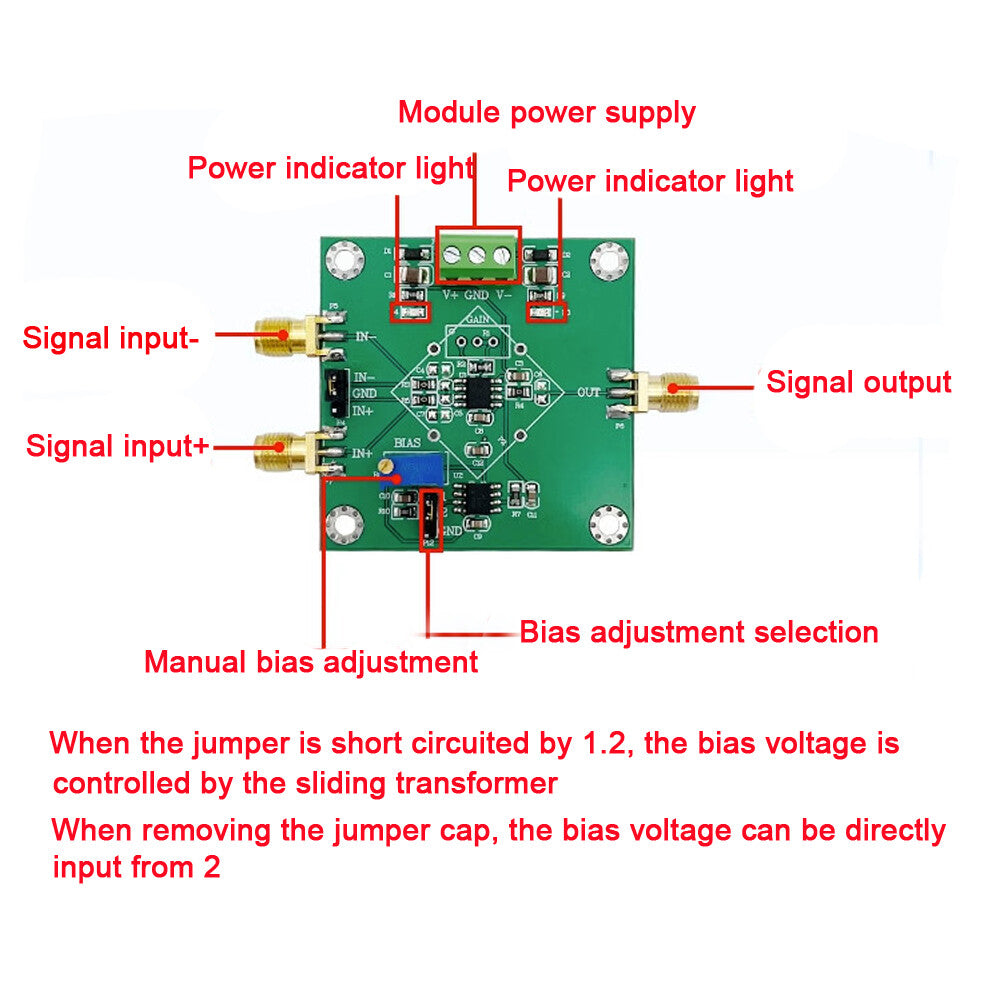

Bias voltage regulation range: power supply -2V

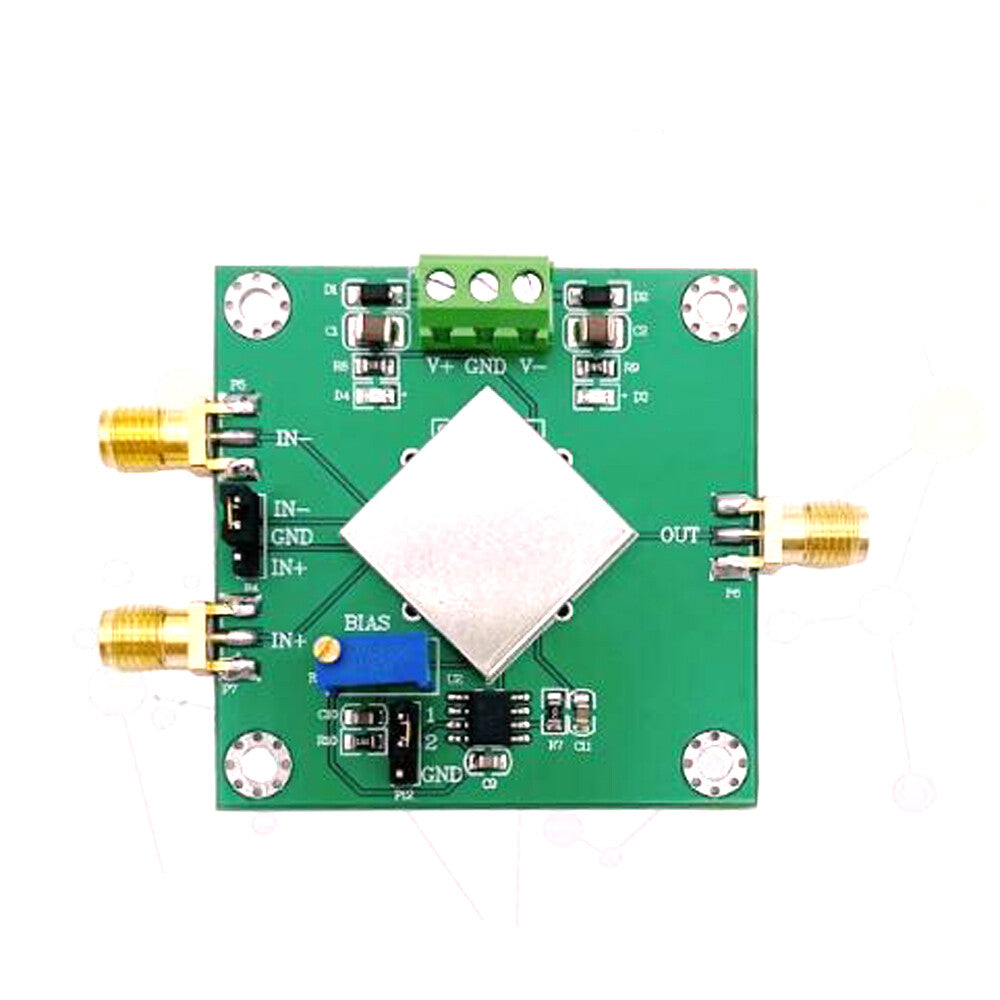

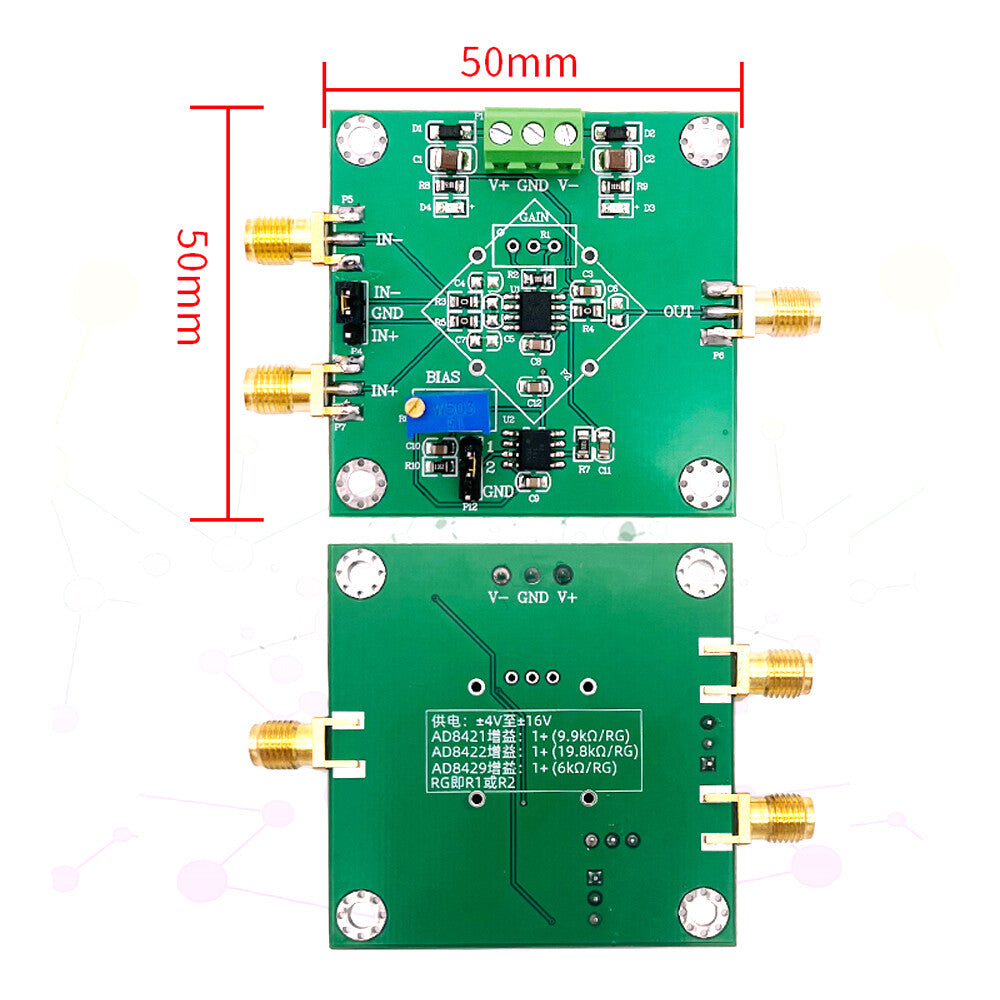

Module size: 50x50mm
Package:

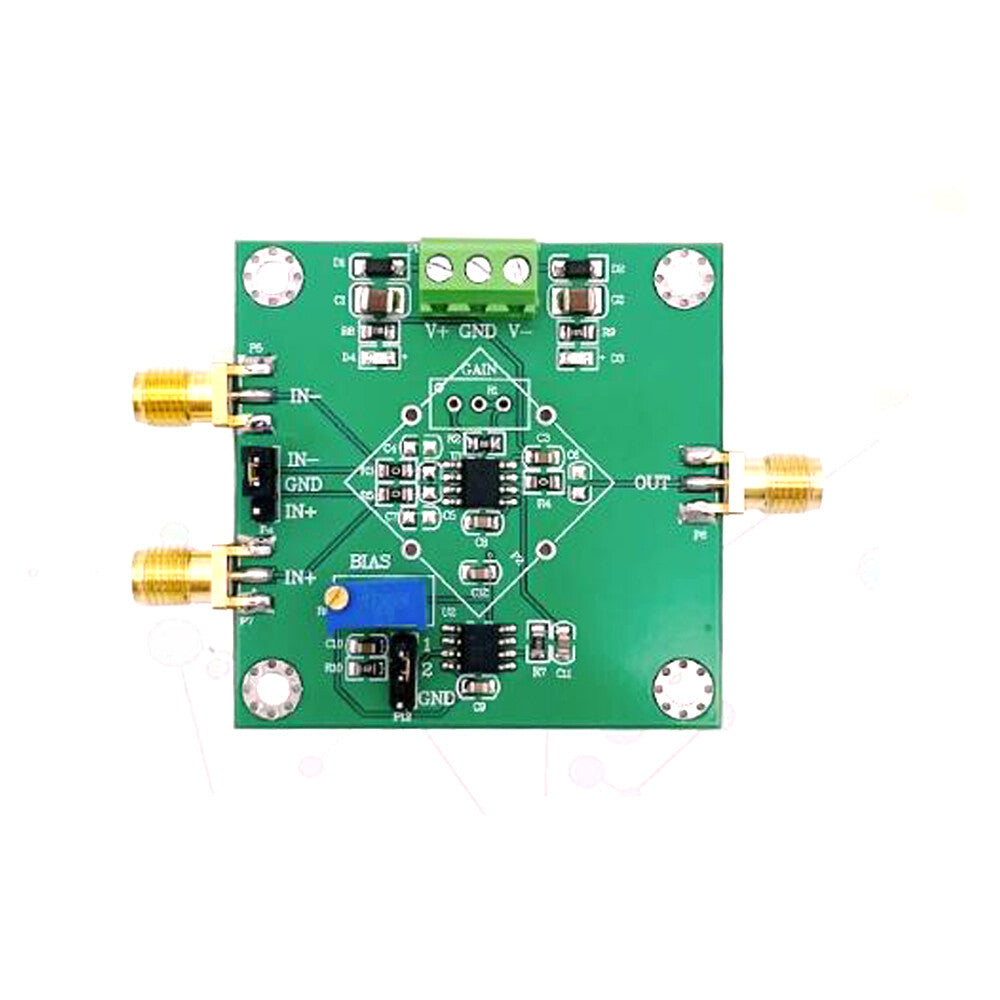

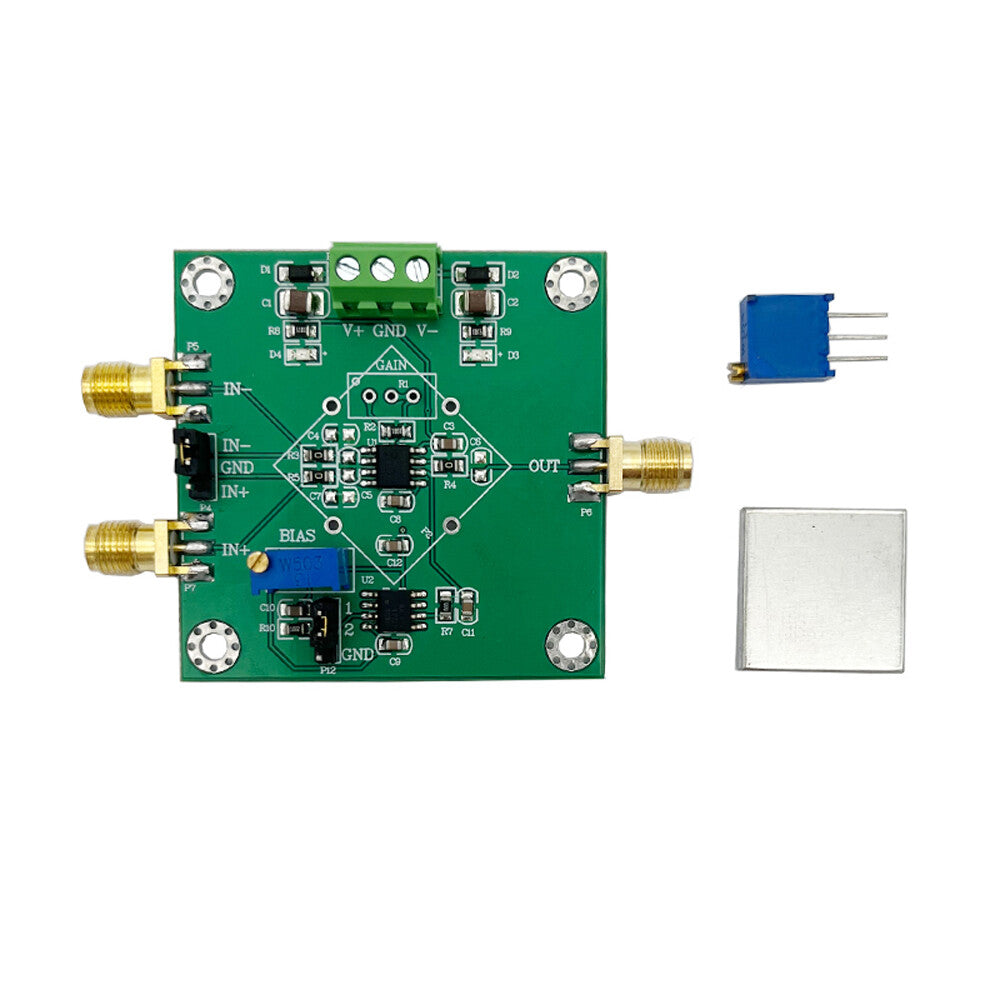

1x weak signal amplifier
