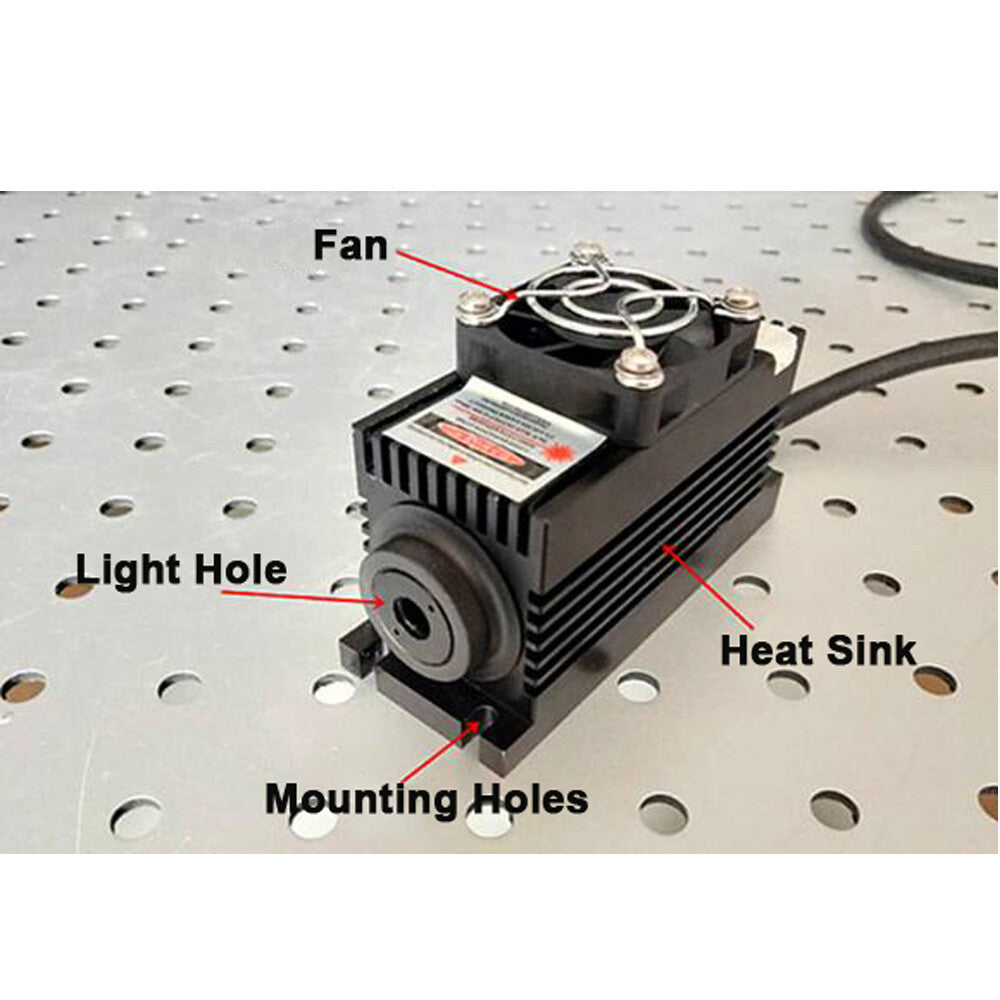

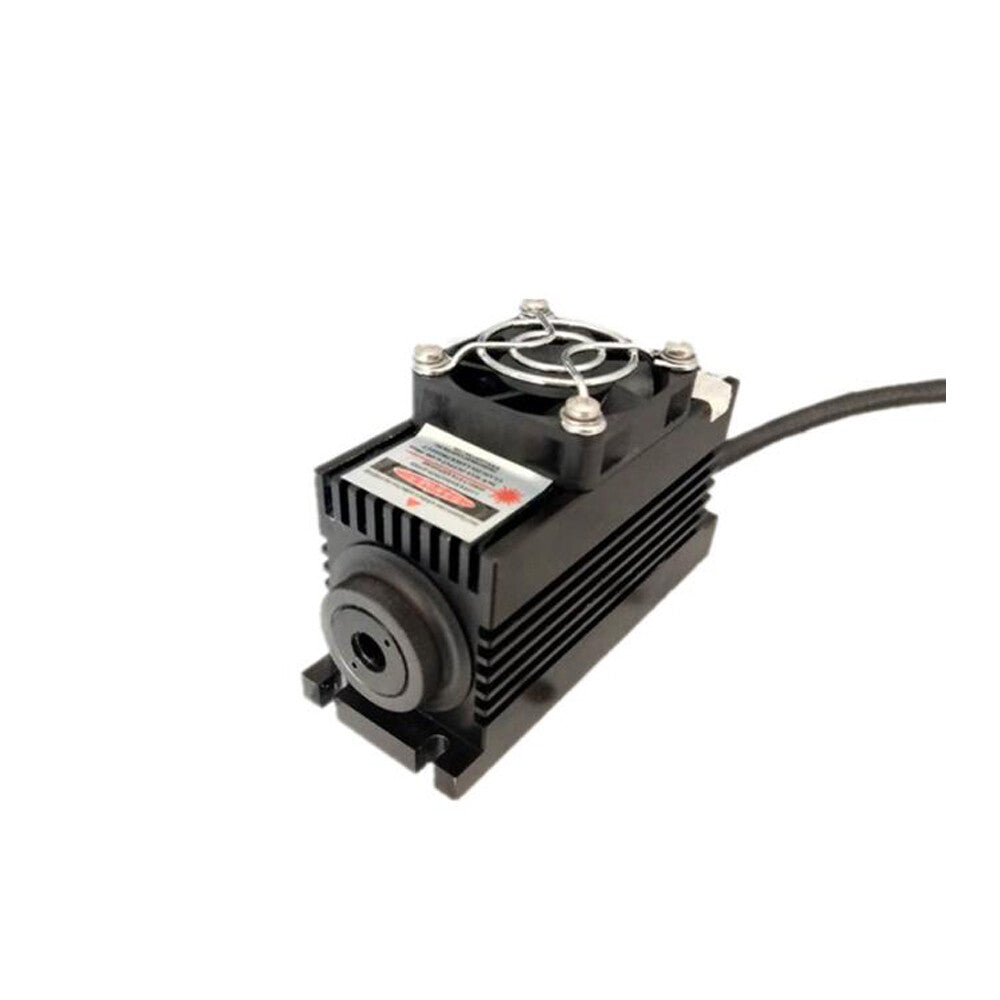

Adjustable Lab 808nm 1W-4W Infrared Diode Laser Dot Module TTL/ANA TEC Cooling

Description:

Output Power: 1W / 2W / 3W / 4W
Wavelength: 808nm (±5nm)
Laser Mode: Multimode
Working Mode: CW or Modulation
Polarization Ratio: 10:1
Beam Size: 5mm
Beam Divergence: 3 mrad
Beam Quality (M²): < 2
Direction Stability: < 0.05 mrad
Power Stability: < ±3% over 2 hours

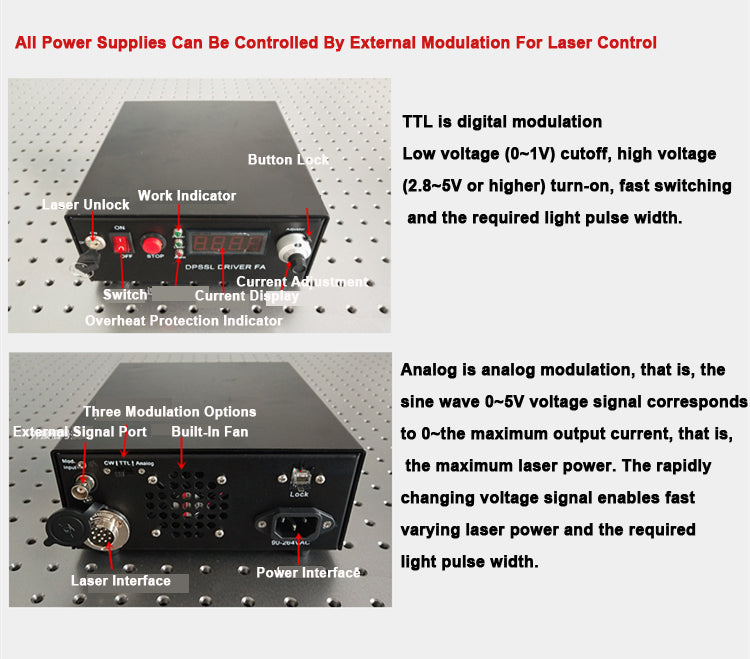

Modulation: 0–30KHz TTL / Analog
Cooling Method: TEC Cooling
Preheat Time: < 5 minutes
Best Working Temperature: 20℃ – 30℃
Storage Temperature: 10℃ – 50℃
Light Height: 25mm
Service Life: ≥ 10,000 hours

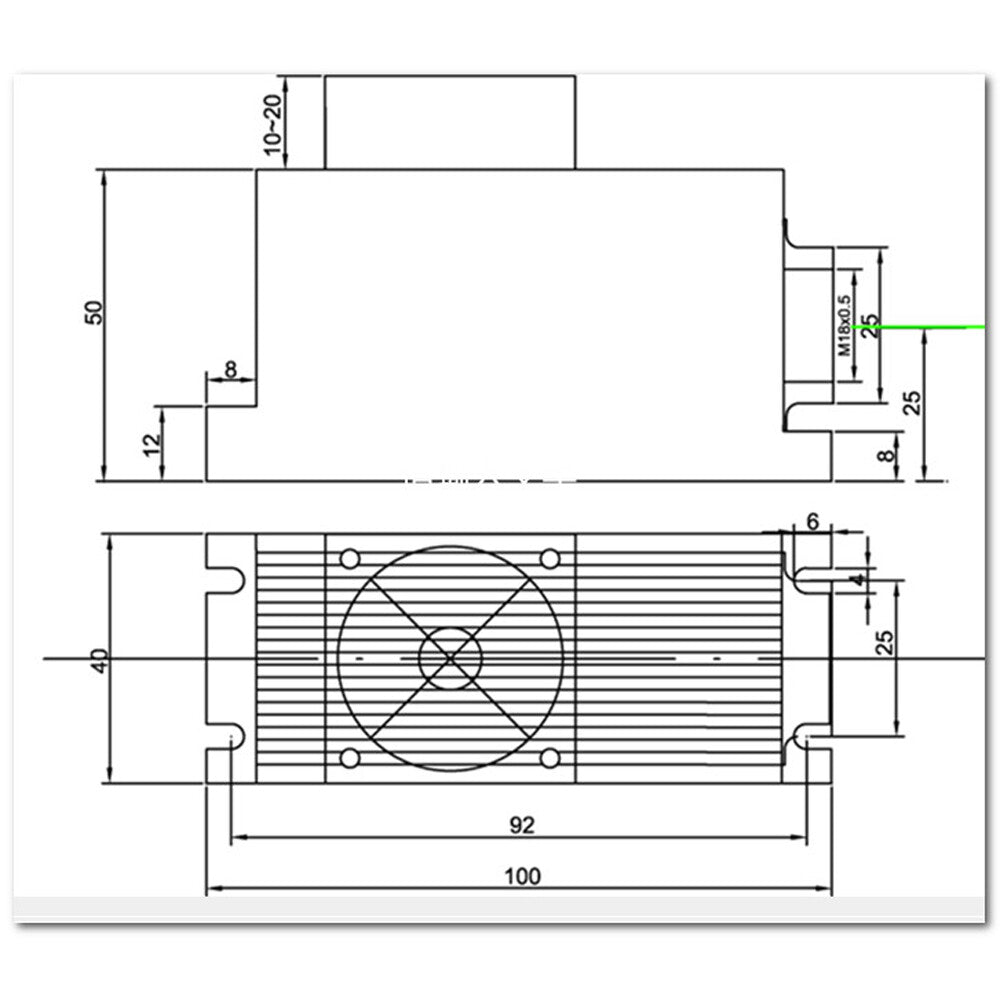

Laser Head Dimensions: 100 × 40 × 50 mm

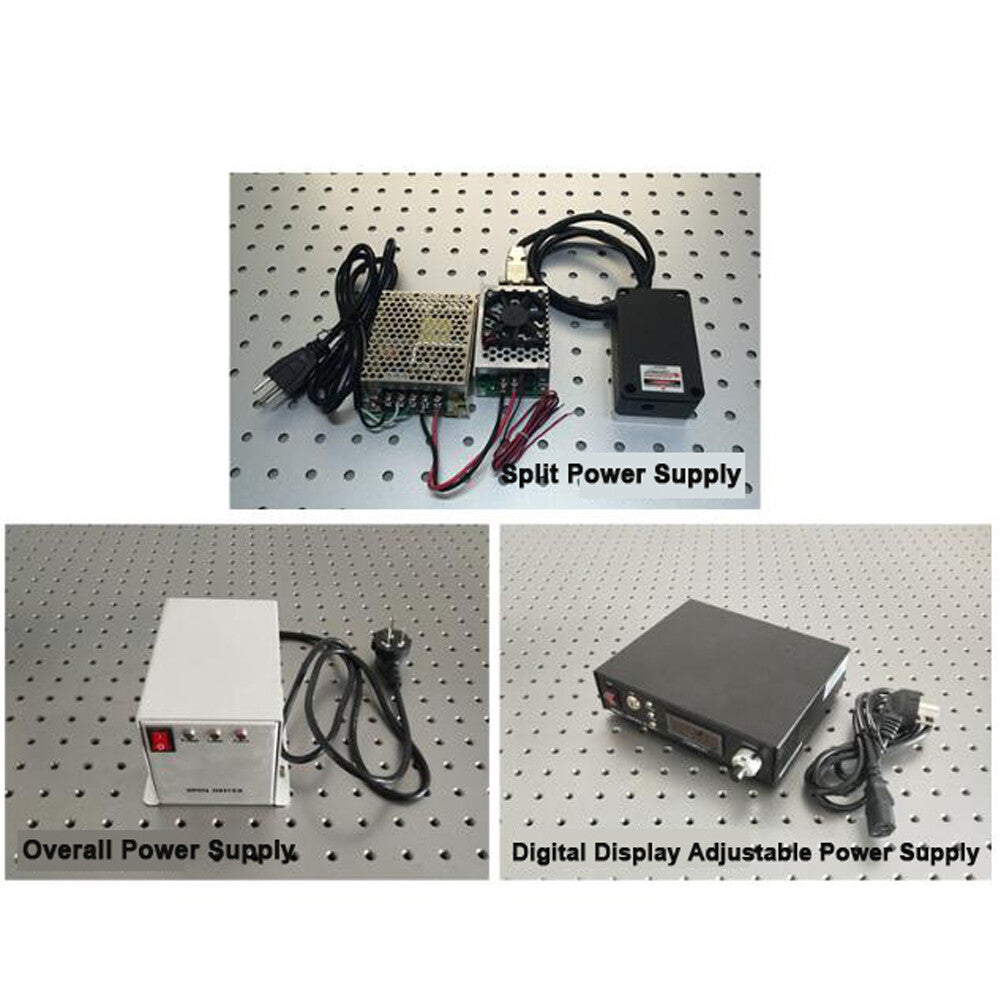

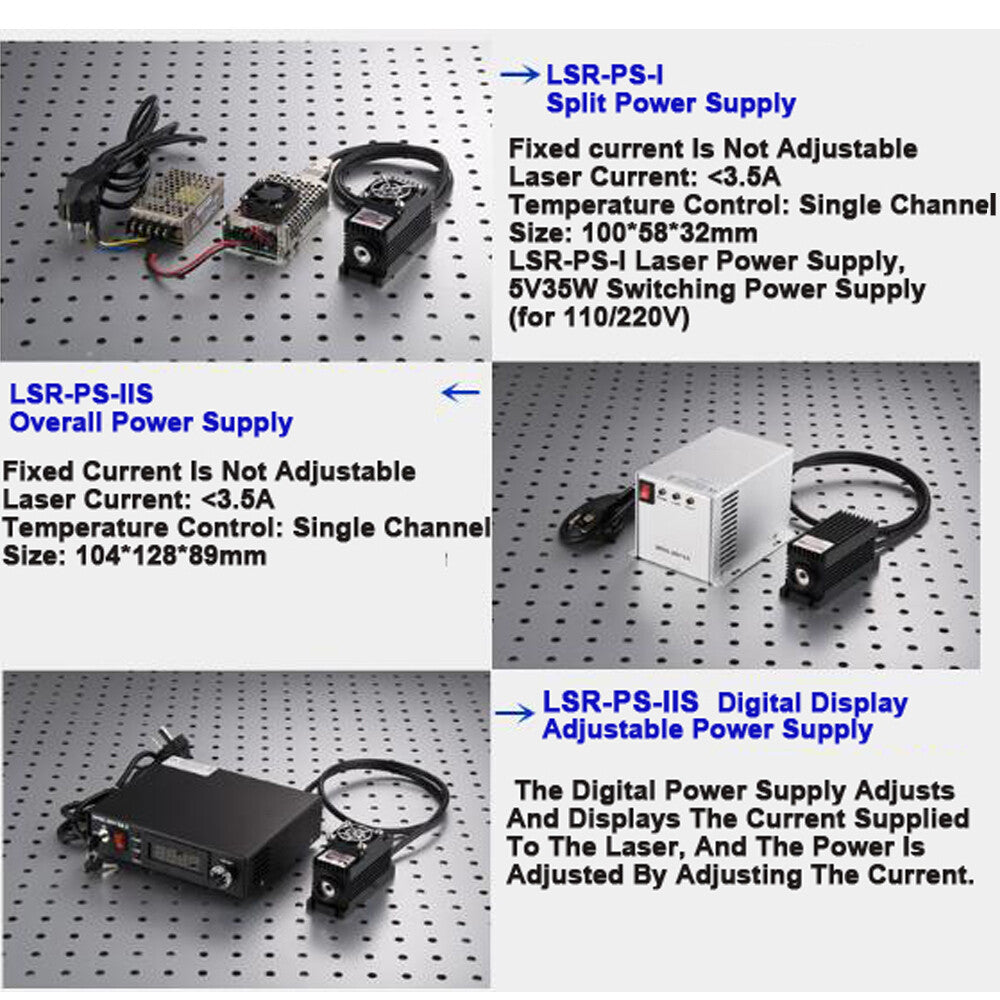

Power Supply Options:

OEM Type Power Supply
Input Voltage: AC 85–265V, 50/60Hz
Power Supply Size: 110 × 58 × 32 mm

Lab Type Power Supply
Input Voltage: AC 85–265V, 50/60Hz
Power Supply Size: 104 × 128 × 89 mm

Lab Adjustable Type Power Supply
Input Voltage: AC 85–265V, 50/60Hz
Power Supply Size: 179 × 148 × 56 mm

Important Notes:

1. This laser module must be used with adequate cooling. Continuous operation above 30℃ may reduce lifetime or cause damage.

2. Supports TTL and Analog modulation (0–30KHz). Ensure correct wiring before use.

3. TEC cooling ensures stable wavelength and output power during long working periods.

4. This product is designed for laboratory, industrial, or OEM integration use only.

5. Laser safety goggles for 808nm wavelength are required during operation.

Package Includes:

1 × Adjustable Lab 808nm Infrared Diode Laser Dot Module
(Driver and power supply according to selected option)
