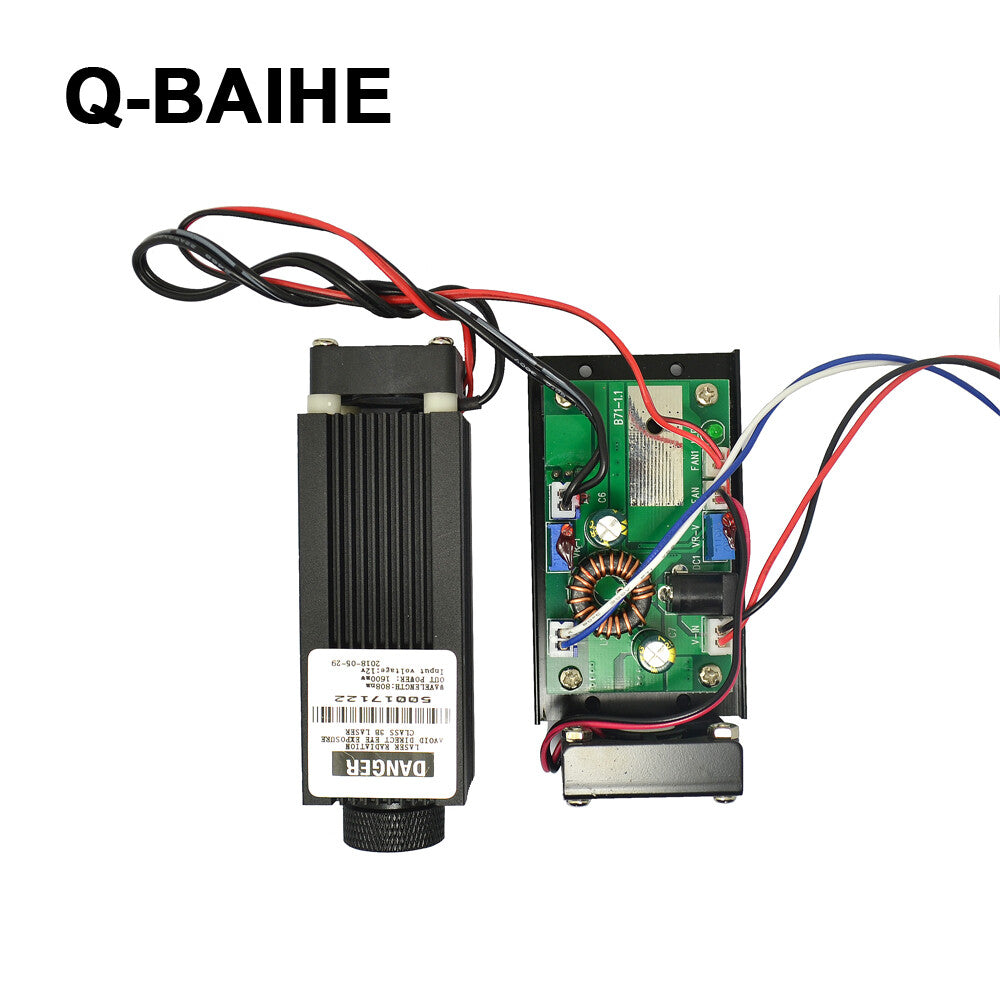

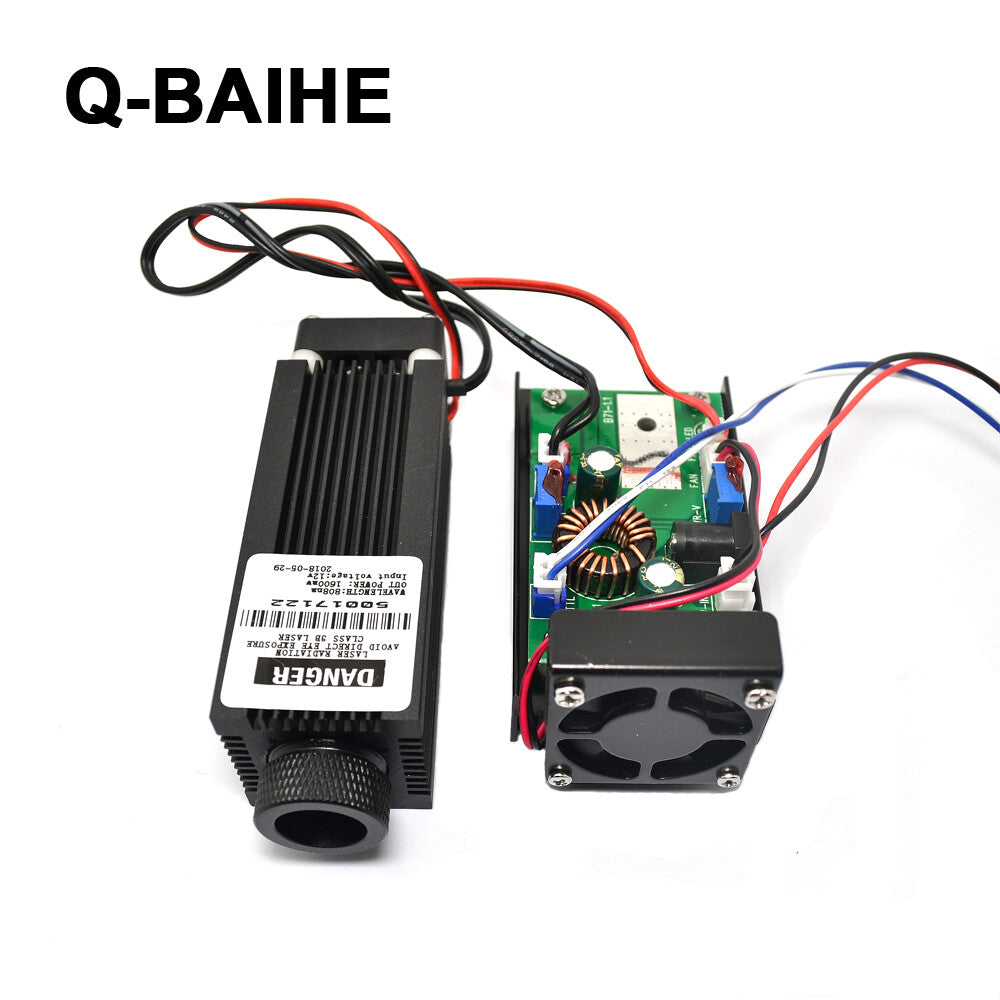

Focusable 808nm 400mw/800mw/1600mw/2400mw/3200mw Infrared Laser Dot Diode Module with TTL Driver
Features:
Output Power 400mw/800mw/1600mw/2400mw/3200mw Optionable
Wavelength 808nm
Working Voltage 12VDC
Working Current 1.35A-2.5A +-15%
Working Temperature -10degree- 30degree
TTL >20KHz
Divergence 5mrad
Focusable YES
LD 808nm 0.5W, 1W, 2W, 3W, 4W

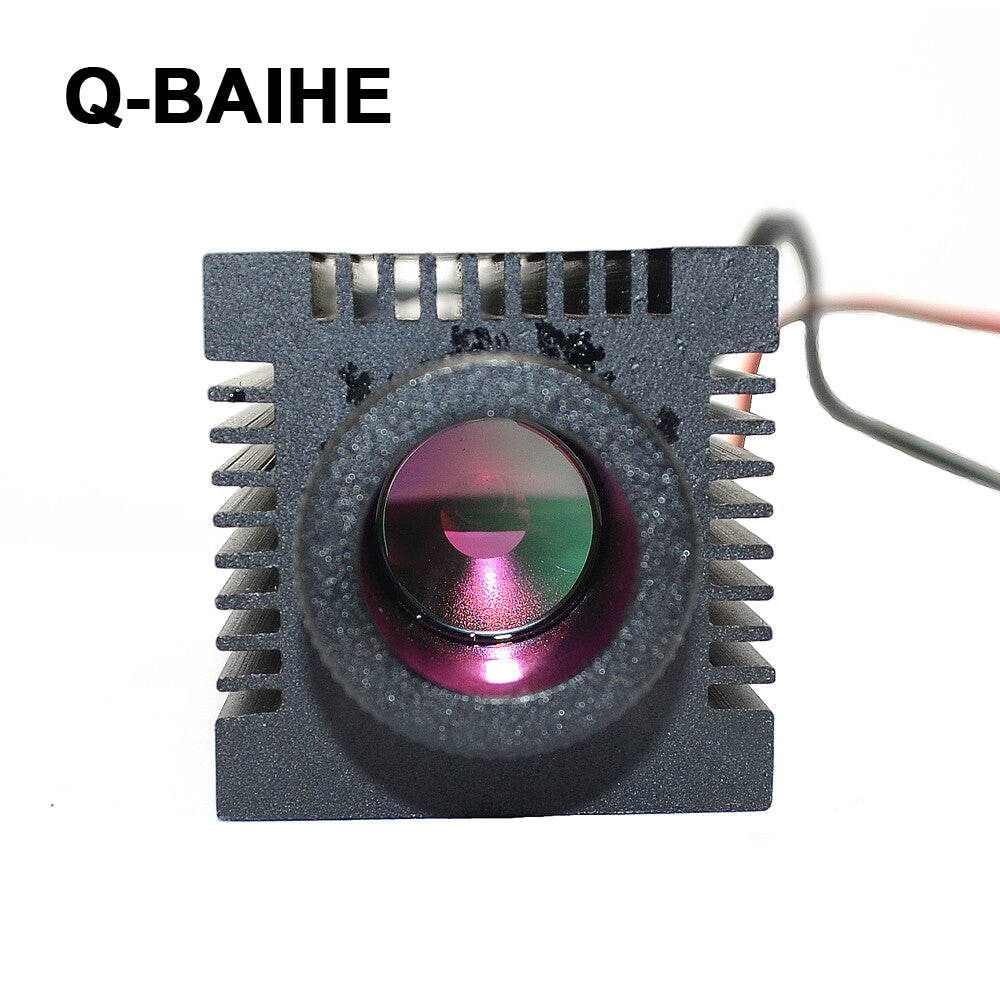

Lens Glass
Dimensions 33*33*80mm
Working Life >5000 Hours
Laser Shape DOT(The spot can be adjusted from rectangle to oval)
Detail:

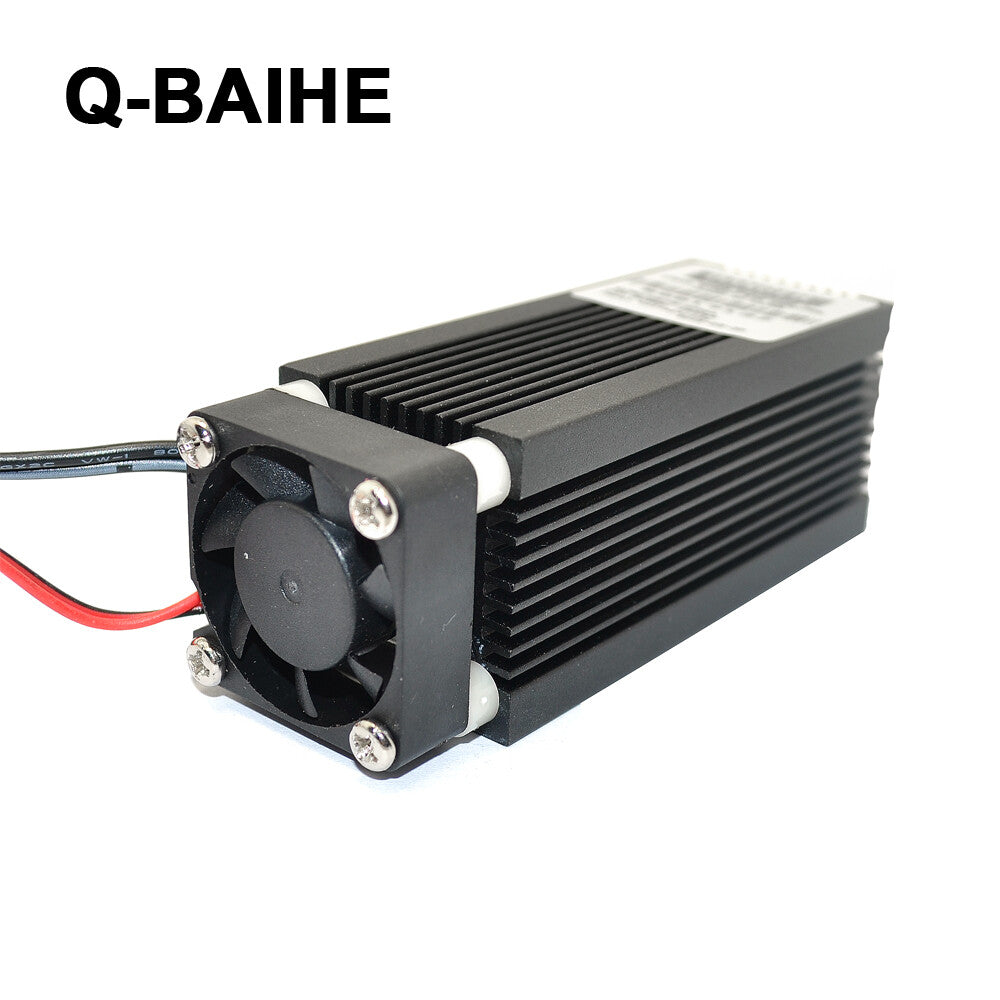

1. This laser module can not work for a long time if there is no cooling device to keep the laser working under 30degree.
2. Please add a 12VDC power to this laser module. Red wire connects”+” pole; Black wire connects ”-” pole. TTL 12V on, 0V off. If you don't use TTL, please just leave the blue and white wire.

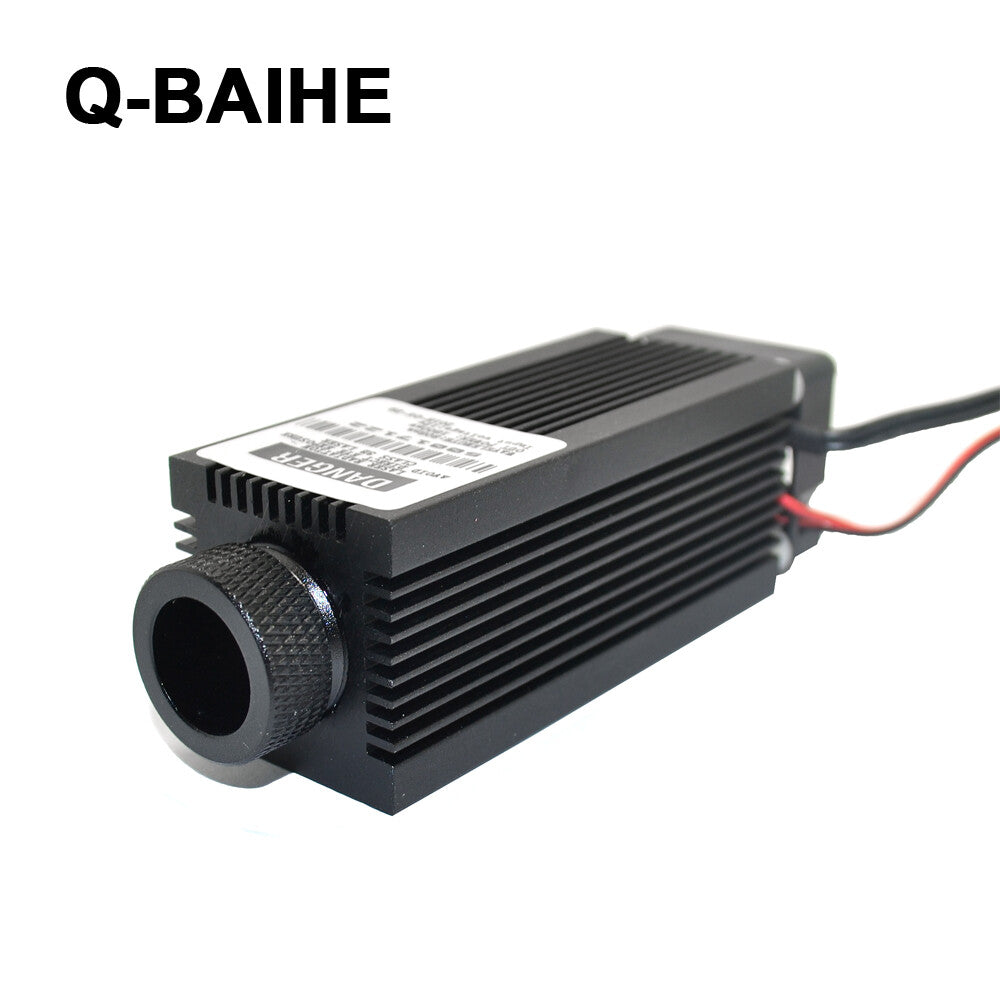

3. This is a focusable laser module. Please do not take off the lens adjustable part off to avoid dust.

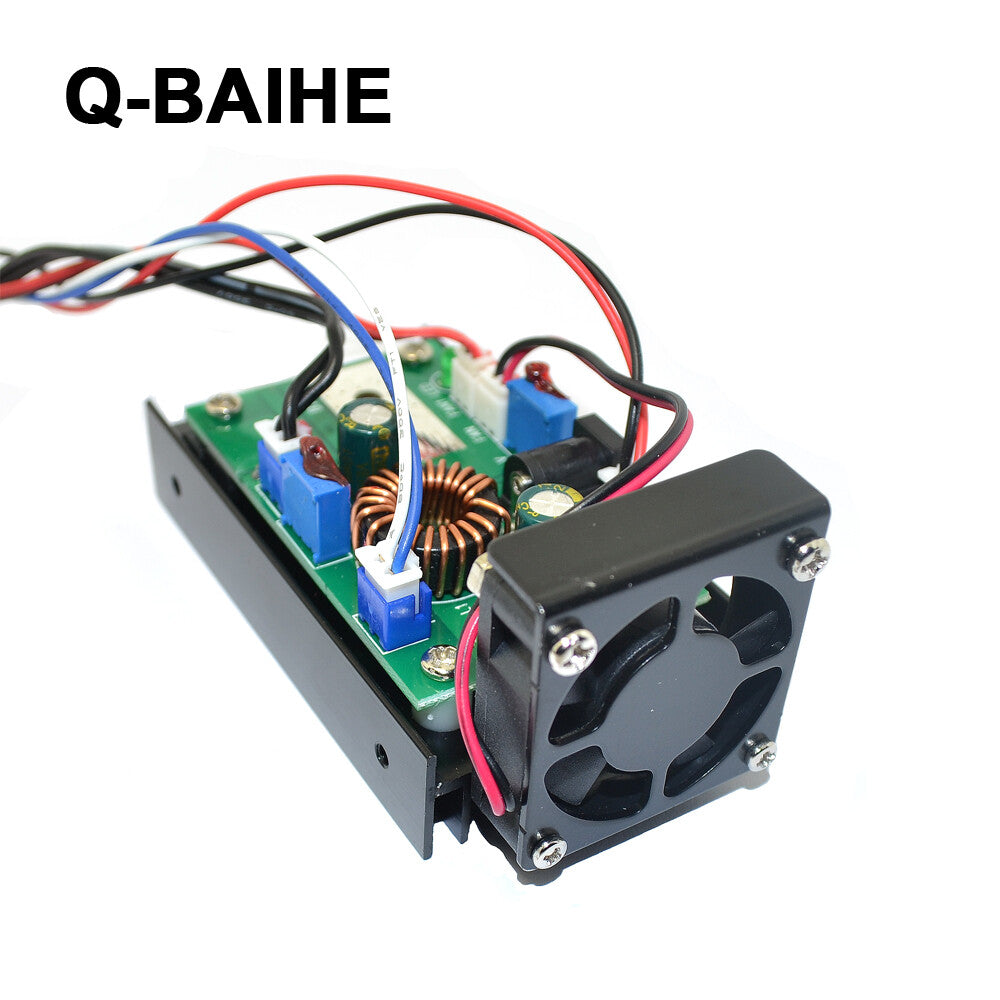

4. There is a potentiometer on the driver. You can turn it to adjust the power of the laser. Turn Clockwise to increase the laser power. Otherwise to decease the power. But the current can not surpass the current we have set up.
5. Please wear 808nm laser protection goggles to protect your eyes when working on this module.

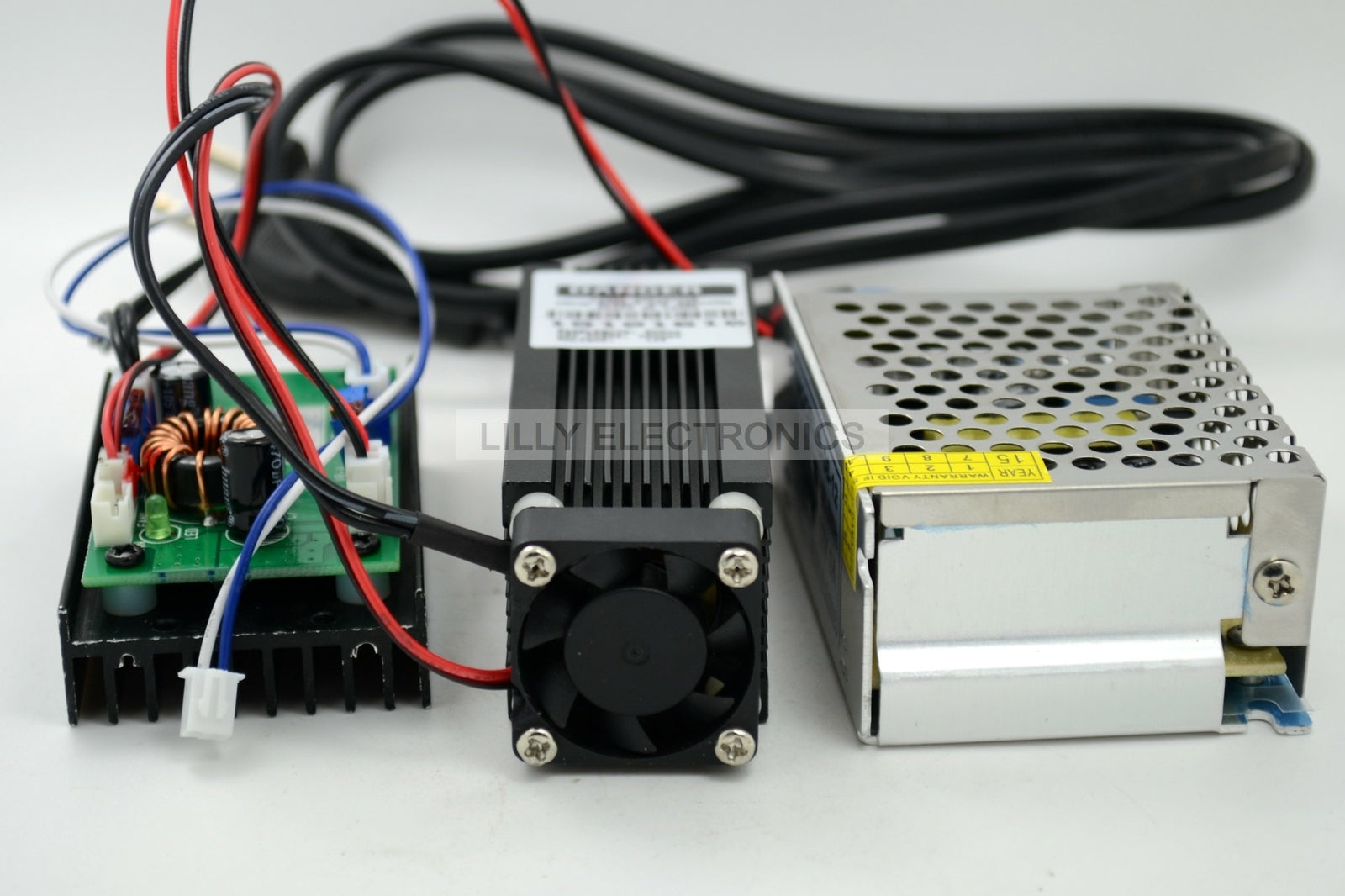

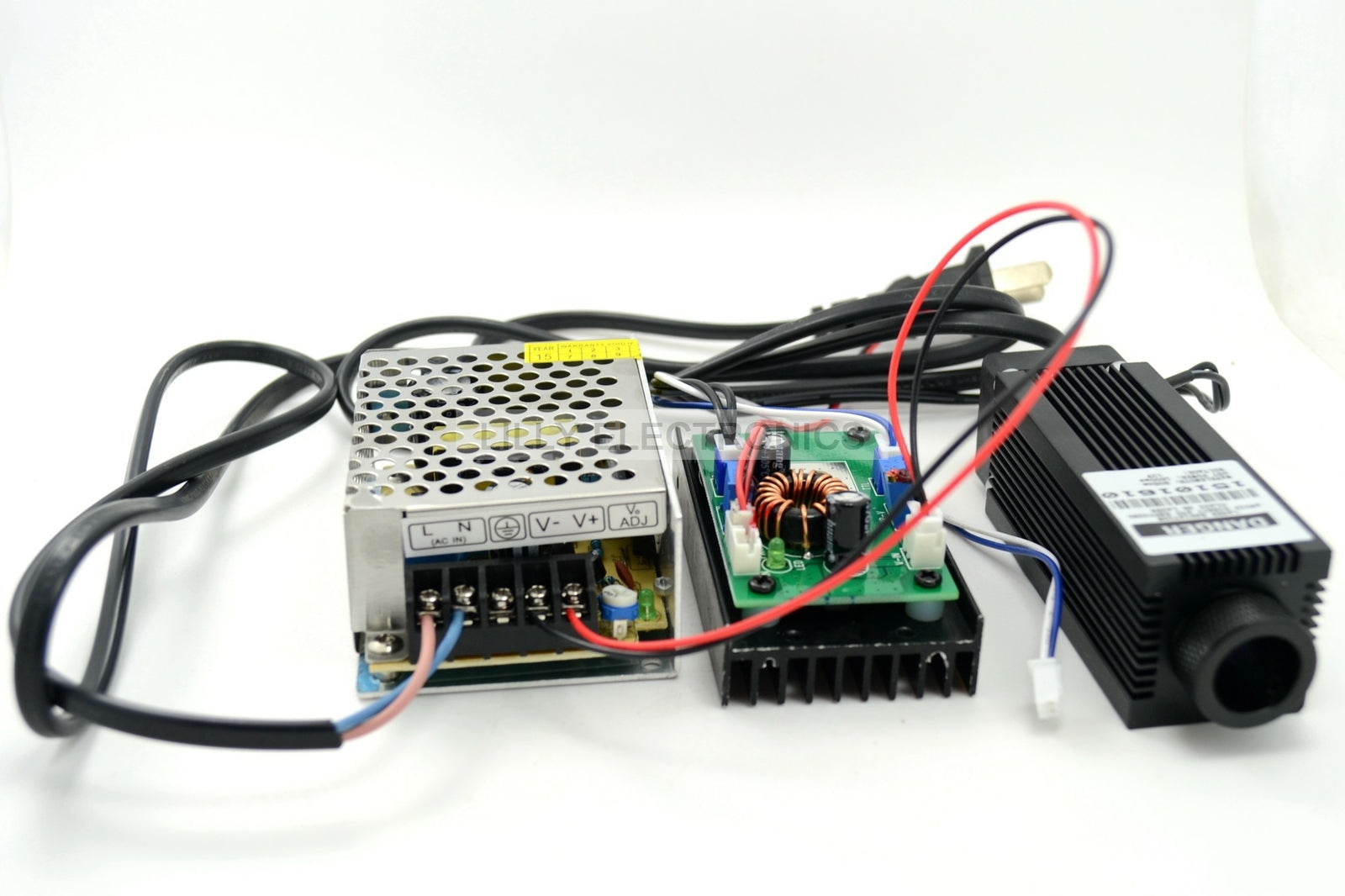

Package
1x Focusable 808nm Infrared Laser Diode Module
1x Power Cable
1x Transformer
