ADS1256 24-Bit High Precision ADC Data Acquisition Analog To Digital Converter
ADS1256 24-Bit High Precision ADC Data Acquisition Analog To Digital Converter
Regular price
$88.00
Regular price
$96.00
Sale price
$88.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

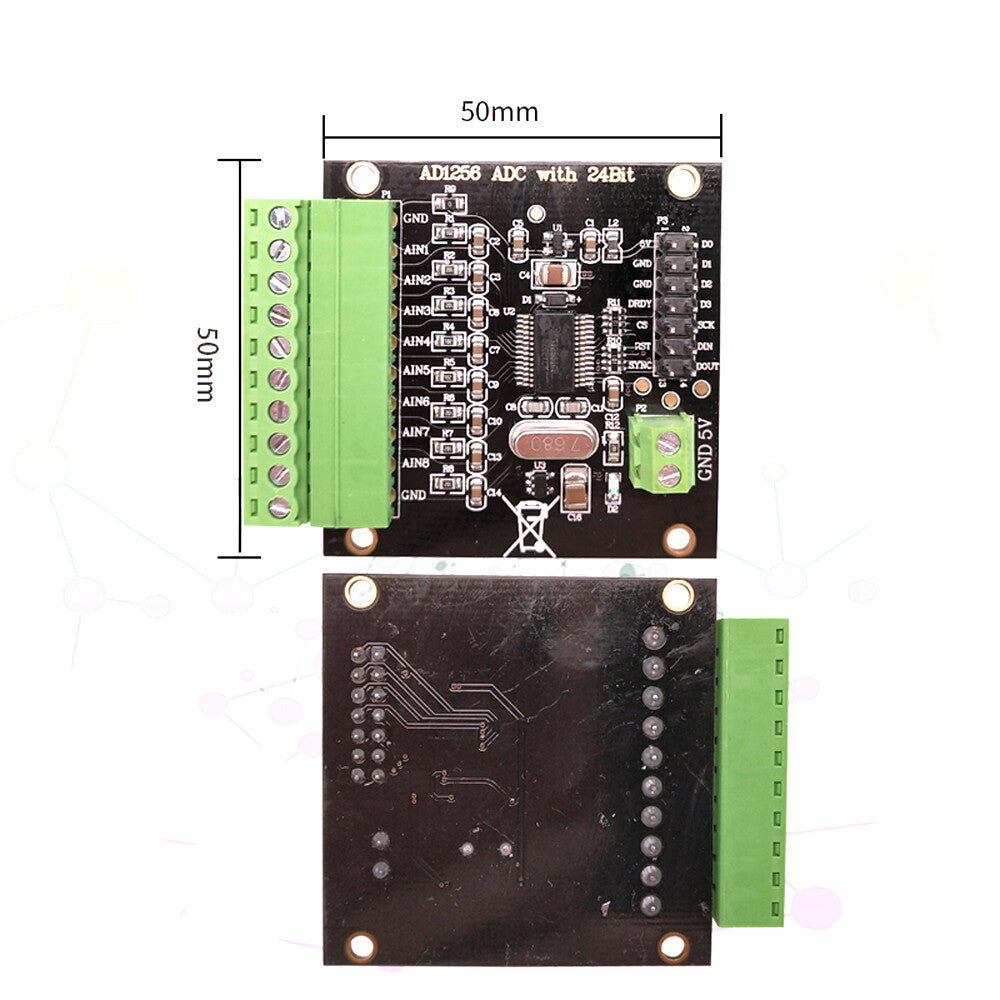

| Title： | ADS1256 Module 24-Bit ADC Data Acquisition Card ADC High Precision ADC Acquisition Analog To Digital Converter | ||
| Module model: | ADS1256 |
Module type: | Analog to digital conversion module |
| Module power supply voltage: | DC5V | Module current: | 15mA (MAX) |
| Module communication protocol: | SPI serial | Module provides routines: | STM32F103RBT6 |
| Example platform: | STM32F103X-M3 | Module control signal level: | 3.3V |
| Module input voltage range: | 0-5V | Input impedance: | 1M ohm |
| ADC resolution bits: | 24 bits (18 effective bits) | Sampling rate: | 30MSPS (single channel does not switch up to 30K, the sampling rate is reduced when using multiple channels) |
| Number of input channels: | 8 channels single-ended, 4 channels are differential | Module access port: | 3.81-10PIN terminal block |
| Reference voltage: | internal 2.5V (weldable SOT-23 package external input reference) | PGA mode: | 1 times, 2 times, 4 times, 8 times, 16 times, 32 times, 64 times |
| Sampling mode: | configurable acquisition voltage range, maximum 0-5V | Output mode: | 8-channel data parallel |
| Module interface type: | 3.81-10PIN socket, XH2.54 double row pin data interface | Module size: | 50x50x12mm |
| Module weight: | 23g | ||
STM32 module parameter specifications: |
Module model: digital module driver board Module power supply: DC5V Module current: 45mA (TYP) Module communication interface: USB2.0 (STM32 MCU comes with USB, communication program needs to be developed by yourself) Main control chip: STM32F103RBT6 Program download interface: JTAG Module system main frequency: 72MHz (MAX) Functional peripherals: 1. ADC: 8 channels (input voltage range 0-3.3V); 2. RS232 serial port Module size: 70x50x12mm Module weight: 30g |
||
| Package: | 1*ADS1256 analog-to-digital conversion module |
||
