ADS1256 Module 24-Bit ADC Data Acquisition Card ADC High Precision ADC Acquisition Analog To Digital Converte
Specification:
Module model: ADS1256
Module type: analog to digital conversion module
Module power supply: DC5V
Module current: 15mA (MAX)
Module communication protocol: SPI serial
Module provides routines: STM32F103RBT6
Example platform: STM32F103X-M3
Module control signal level: 3.3V
Module input voltage range: 0-5V
Input impedance: 1M ohm
ADC resolution bits: 24 bits (18 effective bits)
Sampling rate: 30MSPS (single channel does not switch up to 30K, the sampling rate is reduced when using multiple channels)
Number of input channels: 8 channels single-ended, 4 channels are differential
Module access port: 3.81-10PIN terminal block
Reference voltage: internal 2.5V (weldable SOT-23 package external input reference)
PGA mode: 1 times, 2 times, 4 times, 8 times, 16 times, 32 times, 64 times
Sampling mode: configurable acquisition voltage range, maximum 0-5V
Output mode: 8-channel data parallel
Module interface type: 3.81-10PIN socket, XH2.54 double row pin data interface

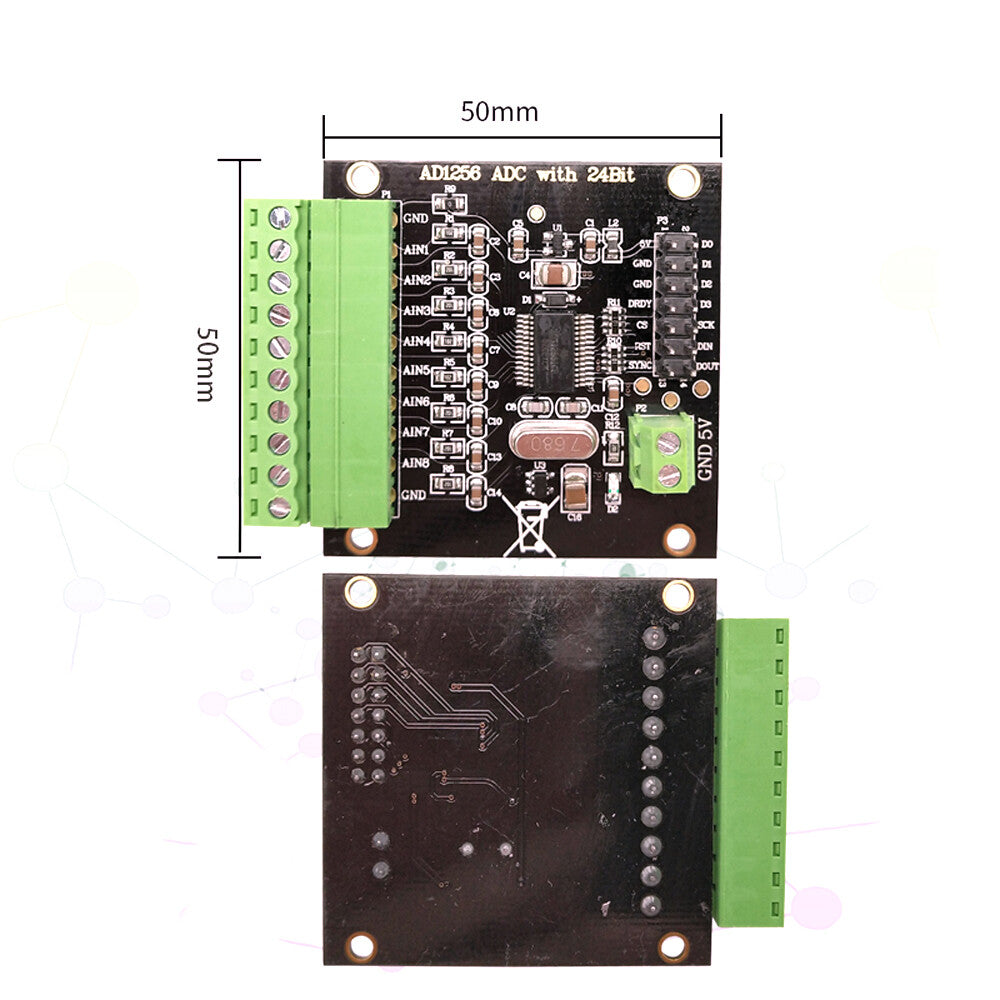

Module size: 50x50x12mm
Packing:
1*ADS1256 analog-to-digital conversion module
