AK4493SEQ 12S/DSD DAC V4 32bit 768K DSD64-DSD512 Support Parallel Mode Capable

$109.00

~~$121.00~~ $109.00

Sale Sold out

Shipping calculated at checkout.

Options AK4493-SEQ semi-finished kit AK4493-SEQ finished board XMOS XU316 card XMOS XU208 card

Quantity

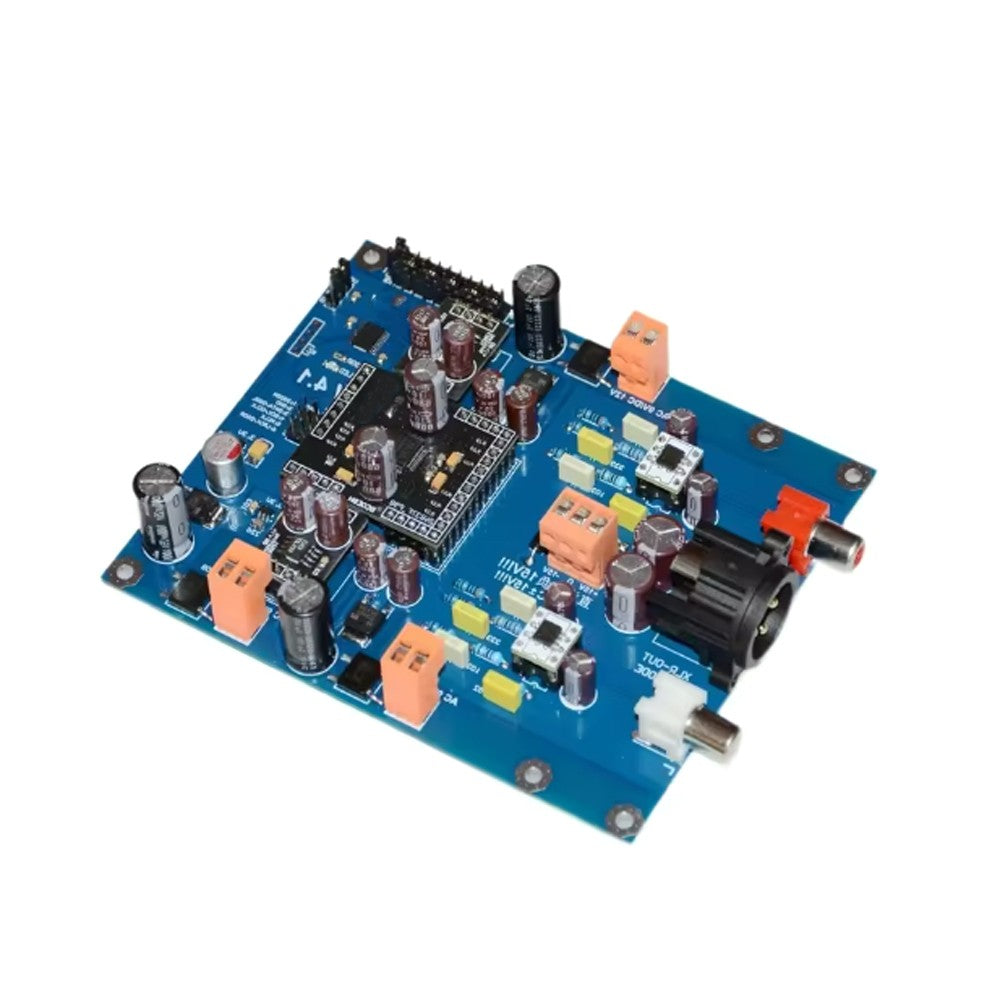

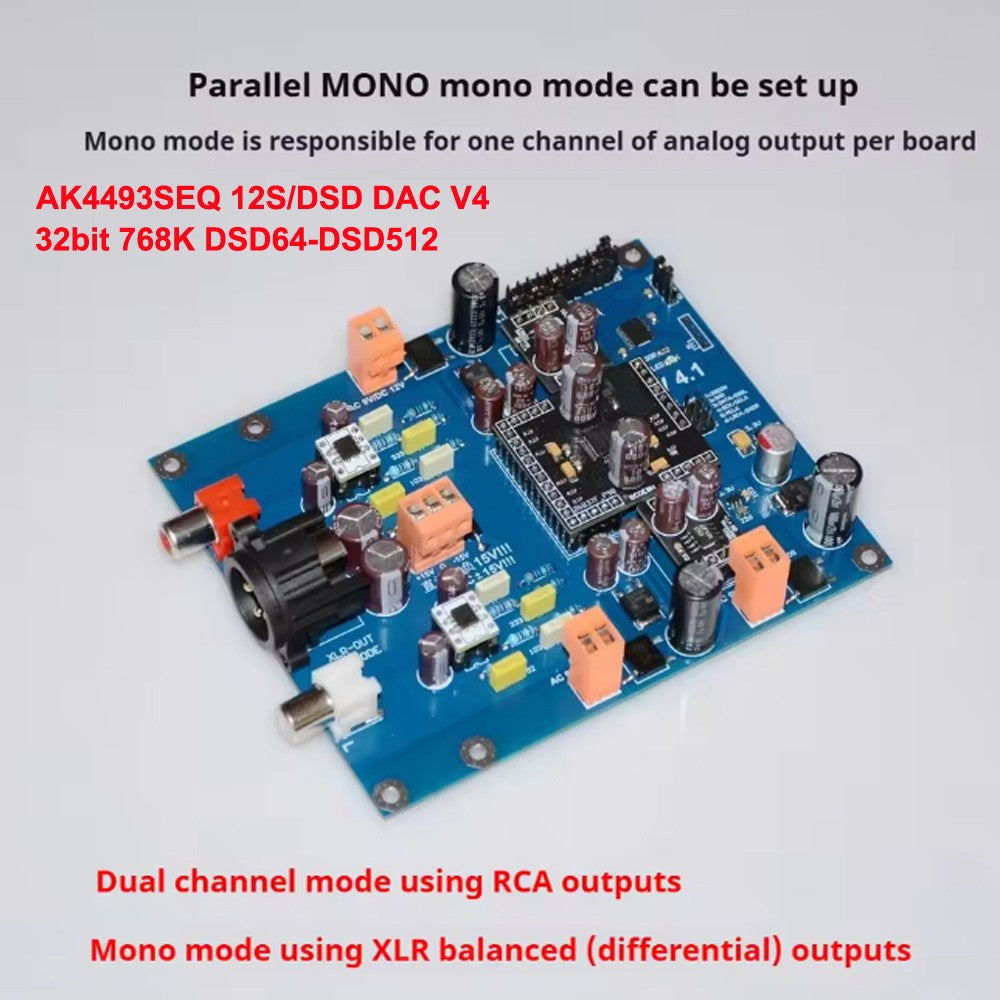

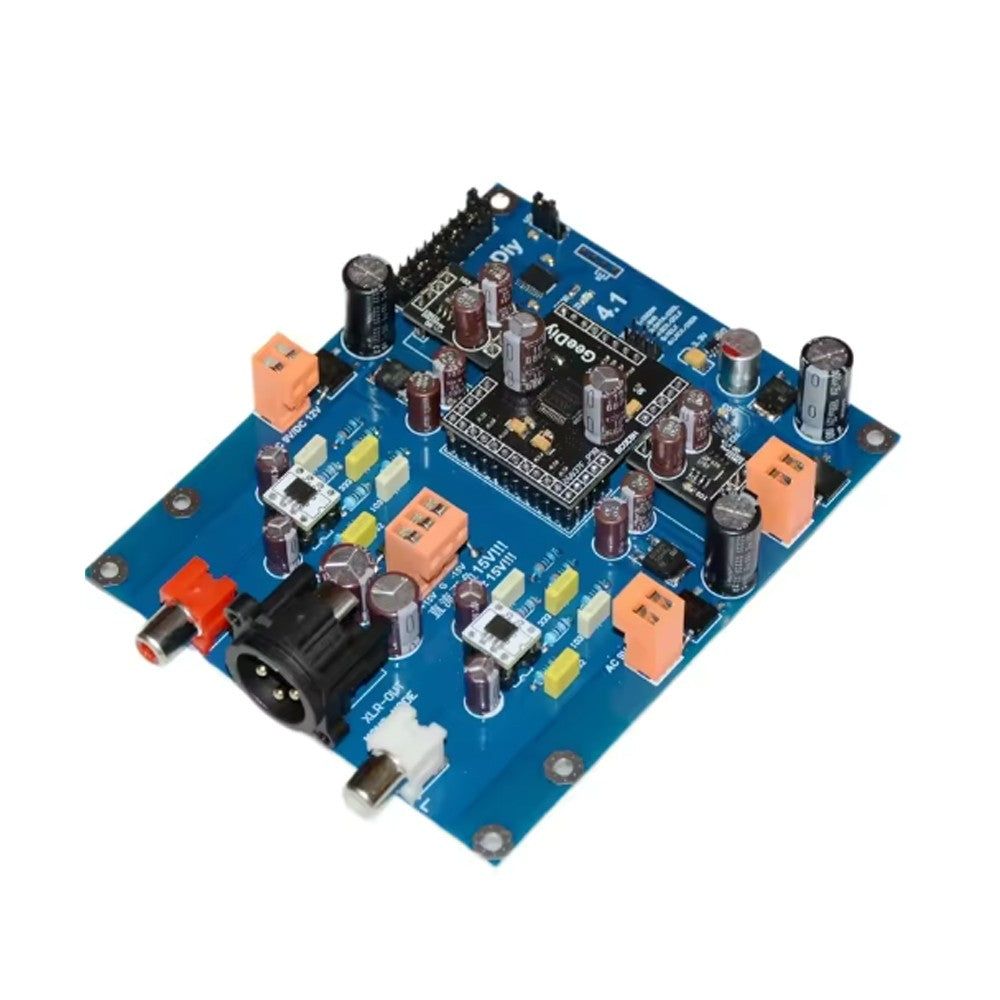

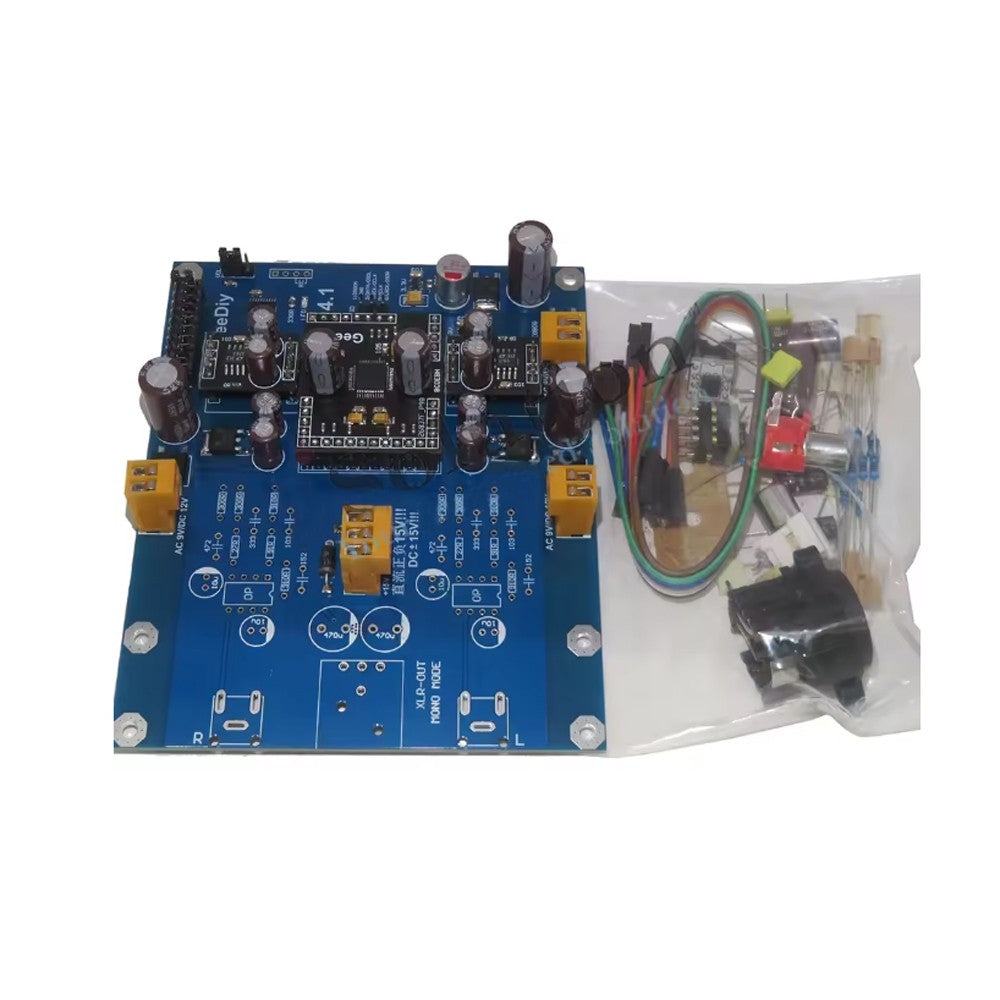

AK4493 AK4493SEQ 12S/DSD DAC V4 32bit 768K DSD64-DSD512 Support Parallel Mode Capable

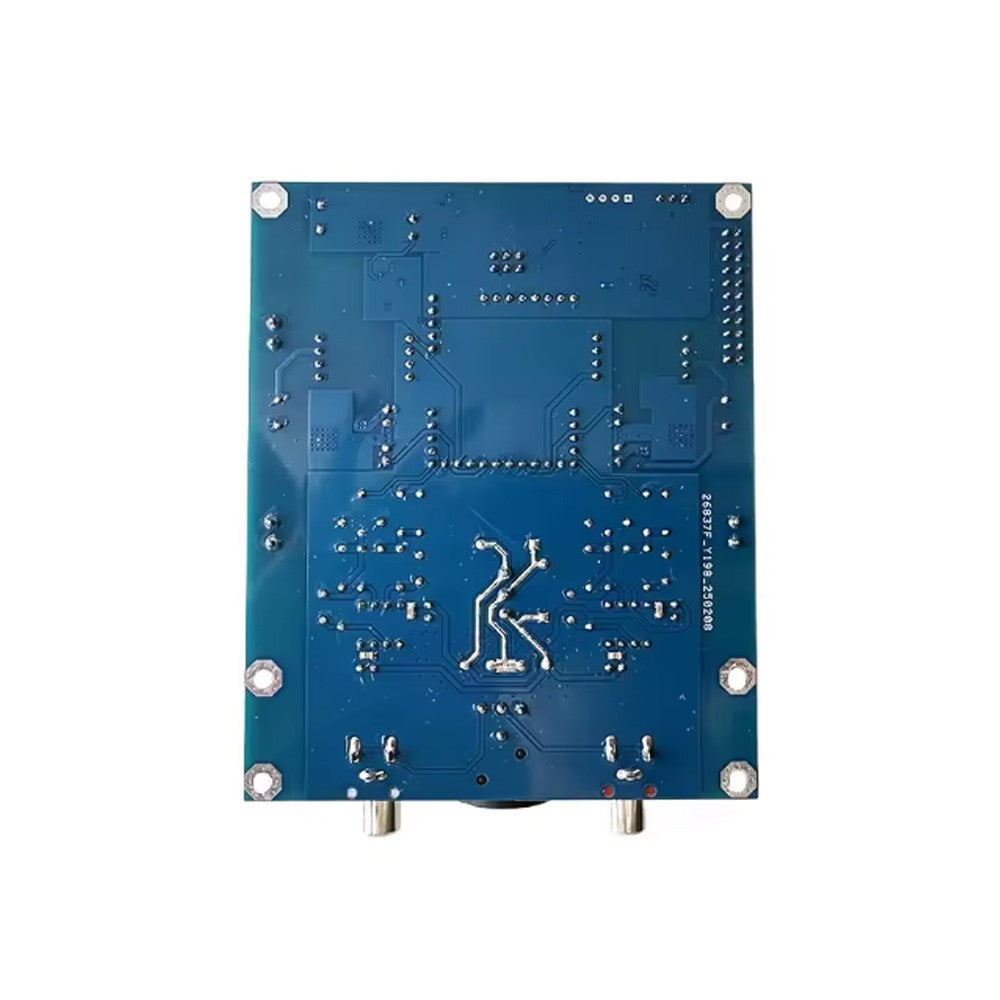

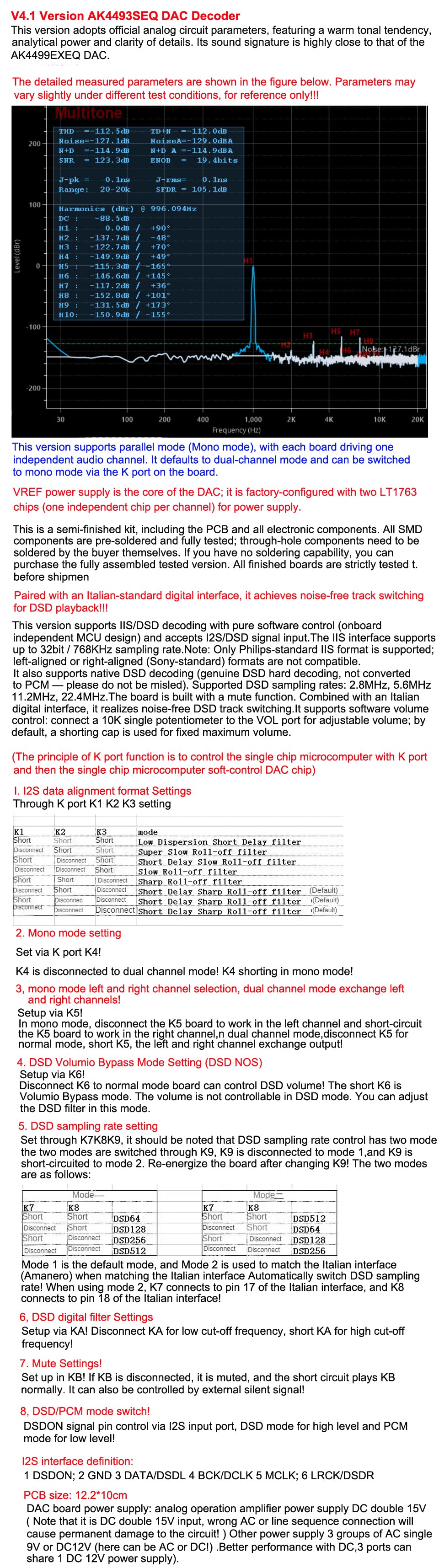

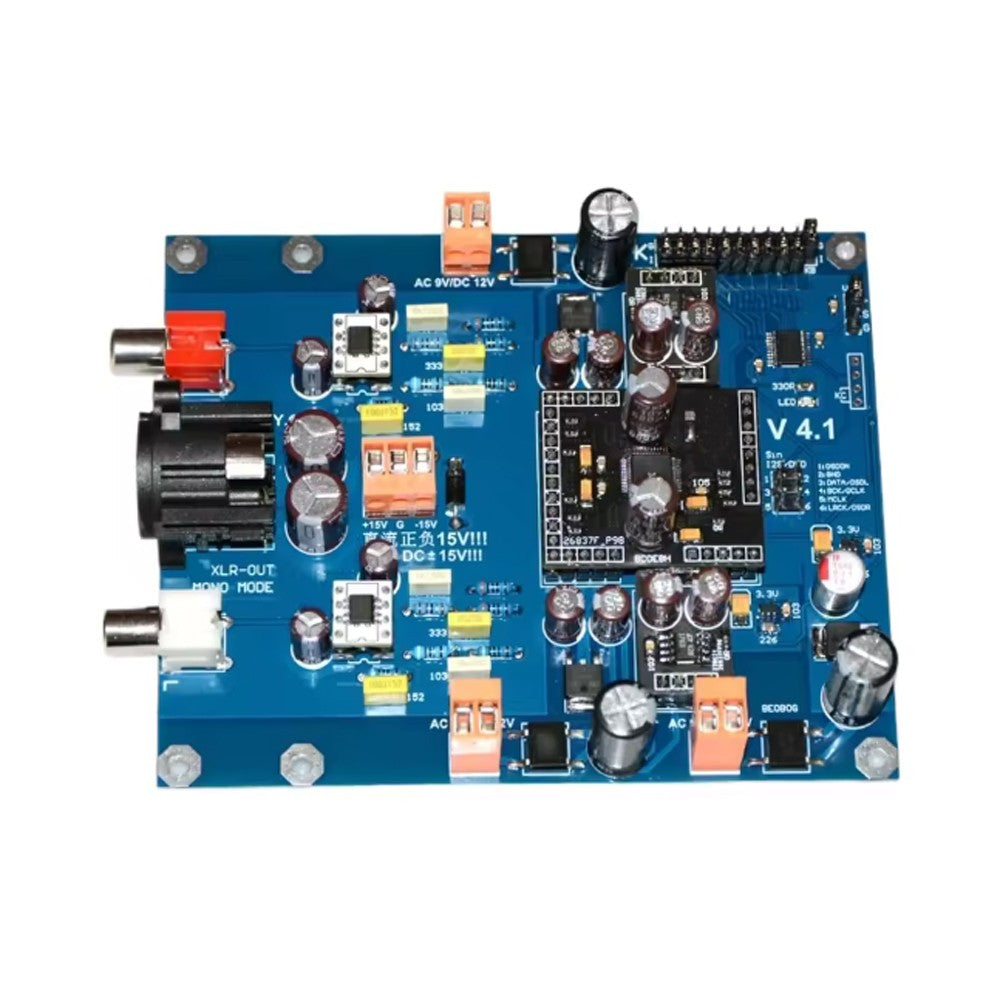

Electrical characteristics:

PCB size: 11.6 * 10cm

DAC board power supply: Simulate operational amplifier power supply DC dual 15V (note that DC dual 15V input, misconnecting AC or line sequence can cause permanent circuit damage!), other power supply 3 sets of AC single 7.5-9V (here it can be AC or DC!).

explain:

The volume control (V0L port) on the board uses a potentiometer, but it is not really used to control the volume. Instead, a microcontroller reads the voltage ratio of the middle pin of the potentiometer (as a percentage of VCC to GND voltage), and then writes it into the internal register of the DAC through a soft control to achieve volume control. Therefore, as long as the potentiometer is in good contact, the quality of the potentiometer will not affect the sound quality.

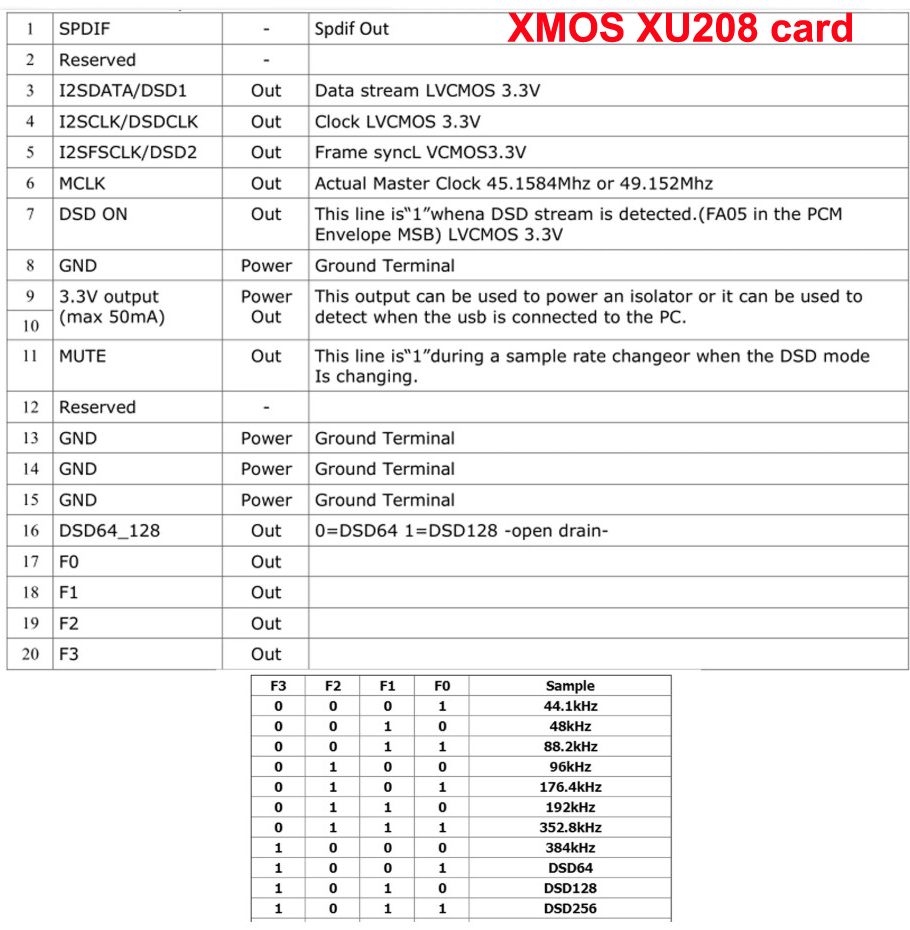

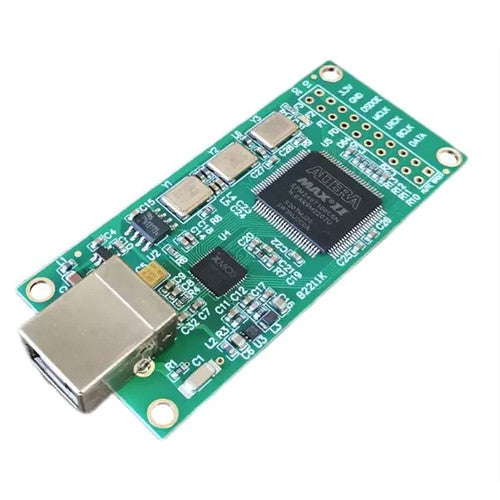

XU208 Card：

Supported sampling rates:

PCM : 16/24/32 bit 44. 1/ 48/ 88. 2/ 96/ 176.4/ 192/ 352. 8/ 384 KHz

DSD:64/128/256

Support system:

WIN8，WIN10， (Need to install the driver we provide) 1: WIN7,

2: Native MacOS uses system built-in drivers. Details:

1: The PCB adopts a double-layer immersion gold process design to ensure good passing performance of both large and small currents

2: High quality active crystal oscillator

3: Adopting MCU optimization control scheme, the USB data chip is fully optimized, resulting in better signal integrity and less signal distortion

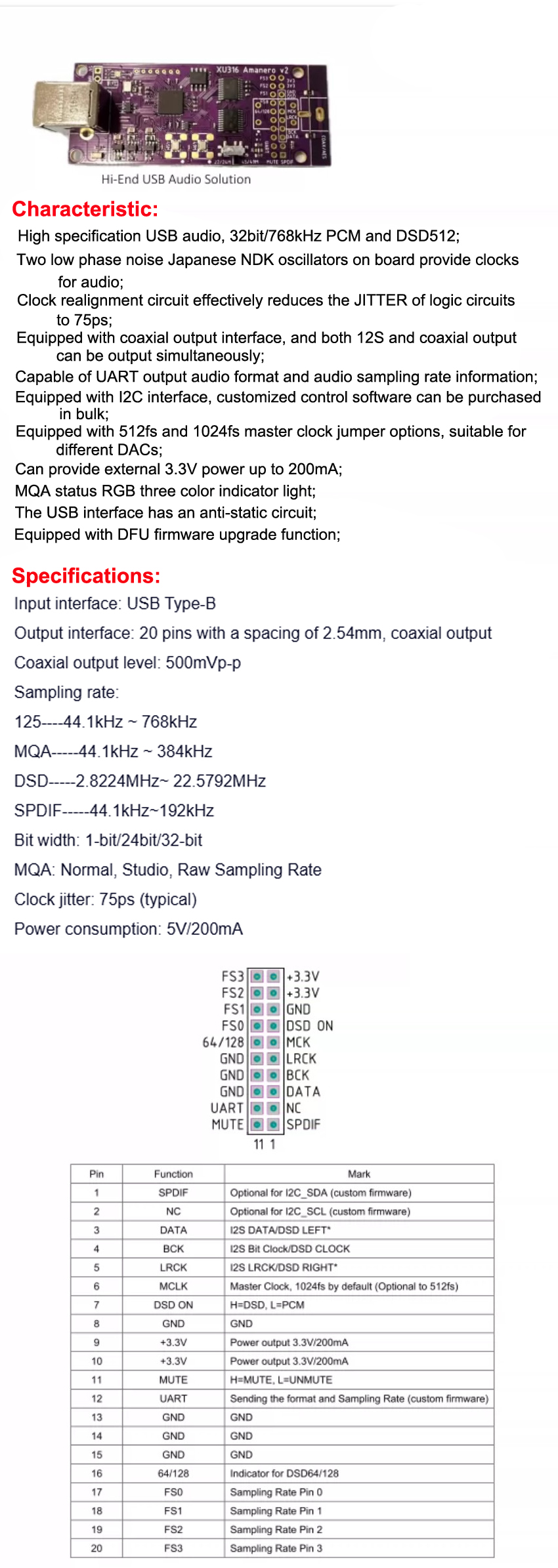

XU316 Card：

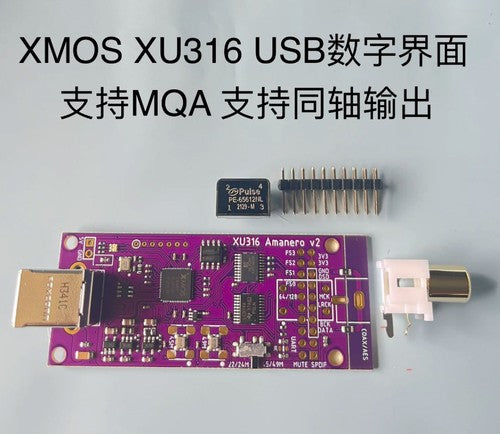

Windows requires driver installation, recommended for Windows 10 and above. Apple system, Duffy, can be used directly on mobile phones without the need for drivers. Delivery with RCA socket, pins (2OPin dual row policy), and isolation transformer。
