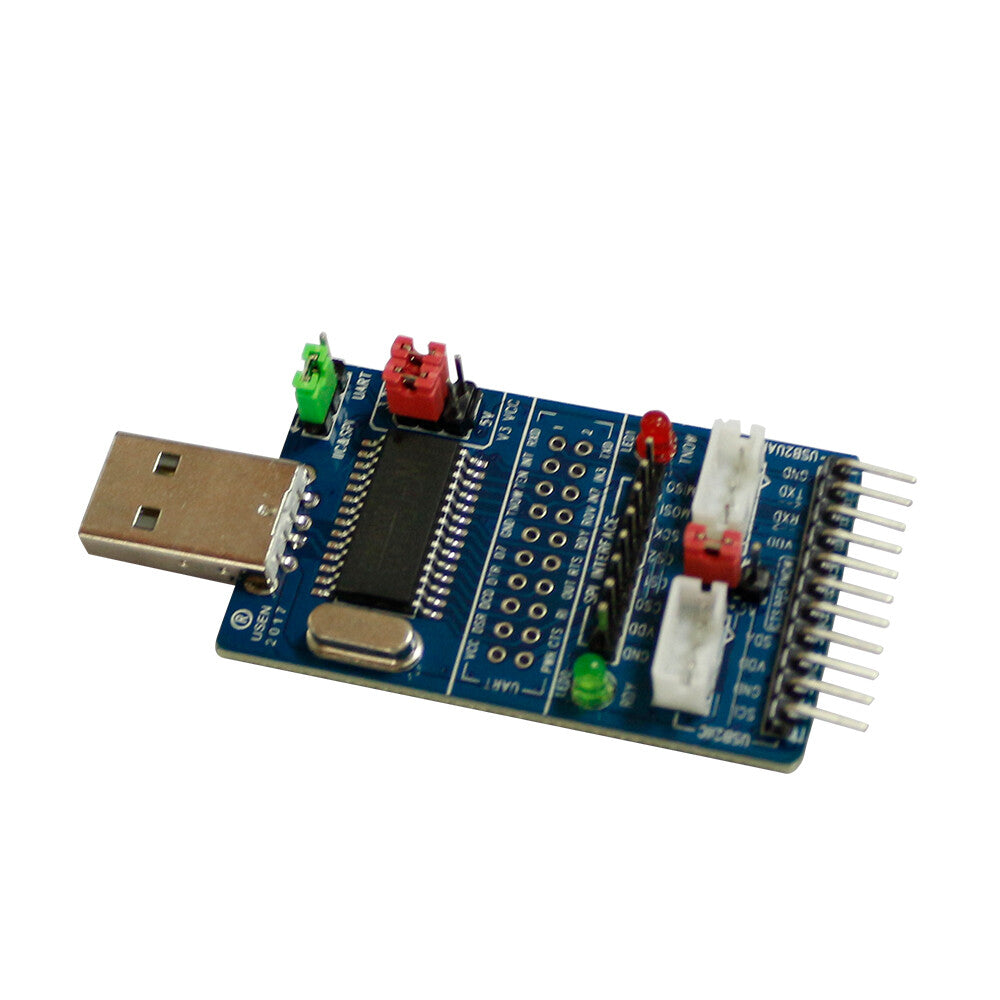

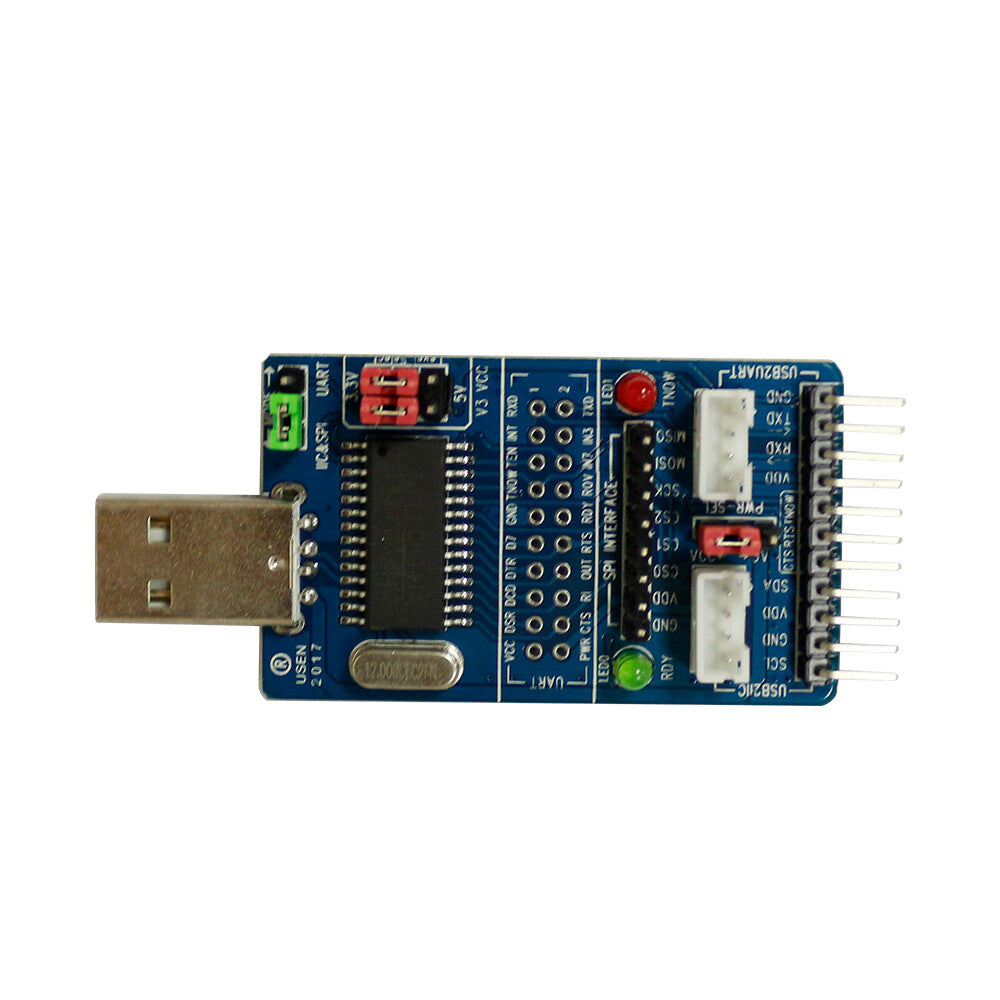

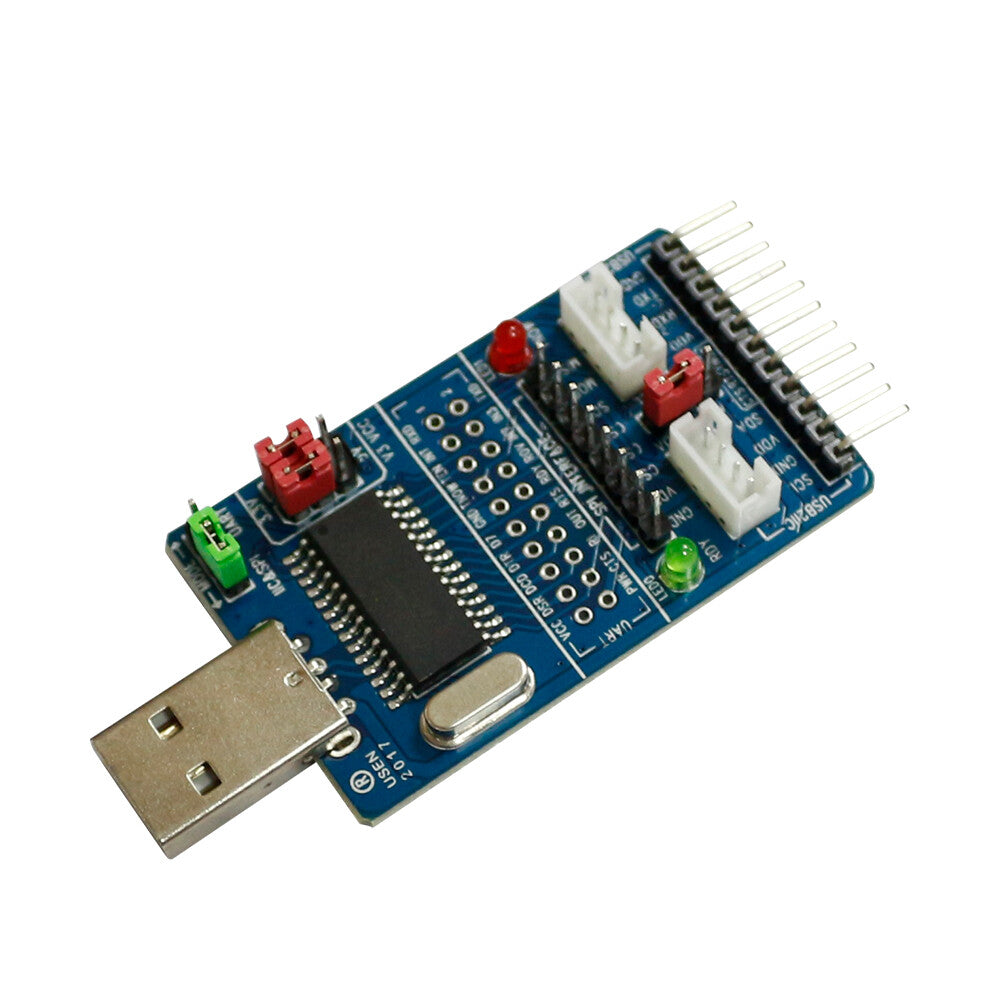

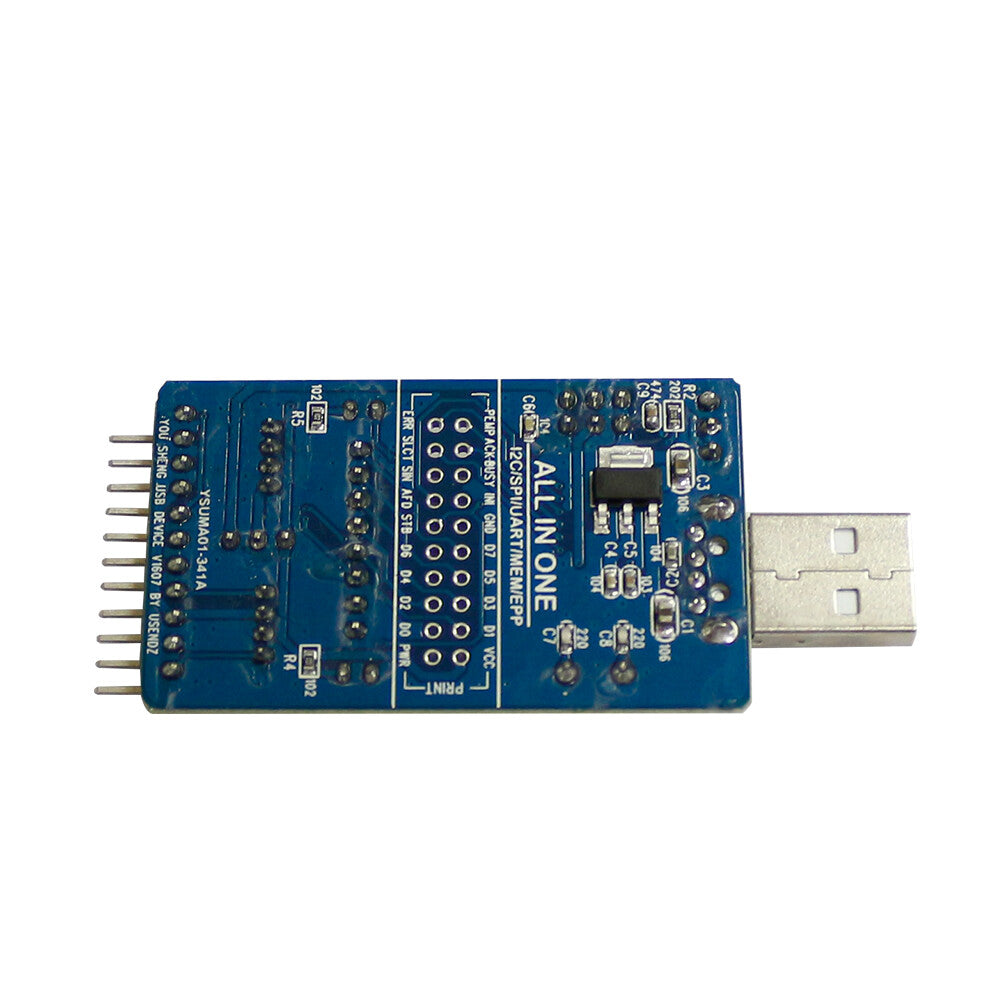

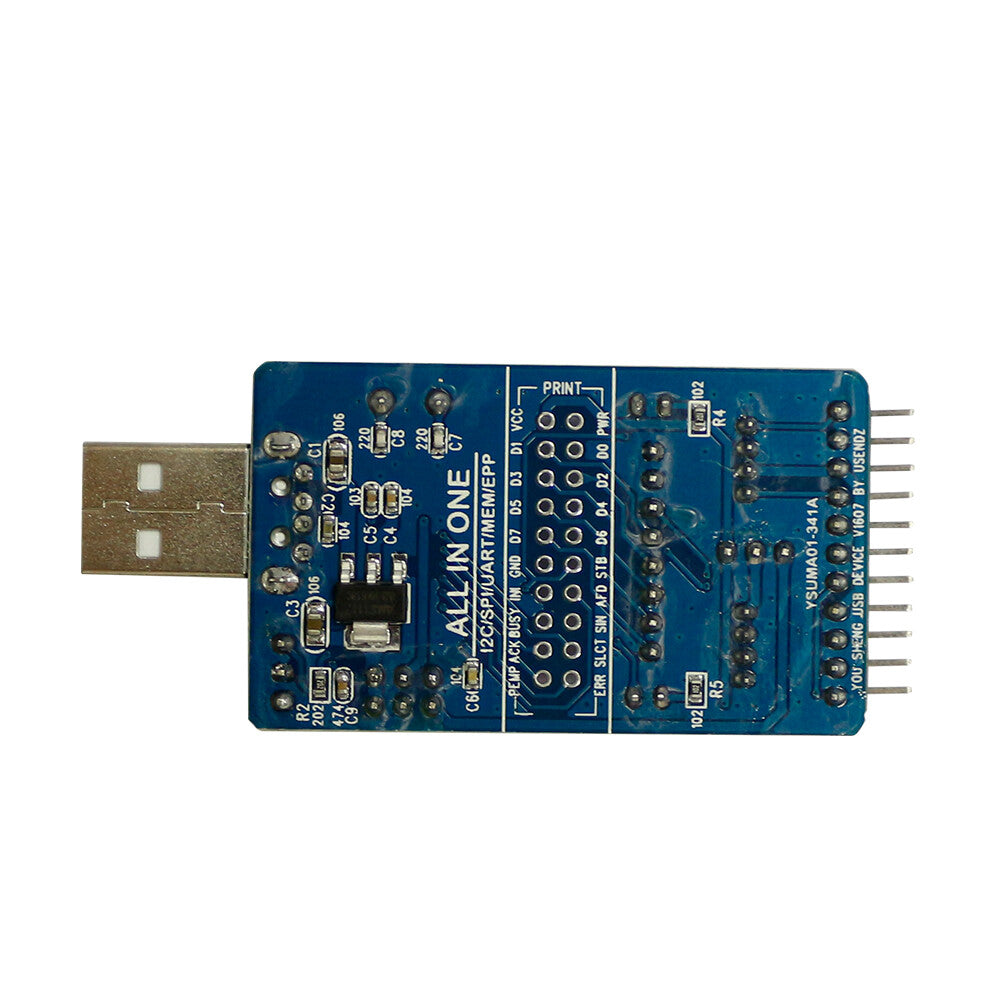

ALL IN 1 USB to SPI/I2C/IIC/UART/TTL/ISP serial Adapter

ALL IN 1 USB to SPI/I2C/IIC/UART/TTL/ISP serial Adapter

Description:

Function Features: .
Full-speed USB device interface, compatible with USB V2.0, Standard USB-A male design;
Direct power supply from USB connectin to PC.Analogue standard serial port, for upgrading original serial peripherals, or increased additional serial port via USB;
Support 3.3V and 5V TTL target system, the serial application is fully compatible with the computer under the Windows operating system, without need for modification;
Support 5, 6, 7 or 8 data bits, to support odd parity, even parity, blank signs and no parity;
Support the serial port to send control signal and MODEM liaison signal of transmission rate and serial receiver ready signal ;
Plus level conversion module, support RS232, RS485 and other interfaces; (supporting modules are sold separately)
Two parallel port interface way: EPP mode and MEM way; USB to parallel port can be used for simple digital I / O control;
Support a variety of serial communication mode, UART, I2C, SPI, etc.;
Support 2-wire and 4-wire synchronous serial interface, I2C support 4 kinds of transmission speed;
Perfectly support STC MCU program download and debug, STC official recommended program;
Support the outwards output voltage, optional 3.3V/ 5V or no output;
Support working status indication;
Dual interface output;
Hardware full-duplex serial port, built-in transceiver buffer area, support the communication baud rate 50bps ~ 2Mbps.
Support WINDOWS 98/ME/2000/XP/server 2003/VISTA/server 2008/WIN 7/64/32-bit.

Package:

1x ALL IN 1 USB to SPI/I2C/IIC/UART/TTL/ISP serial Adapter
