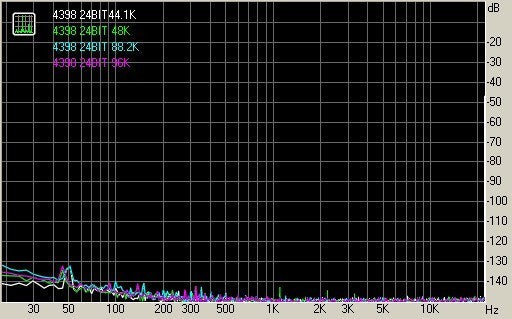

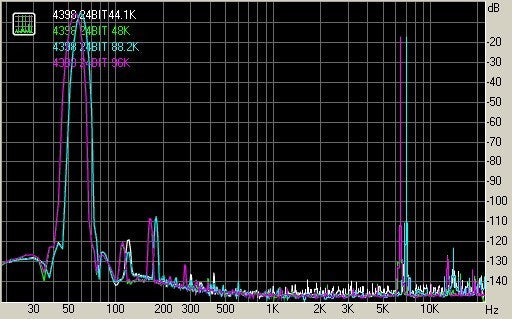

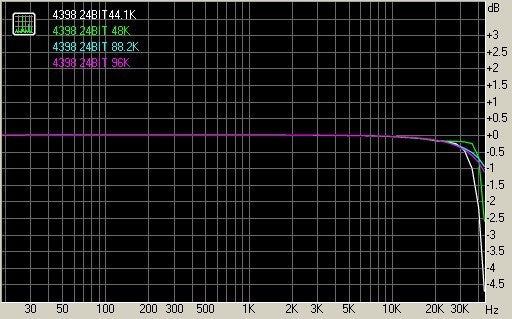

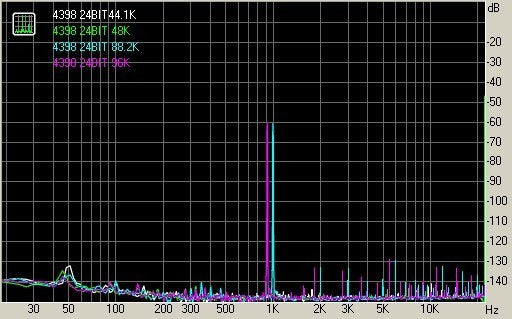

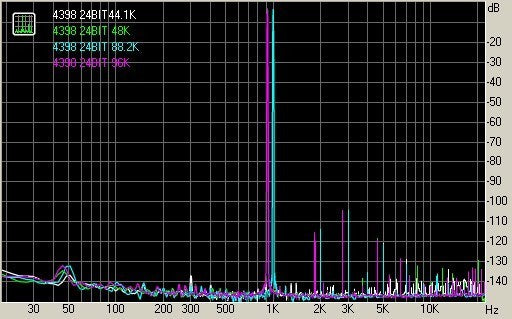

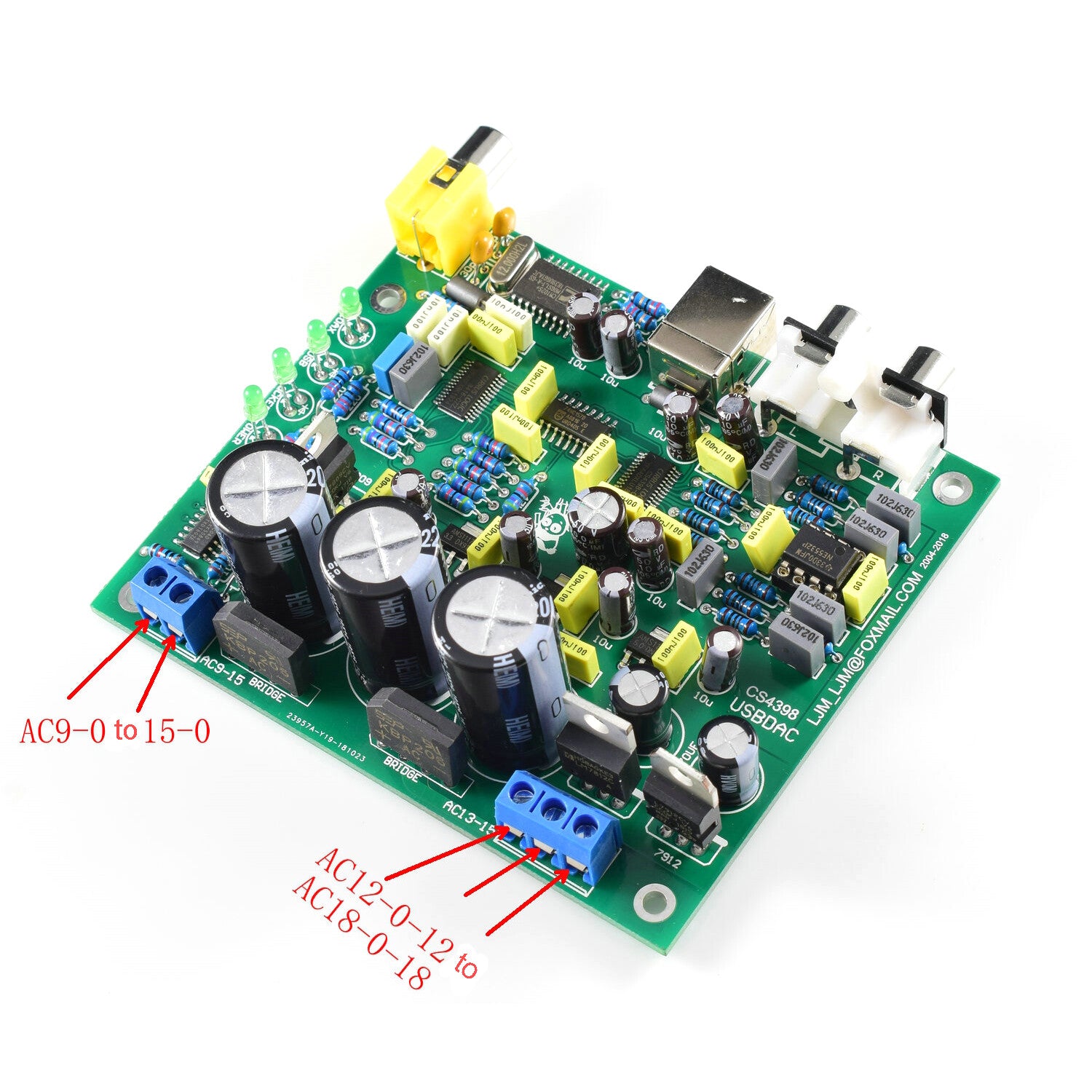

Size: 86 * 100MM Input Volatage: AC15V-0-AC15V (13-15V is ok) AC0-9V (9-15V is ok) InPut port: COA + USB Input port Digital Input: COA (coaxial) USB and one each in groups. Support the sampling frequency: 32K -192K/24BIT (USB input supports only 16bit/44.1K and 48K) Power LED. Signal lock indicator (locked) LED COAX Coaxial input channel selection of indicators USB USB output channel selection of indicators Core chips The digital receiver: CS8416IC highest an support 192K/24BIT SPI & I2S signal output. USB support 16BIT/48K signal. The digital receiver: CM102 native SPDIF signal output, D / A converter (decoder chip): The CS4398 120dB dynamic range support 24bit/192K the sampling Test pattern Test environment: coaxial input Source: EMU1212M
Only for professional
Package:

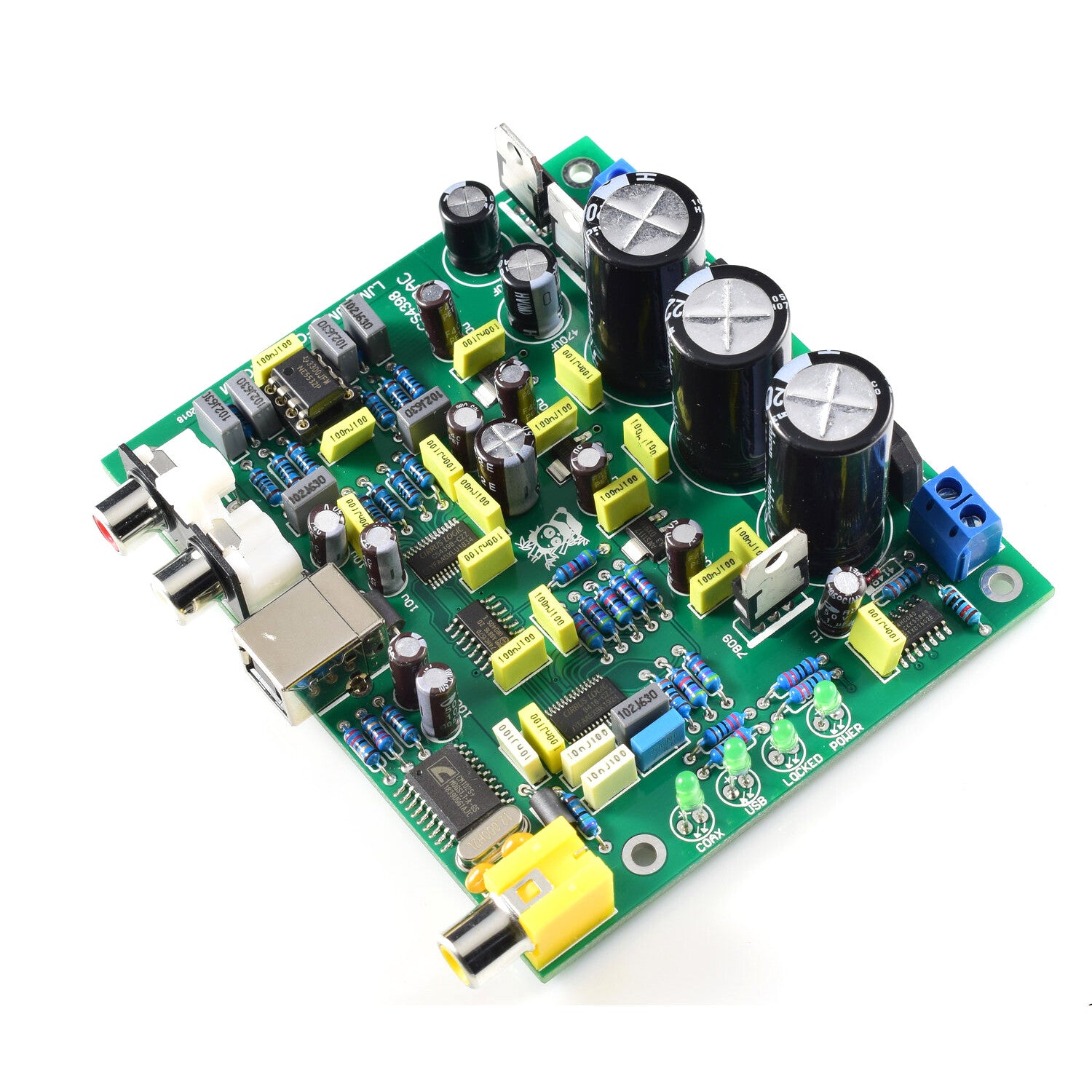

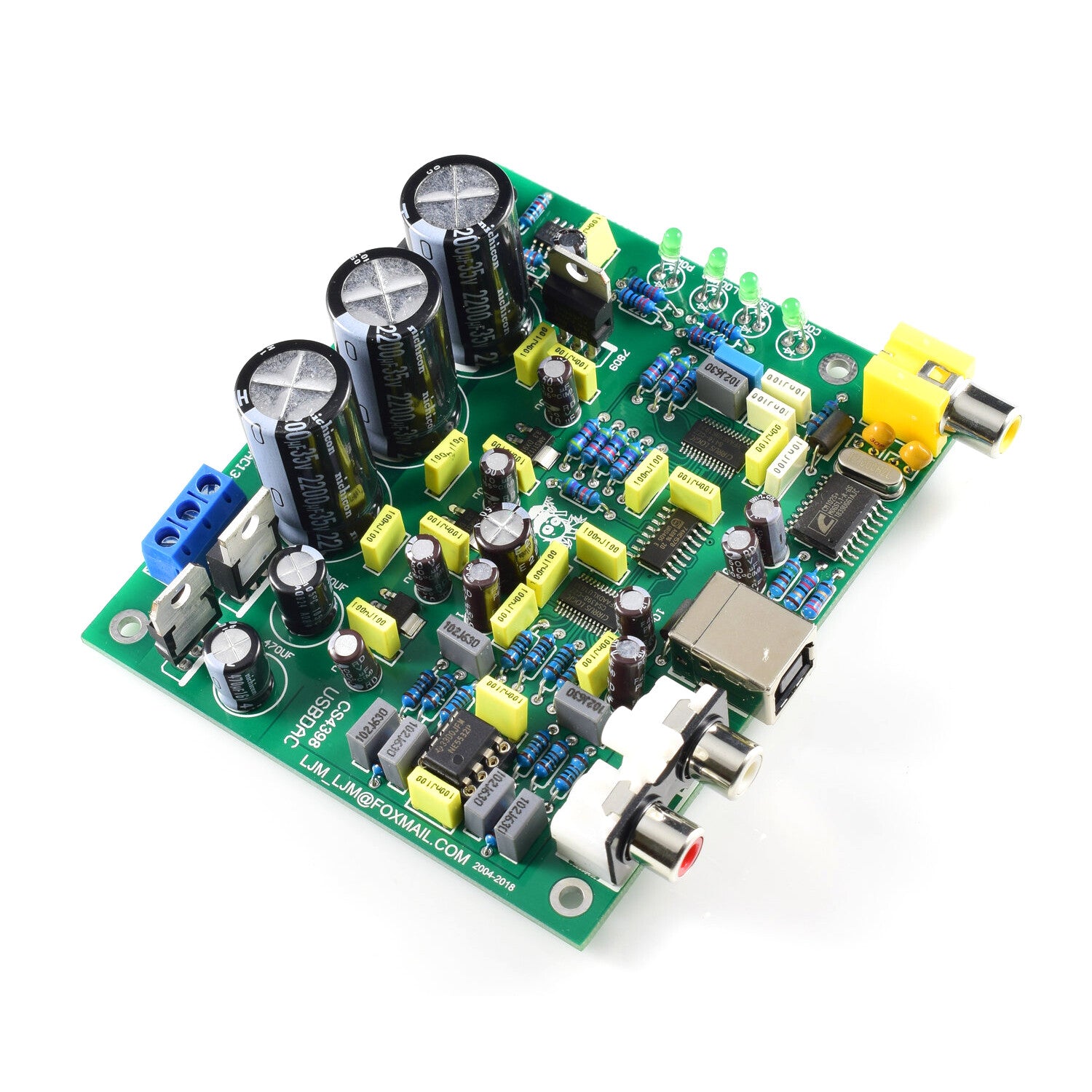

1 x CS8416+CS4398 DAC board ( USB + coaxial DAC 192K/24BIT Board )AC15V-0-AC15V
