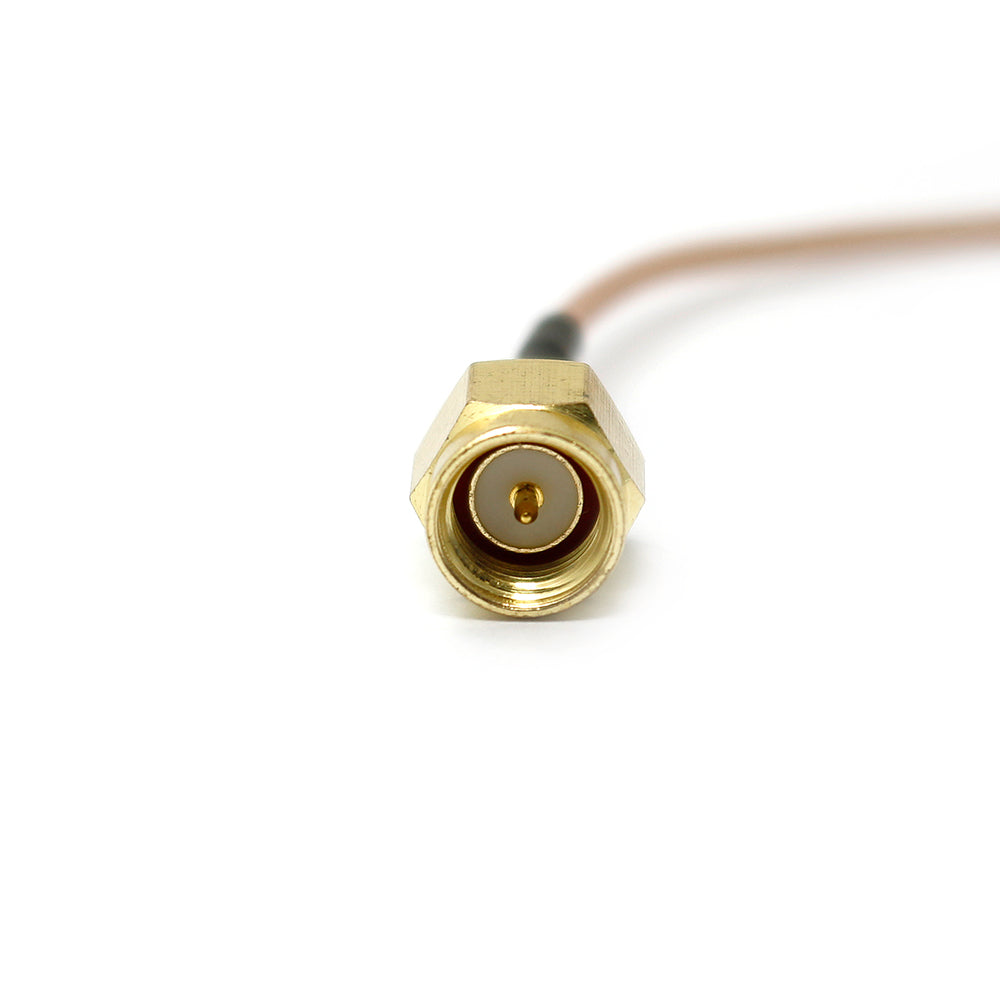

Specifications: RF Range: 902-928MHz. Polarization mode: Circular polarization. Belt width: 26 Gain: 5 dBi. VSWR: ≤ 1.4. Half power angle: 70 or. Input impedance: 50Ω. Maximum input power: 100W Mechanical properties: Connector: MMCX plug and internal lines, optional. Dimensions, length x width x height: 4.5cm x 4cm x 0.2cm Weight: 20 g. Operating temperature: -40°C to +70°C.
Features: 1. RF Optional Standard: European 865-868MHz; US 902-928MHz. 2. Polarization mode: Circular polarization. 3. Connectors: Normal N Series - Gains are different from high to low depending on the antenna size. - -

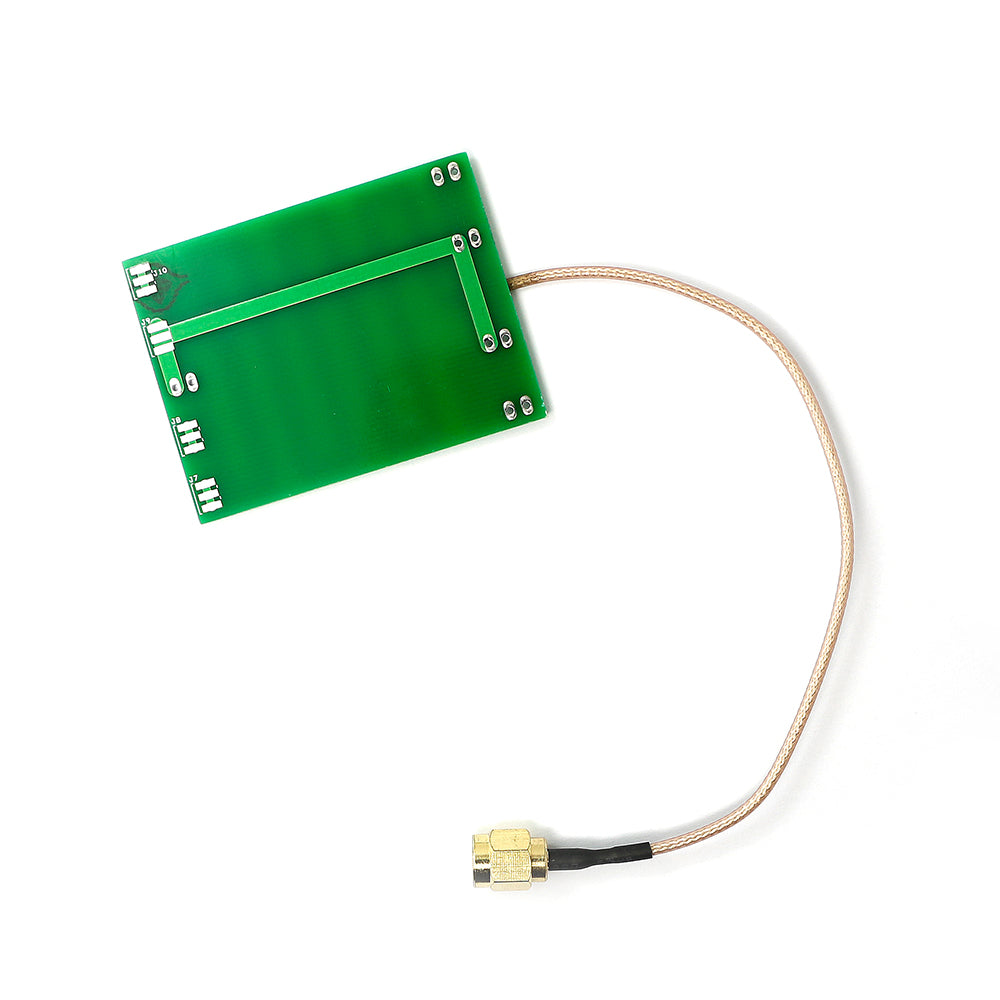

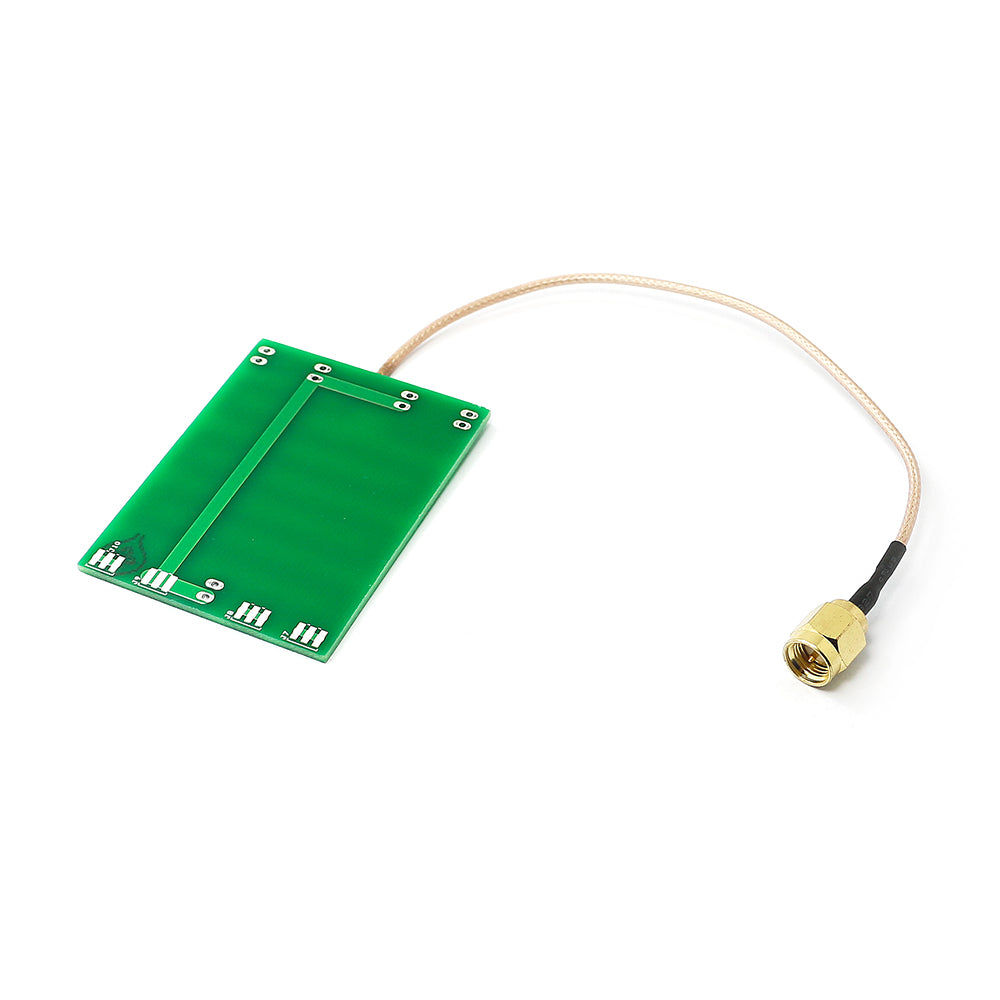

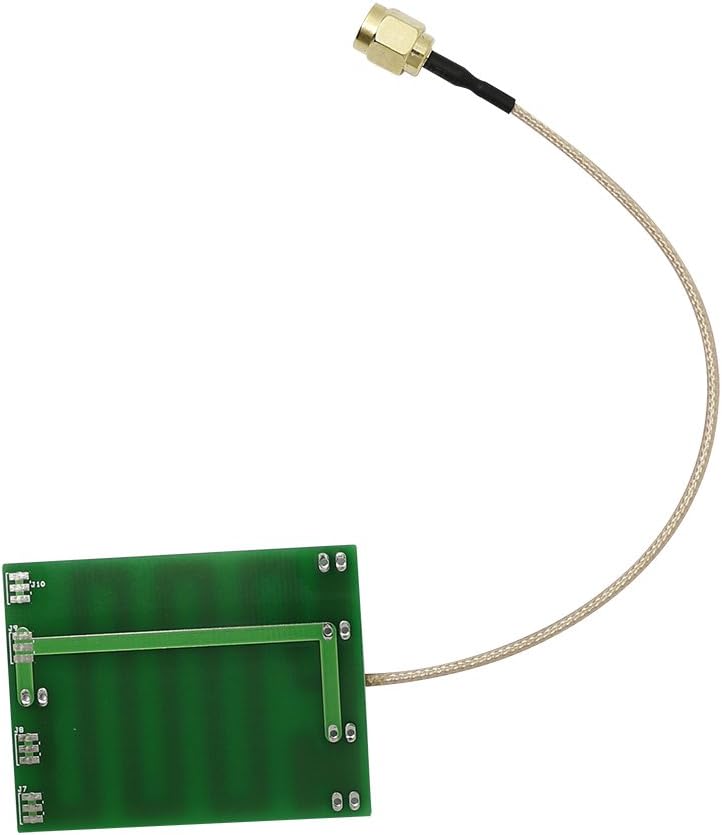

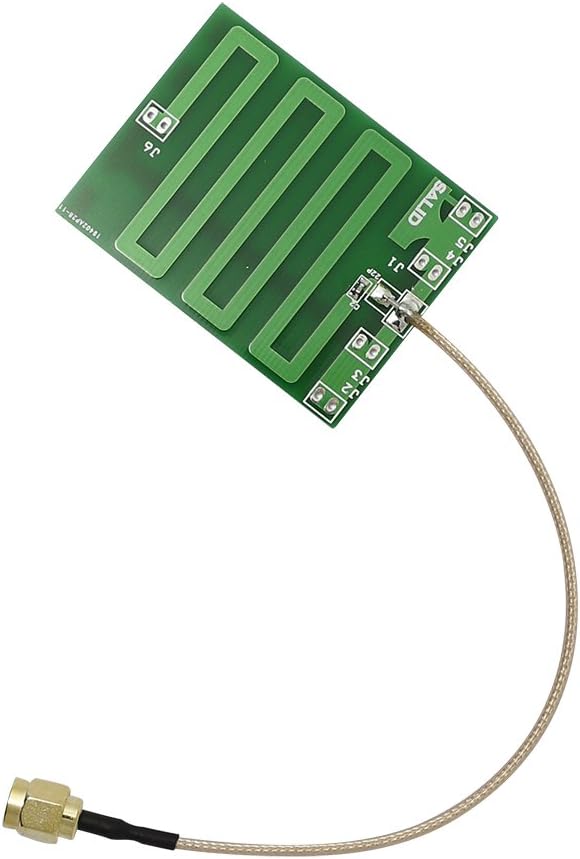

Package: 1pc 5dBi PCB UHF RFID 902-928 MHz, 5 cm x 5 cm with SMA connector.
