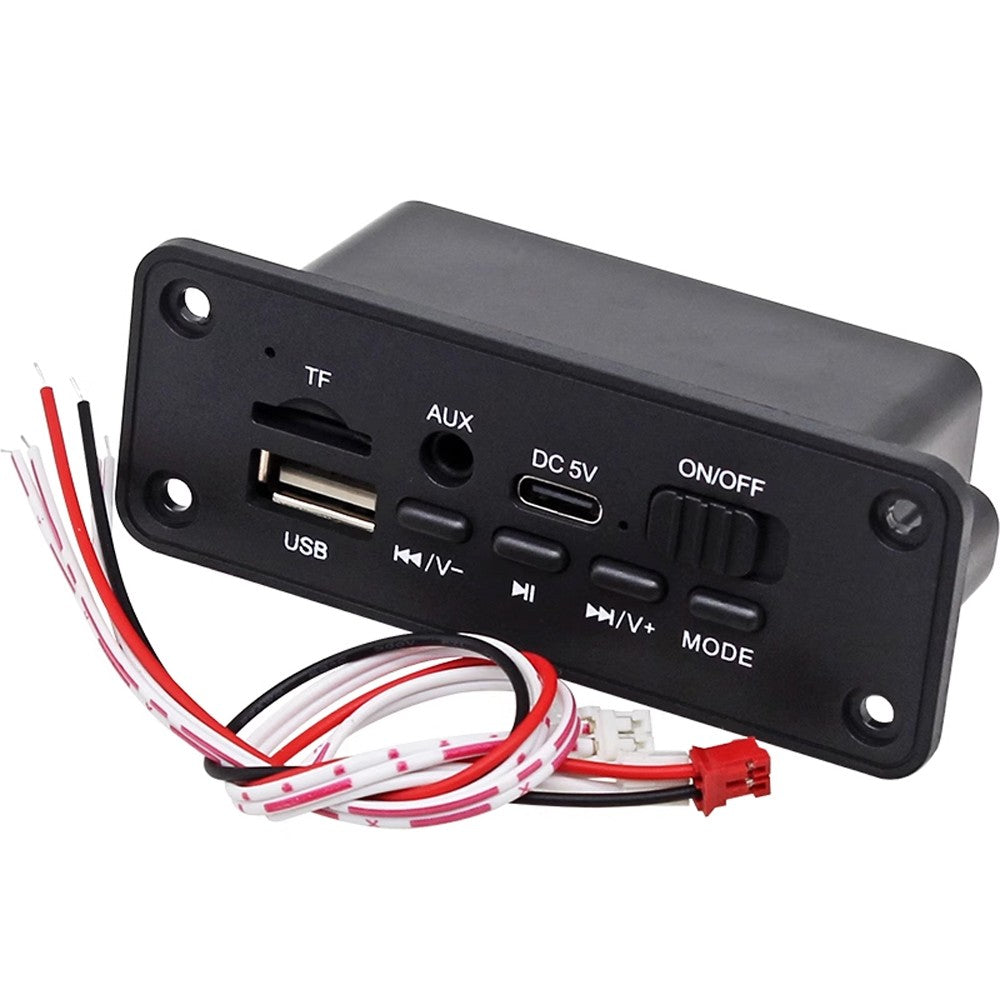

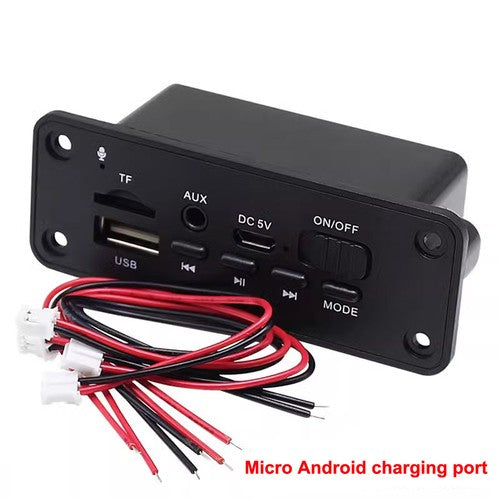

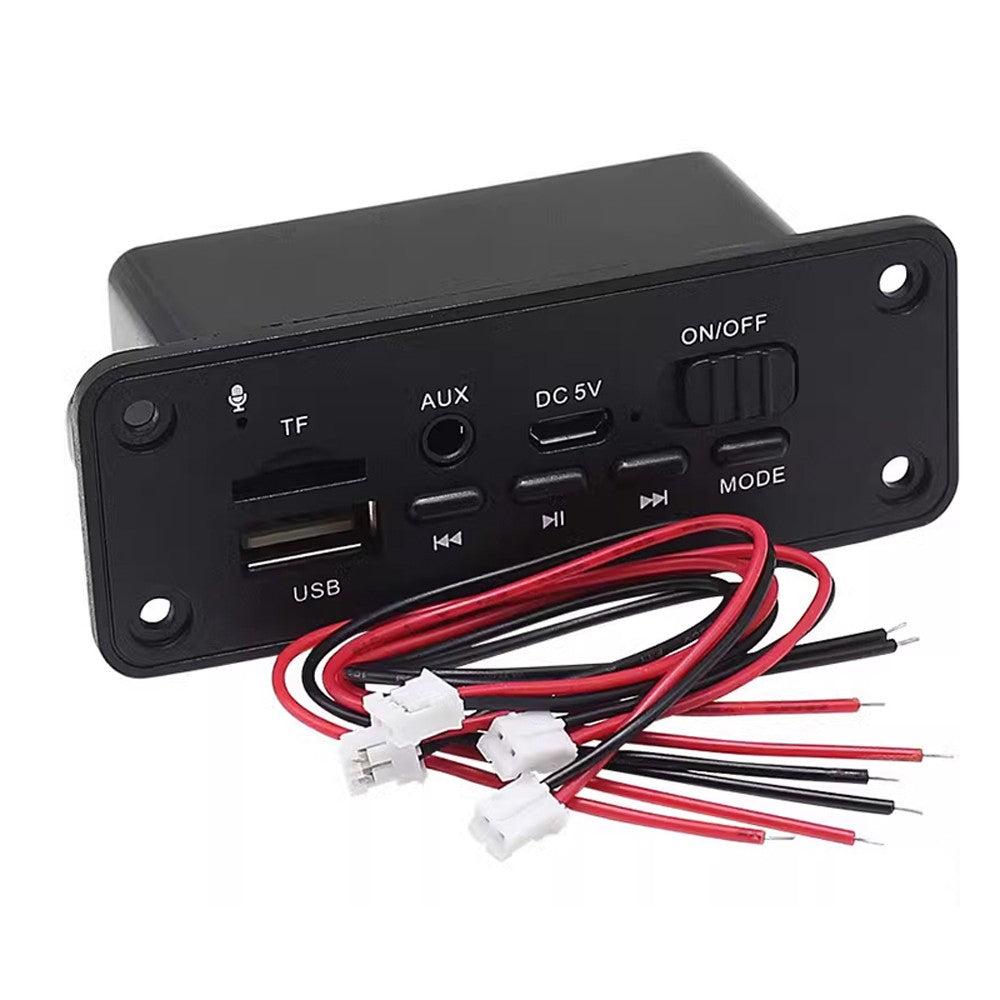

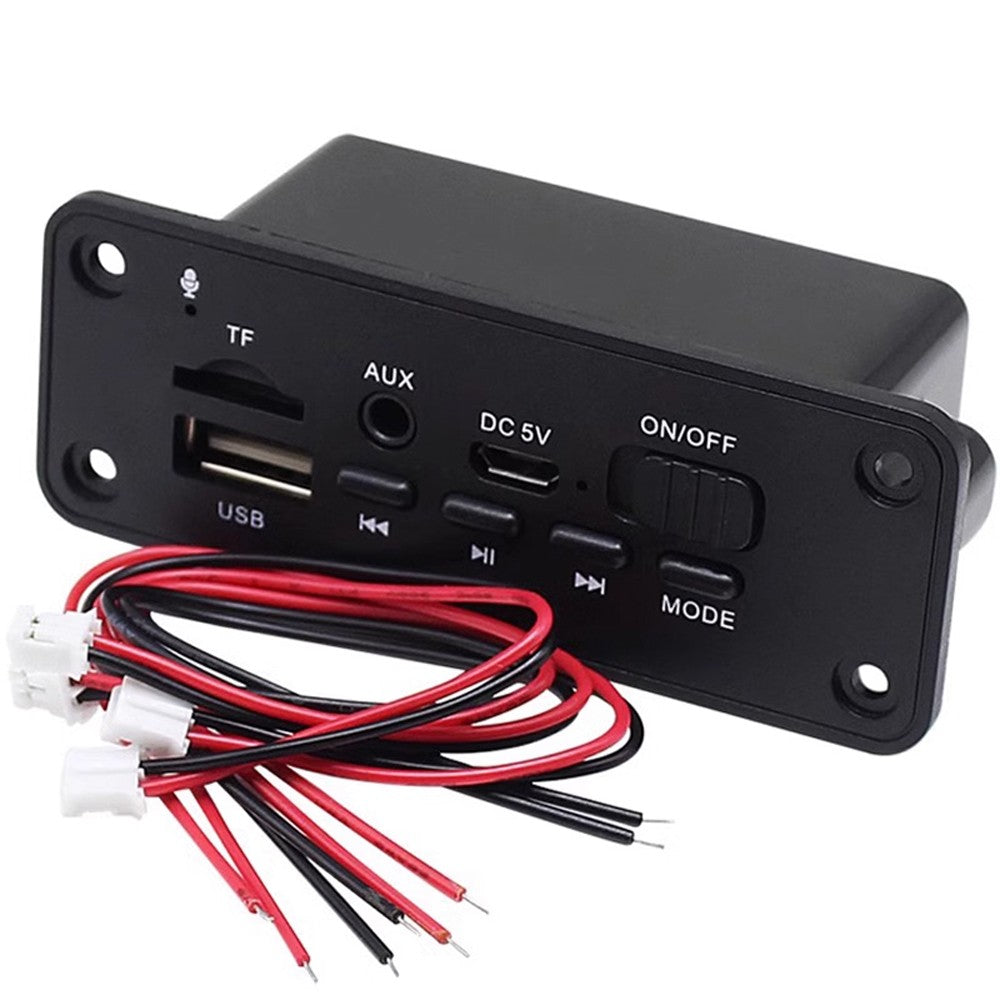

Bluetooth MP3 Decode Board 2*5W Supports Hands-free Calling FM/USB/TF/AUX Player

Bluetooth MP3 Decoding Board with Power Amplifier 2*5W Supports Hands-free Calling FM Radio USB Drive TF Card AUX Player

Specifications:

1. Dual decoding supports music in MP3/WMA/WAV formats;

2. Support Bluetooth function;

3. Equipped with power amplifier 2 * 3W;

4. Supports TF card and USB interface (USB flash drive);

5. Power off memory function;

6. Support infrared remote control operation at a distance of 5-10 meters;

7. Support external audio input LINE IN (AUX);

8. Support FM radio reception and frequency range (87.5MHZ-108.0MHz);

9. Button: Four button multi directional control, previous/play pause/next/MODE; 10. Bluetooth name: JQ-BT

Function Introduction:

Supports Bluetooth function/with amplifier 2 * 3-5W/dual decoding MP3, WMA, WAV format music/read USB drive (maximum 32GB)/read TF card (maximum 32GB)/FM radio/external audio input LINE IN (AUX)/infrared remote control/power-off memory (to song)/voice hands-free calling/power supply 3.7-5V

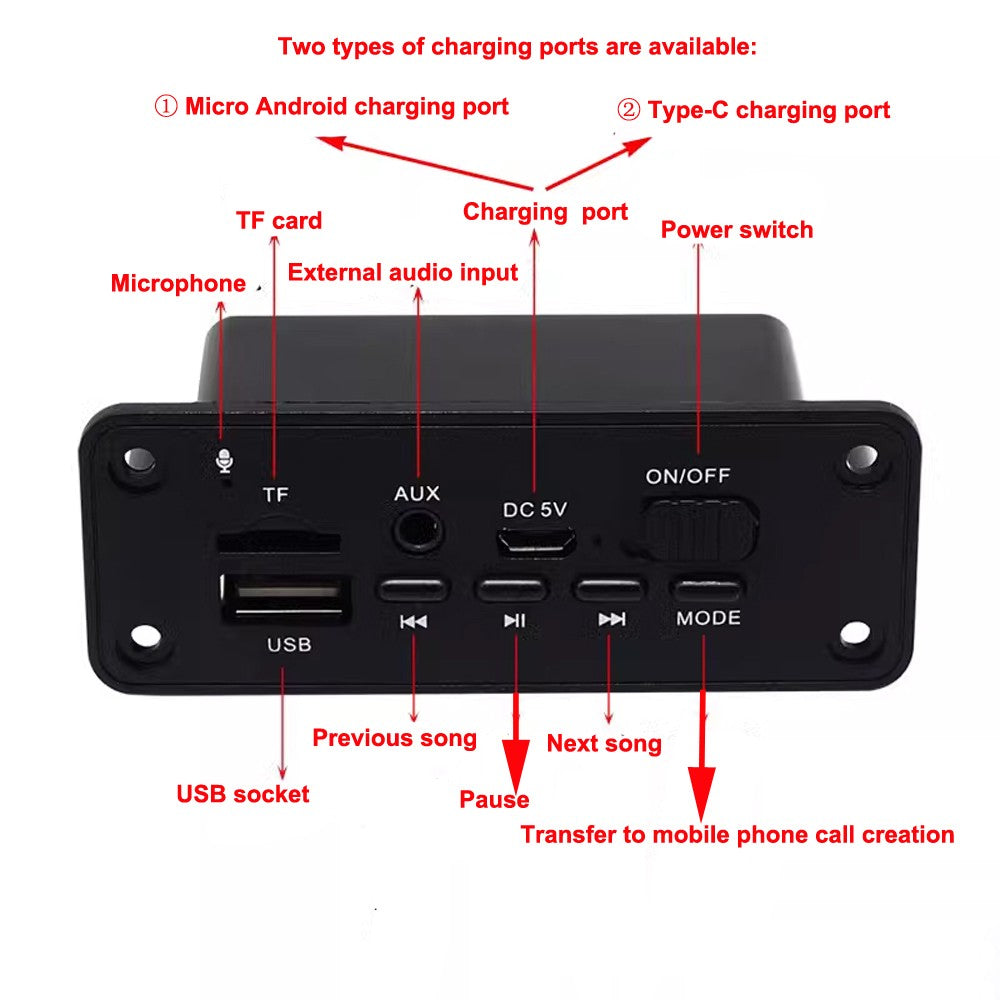

Detailed button operation:

1. VOL button (previous track/volume decrease): In MP3 mode, short press VOL button for previous track, long press button for volume decrease; Short press in FM mode to move up one station number; Short press to play the previous song on Bluetooth, long press to decrease the volume.

2. AUTO button (play/pause): Short press AUT0 in MP3 mode to play/pause; Short press to play/pause in FM mode, long press to automatically receive and coexist channels; Short press to play/pause under Bluetooth function.

3. VOL+button (next track/volume up): In MP3 mode, short press VOL+button for next track, long press button for volume up; Short press in FM mode to downgrade one station number; In Bluetooth

Short press for Bluetooth next track under function, long press for volume reduction

Package: 1 * Bluetooth MP3 decoding board
