Brand-new 405nm 100mw CW Violet/Blue Laser Diode LD 3.8mm/5.6mm SLD3235VF
Brand-new 405nm 100mw CW Violet/Blue Laser Diode LD 3.8mm/5.6mm SLD3235VF
Regular price
$30.00
Regular price
$40.00
Sale price
$30.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

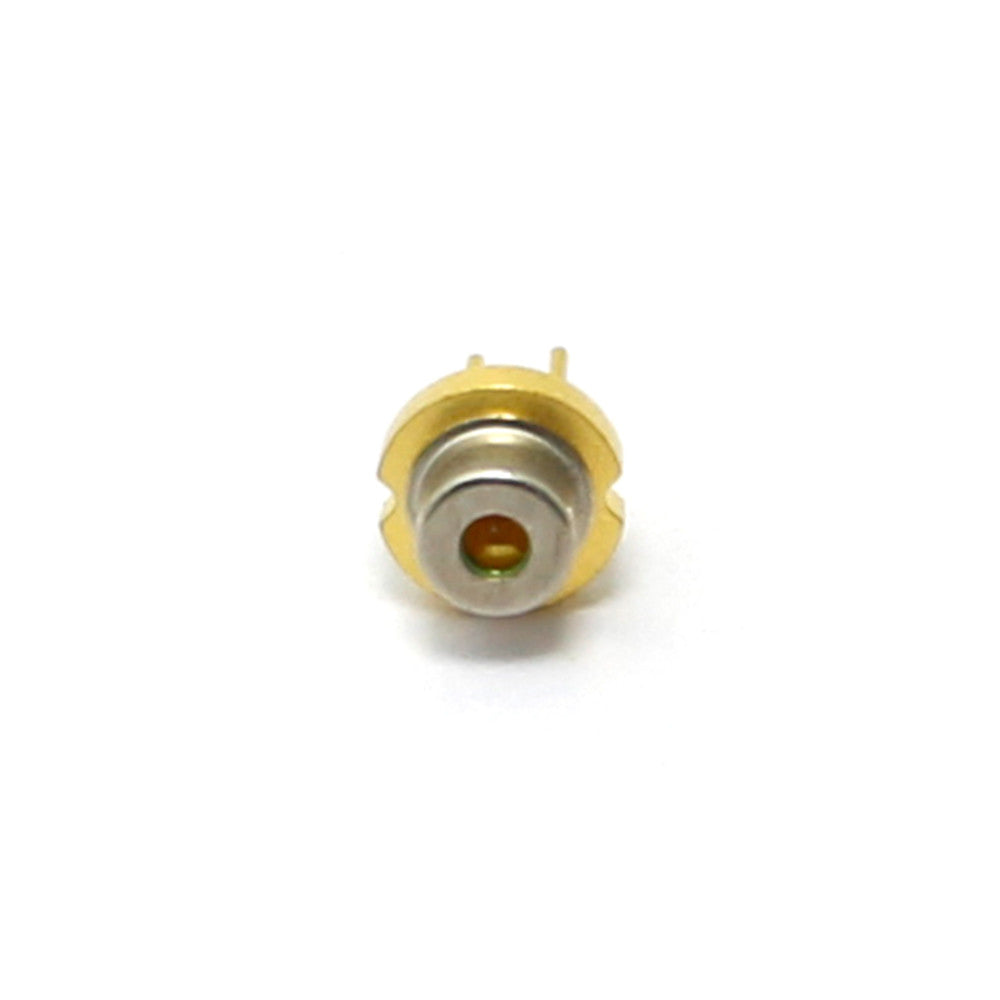

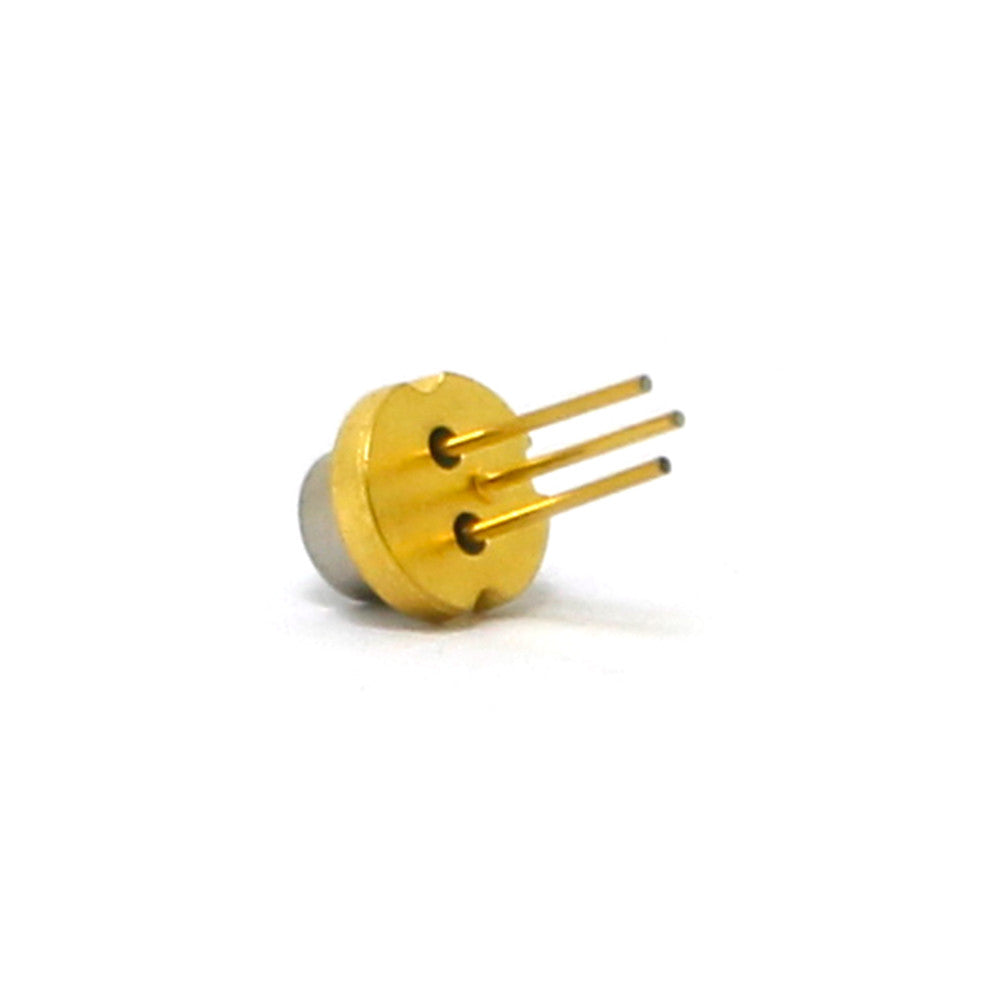

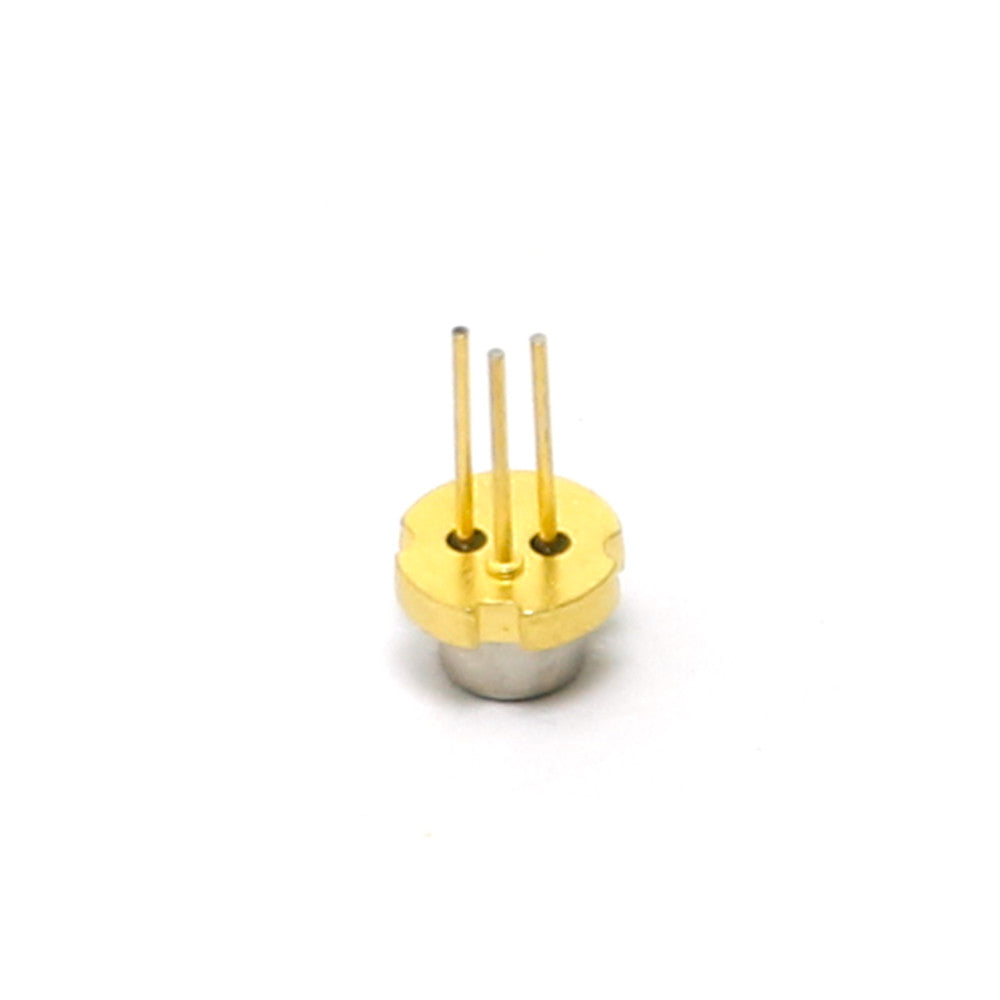

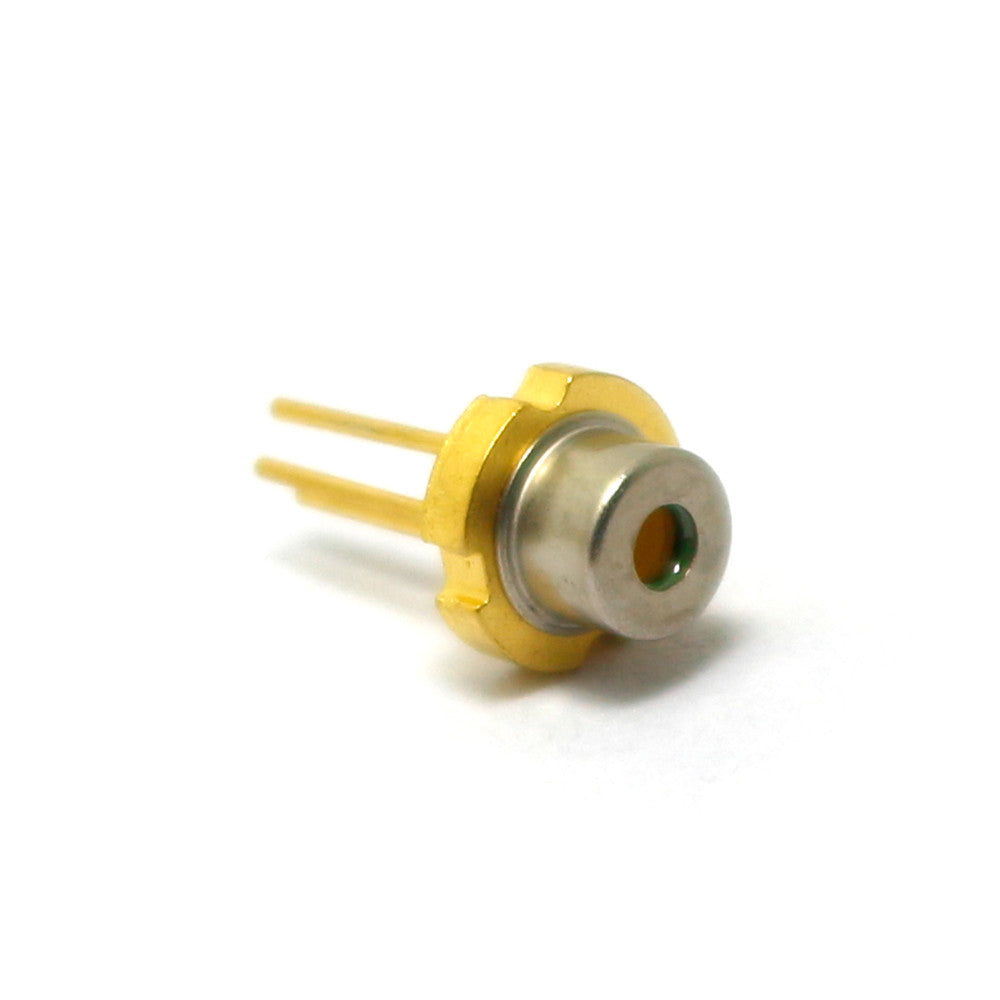

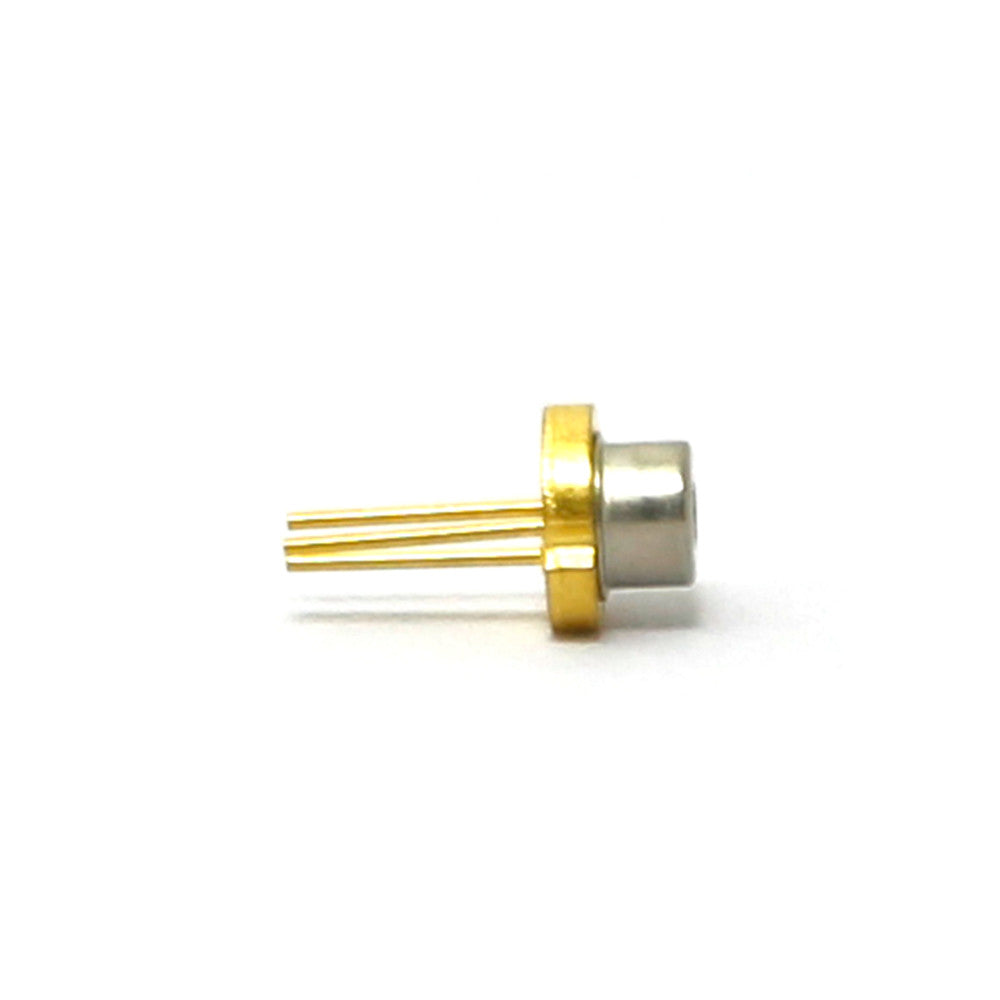

SLD3235VF 3.8mm/5.6mm 100mW 405nm Violet/Blue Laser Diode
Features:
Optical Output Power: CW100mw
Peak Wavelength: 405nm
Can Type: 5.6mm with Photo Diode
Absolute Maximum Ratings:
Optical Output Power: 140mw
LD Reverse Voltage: 2V
PD Reverse Voltage: 5.5V
5.5vStorage Temperatuer: -40~85°C
Operating Case Temperature: -10~70°C
Safety of Laser Light:
Laser light can damage the human eyes and skin. Do not expose the eye or skin to any laser light directly and/or through optical lens. When handling the LDs, wear appropriate safety glasses to prevent laser light, even any reflections from entering to the eye. Focused laser beam through optical instruments will increase teh chance of eye hazard.
These LDs are classified in Class 4 of IEC60825-1 and 21 CFR Part 1040.10 Safety Standards. It is absolutely necessary to take overall safety measures against User's modules, equipment and systems into which Nichia LDs are incorporated and/or integrated.
Package:
1X SLD3235VF 100mW 405nm Violet/Blue Laser Diode Brand New
