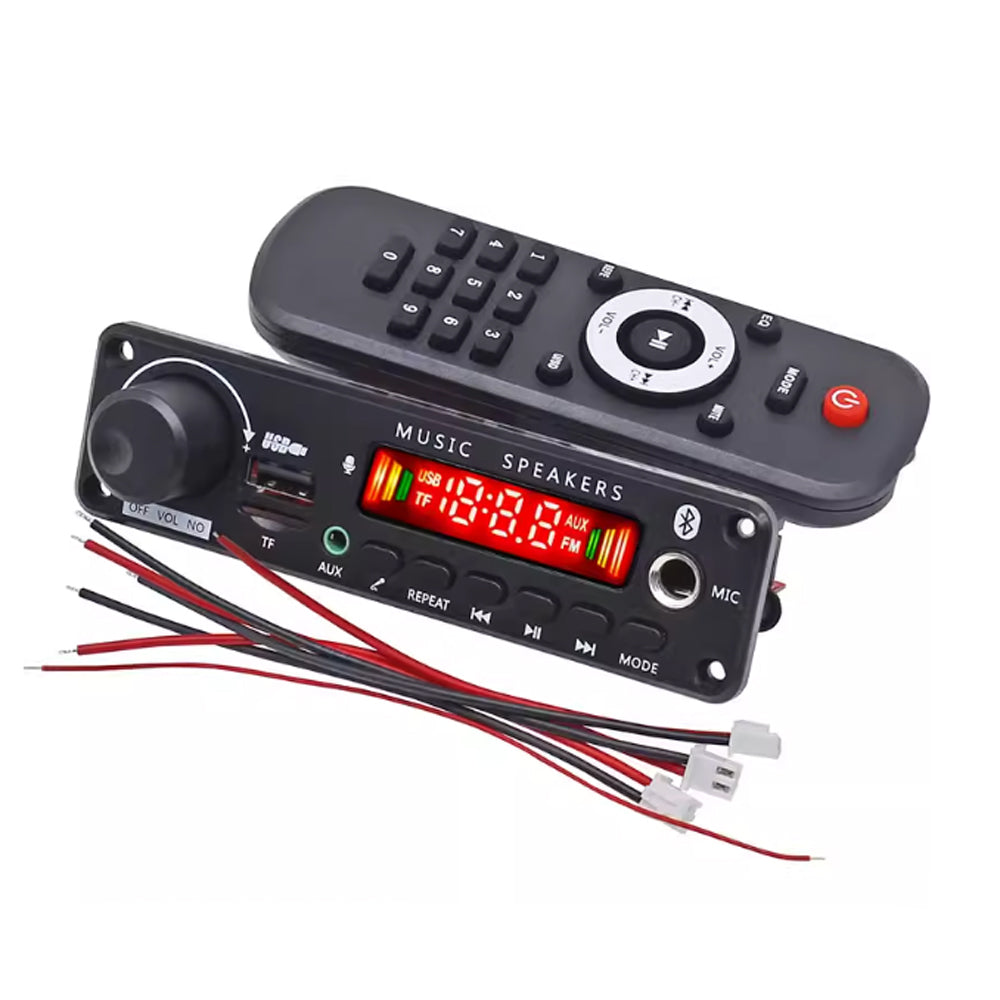

Car Digital LED Display MP3 APE USB TF FM Decoder Board Wireless Audio Module

150W Amplifier Card Bluetooth MP3 WMA WAV Decoder Board Handsfree Car Audio Microphone USB TF FM Radio Music Player Speaker DC

Specifications:

Product power supply voltage: 8V-26V

Current: between 2A-5A

Output power: 75W for each of the left and right channels

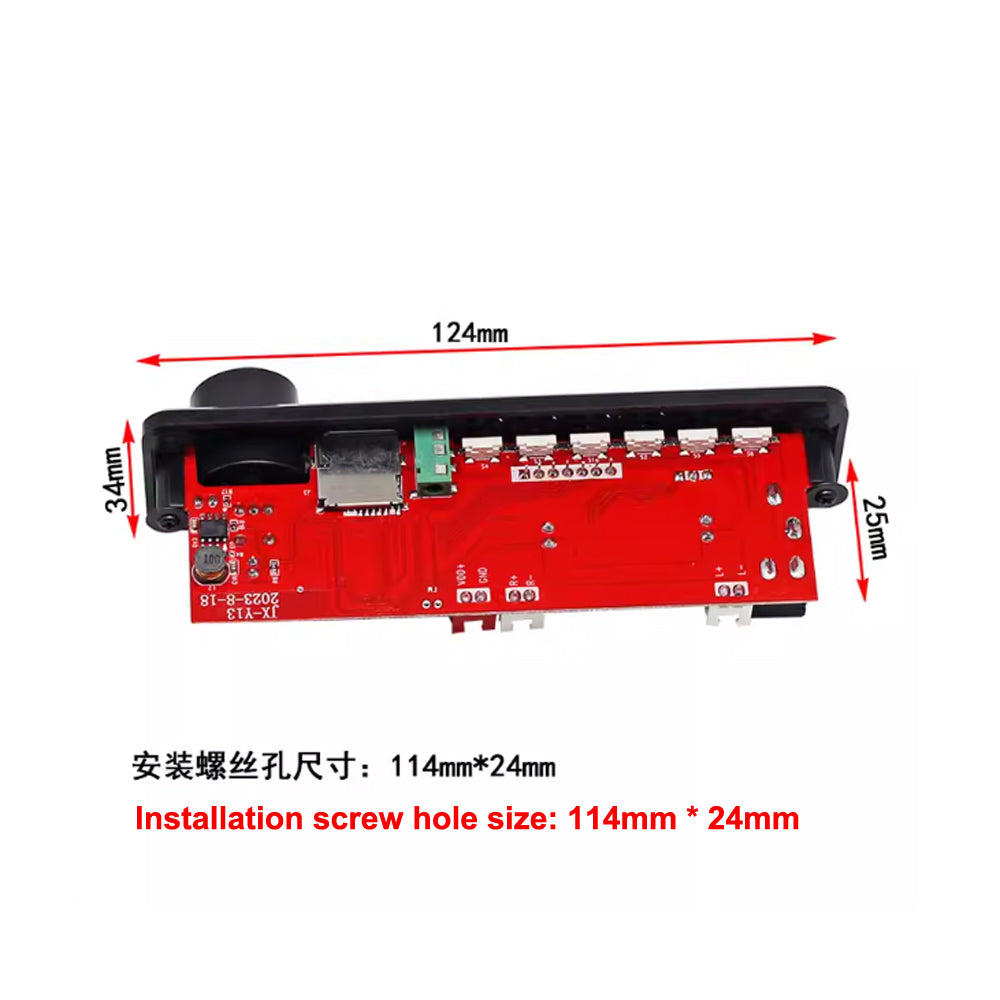

Product size: Length 124mm * Width 34mm * Degrees 53mm [Screw hole spacing 24mm * 113mm]

Product weight: 110G

Function Description:

1. Bluetooth version 5.0

2. Supports 6.5mm microphone

3. Support music accompaniment to eliminate the original sound.

4. Support calling (press and hold the pause button to answer calls). 5. Support recording. Recording only supports TF mode or USB mode operation Press and hold the MODE button to start recording, press and hold the MODE button again to cancel recording and play the recording file; Exit recording mode by long pressing the pause button. When recording, a storage device such as a USB flash drive or TF card needs to be connected; )

6. Support power-off memory

7. The power supply voltage supports between DC8V-26V and the current is between 2A-5A.

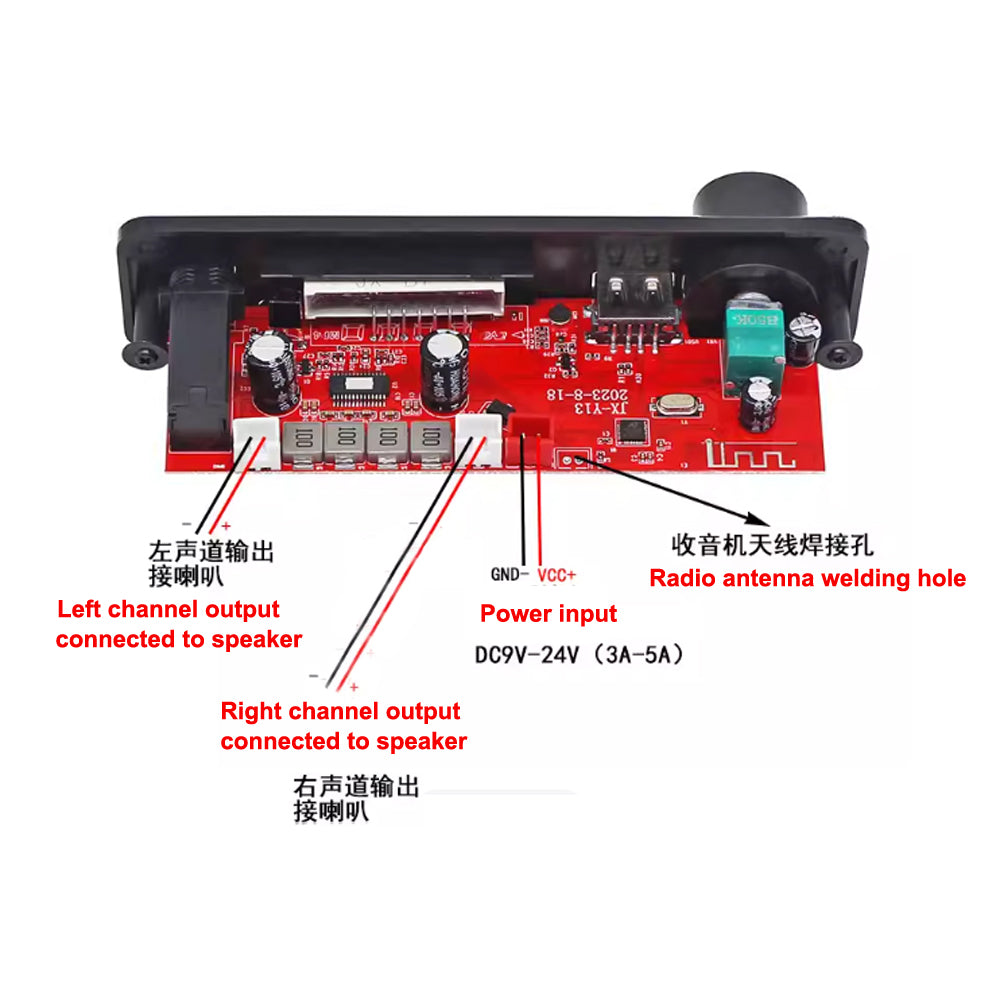

8. Can be directly connected to the speaker

9. Supports song formats MP3/WAV/APE/FLAC10, main functions MP3/USB/TF/LINE IN/FM/BLUET00TH/remote control/

11. Power 150W, 75W for each channel.

12. Support folder selection for playback. When playing USB or TF, if there is a folder in the device and there are songs in the folder, pressing the up or down button twice can select the folder to play the song. The screen will display F001-F00 and so on. If there is a folder, F00 will be displayed.
