Car & Home MP3 for Decoder Audio Amplifier Board Model 3235 Supports FM USB SD

Car & Home MP3 for Decoder Audio Amplifier Board Model 3235 Supports FM USB SD

$15.00
$17.00 $15.00
Sale Sold out
Shipping calculated at checkout.

DC7-25V  Audio Decoder Board Car MP3 Decoder Board BT 5.0 FM APE FLAC Decoder Board Supports FM USB SD

Product Introduction:

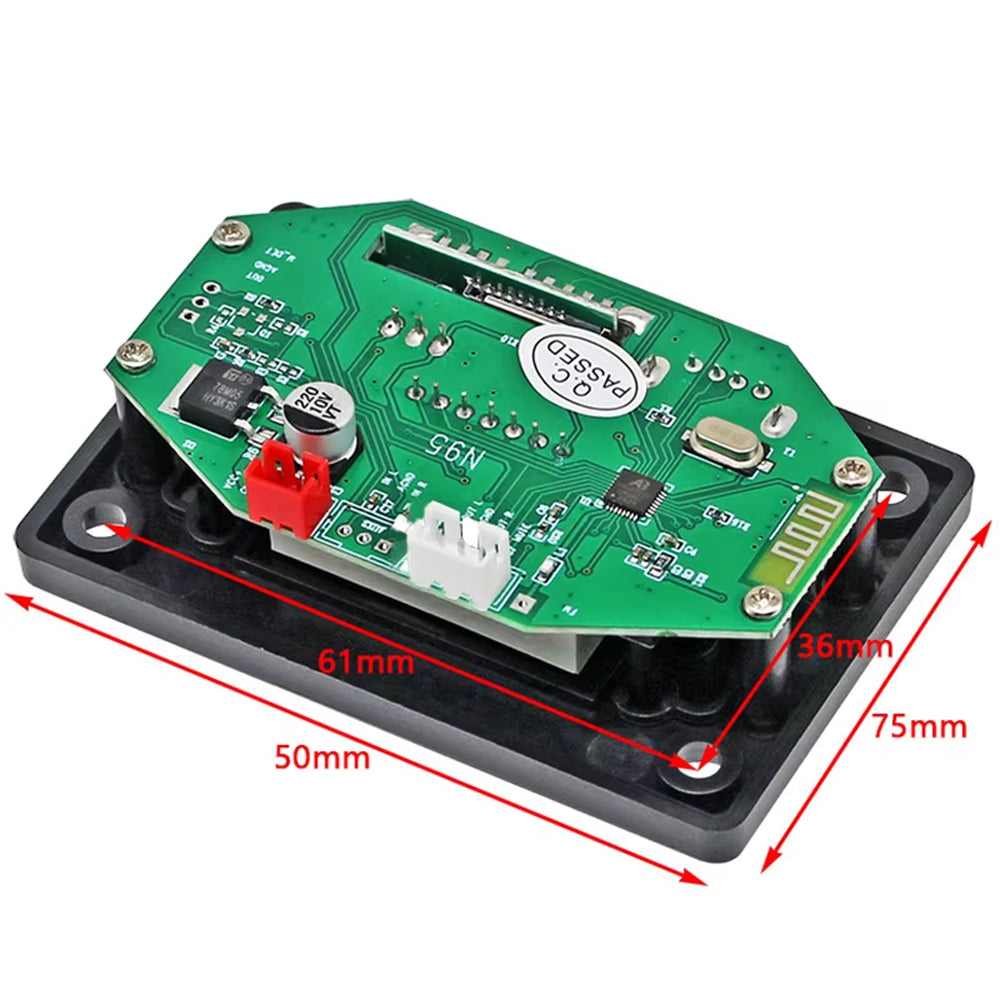

Shell size: Length 75 * Width 50mm
Depth: 23mm

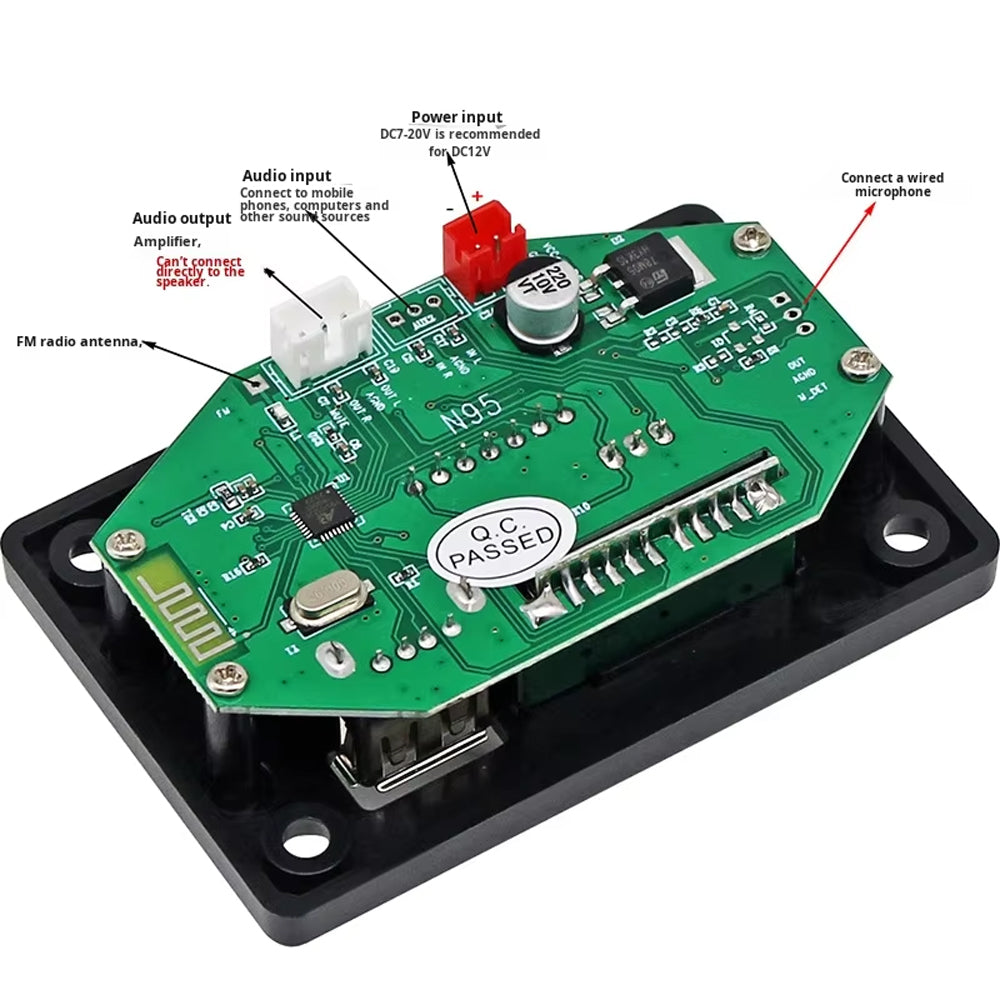

Function introduction: Supports Bluetooth function (Bluetooth version 5.0)/recording function/dual decoding MP3, WMA, WAV, FLAC, APE lossless format music/read USB drive/read TF card/FM radio/external audio input LINE IN/infrared remote control/power-off memory/12V power supply (voltage range 7V-20V)

Main functions:
1. Dual decoding supports MP3/WMA/WAV/FLAC/APE lossless format music;
2. Supports Bluetooth function, Bluetooth version 5.0;
3. Support recording function;
4. 12V power supply (voltage range 7V-20V);
5. Color screen and digital screen display;
6. Supports USB interface (USB flash drive);
7. Power off memory function;

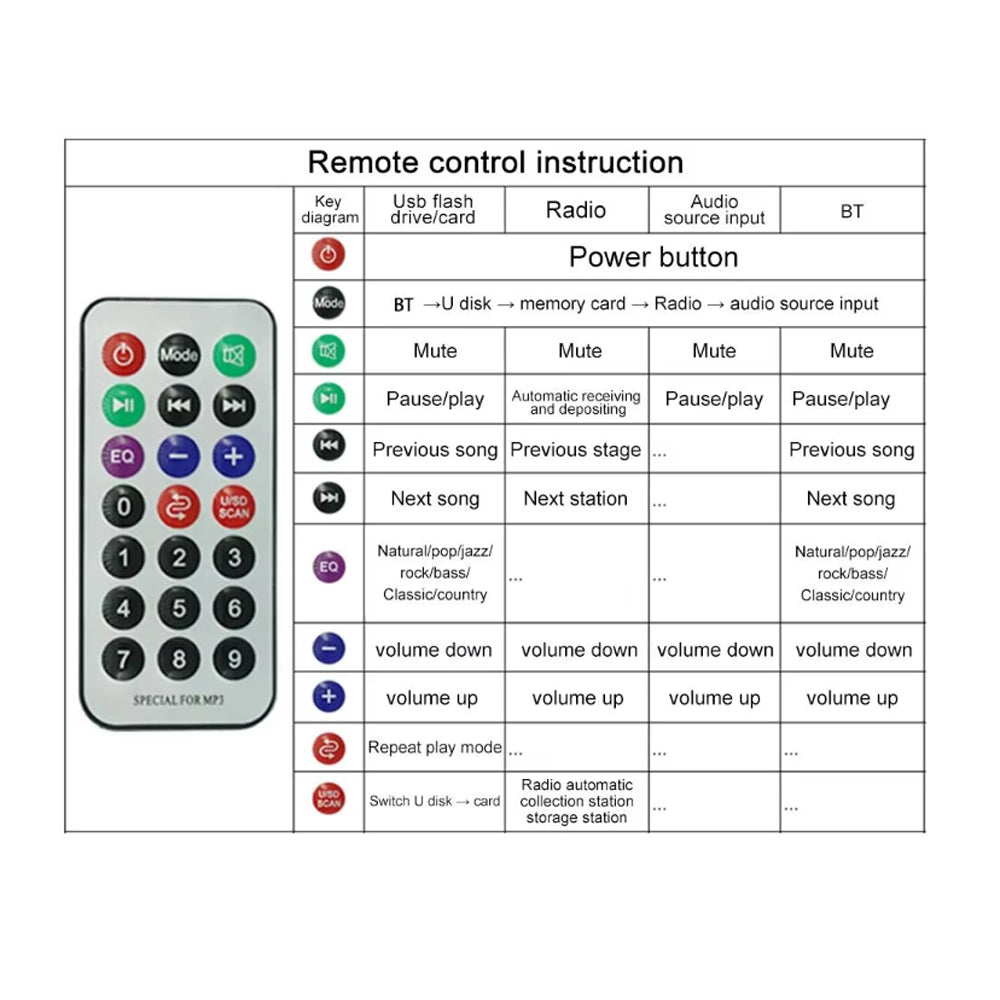

8. Support infrared remote control operation at a distance of 10 meters;
9. Support external audio input LINEIN;
10. Support FM radio reception and frequency range (87.5MHZ-108.OMHZ); 11. Button: Six buttons for multi-directional control, PAUSEVOL+/REPEAT/ EQ//VOL-/MODE;

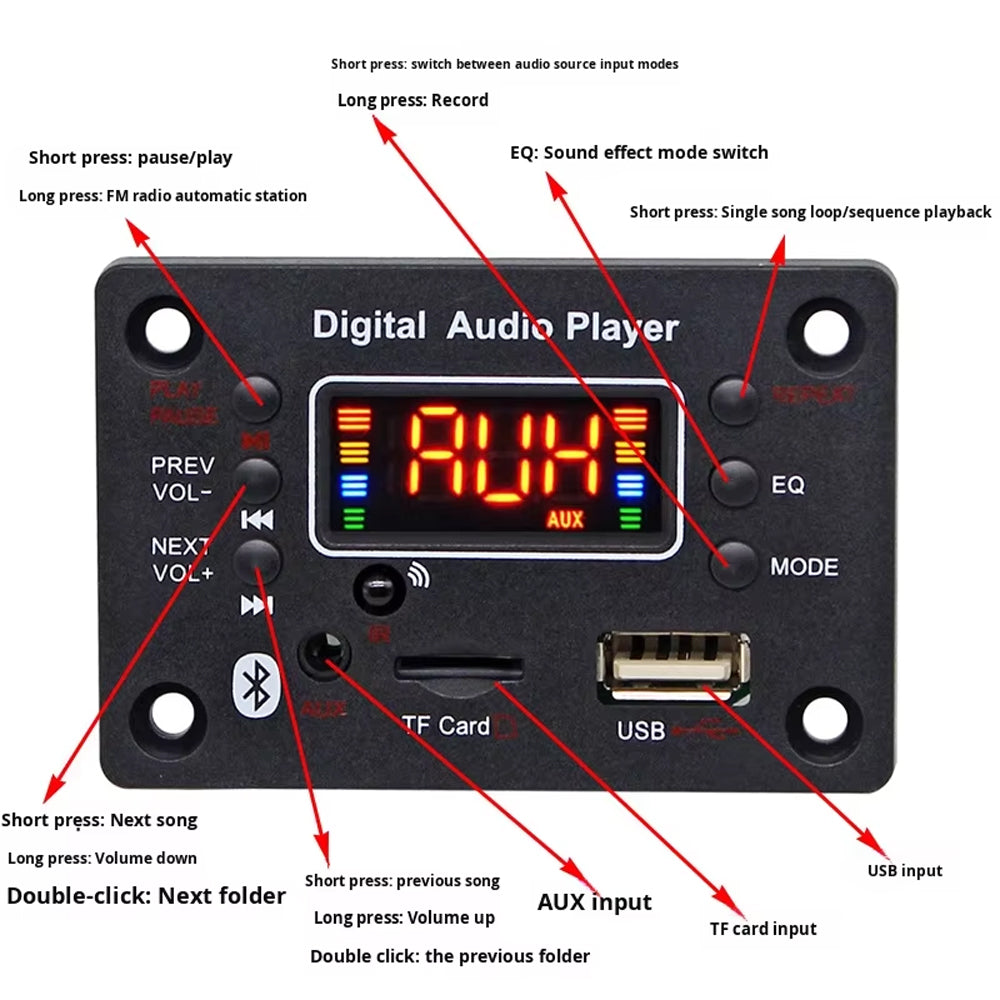

Detailed button operation:
1. PAUSE: Short press to pause and play; Long press to receive FM automatic station;
2. VOL button: Short press to select the previous track; Long press to decrease volume, double-click to switch to the previous folder;
3. Short press to select the next song; Long press to increase volume, double-click to switch to the next folder;
4. REPEAT: Press the single loop function once, then press it again to cancel the single loop and play it in sequence;
5. EQ: Sound field mode, testing 6 types of sound quality; (Classical) (Jazz) (Rock) (Bass) (Pop) (Normal)
6. MODE button: Switch between USB/TF/FM/audio input/Bluetooth functions in sequence; Long press to start recording, press the button again to cancel the recording function and play the recording file; Only internal recording (can only record frequency input, FM radio, Bluetooth); When recording, it is more necessary to connect a storage device, such as a USB flash drive or TF card;
