CCM5N3 Upgrade PWM DC Motor Governor 10V-30V Universal 120W Controller With Fuse

CCM5N3 Upgrade Version PWM DC Motor Governor 12V24V30V Universal 120W Controller With Fuse

Specification:

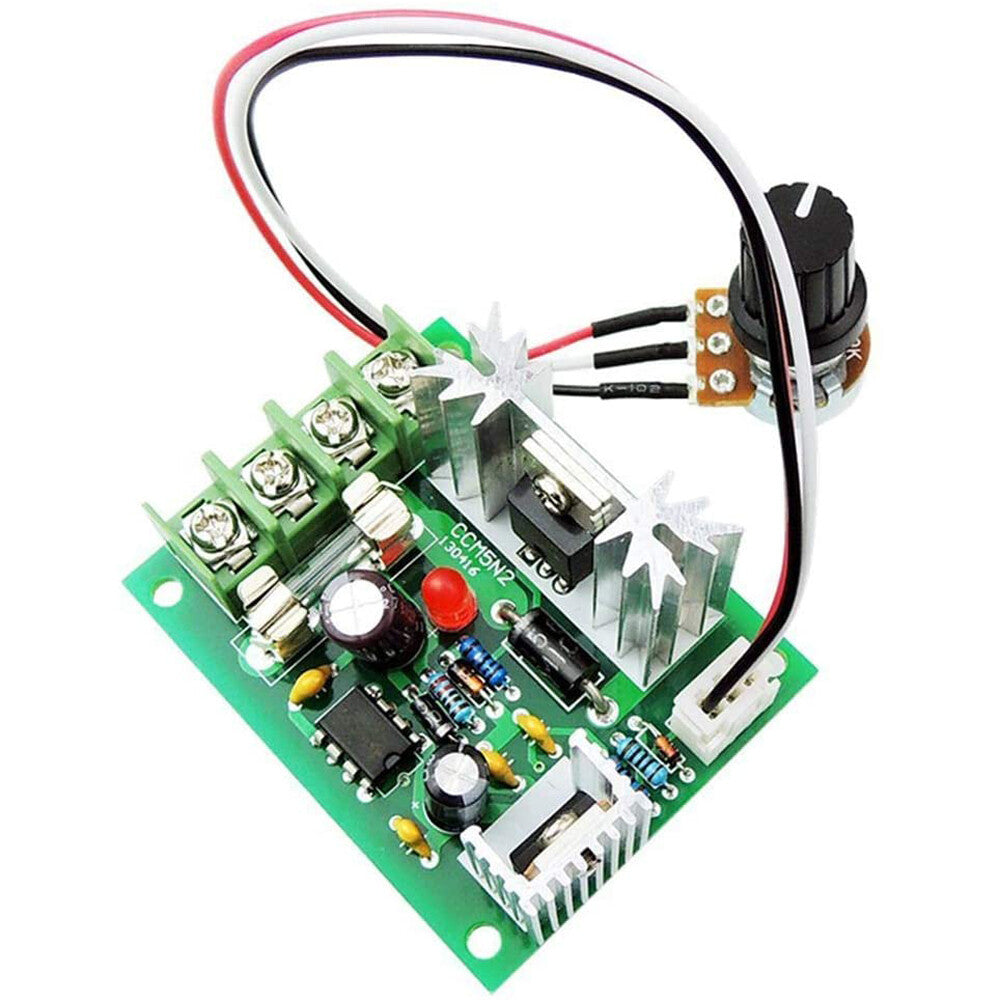

Potentiometer: resistance value B10K, wire length 21cm, opening 8mm

Working voltage: DC10V-30V, the output voltage is about 0-100% of the input voltage

Control power: maximum 120W

Rated current: 5A, max 10A

Speed range: 0-100%

PWM frequency: 13kHz

Power supply mode: DC

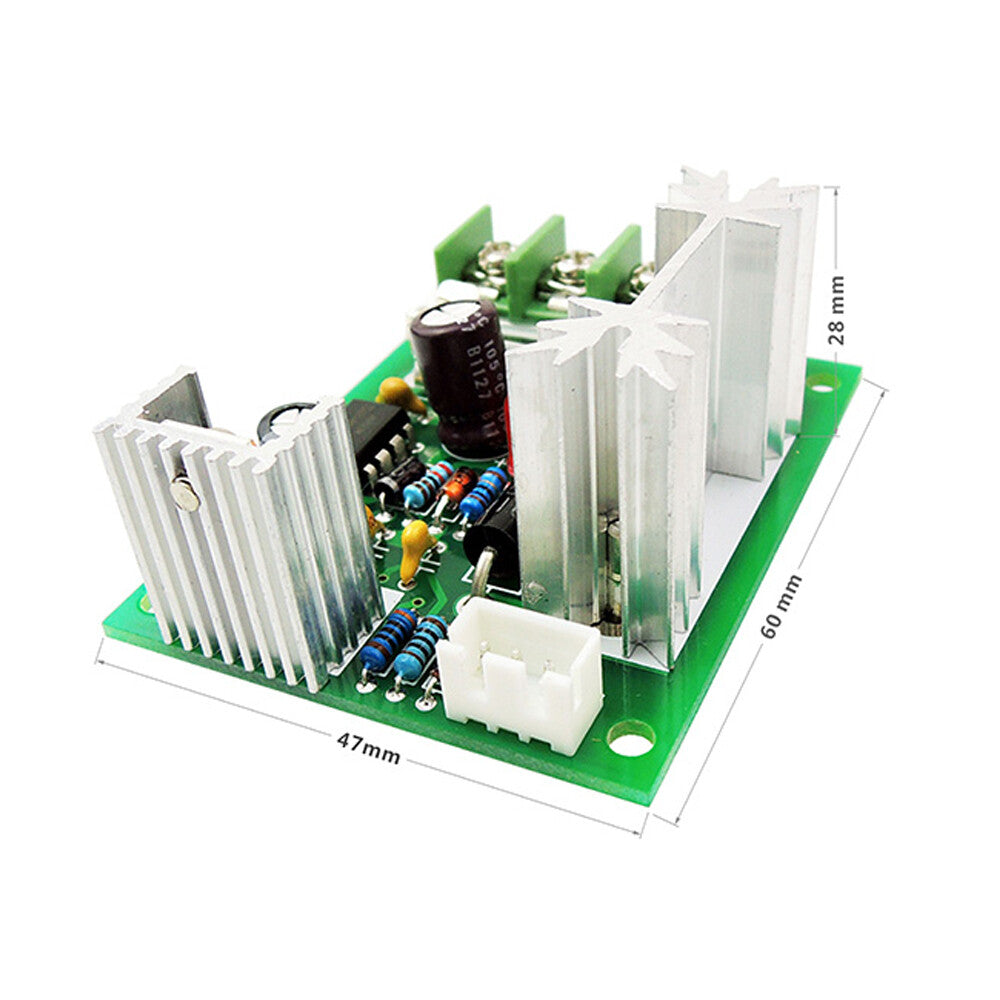

Size: 60*47*28mm

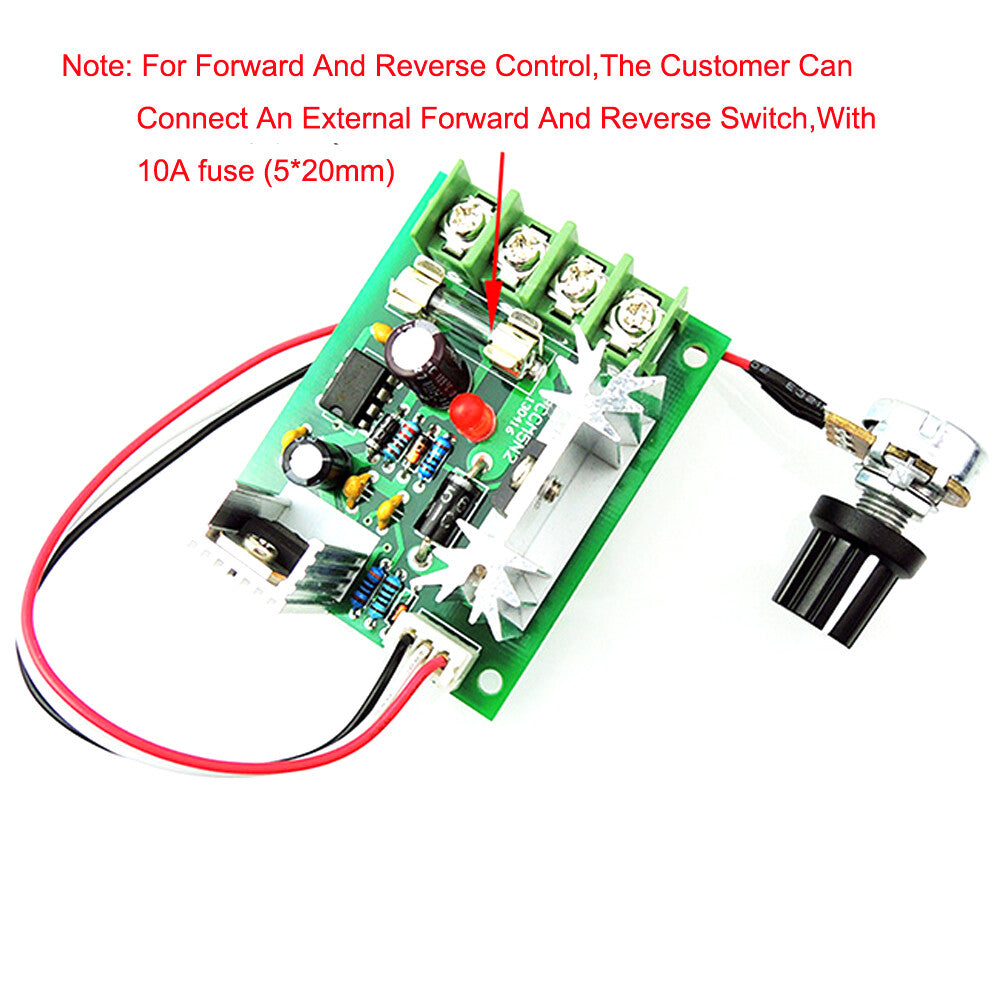

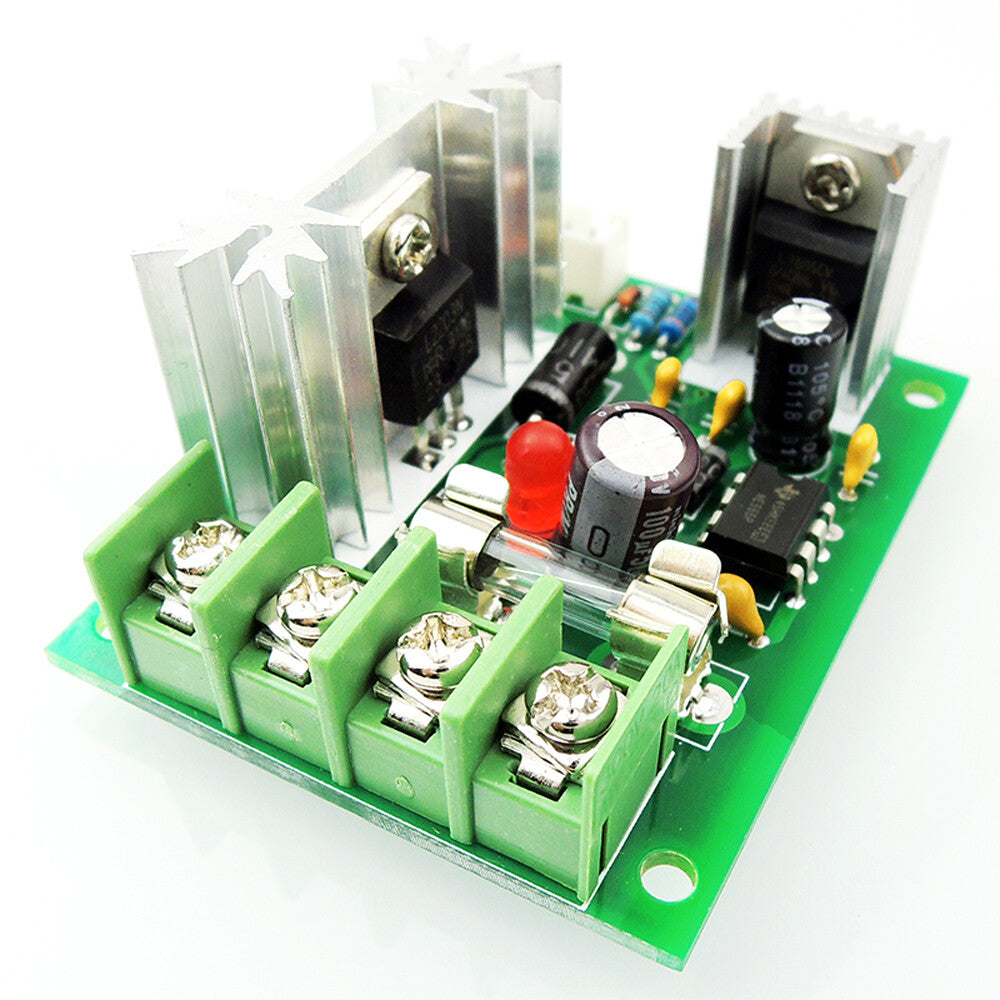

Product features: With 10A fuse, with reverse polarity protection

Notice:
The input of the DC motor governor is direct current, and cannot be directly connected to alternating current (such as: household 220V alternating current), otherwise it will burn out

The positive and negative poles of the DC power supply cannot be reversed, otherwise the governor will burn out

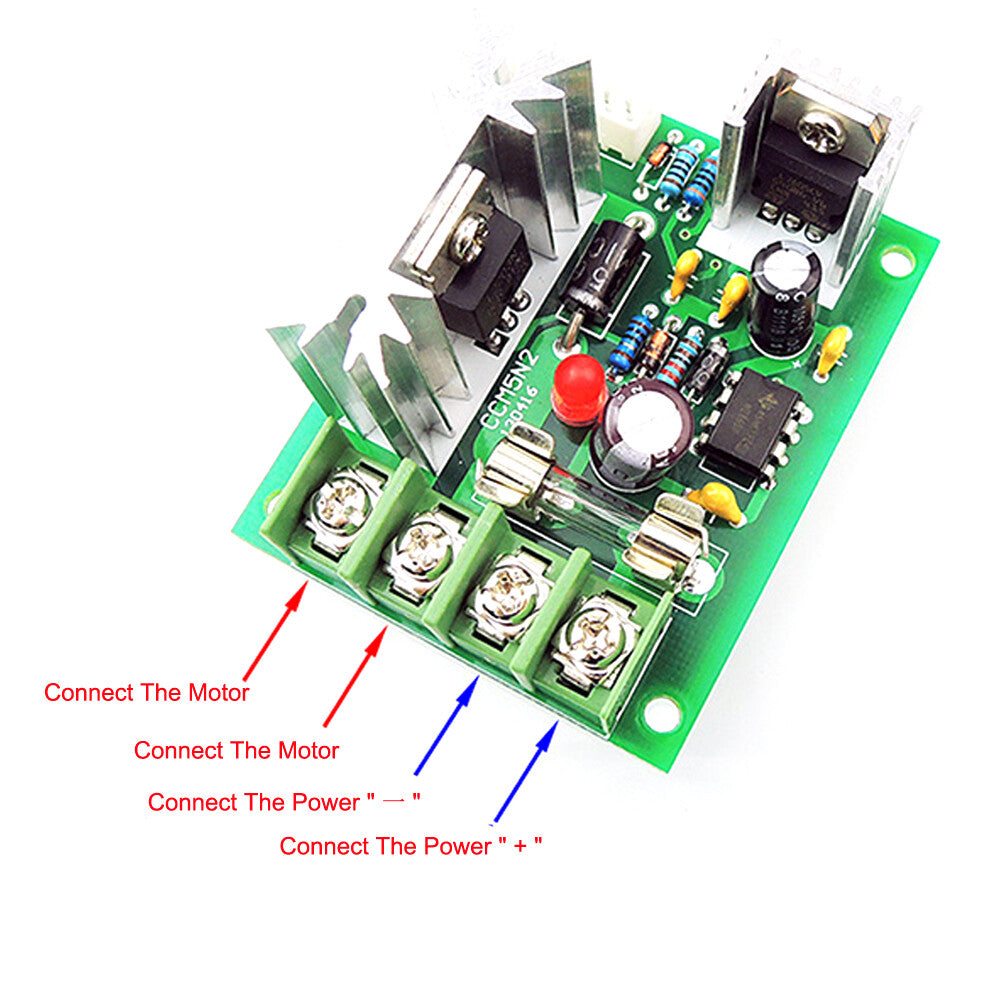

The motor can be positive or negative. When the running direction is inconsistent with the expectation, the direction can be changed by adjusting the line sequence

The potentiometer knob can change the output duty ratio of the governor, thereby changing the motor speed

Package:
1*PWM DC Motor Speed Controller
