Class IIIB 405nm Dot Line Cross Adjusted Violet Blue Diode Laser Module with Heatsink and Driver in

Product Description

Please be noted that 405nm violet lasers has more dim spot than blue,green and red lasers when seen by naked eyes.
Specification:
Output Power 10mw
Wavelength 405nm
Laser Grade: Class IIIB
Working Voltage 3 ~ 5V (red wire for postive +, black wire for negative -)
Working Temperature ＋15 ℃~＋35 ℃
Laser Shape Dot/Line/Cross
Focusable Yes
Material and Color Metal
Dimensions 12x35mm (or sometimes 12x45mm according to factory batch)


Details:

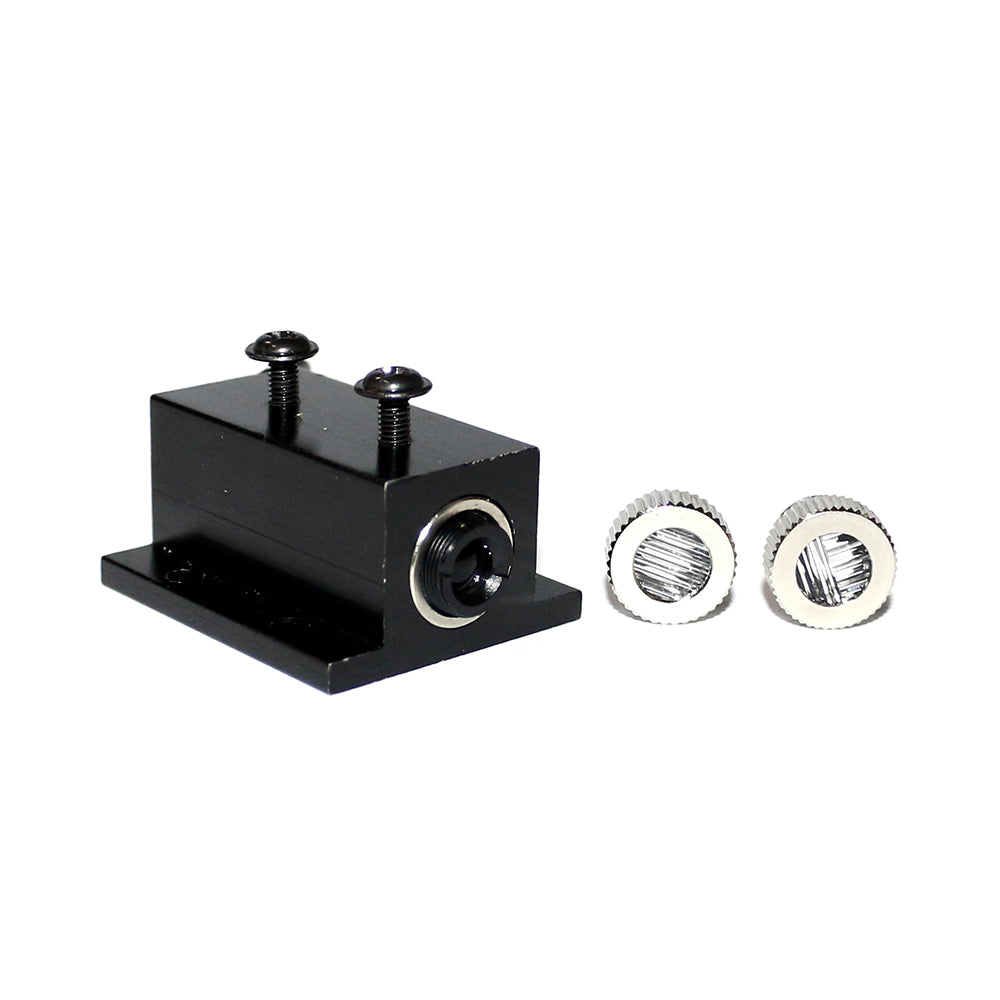

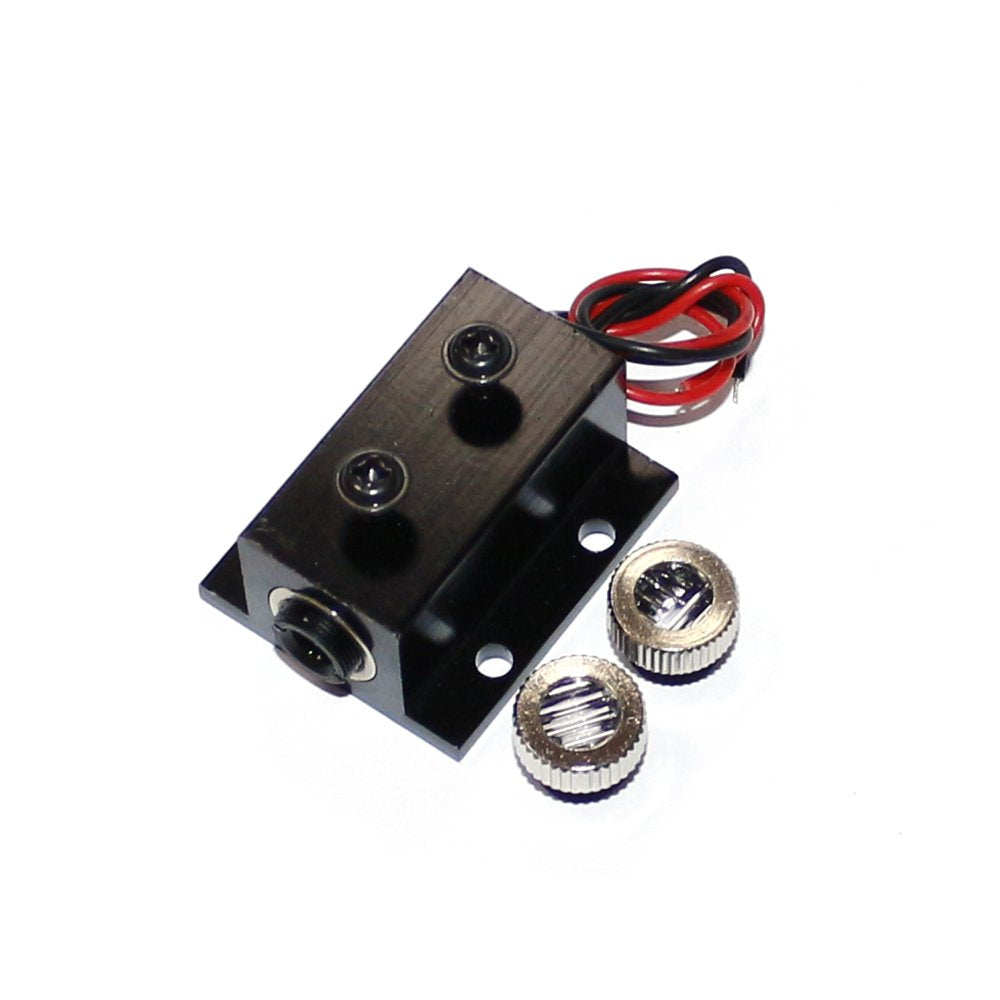

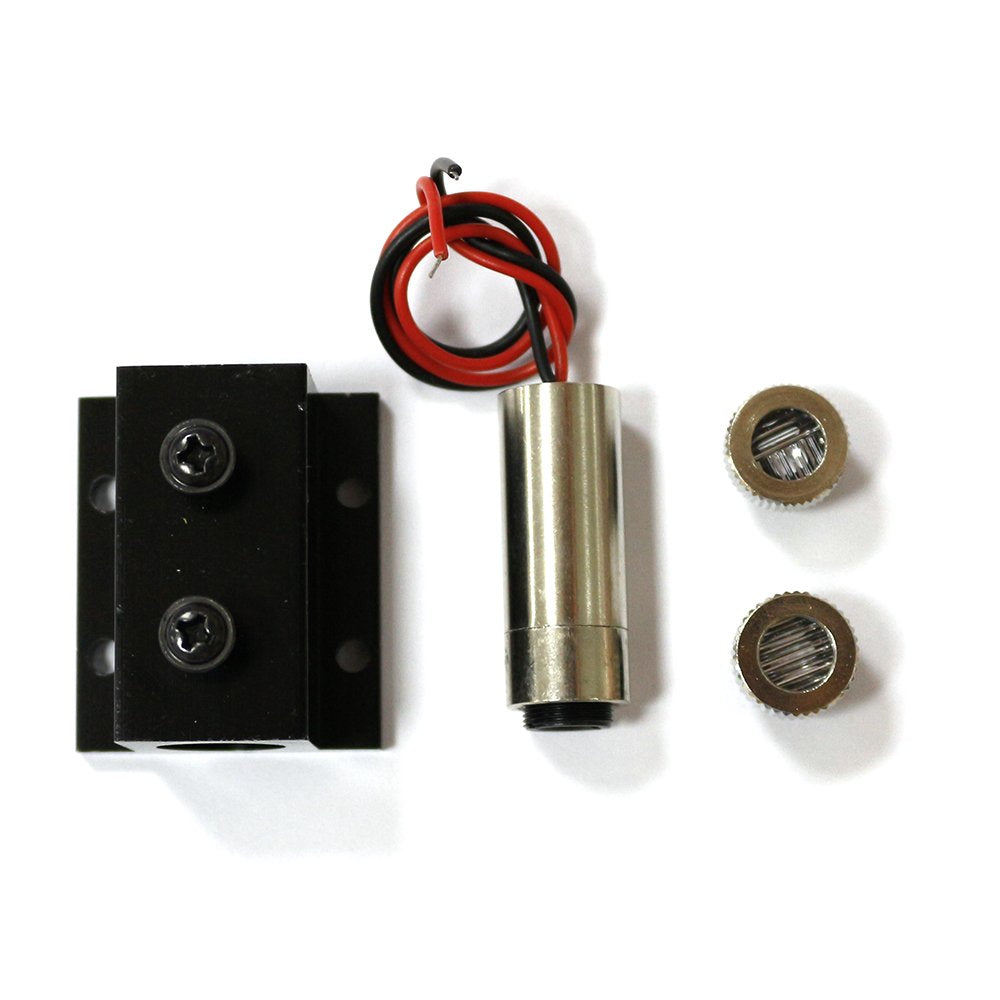

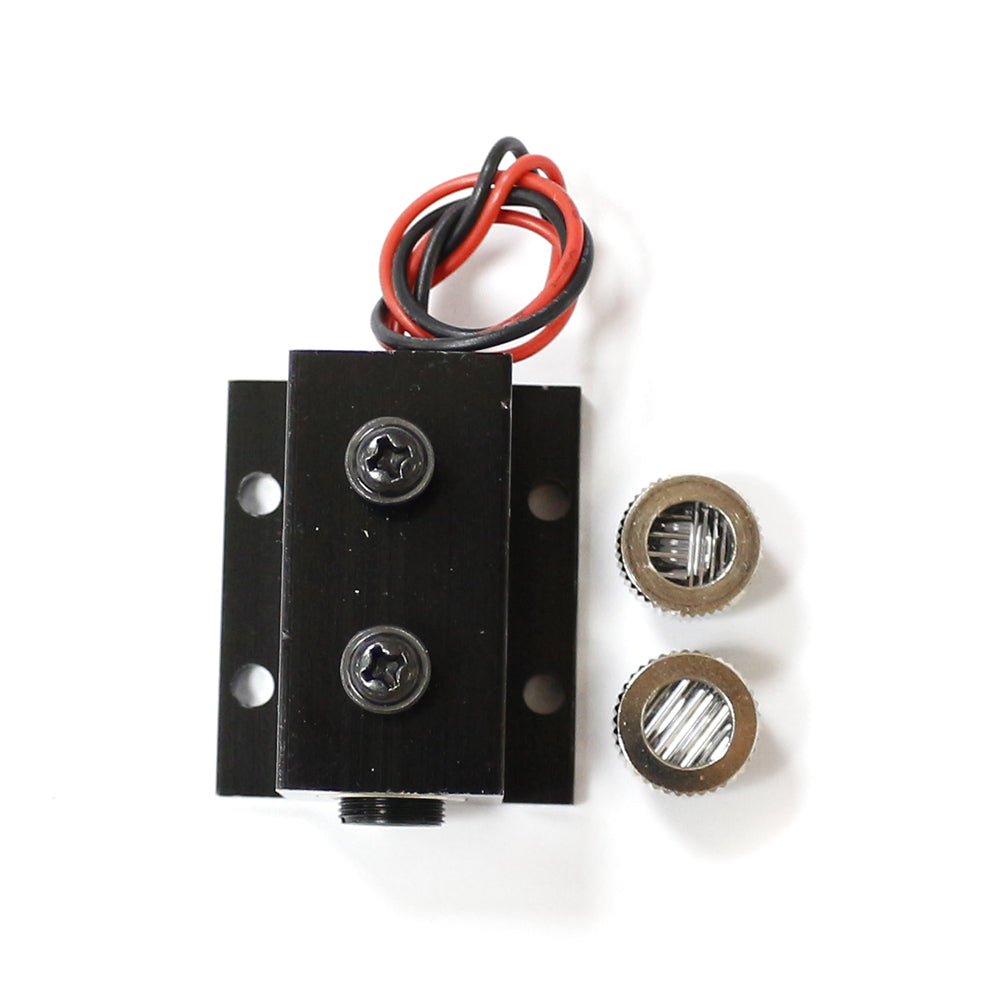

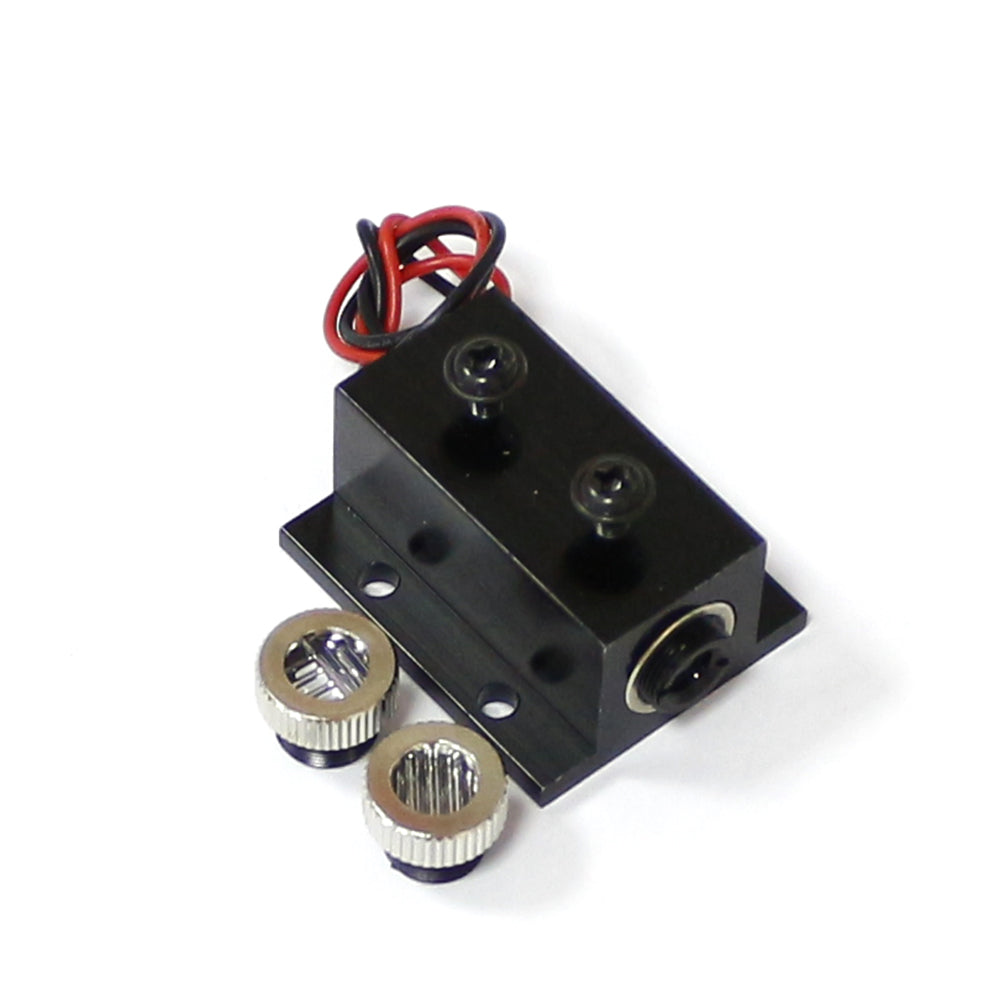

1.It is a 405nm 10mw focusable laser module with three caps:Dot line and cross.You can change the caps to get different effects: dot line and cross,which is shown in the main photo.
2.If you want to prolong the working time of this module, please add heatsink to this module.
3.Please keep the lens clean.
4. Please wear suitable goggles to protect your eyes when work with lasers.


Package:
1 x Adjusted Violet Blue Diode Lasers 405nm Dot/Line/Cross Module with Heatsink
