DAC1220 Data Acquisition Module 20 bit DAC 16 bit Adjustable ±10V Voltage Module

Digital to Analog Conversion Module DAC1220

Module intelligent Vehicle Motor Forward and Reverse Rotation

Specifications: Module model: DAC1220

Module Type: Digital to Analog Conversion Module

Module power supply: 5V

Module current: 120mA

Module communication protocol: SPI serial

Module provided routine: STM32F103RBT6

Routine platform: STM32F103X-M3 (KEIL5 version source code)

DAC resolution bits: 20 bits/16 bits (software switching)

Number of output channels: 1

Output voltage range: ± 10V

Output voltage driving capability: 10mA

Module output interface: SMA (24-hour salt spray oxidation resistance)

Reference voltage: 2.5V

Voltage establishment time: 2mS (16 bits); 15mS (20 digits)

Module features: Multiple (with output buffer amplifier, ultra-low AC crosstalk, fast setup time)

Module applications: Multiple (programmable voltage sources, instrumentation and control systems, sensor excitation, motion process control)

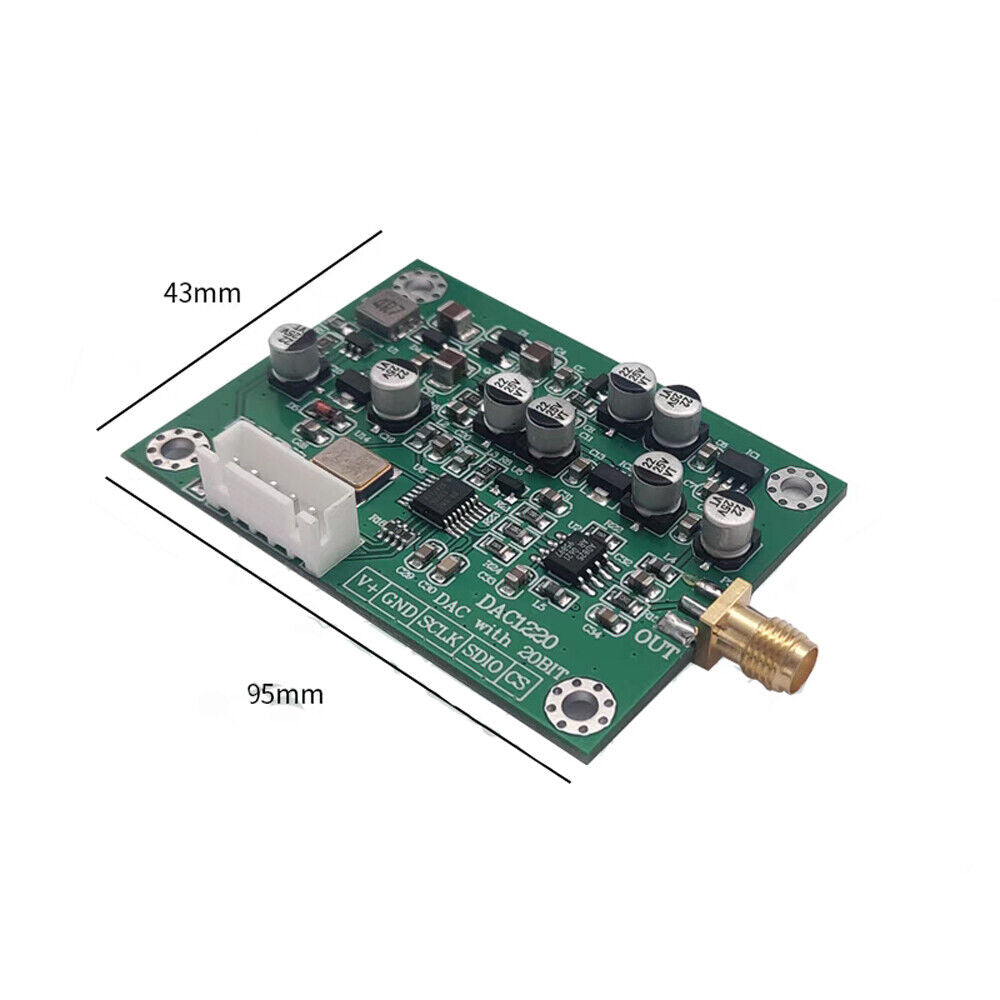

Module specification: 59 * 43 (length * width PCB size)

Module interface type: SMA signal output, XH2.54 needle data interface

Package:

1* Digital to Analog Conversion Module DAC1220
