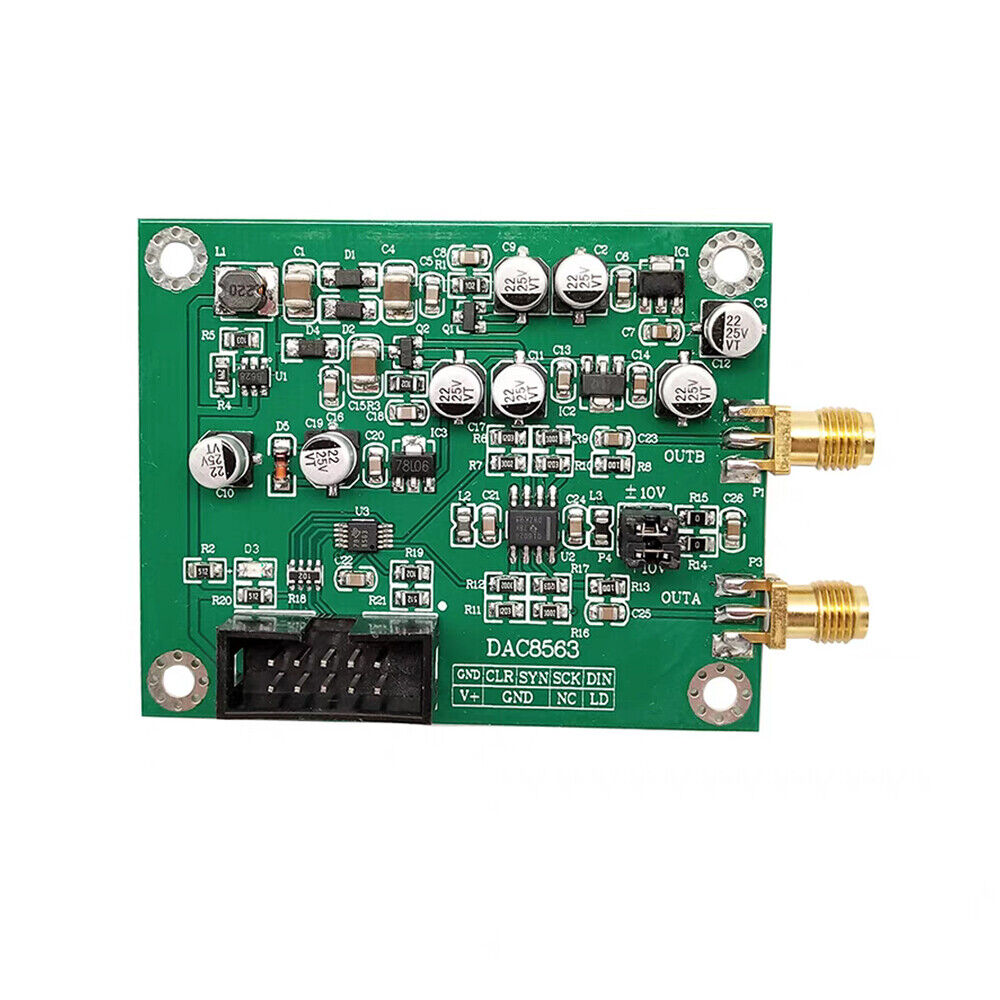

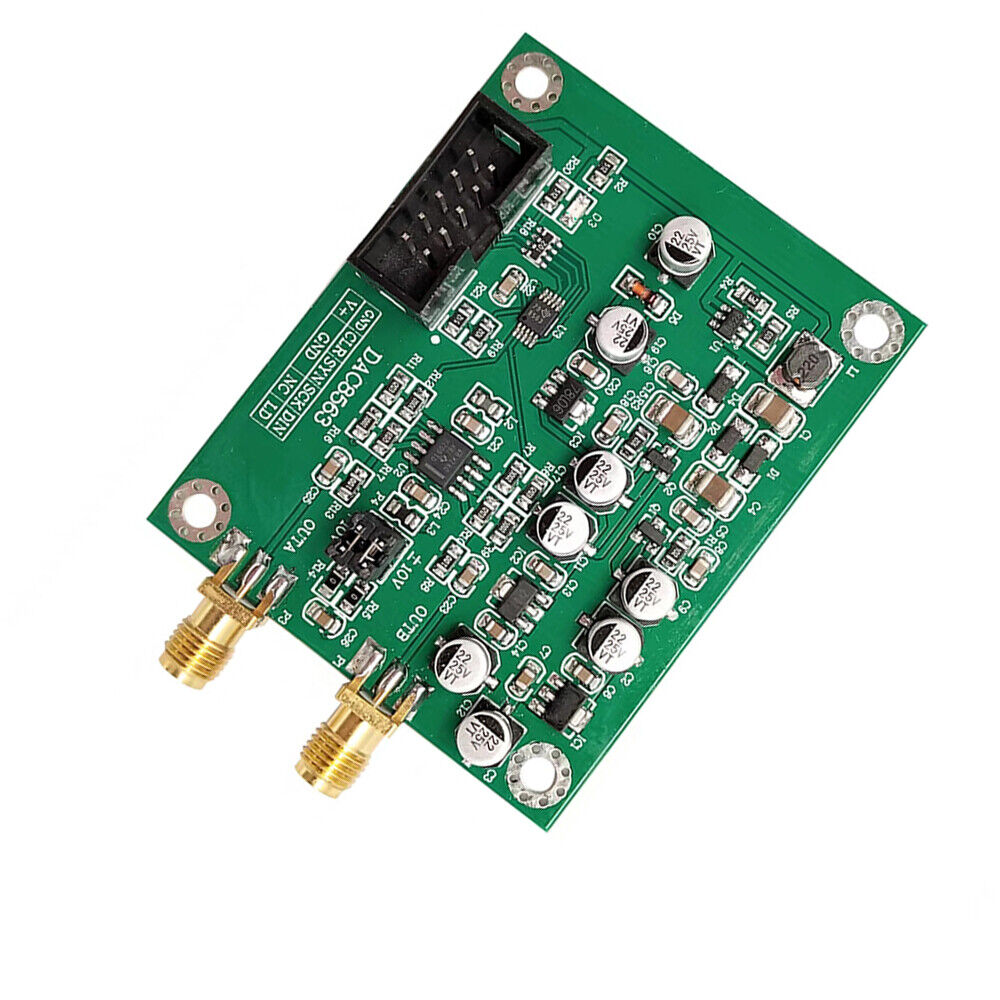

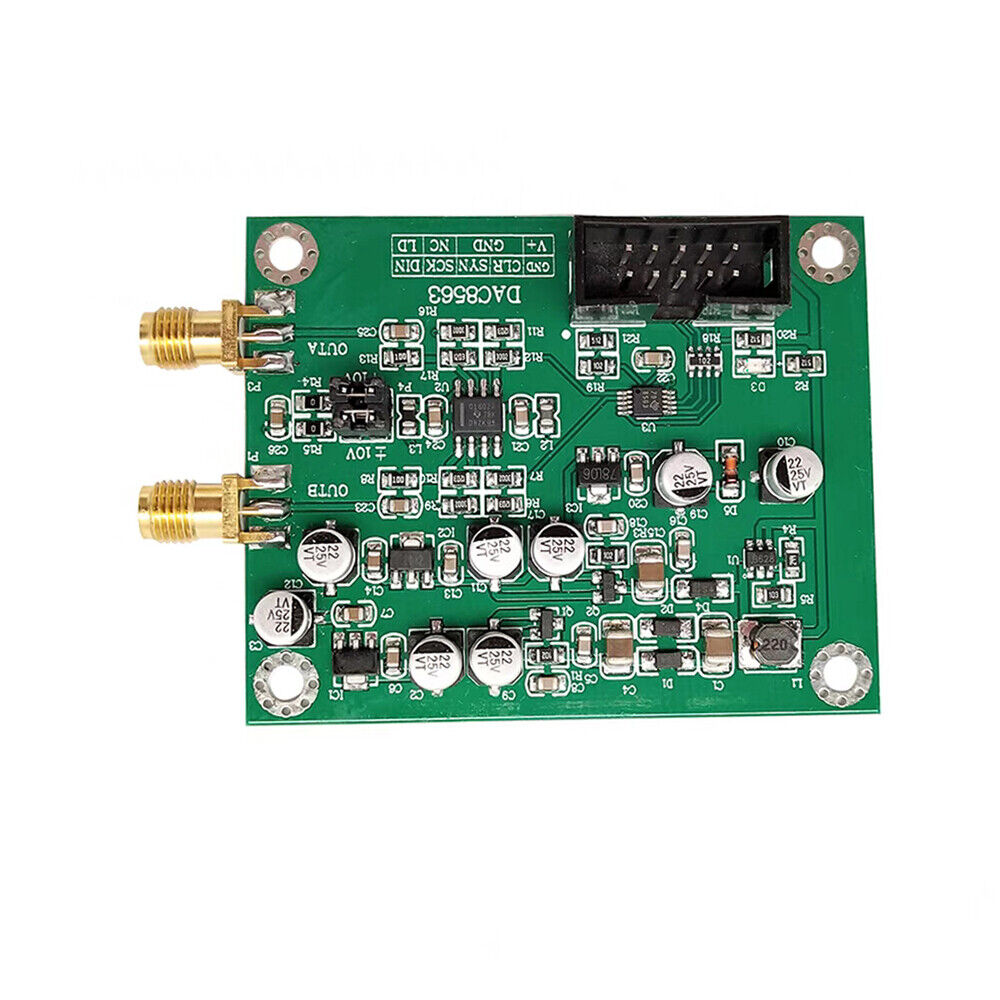

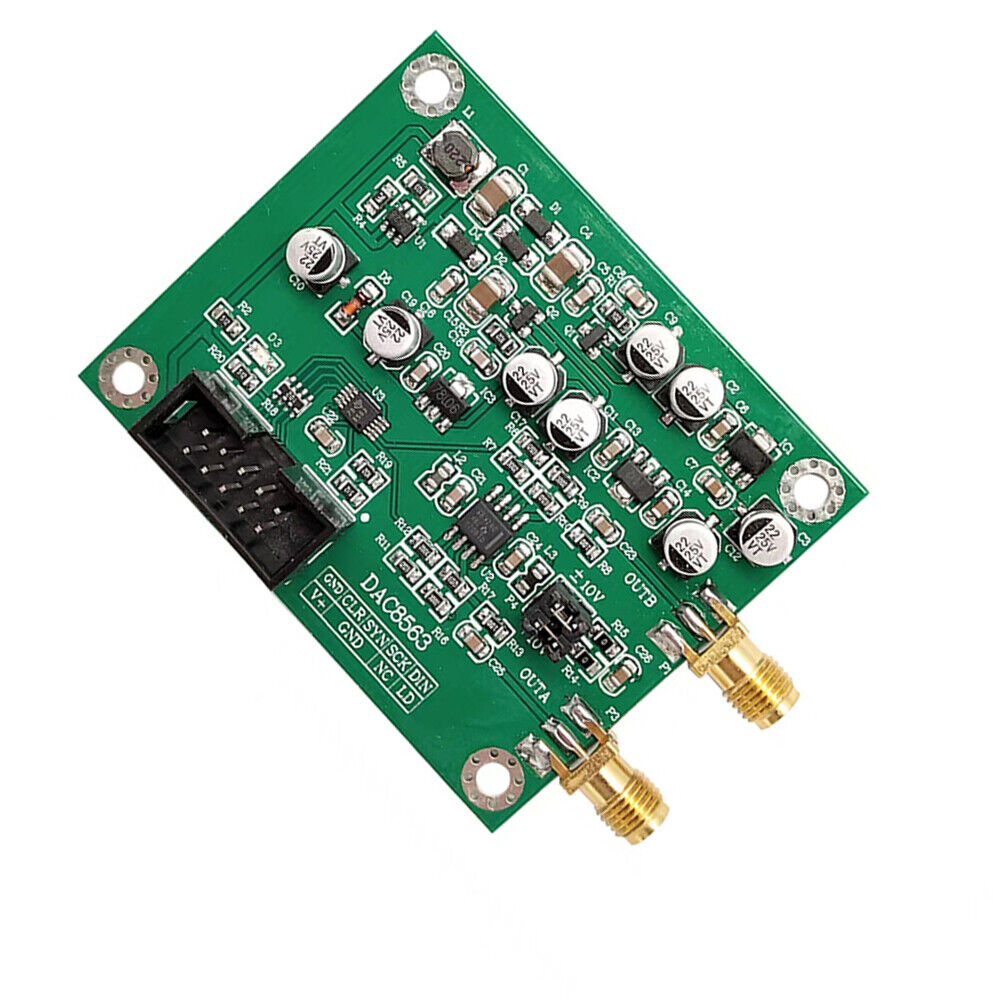

DAC8563 Data Acquisition Module dual 16 bit DAC Adjustable ±10V Voltage Module

DAC8563 Digital to Analog Converter Data Acquisition Module Dual 16 bit DAC

Specifications:

Module model: DAC8563
Module Type: Digital to Analog Conversion Module
Module power supply: DC3V-5V
Module current: 100mA(MAX)
Module communication protocol: SPI serial
Module provided routine: STM32F103RBT6
Routine platform: STM32F103X-M3 (KEIL5 version source code)
DAC resolution bits:16 bits

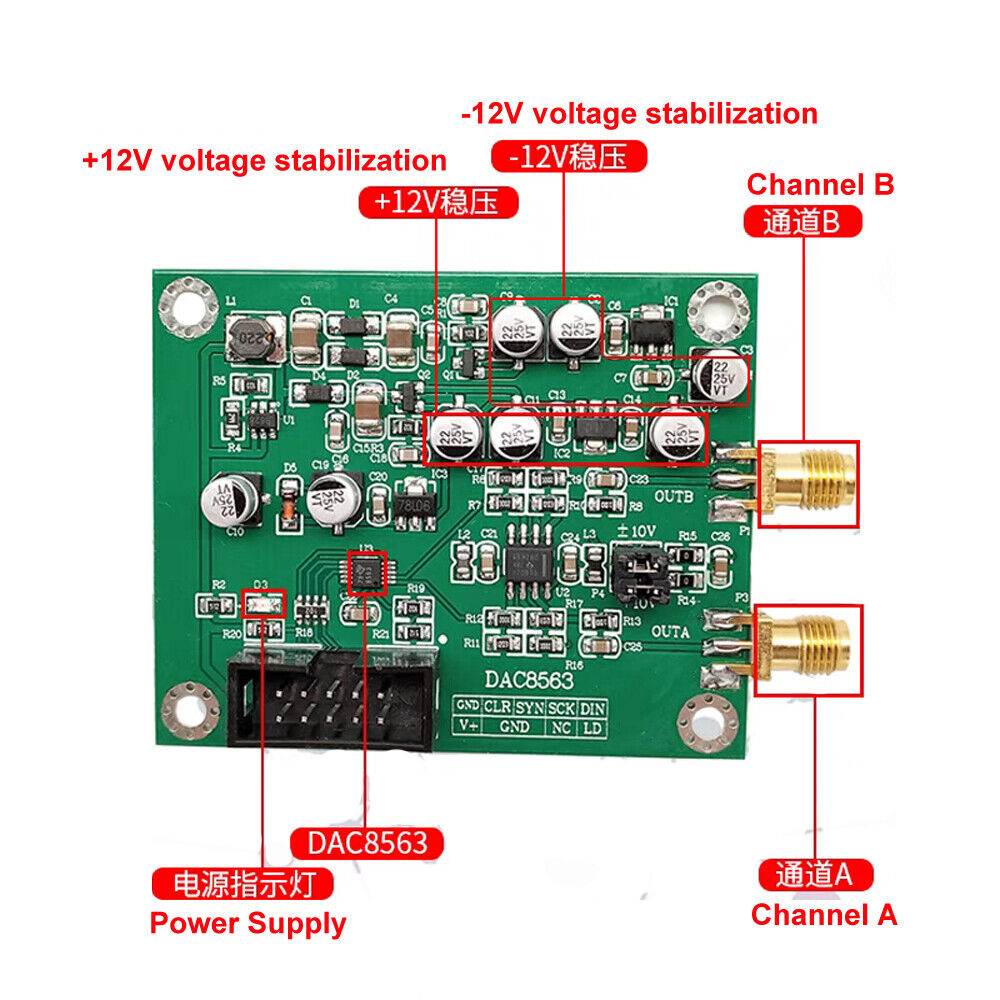

Number of output channels: 2
Output voltage range: ± 10V or 0-10V
Module output signal: voltage (OPA1602 chip output, with certain driving capability, within 20mA)
Module output interface: SMA (24-hour salt spray oxidation resistance)
Reference voltage: 2.5V
Voltage establishment time: 10mS
Module features: Multiple (with output buffer amplifier, ultra-low AC crosstalk, fast setup time)

Module applications: Multiple (programmable voltage sources, instrumentation and control systems,

sensor excitation, motion process control)

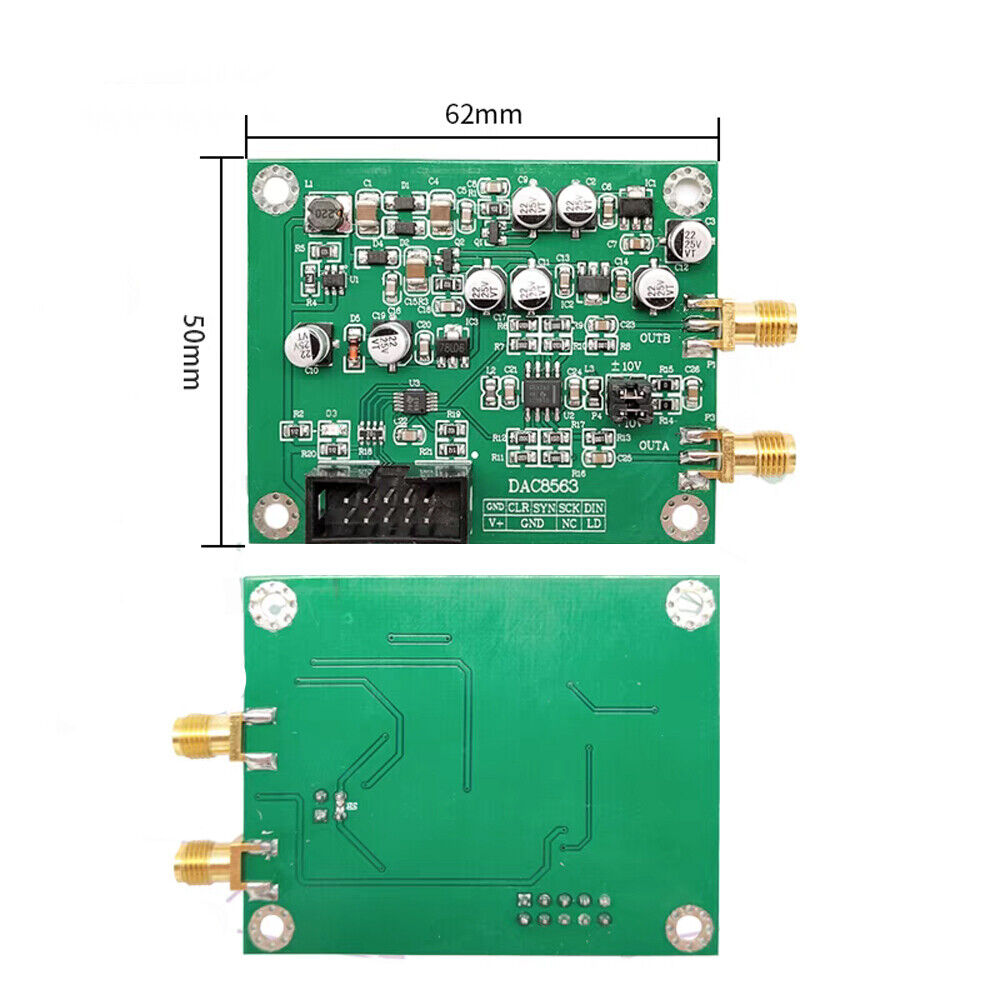

Module specification: 60 * 50*12 (length * width PCB size)
Module interface type: SMA signal output, XH2.54 needle data interface

Package:

1* DAC8563 Drive Board Module
