DC 24V Gear Pump Corrosion Resistant Self-priming High Pressure Pump Pumping

DC 24V Gear Pump Corrosion Resistant Self-priming High Pressure Pump Pumping

$58.00
$58.00
Sale Sold out
Shipping calculated at checkout.


24V Micro Gear Pump High Temperature Corrosion Resistant DC Self-priming Pump High Pressure Pump Pumping





Product information:

ZC-760

1. Rated voltage: 24V water inlet and outlet 12 MM

2. Operating voltage: DC9V-24V

3. No-load rated current: 1.2A±10%

4. No-load water discharge: 5.6 Lmin ±10%

5. Pressure: 4.5KG ±10%

6. Rated current at 1KG load: 1.5A±10%

7. Rated water discharge rate 4.5Lmin ±10% at 1KG load

8. Suction range 1.M

9. Noise: 55 decibels within 0.5M

10. Use fluid: tap water, ground water

11. Water temperature: 0°C ~ 100°C

12. Environmental humidity: 45% ~ 85%

13. Continuous use working life 1000 hours

14. Motor: brushed motor

15. Weight: 500 grams

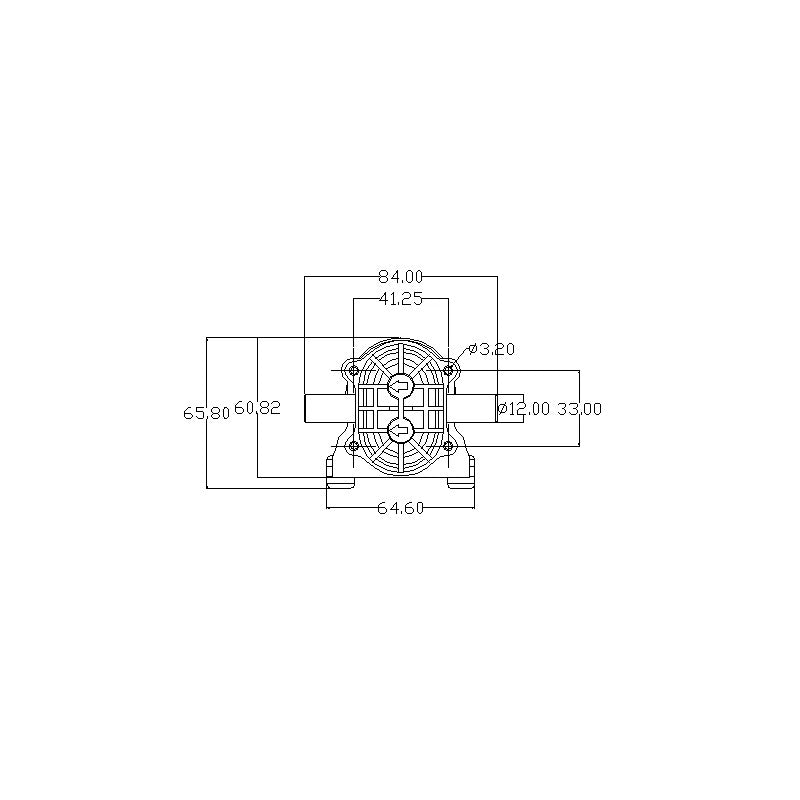

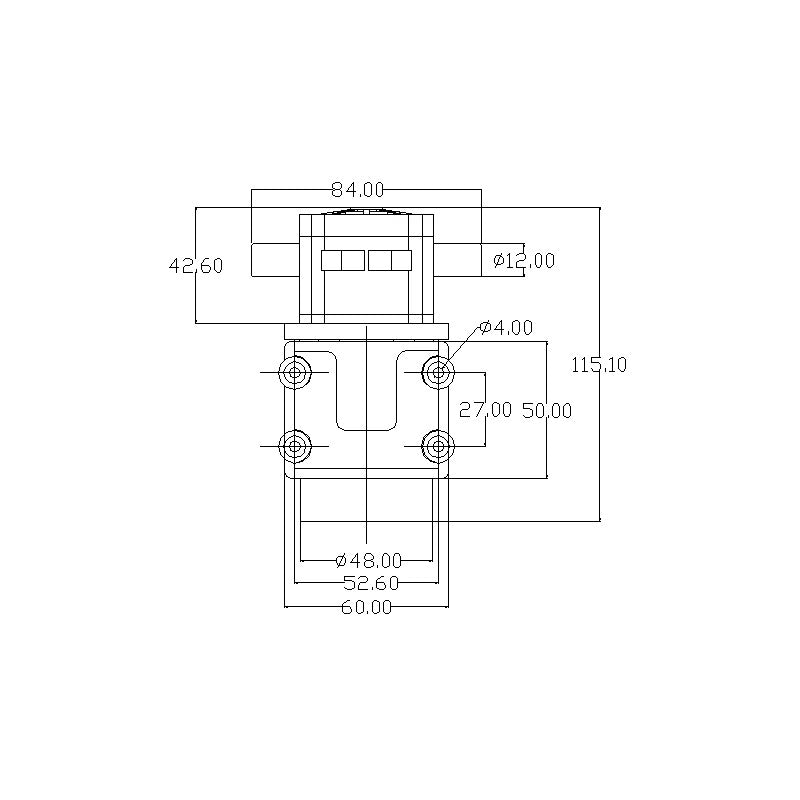

Pump size:12.5CM(L)*8.5CM(W)*6.5CM(H), inlet and outlet (12MM)

Remarks:

Power cord length: according to user requirements

The pump cannot be used continuously for a long time under high temperature conditions.

It is better to install a filter on the inlet of the water pump pipeline


Package:

1* 24V 760 miniature gear pump
