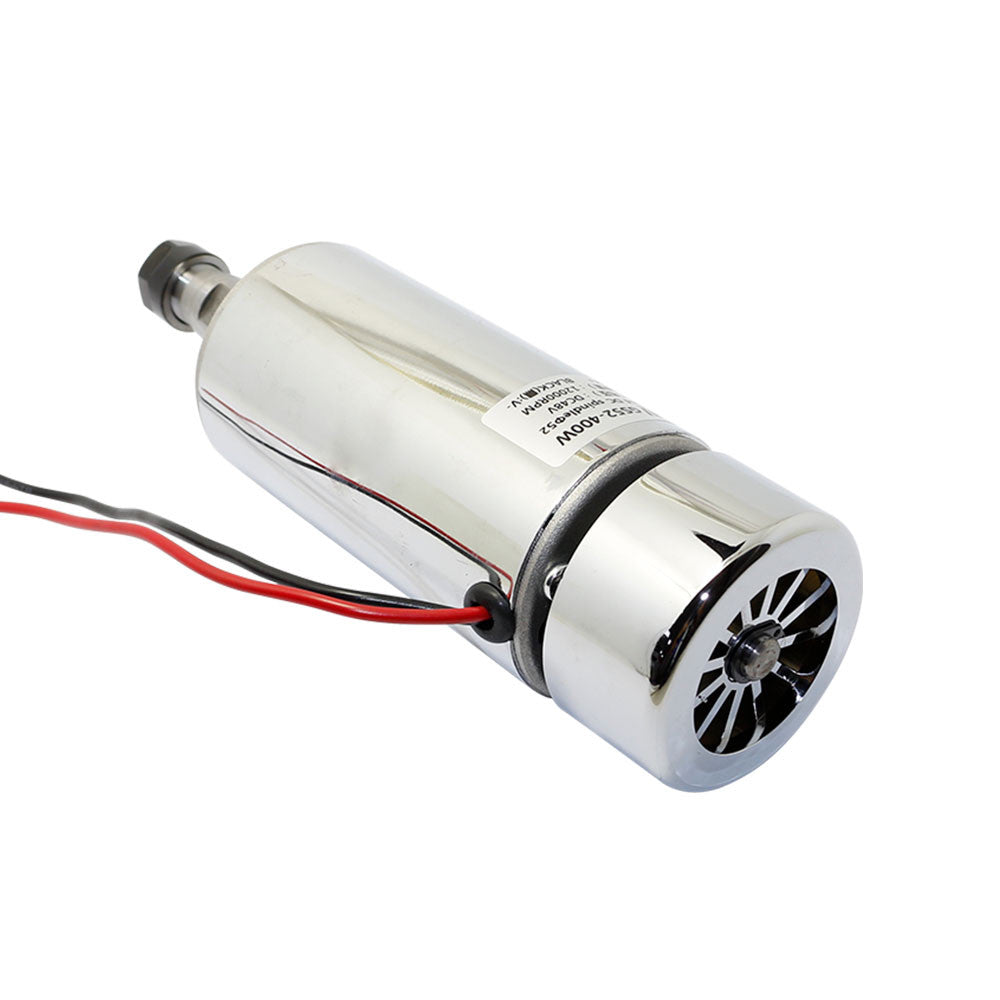

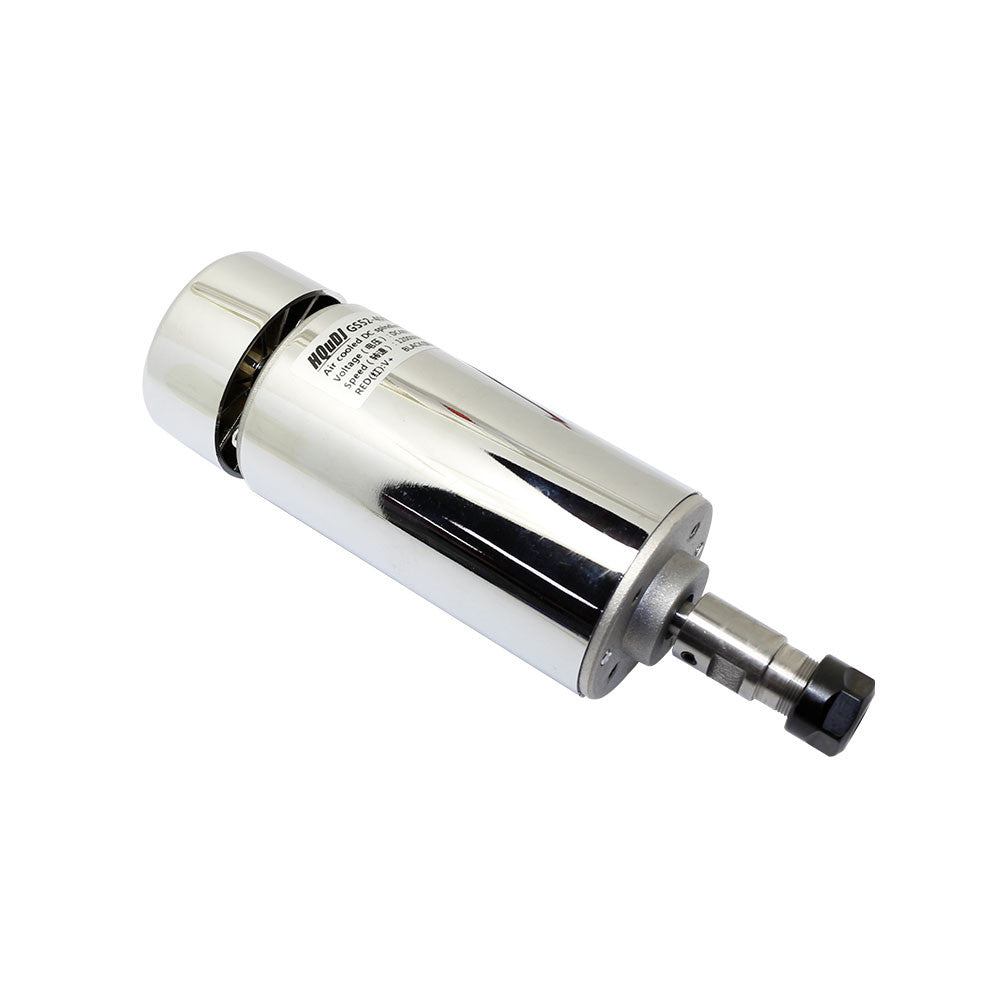

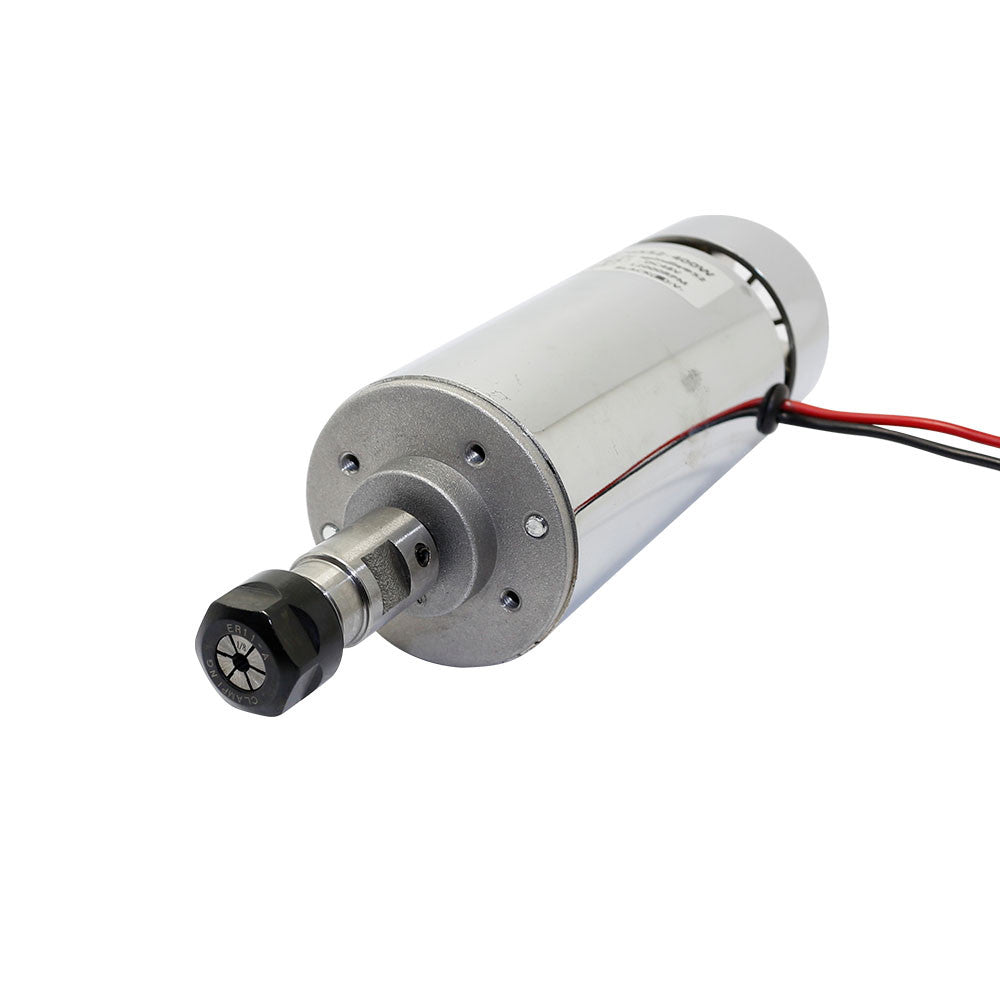

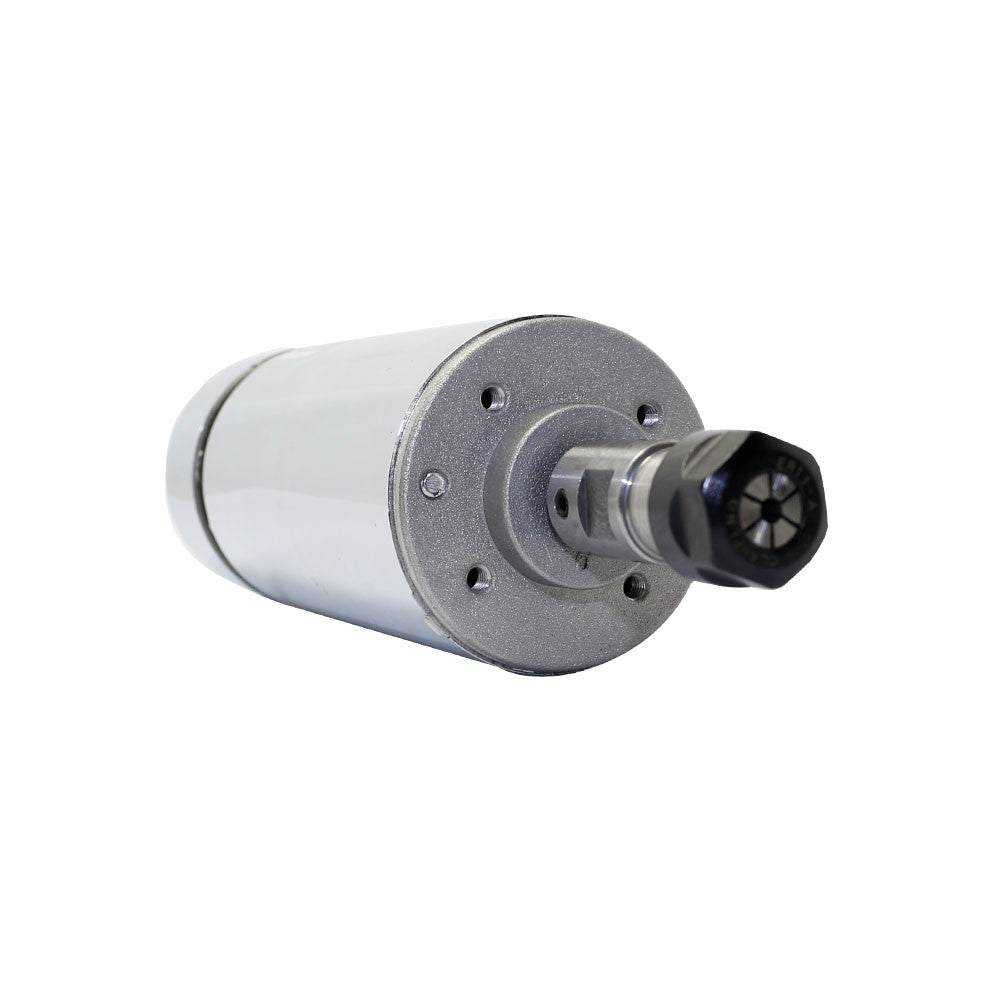

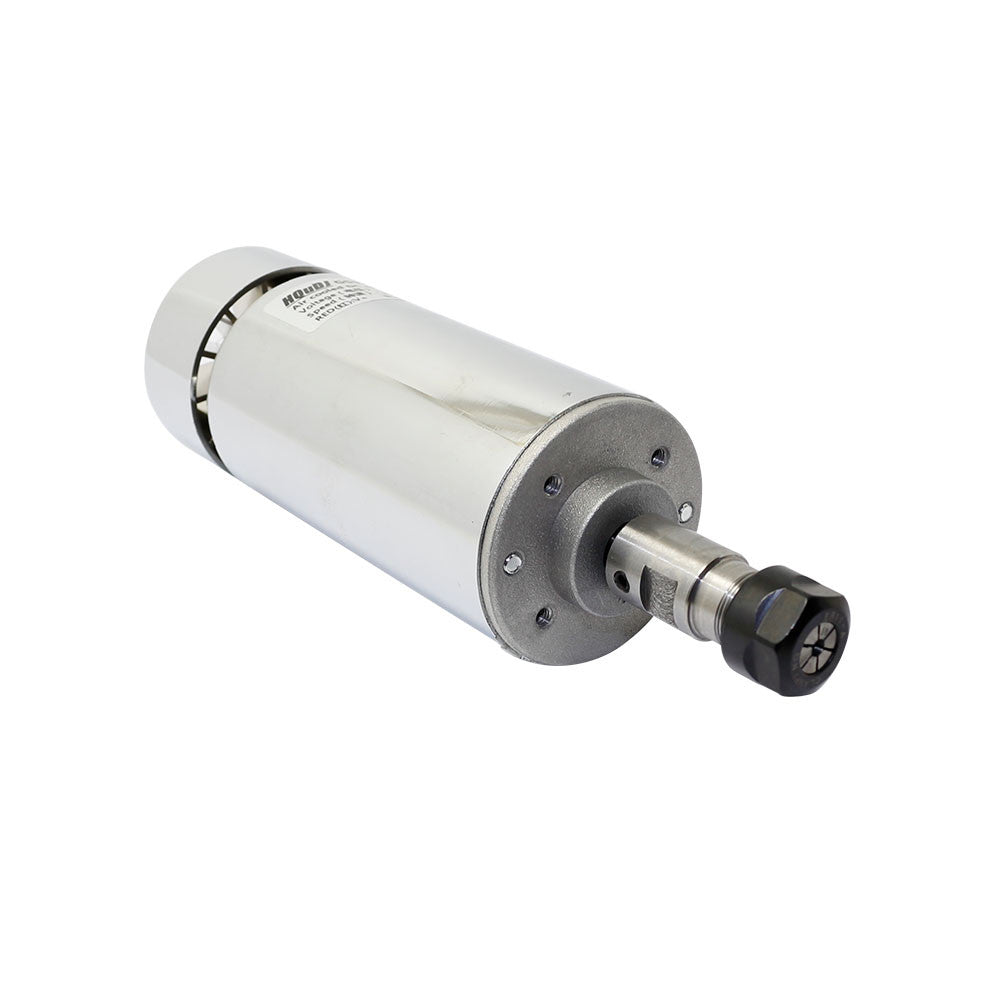

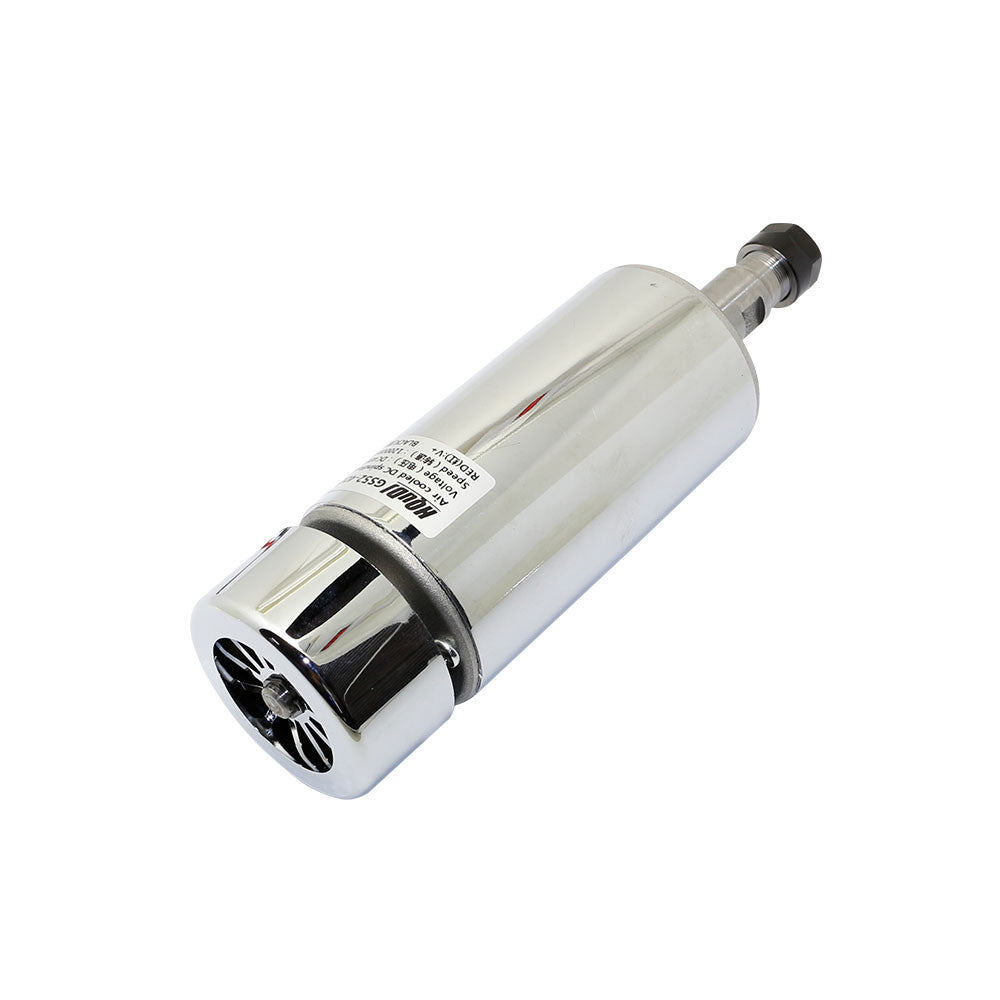

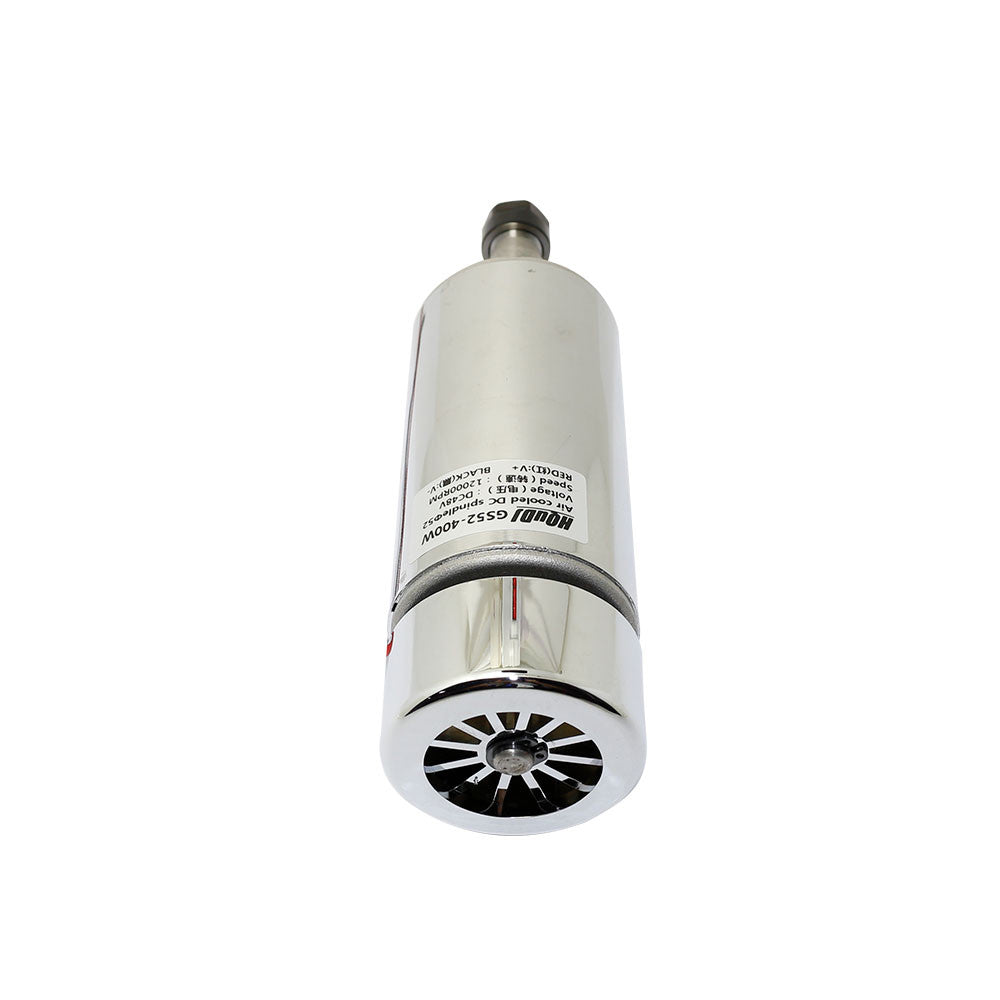

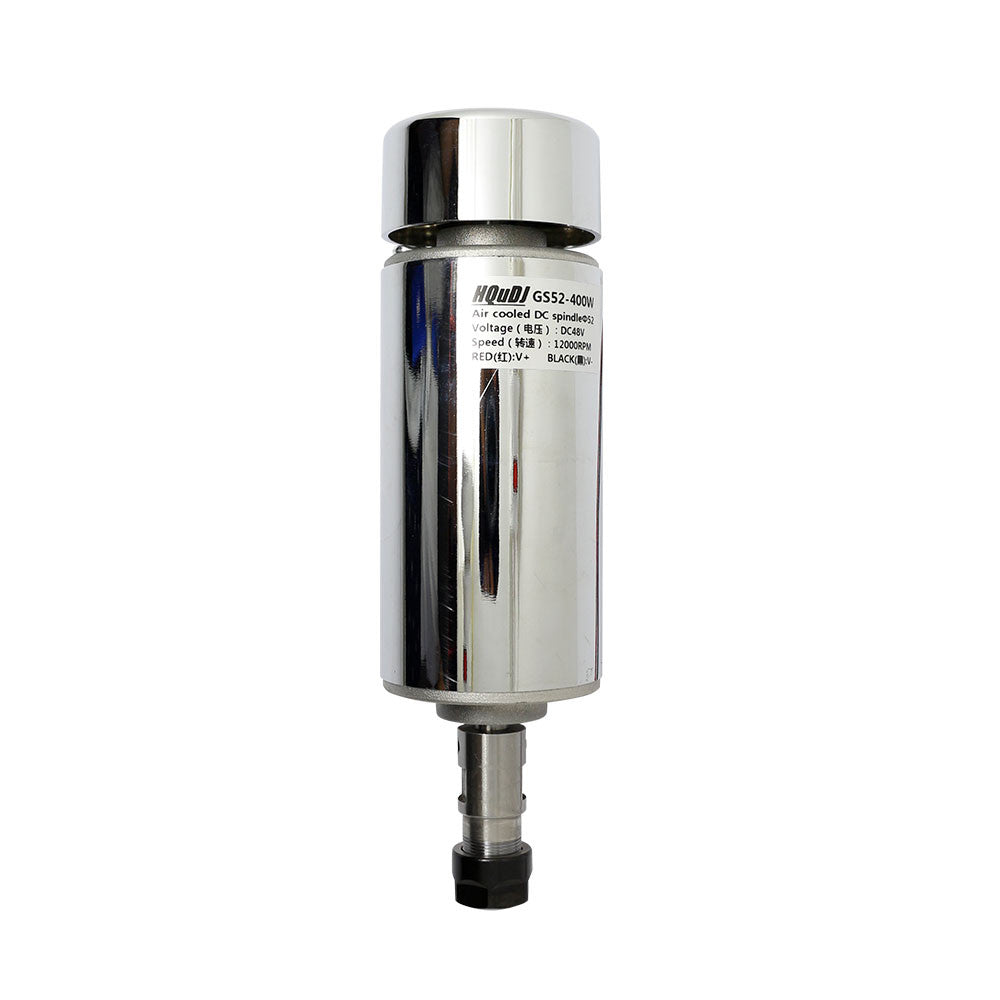

DC Spindle Motor 52mm 400w 3000~12000R CNC Engraver 12V-48V Cutter Marker HXKJ-GS52-400W
Parameters:
spindle motor: DC motor
working voltage：12-48VDC
power：400W
ROV：3000-12000r/min （12V-3000r/min，24V-6000r/min，36V-9000r/min，48V-12000r/min）
Torque：500mN.m
Isolating resistance：>2 tera ohm
Insulating dielectric strength: 400v
Diameter：52mm
Length of collet：35mm (including screw 43mm）
Diameter of the collet：16mm
Total length: 185mm

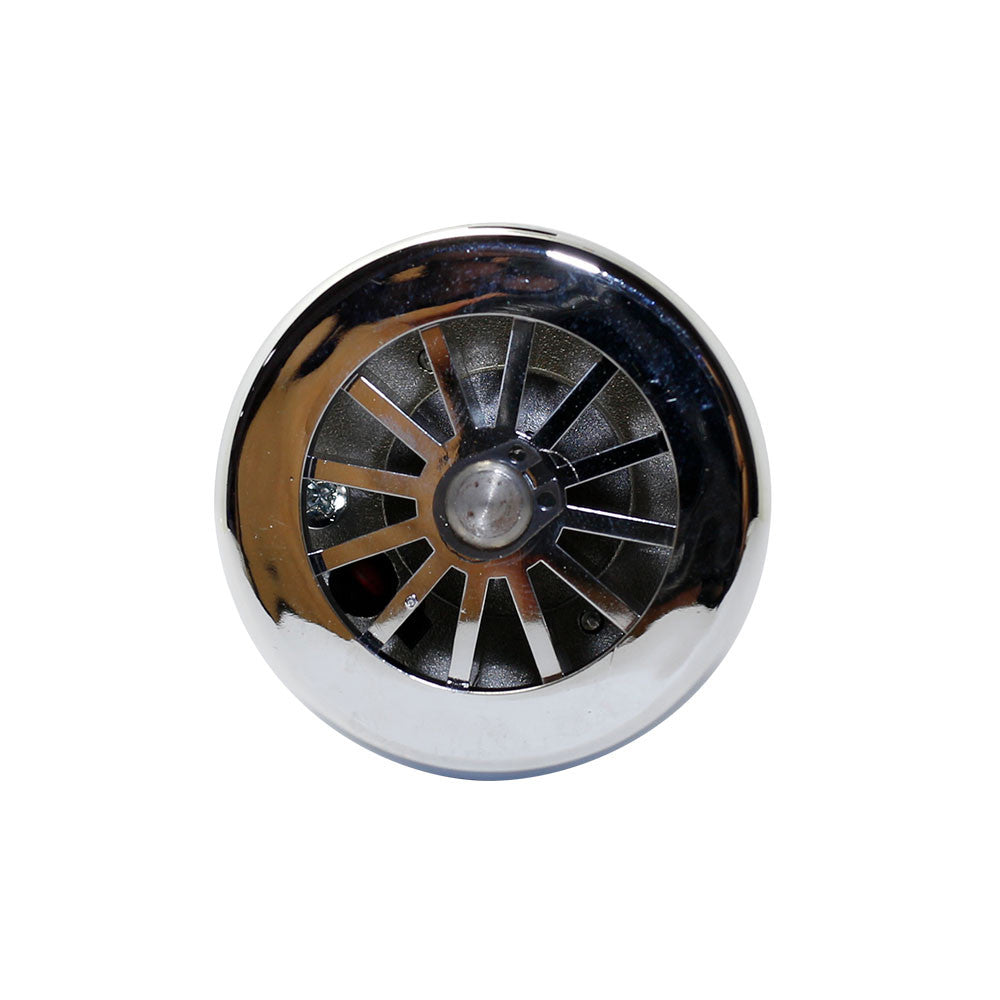

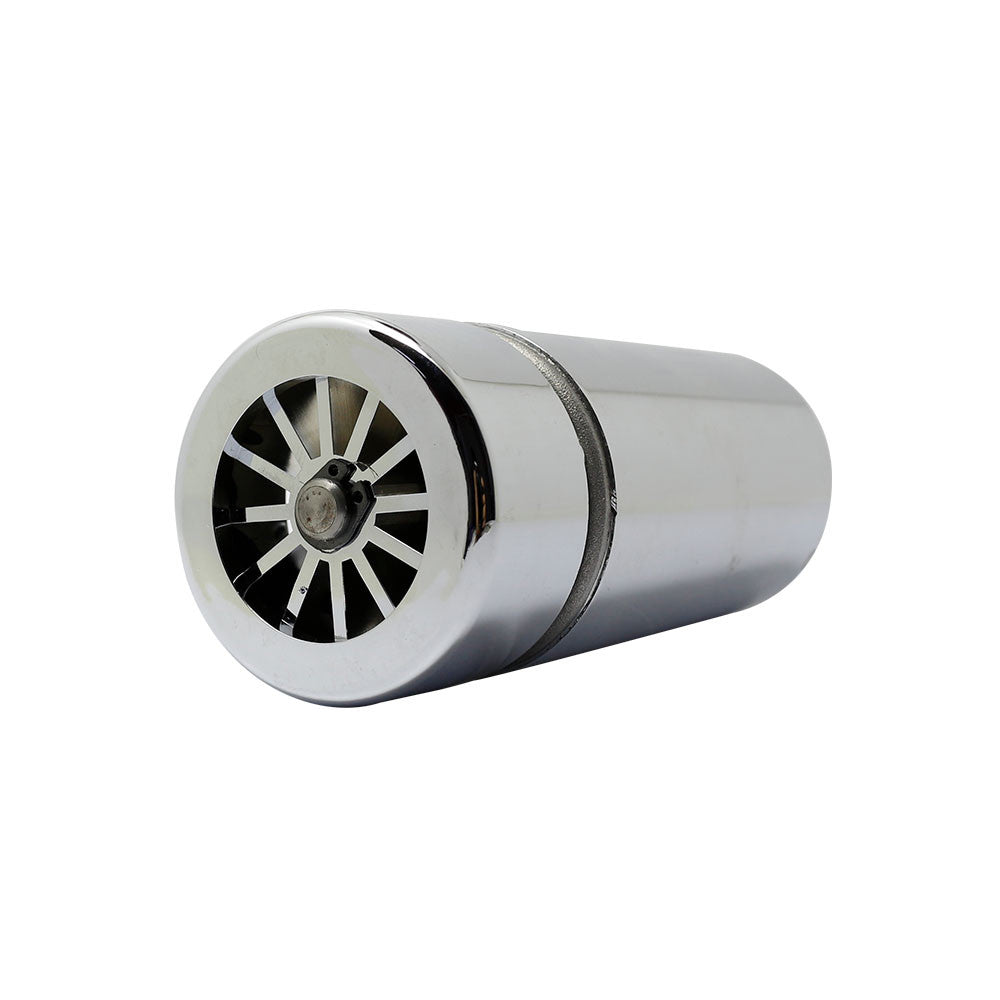

Wind cooling system, duty cycle: 8hr
Spindle runout of about 0.01-0.03.
Can be used for engraving metal or non-metal materials.
The spindle comes with forced air cooling, can work long hours.The default collet on this spindle is ER11, can also be customized according to customer's requirements.
Package:
1 x DC Spindle Motor 52mm 400w 3000~12000R CNC Engraver 12V-48V Cutter Marker
