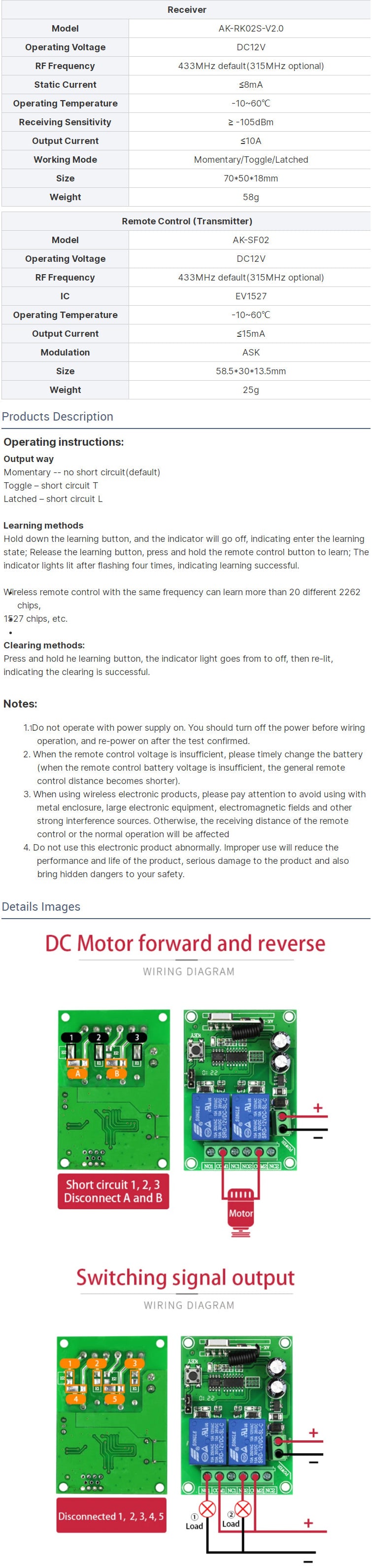

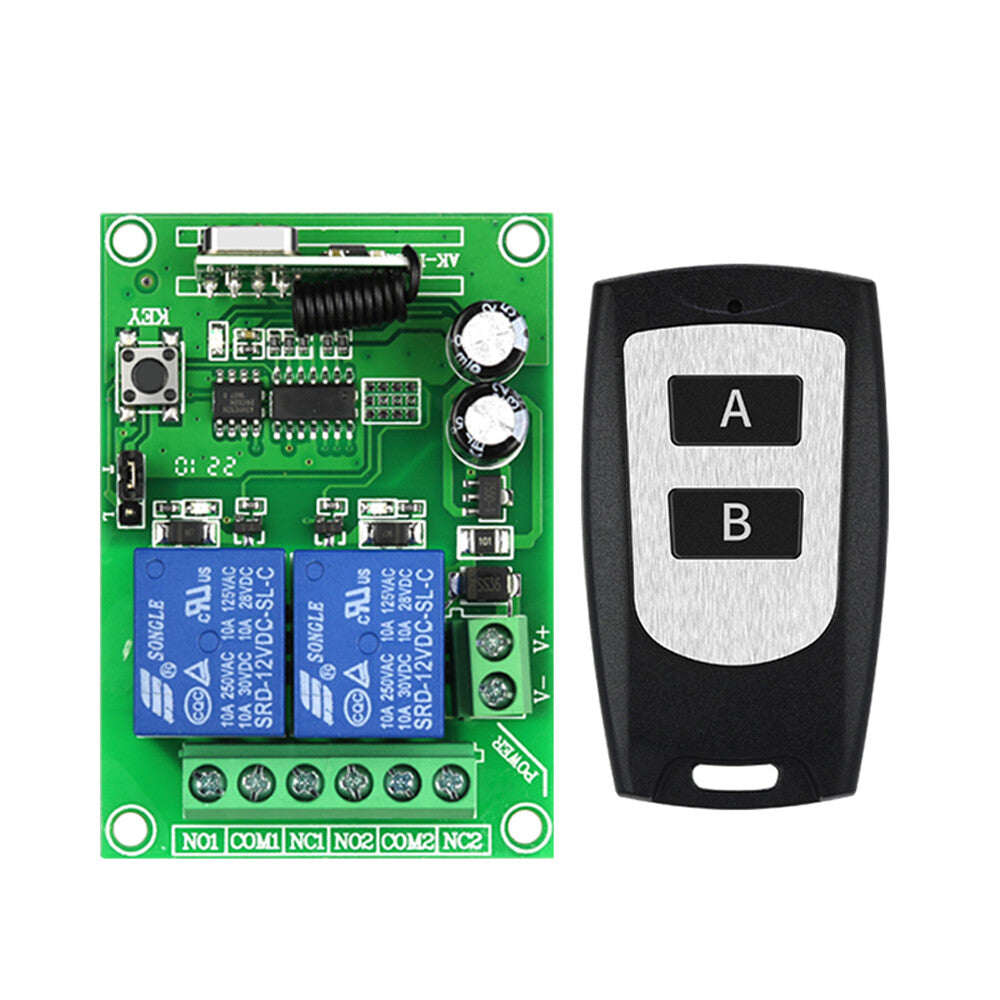

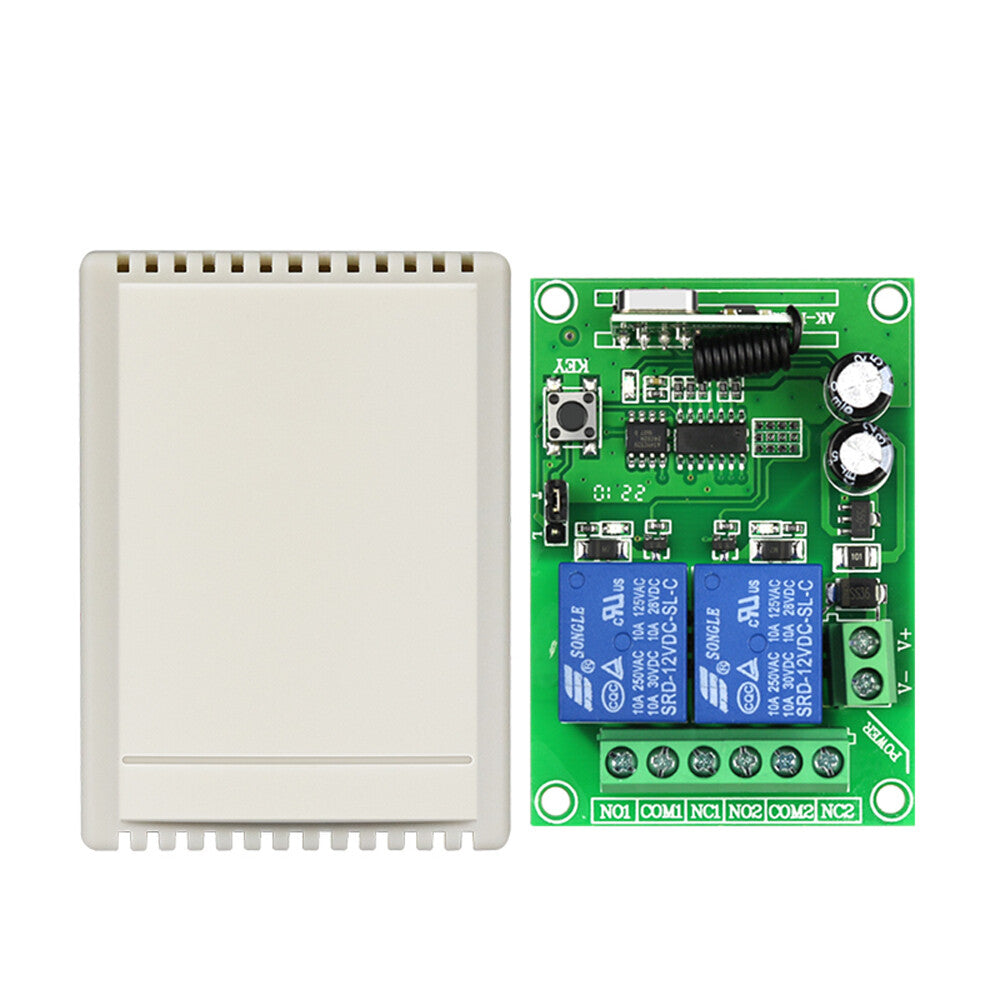

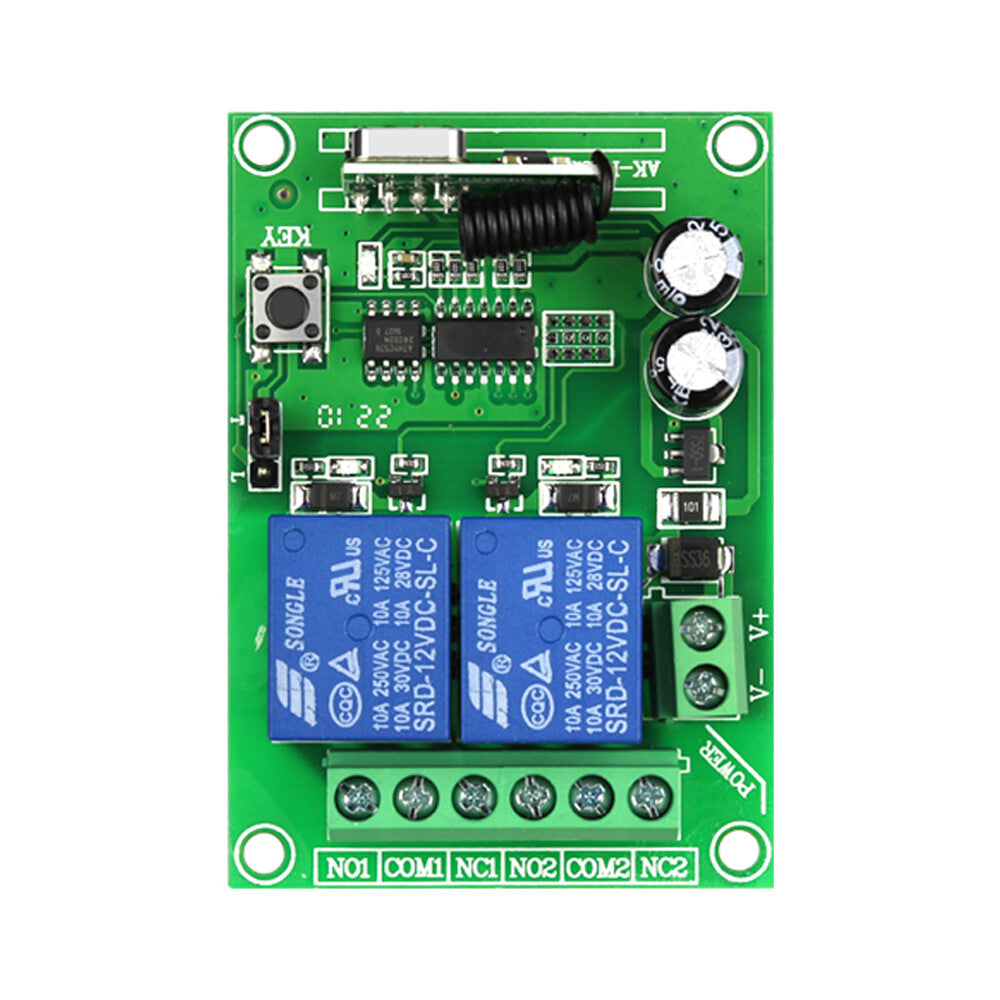

DC12V 2 Channels Learning Universal RF Remote Controller Wireless Relay Receiver

Receiver

Model: AK-RK02S-V2.0

Operating Voltage: DC12V

RF Frequency: 433MHz default(315MHz optional)

Static Current: ≤8mA

Operating Temperature: -10~60°C

Receiving Sensitivity: 2-105dBm

Output Current: S10A

Working Mode:  Momentary/Toggle/Latched

Size: 70+50+18mm

Weight: 58g

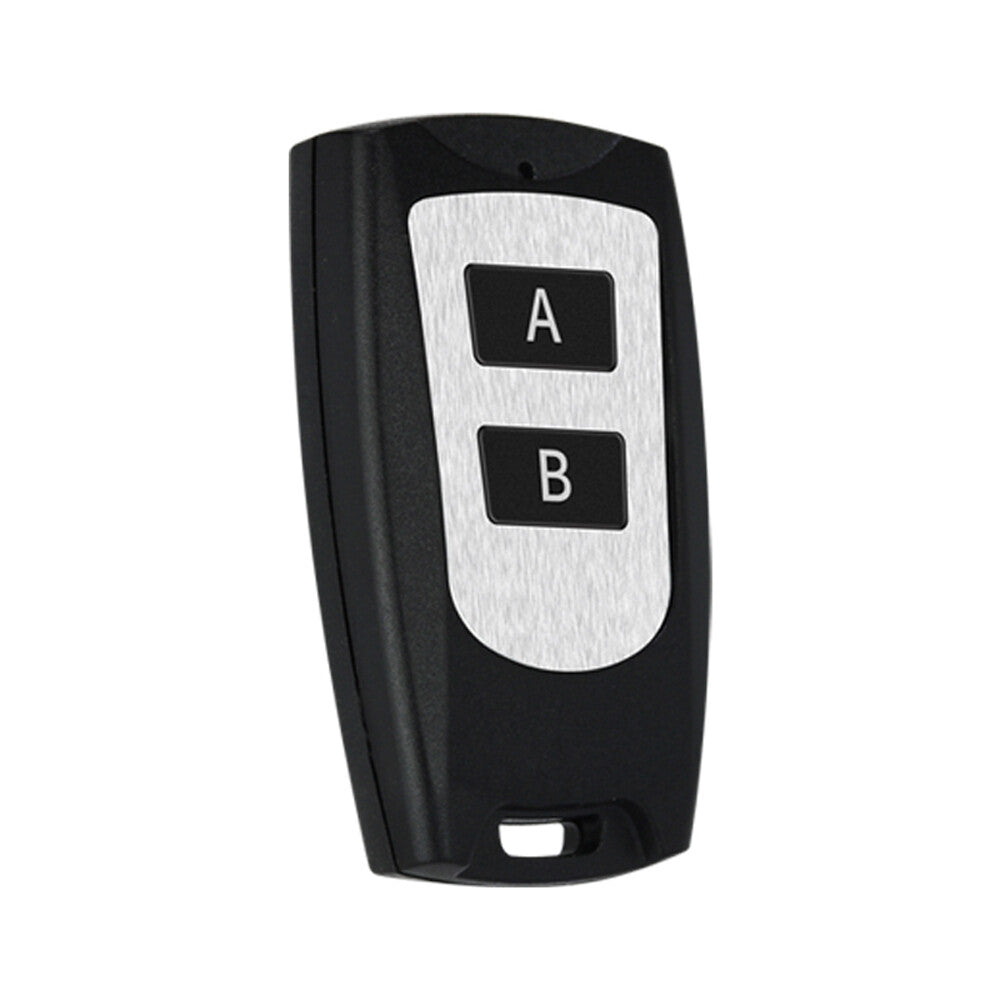

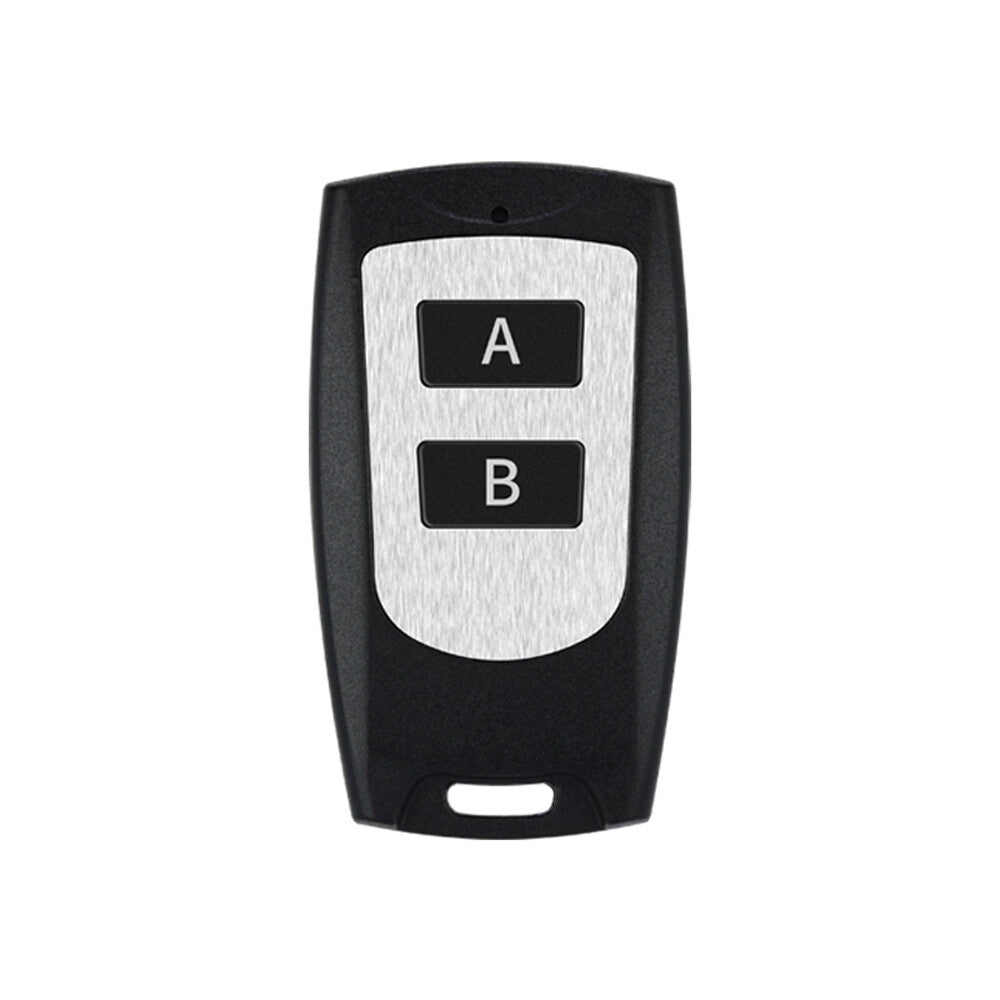

Remote Control (Transmitter)

Model: AK-SF02

Operating Voltage: DC12V

RF Frequency: 433MHz default(315MHz optional)

IC: EV1527

Operating Temperature: -10~60°C

Output Current: ≤15mA

Modulation: ASK

Size: 58.5*30+13.5mm

Weight: 25g

Products Description

Operating instructions:

Output way

Momentary -- no short circuit(default)

Toggle - short circuit T

Latched - short circuit L

Learning methods

Hold down the learning button, and the indicator will go off, indicating enter the learningstate;
Release the learning button, press and hold the remote control button to learn; The indicator lights lit after flashing four times, indicating learning successful.

Wireless remote control with the same frequency can learn more than 20 different 2262chips,1527 chips, etc.

Clearing methods:

Press and hold he learning button, the indicator light goes from to off, then re-lit,indicating the clearing is successful.

Notes:

1. Do not operate with power supply on. You should turn off the power before wiringoperation, and re-power on after the test confirmed.


2. When the remote control voltage is insufficient, please timely change the battery(when the remote control battery voltage is insufficient, the general remotecontrol distance becomes shorter).

    3. When using wireless electronic products, please pay attention to avoid using withmetal enclosure, large electronic equipment, electromagnetic fields and otherstrong interference sources.
       Otherwise, the receiving distance of the remotecontrol or the normal operation will be affected
    4. Do not use this electronic product abnormally. Improper use will reduce theperformance and life of the product, serious damage to the product and alsobring hidden dangers to your safety.

Package:
1pc receiver with 1pc remote or 1pc receiver with 2pcs remotes
