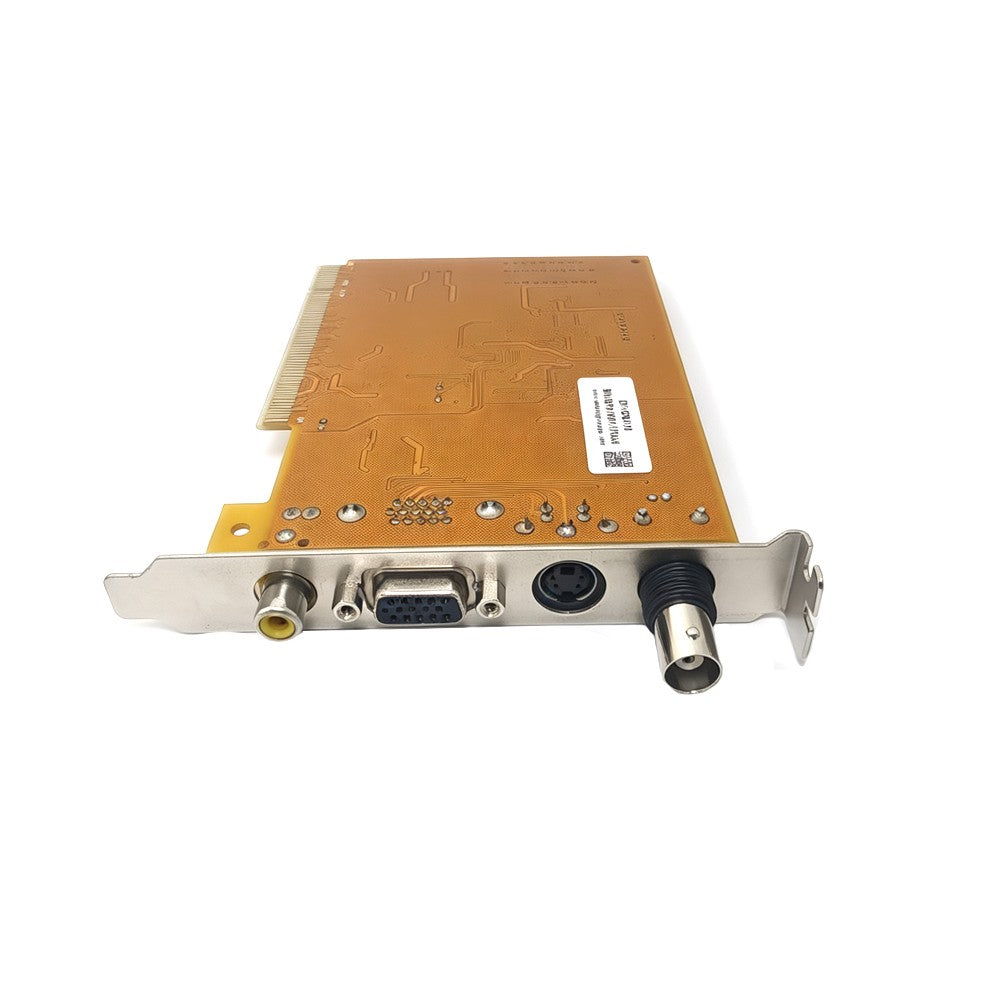

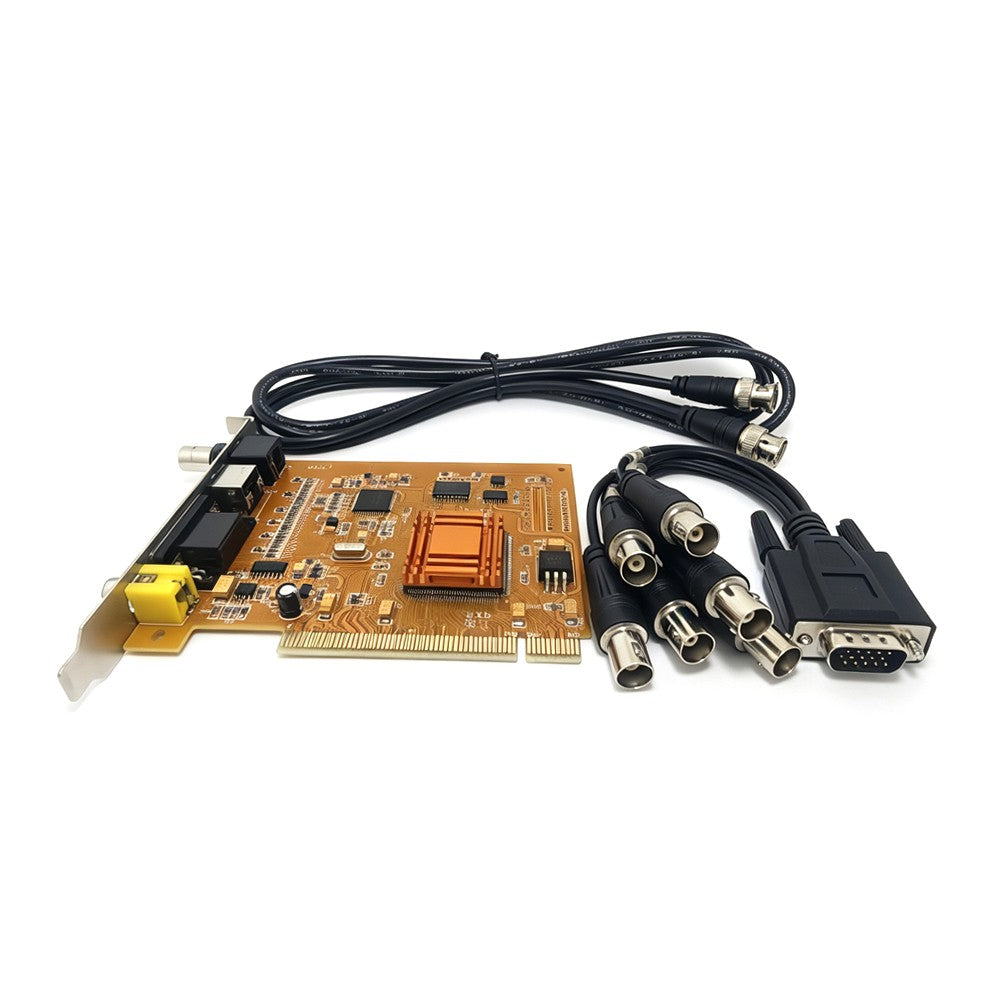

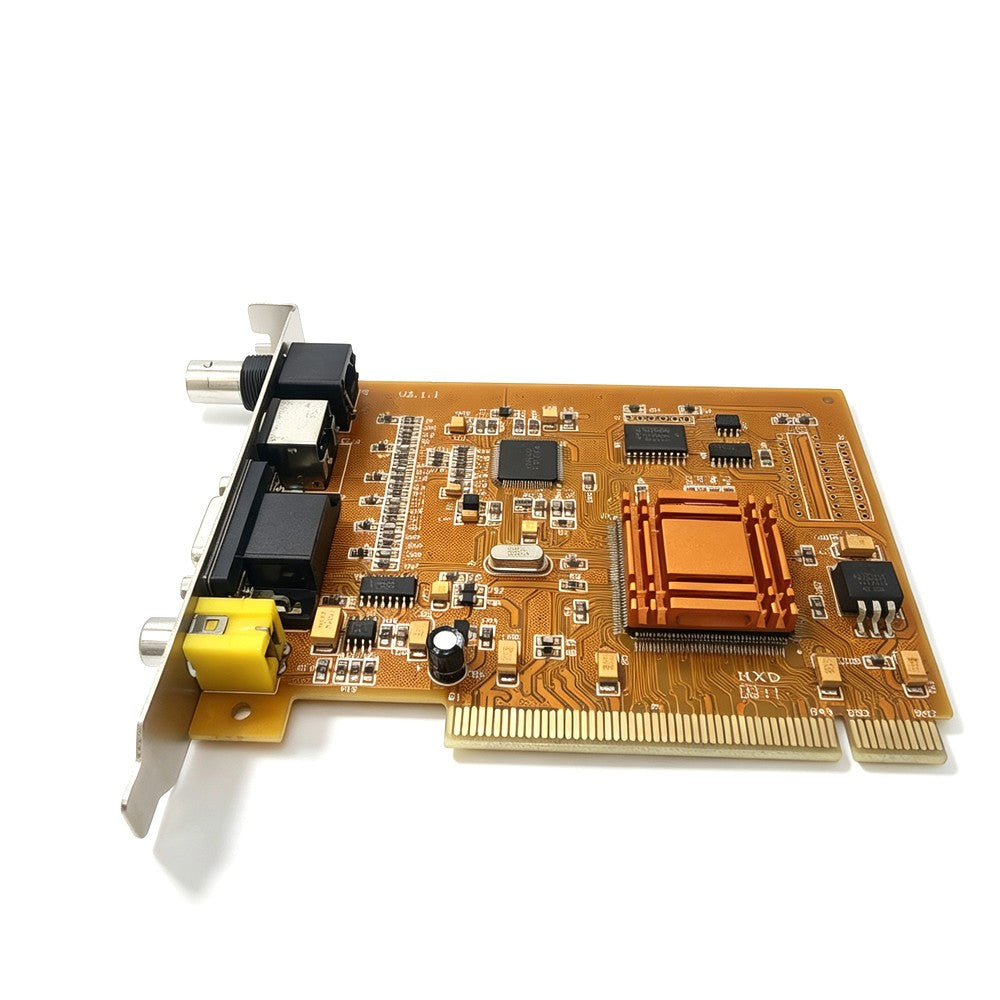

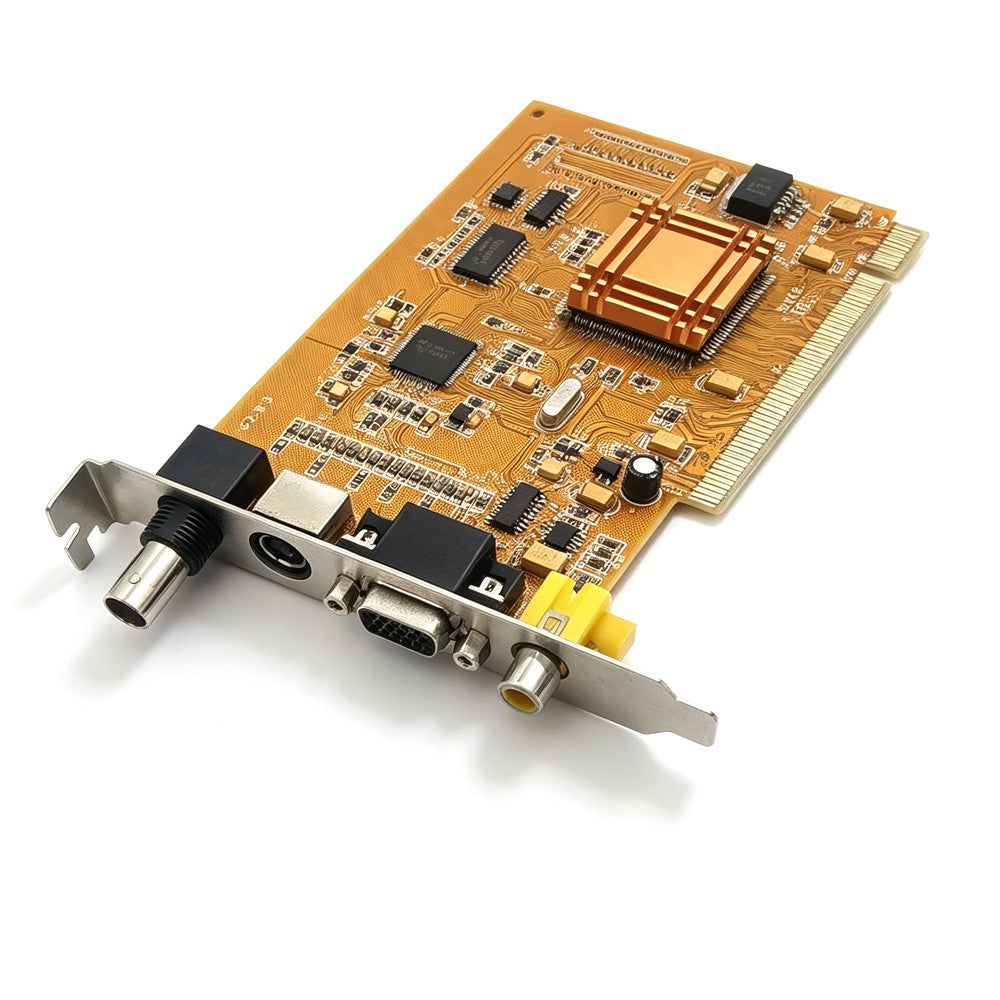

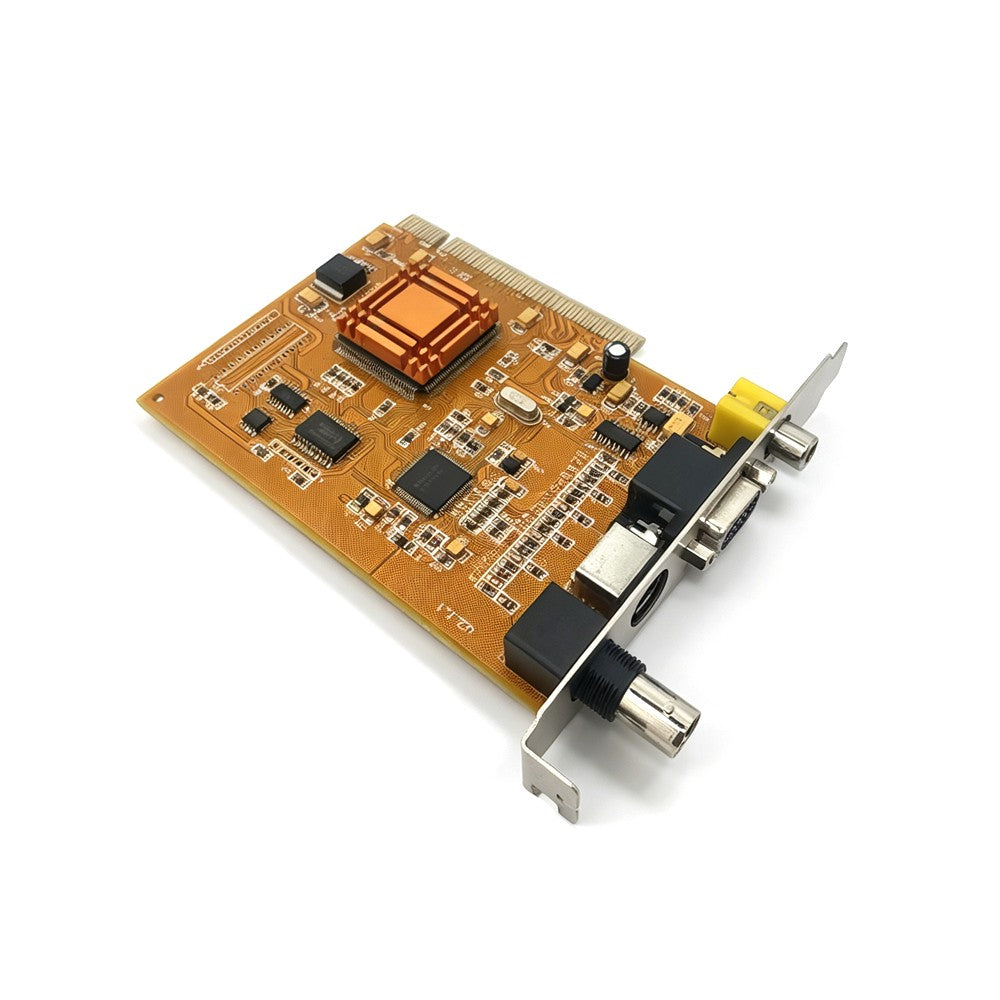

DH-CG410 High-performance DH Images Card Color/Black & white Images Capture Card

DH-CG410 High-performance DH Images Card Color/Black & white Images Capture Card

$316.00
$346.00 $316.00
Sale Sold out
Shipping calculated at checkout.

Product Overview


The DH-CG410 high-performance analog image capture card is officially released by Daheng Images. It stably captures high-quality color and monochrome images in real time with support of composite video and YPbPr component signal access. Benefiting from high definition output, premium imaging performance and low noise circuit design, this acquisition hardware matches the demands of professional image analysis and post-processing tasks, with prominent application value in the field of medical microscopic image analysis. An editable user-programmable encryption module is embedded on the hardware to safeguard your software algorithm and intellectual property when carrying out secondary programming development。


Core Specifications

  1. Imaging Performance

  • Target Application: High-precision image capture & professional image processing

  • Horizontal Resolution: 470 lines

  • Supported Video Standard: PAL, NTSC (color & black-white video signal)

  • Standard Input Voltage: 1 Vp-p

  1. Multi-Mode Video Input Options

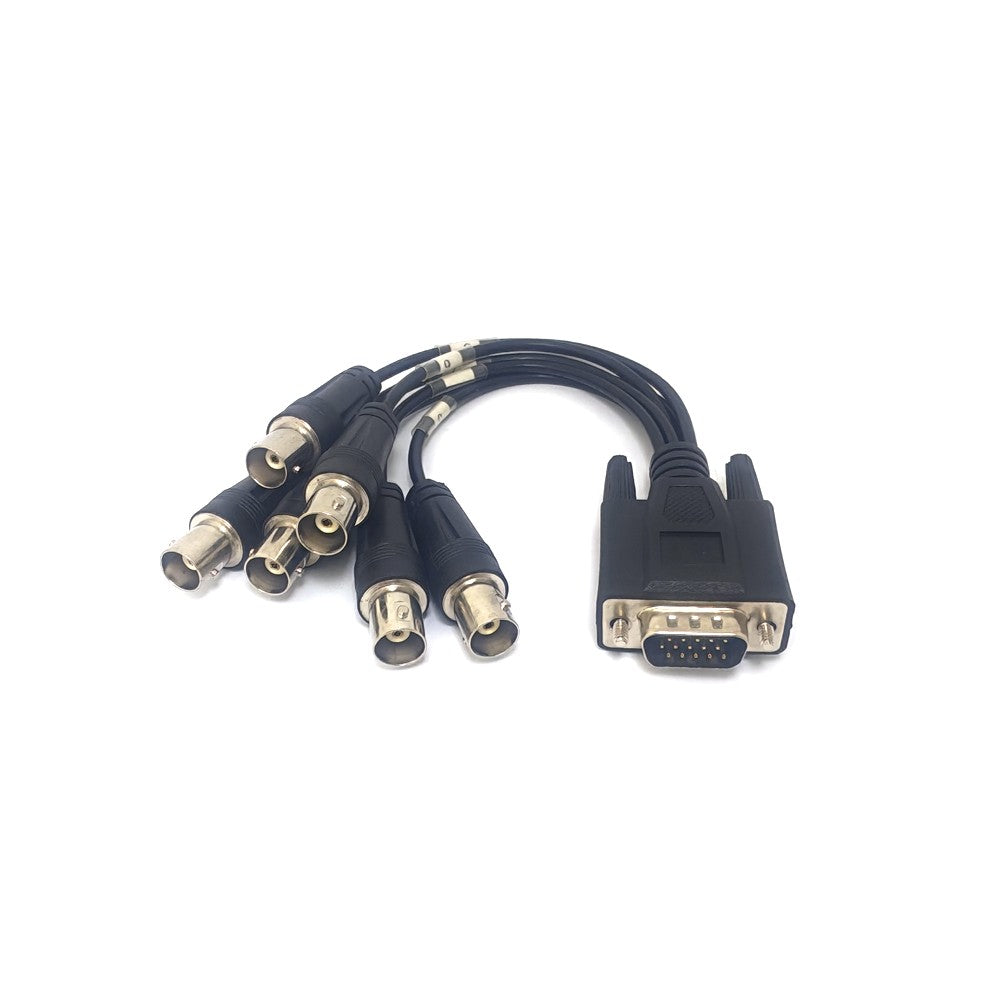

  • Mode 1: 6-way switchable composite video input

  • Mode 2: 1 × Y/C signal + composite video input (switch selection)

  • Mode 3: 2 × Y/C signals + 2 × composite video inputs (switch selection)

  • Mode 4: 1 × YPbPr component + composite video input (switch selection)

  • Mode 5: 1 × YPbPr + 1 × Y/C + 1 × composite video input (switch selection)

  • Mode 6: Dual YPbPr component input

  • Analog Output: 6 optional analog video output channels

  1. Capture Resolution (Square Pixel Sampling)

  • PAL System: 768 × 576, 24-bit

  • NTSC System: 640 × 480, 24-bit

The ratio of hardware to complete the input image scaling (SCALE), clipping (CLIP); input image

The size, location can be flexibly set

Support for color space transformation (Color Space Conversion): YUV4: 2:2,

RGB32, RGB24, RGB15, RGB16 and Y8Bit such as multiple image display and storage

Format

Graphic overlay function (OVERLAY): template can be significant in real time by filling out the shield (MASK)

Display and store input image of arbitrary shape

Support around the mirror, upside down

Support user self word encryption functions: to protect the user software from piracy against

A / D conversion accuracy: 10bit users can get the 8 bit low-noise data

DC Noise: <± 2 gray level

Single image capture: single-game: <40ms, single-frame: <60ms

Applicable temperature range :5-60 ° C

Total power consumption: 5V power supply consumes less than 5W;-5V power supply power consumption less than 0.2W

Support stand-alone multi-card

Software Support

WINDOWS 98, WINDOWS NT, WINDOWS 2000, WINDOWS XP, and Linux environment, development tools and demonstration program;

Support for VC, VB, Delphi, C + + Builder and other development environment.

Application areas:

Office automation, medical microscopic image, professional image analysis, processing




Main Application Fields

Medical microscope imaging analysis, scientific research image collection, laboratory visual measurement, custom machine vision development, offline video image recording and analysis equipment
