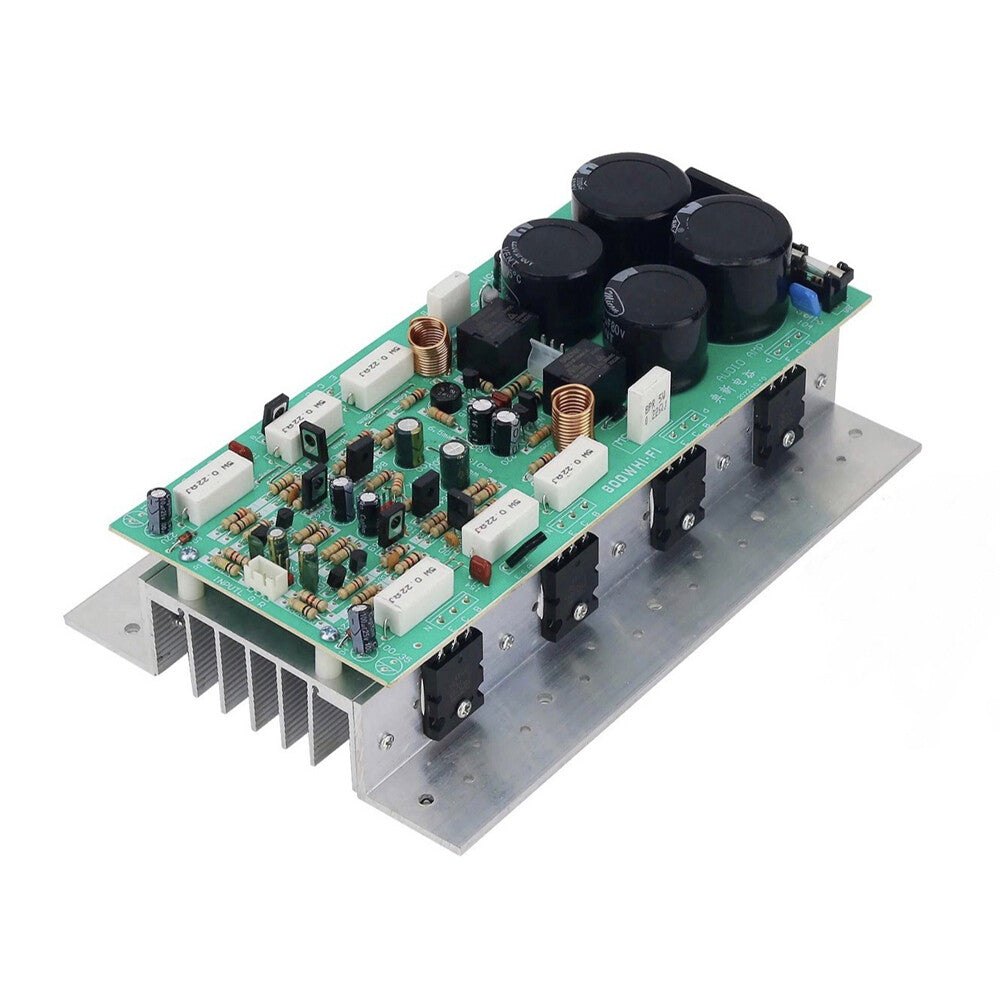

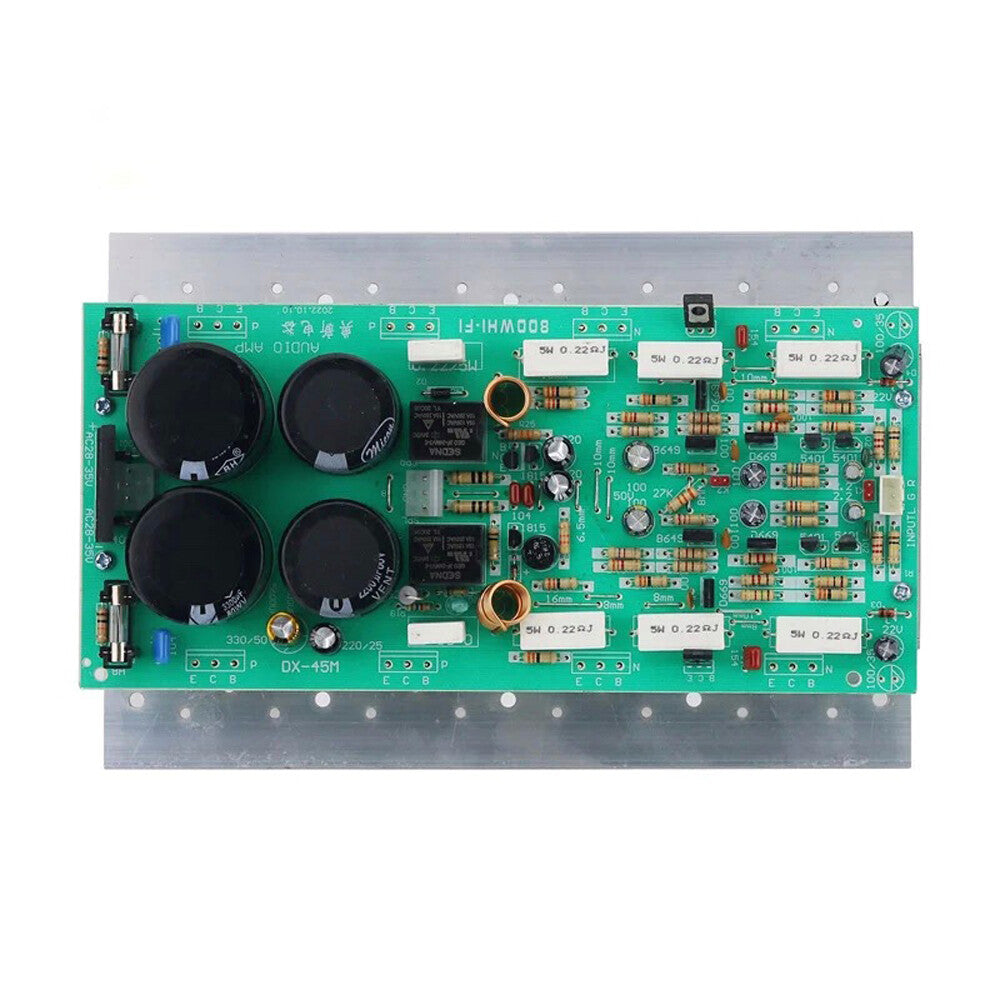

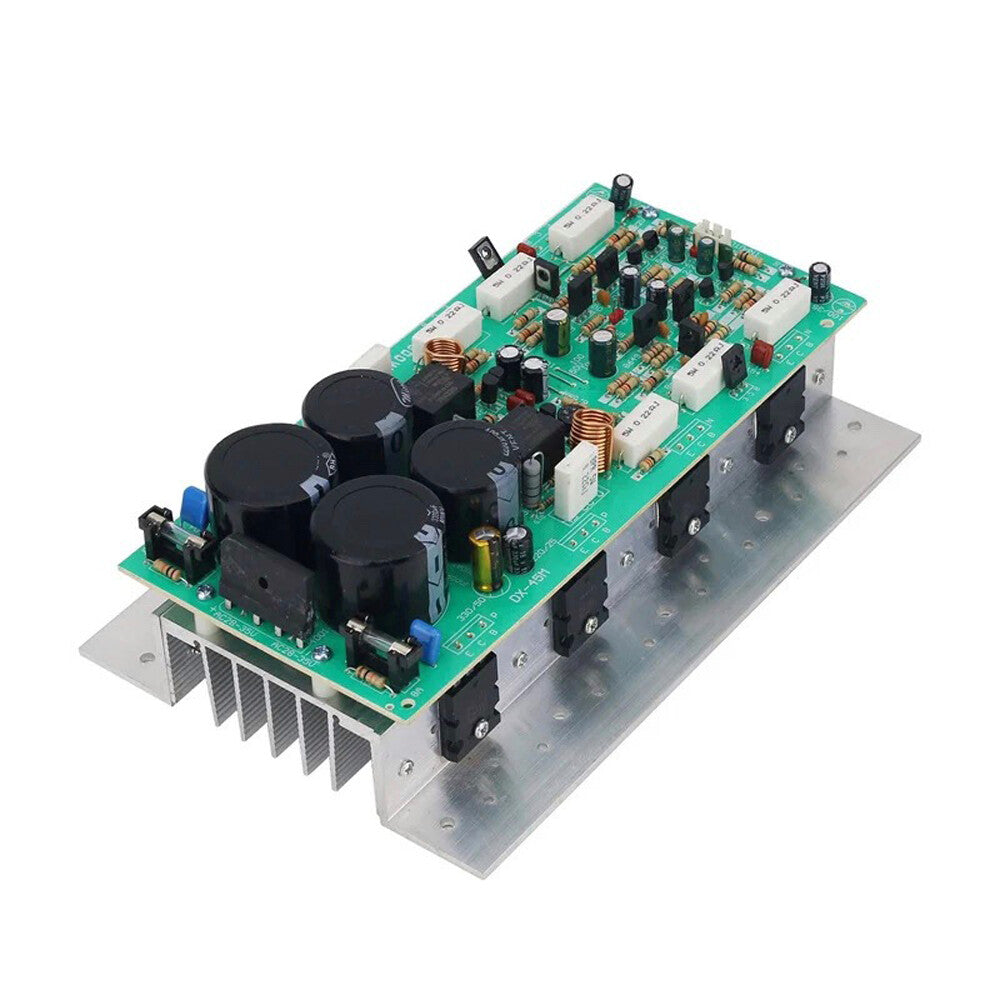

Double AC24-32V A1943/C5200 400W 2.0 High Power Amplifier Board Accessories

Dual AC24-32V A1943/C5200 400W 2.0 High Power Amplifier Board With High Voltage Audio Accessories

Note:

Due to different batches of parts in the supply chain, the main changes are capacitance / capacity / withstand voltage. We will ship randomly to ensure that all products are tested properly.

Specifications:

Operating voltage: Dual AC24-45V (recommended dual AC30V or dual AC36V)200-400W toroidal transformer

Power amplifier chip: 1494/3858

Channel type: stereo two-channel, mono

Mono output: 800W/ 4 ohm load (recommend dual AC35V 200-350Wtoroidal transformer)

Two-channel output: 400W+400W

Impedance: 4 ohm / 8 ohm

Size: 22x14.5x8cm

Weight: 1000g

Feature:

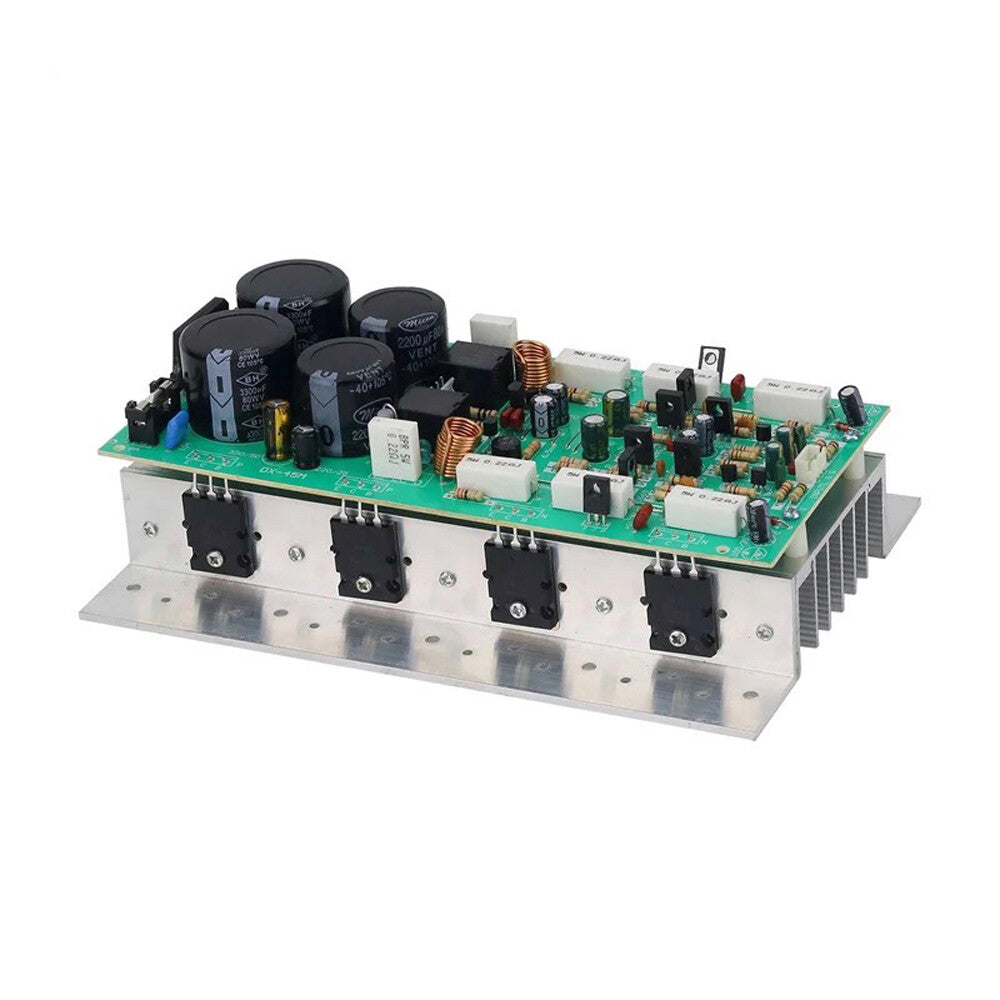

1. The power amplifier board is thickened with heat sink on the basis of the old model. It adopts circuit design, high power, good sound quality and minimal distortion!

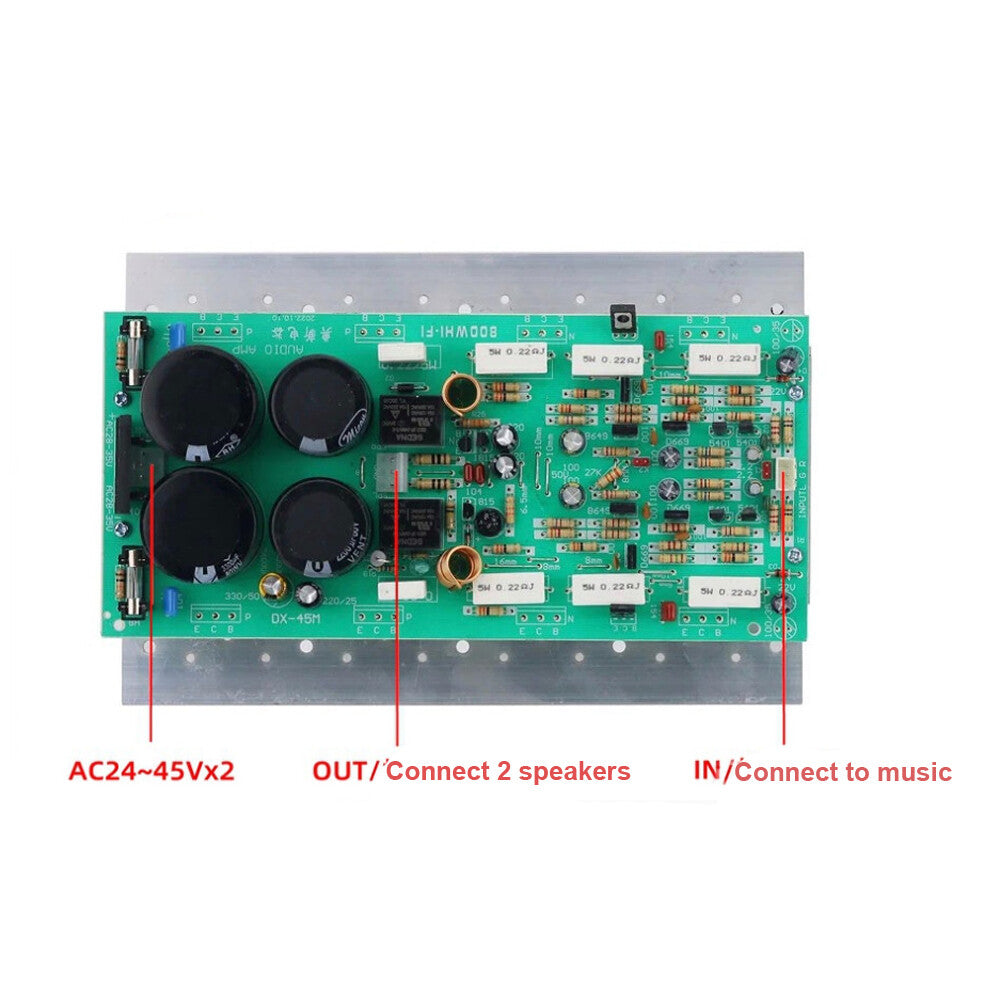

2. The parameters of the power amplifier board are strictly tested. The two channels only need to be connected according to the wiring diagram.

3. The board comes with filter rectification, with heat sink, only need to connect the power supply, transformer and preamp!

Note:

1.The default is the stereo version

2.Mono wiring: only need to connect the included red plug-in to the board K1, K2 to be mono.

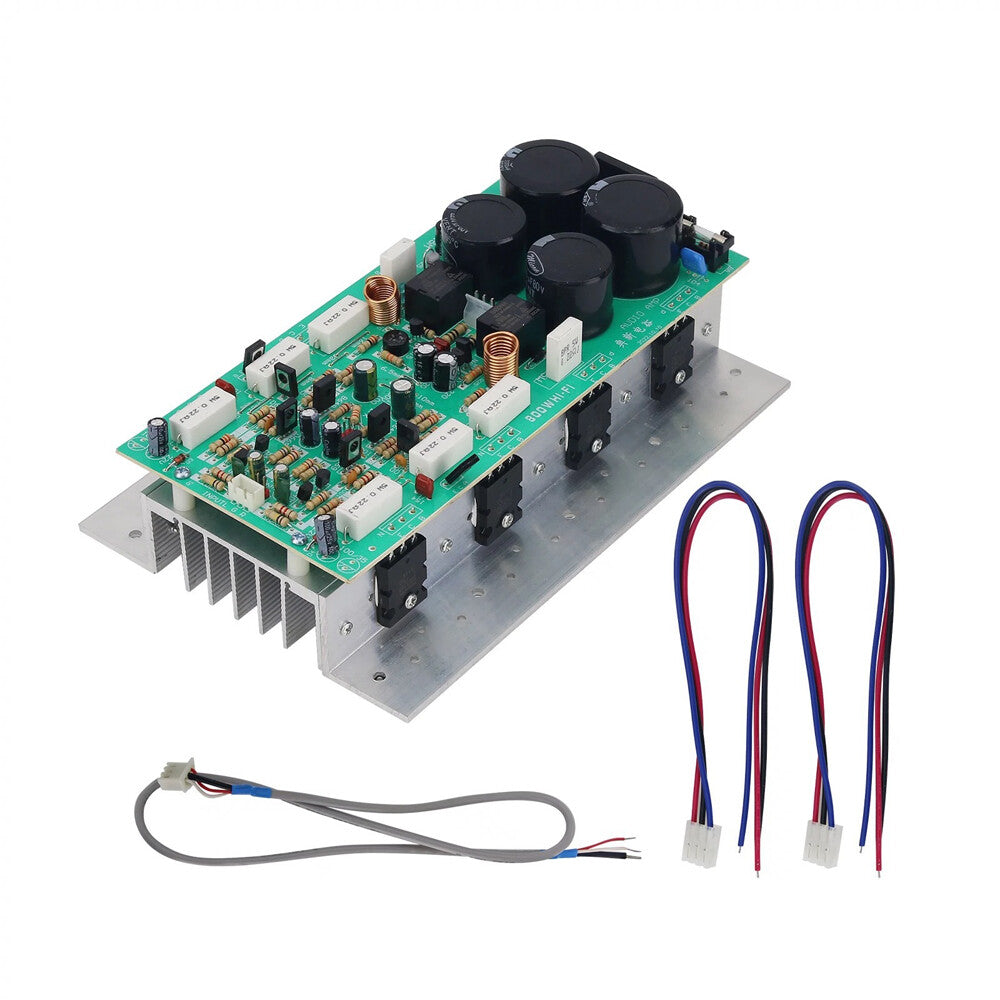

Package:

1 x Amplifier Board
