Description:

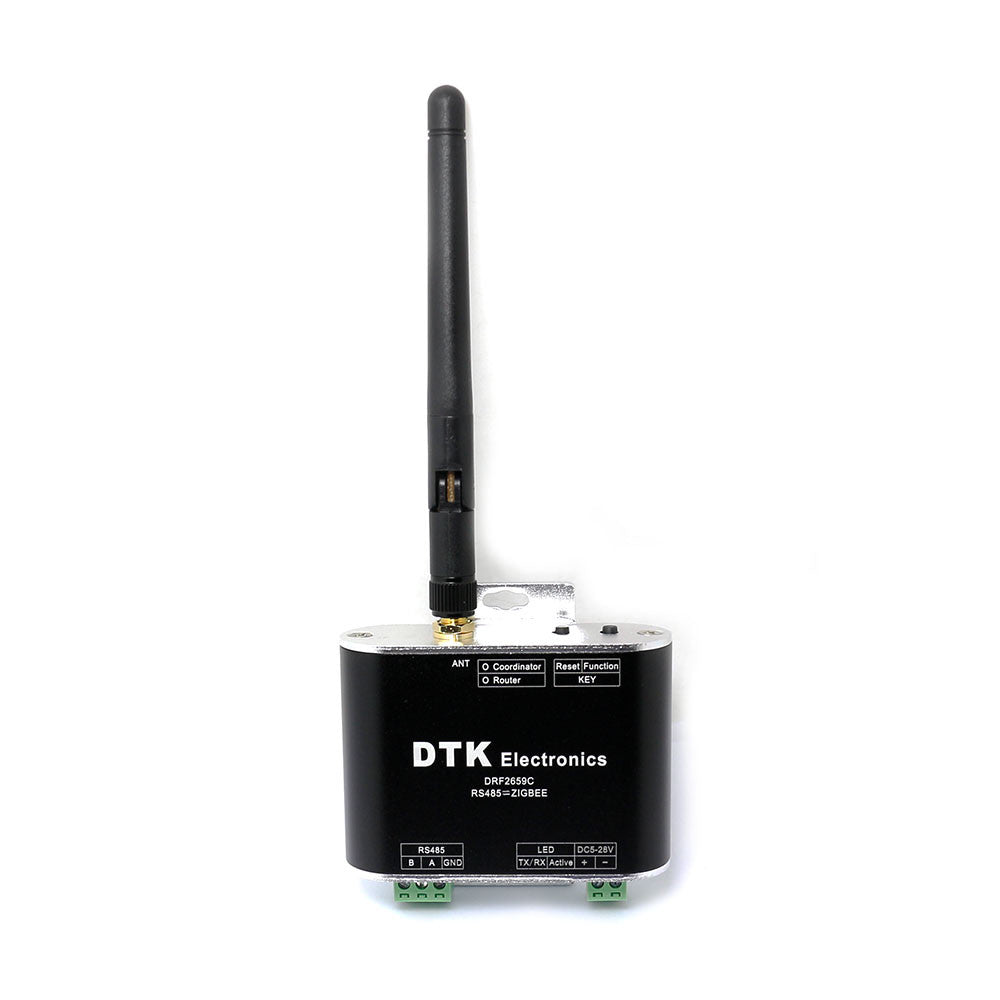

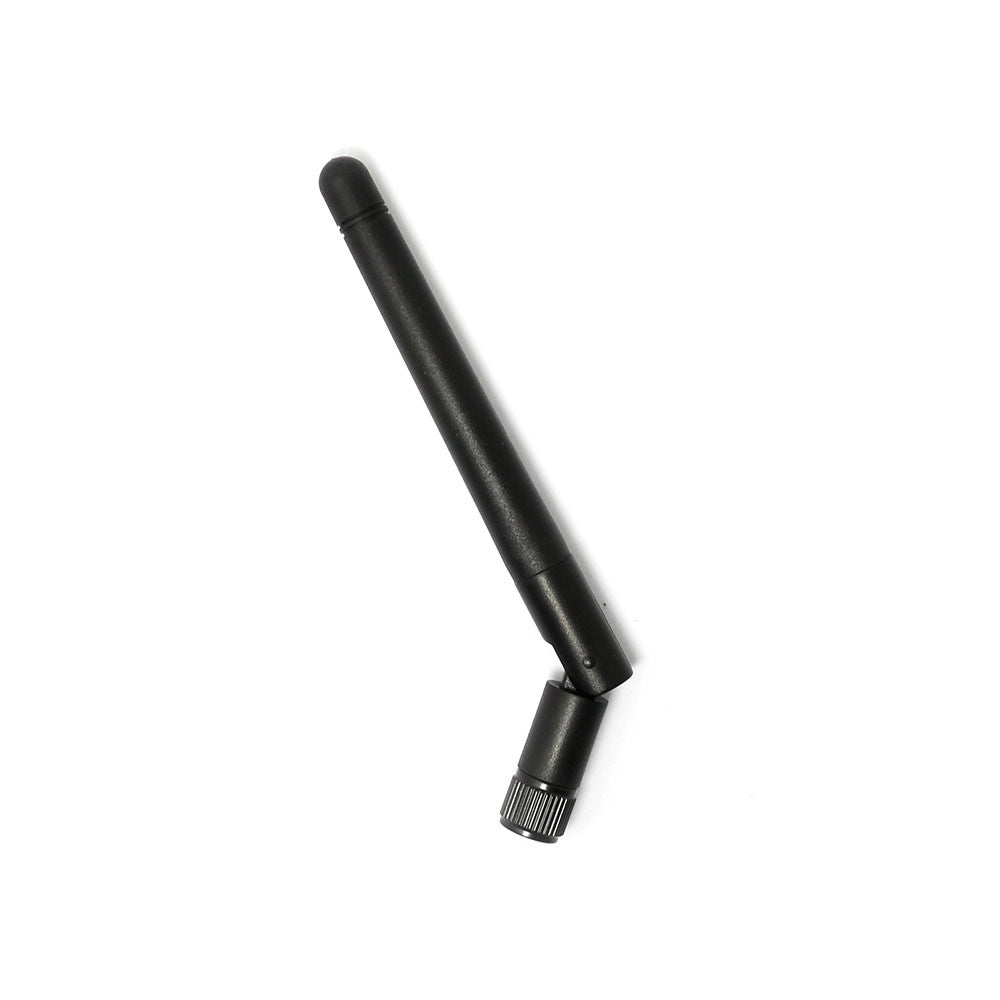

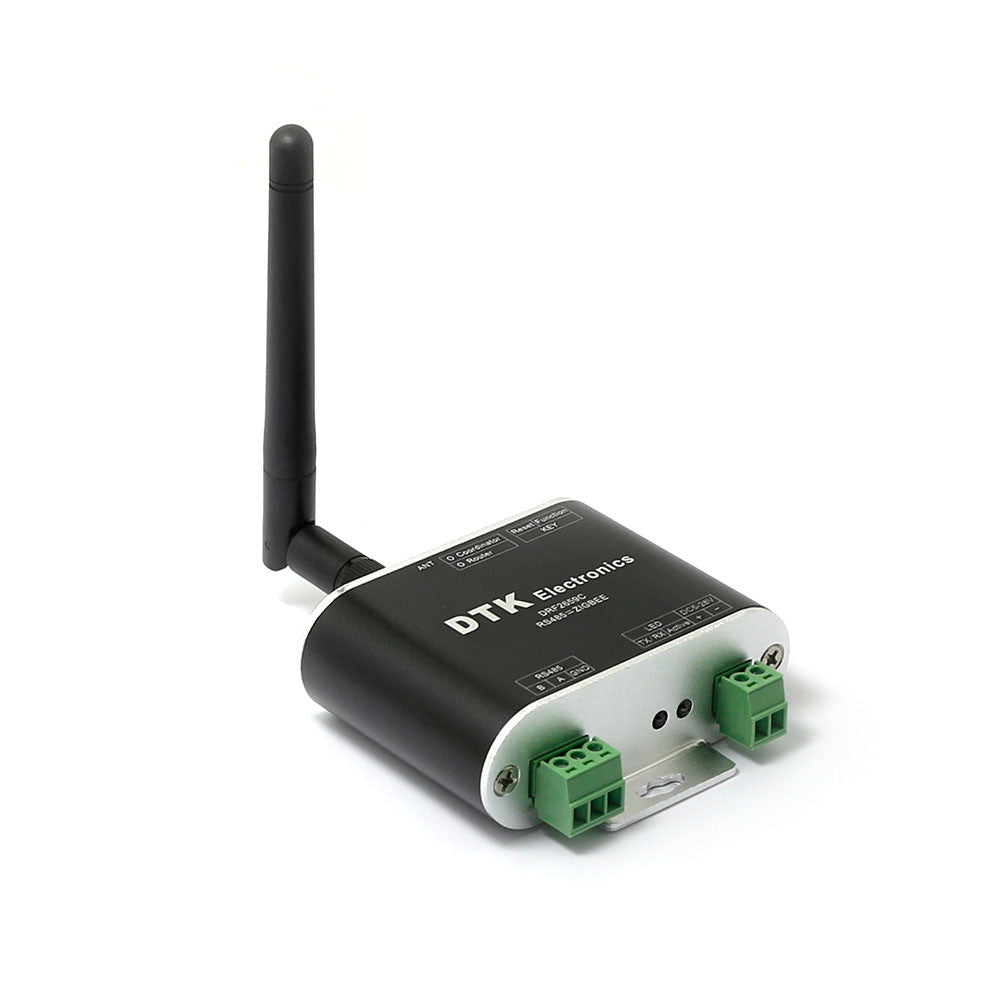

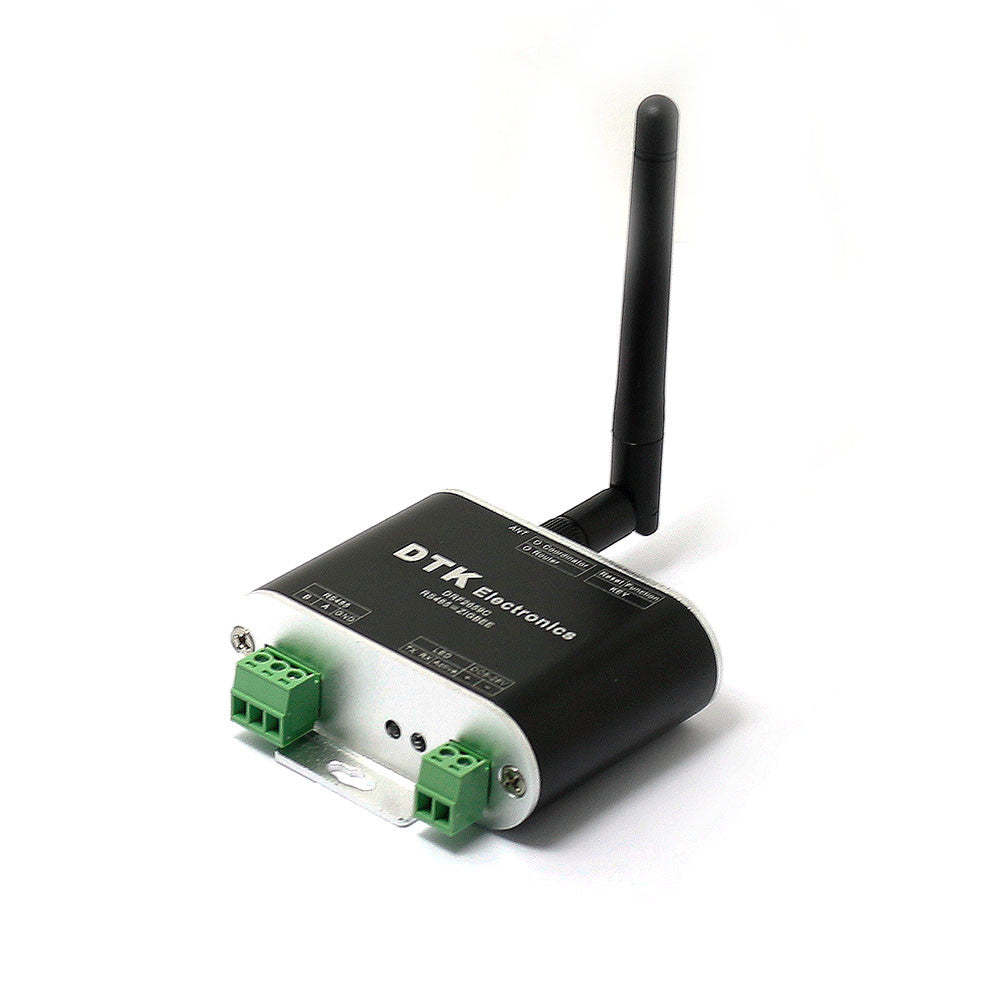

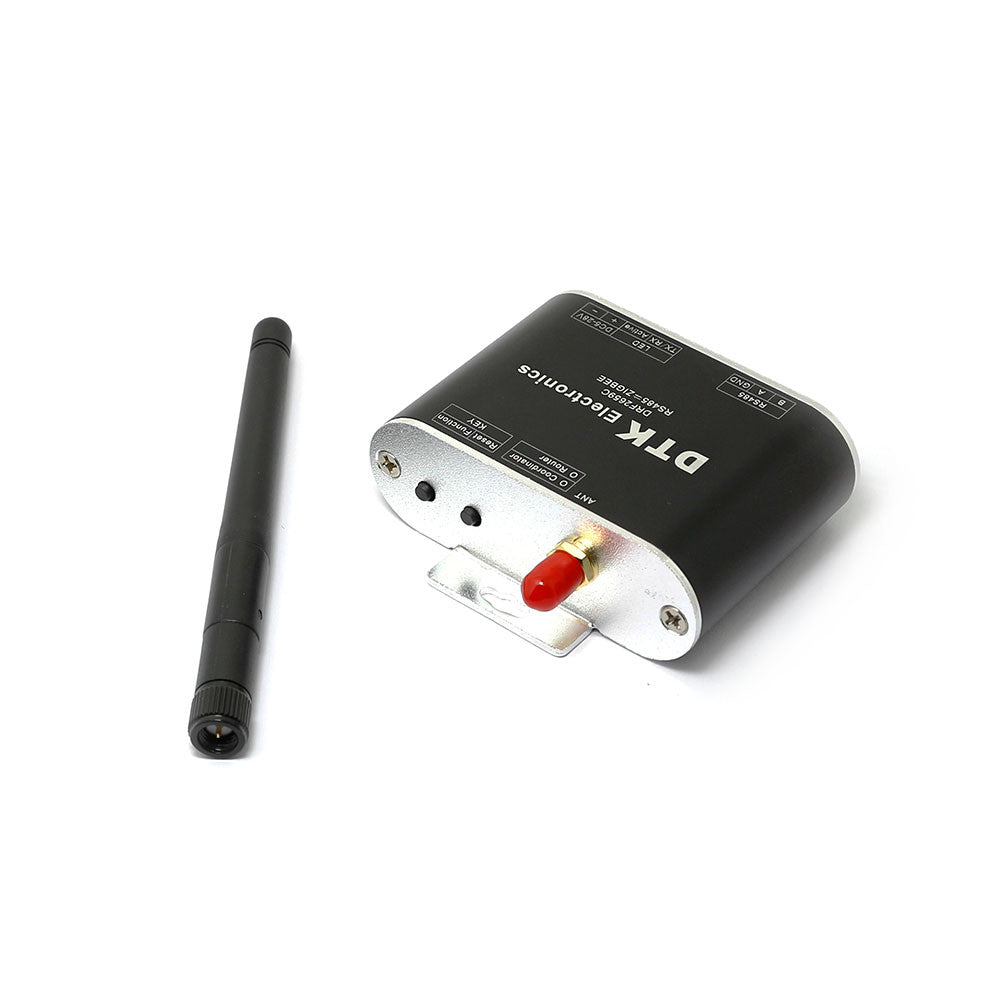

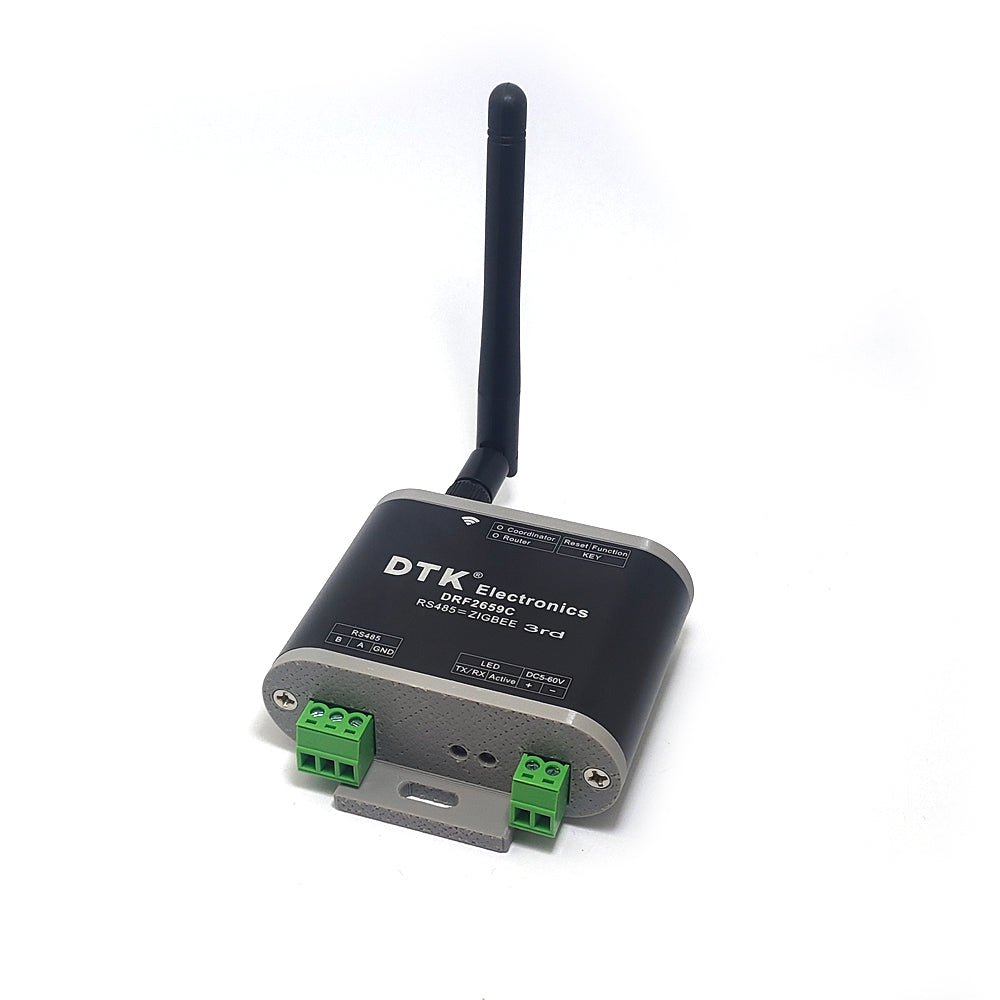

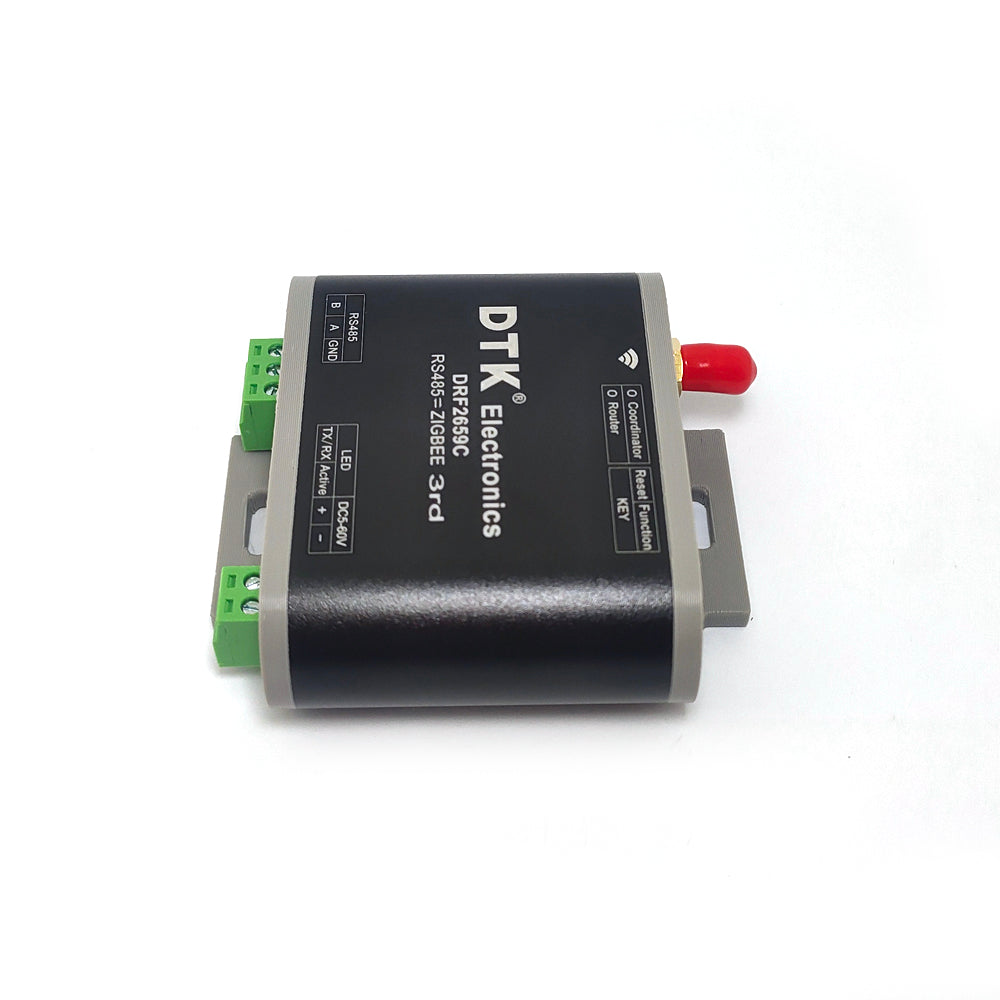

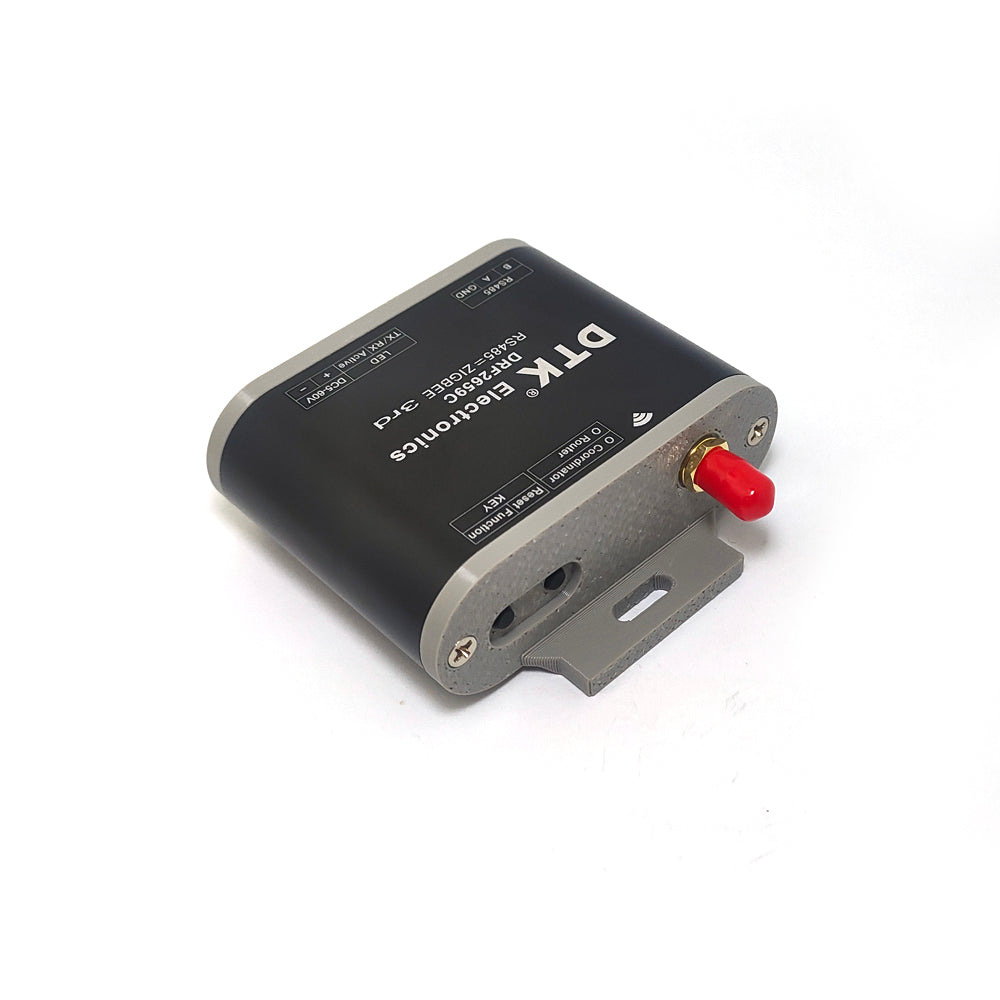

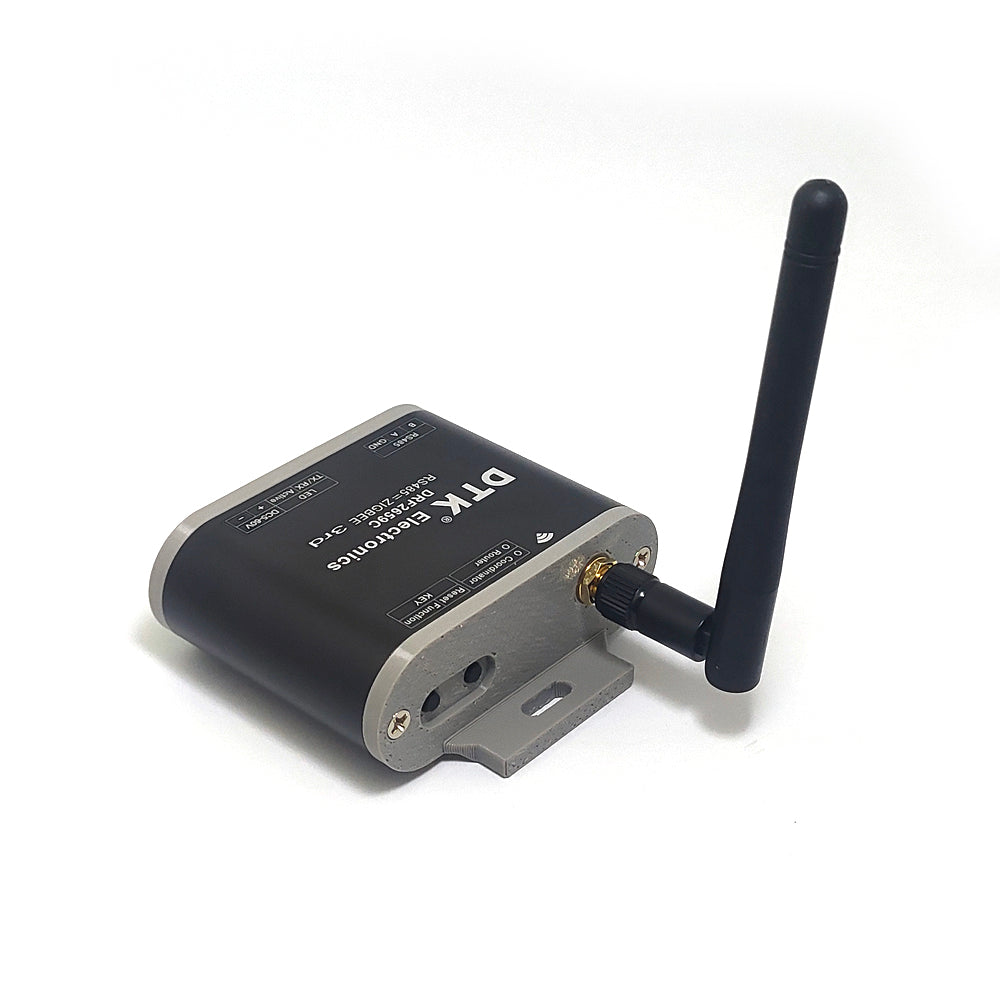

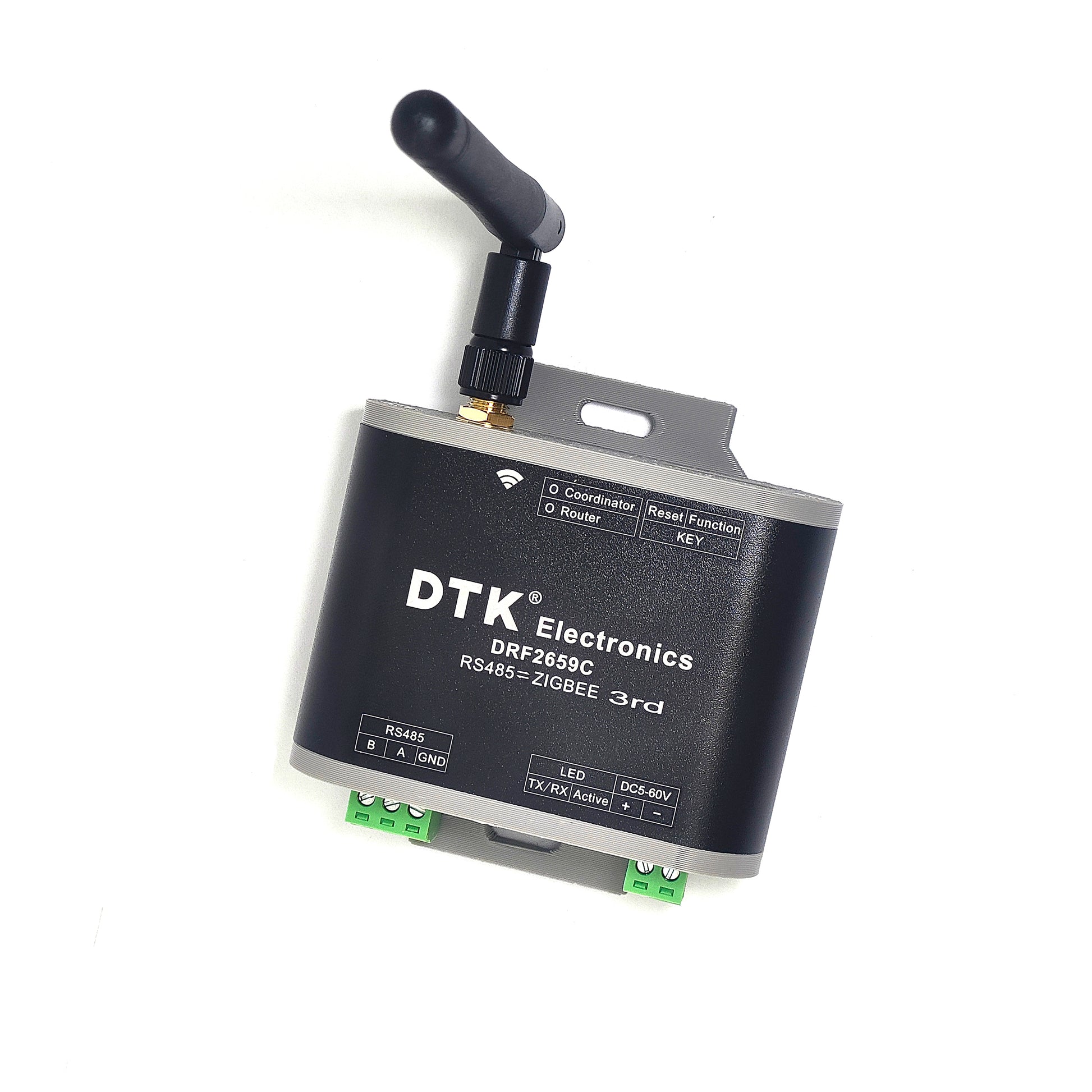

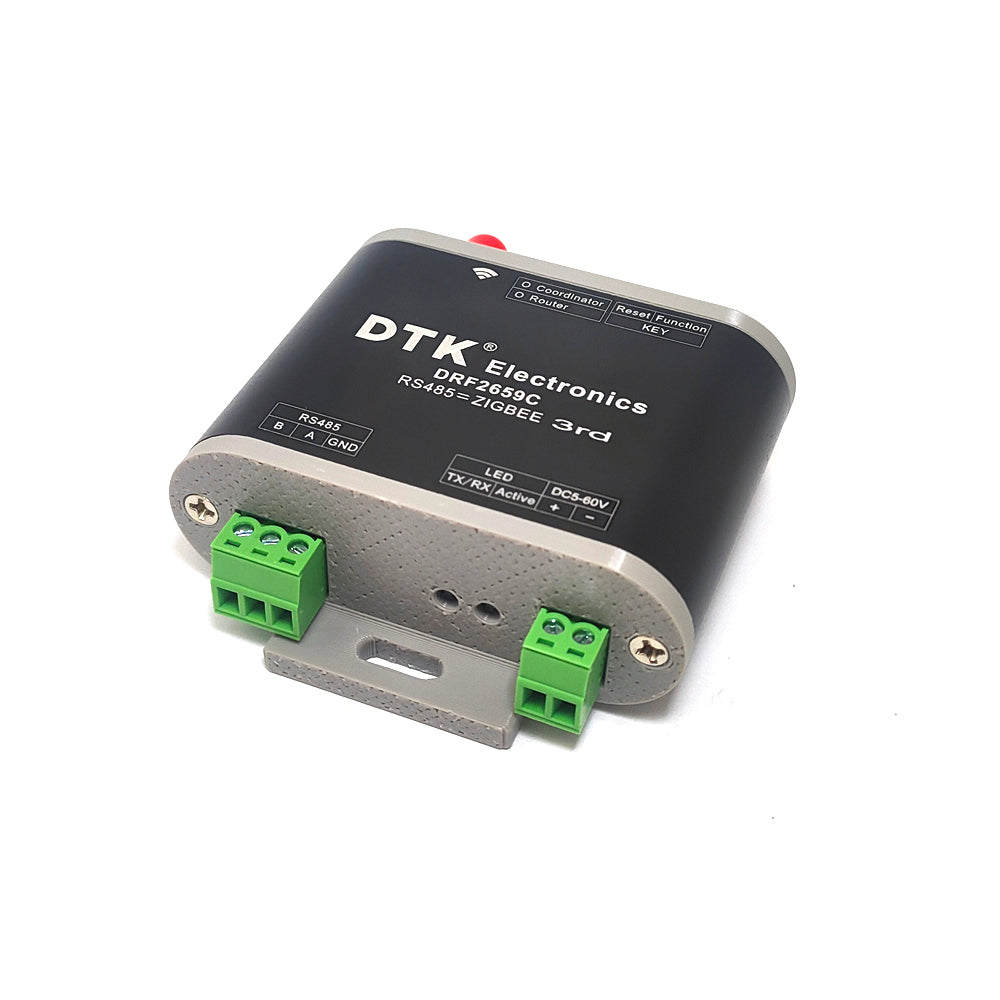

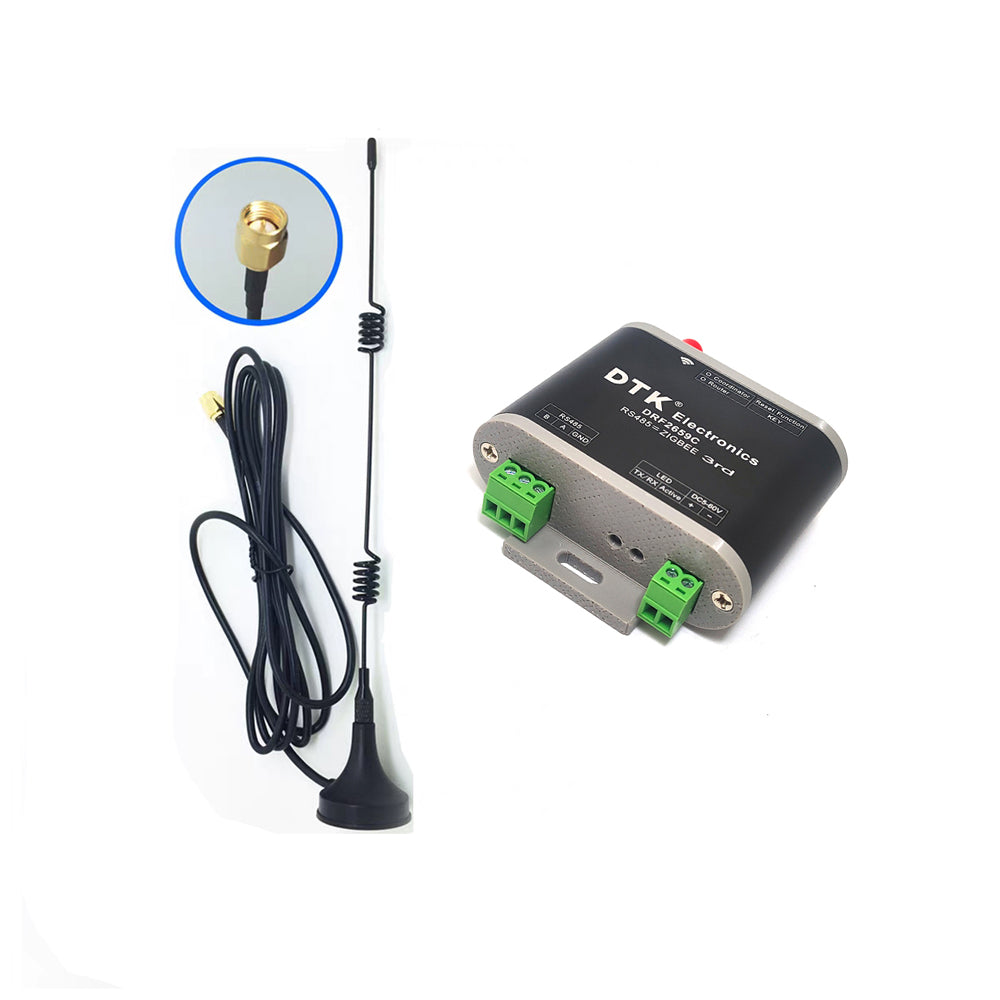

RS485 to ZigBee wireless module 1.6km transmission, CC2630 chip With Antenna Serial-port (RS485) To Zigbee Wireless Data Transparent Transmission The Zigbee module uses the CC2630 chip
CC2630 chip is a dual ARM core-32-bit CPU chip, Cortex-M3 is responsible for handling
Zigbee protocol, Cortex-M0 is responsible for wireless communication processing.
Can form a larger and more stable network, and support a larger capacity data packets
Zigbee module can set up a standard Mesh network for data transmission
Automatically join the network (No need to set the Router, press function keys for three times, it can automatically find Coordinator and join the network)
Automatic routing, will automatically get the best routing path
Dynamic routing maintenance, when a routing path is damaged, it can regain the best routing path
Transparent data transmission, also can transport point to point to any node
With the power of dual ARM-32-bit CPU, the module can support 200 automatic routing, in the application of different directions of street lighting control, a network can connect up to 500 lights (control lights on and off)
The Zigbee module, with the DTK application software, can clearly know the structure of the entire ZigBee network (all nodes of the routing relationship, and all nodes between the signal strength), convenient for user to debug and form network.
Package:
(cables not included)

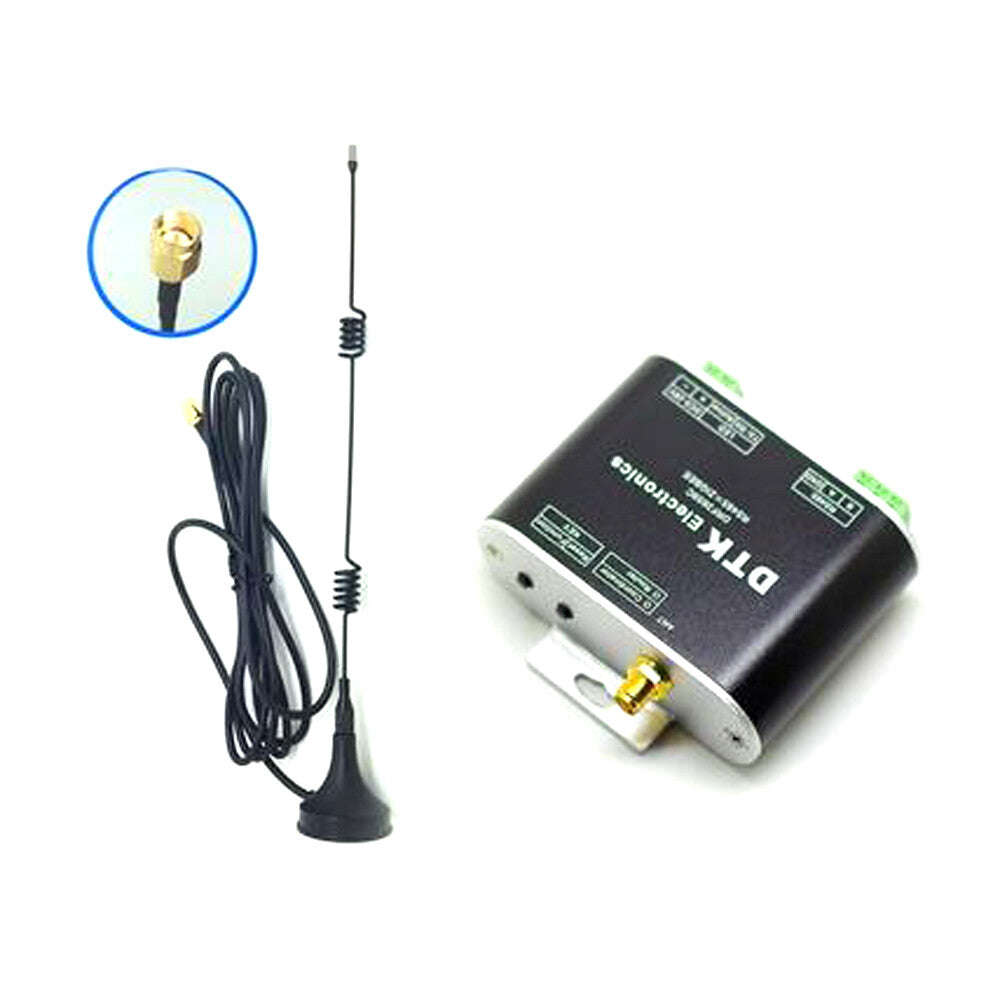

1x RS485 to Zigbee module
