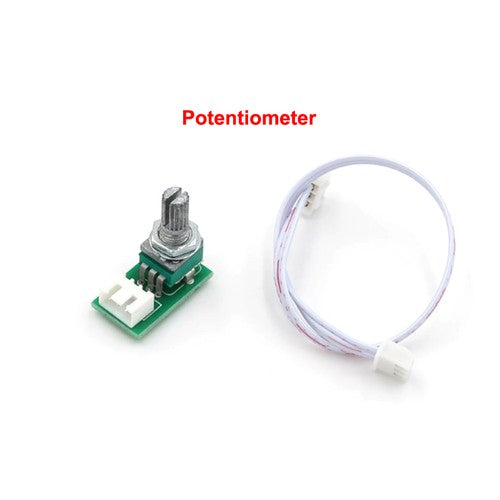

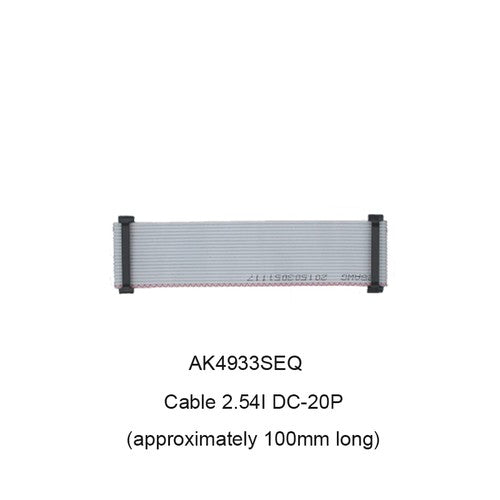

Options AK4493 Decoding Board XMOS USB to I2S/IIS Daughter Card Volume Potentiometer Dedicated Connection Cable

Quantity

Dual AK4493 SEQ DAC Fever HiFi Decoding Kit XMOS XU208 Sub Card DSD Soft Control Decoding Board

Decoding Board Introduction

The new version of the AK4493SEQ chip supports a sampling rate of 32bit/768KHz and hardware decoding up to DSD512. It delivers outstanding analytical power, excellent transient response and sound transparency, with well-balanced treble, midrange and bass. In particular, it features a richer analog sound signature, smooth and sweet vocal performance, and offers an extremely high cost-performance ratio.

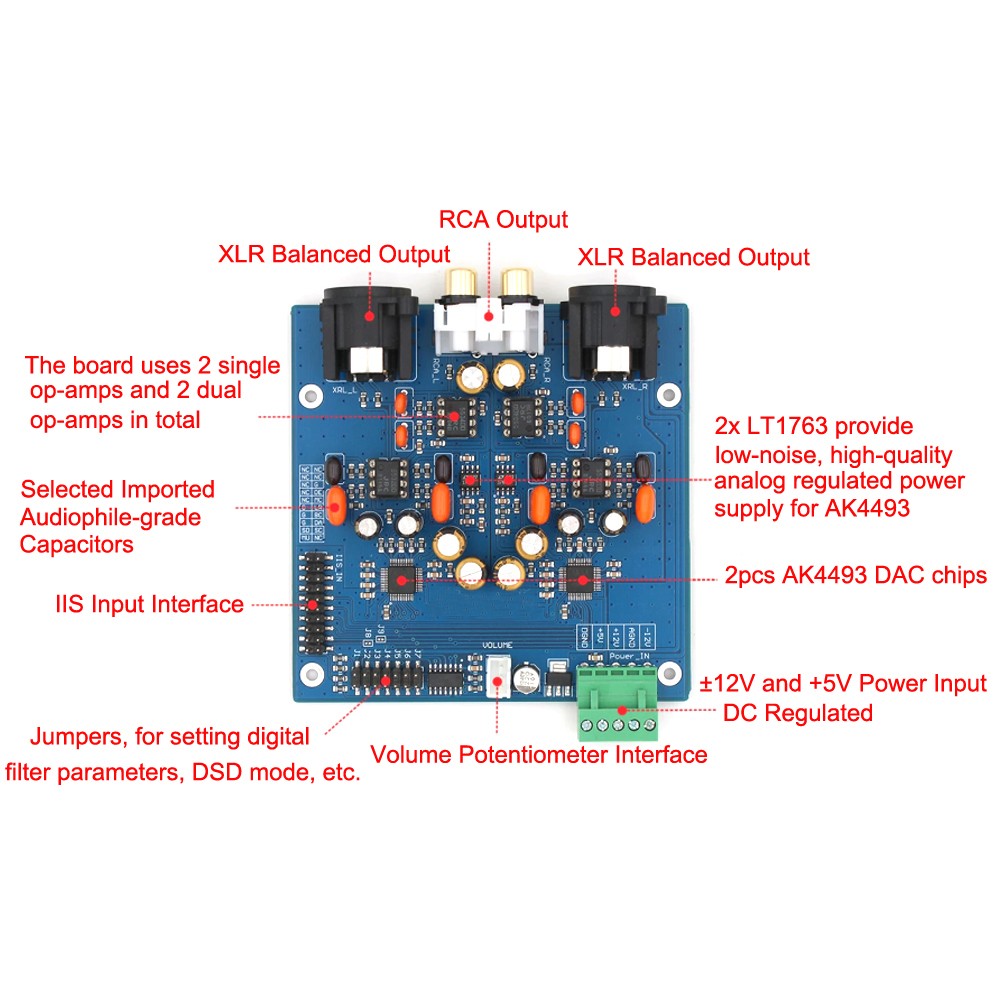

This board adopts dual AK4493SEQ configuration. Each AK4493SEQ chip is dedicated to one independent channel, adopting a fully balanced standalone circuit design. The two channels operate without mutual interference, presenting crisp, delicate, clean and transparent sound

Specifications:

Input:

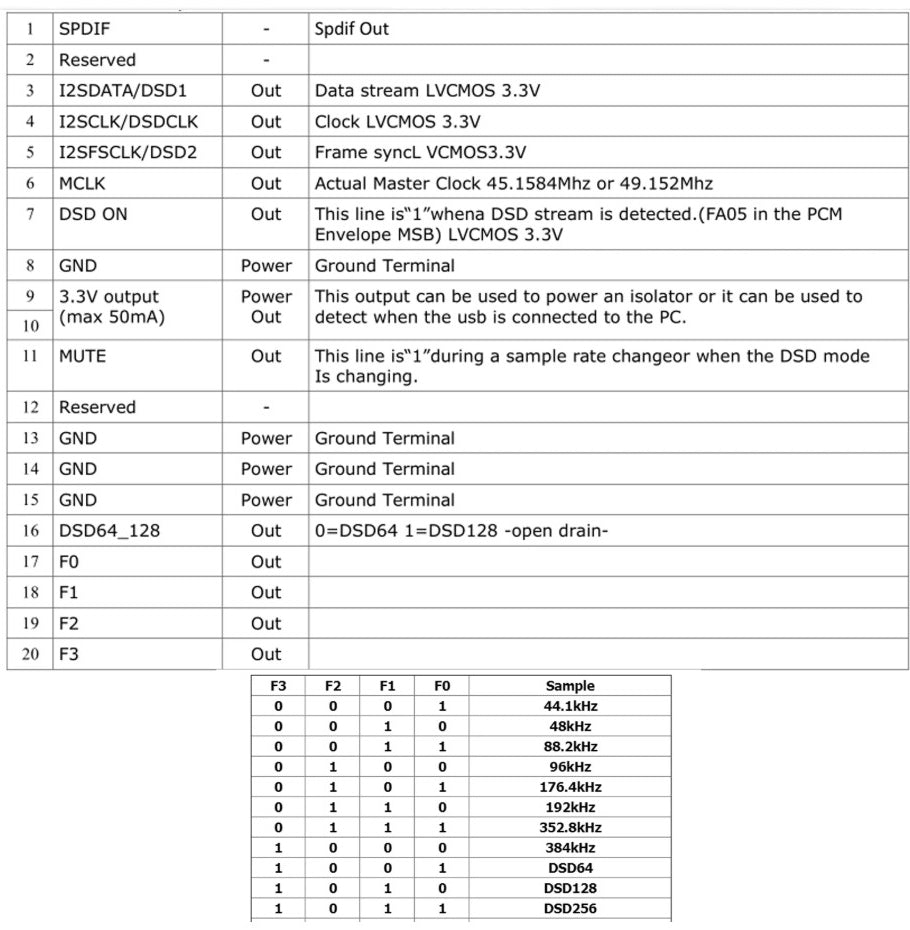

Standard 4-wire IIS interface / 20Pin header interface, compatible with Amanero USB interface.

Supported sampling specifications:

PCM: 44.1KHz ~ 384KHz, 32BIT

DSD: DSD64, DSD128, DSD256

The AK4493SEQ chip natively supports hardware decoding of DSD512. However, for automatic switching between PCM and DSD formats on this board without additional auxiliary signal circuits, stable and smooth switching performance is optimal at DSD256 and below.

Output:

RCA Single-ended Output: 2.1Vrms / -0dB

XLR Balanced Output: 4.2Vrms / -0dB

XLR Pin Definition: 1-Ground 2-Positive (+) 3-Negative (-)

Power Supply:

Digital Power: Regulated DC +5V, voltage tolerance ±5%

Analog Power: Regulated DC ±12V ~ ±15V (analog power supply only applicable below ±15V)

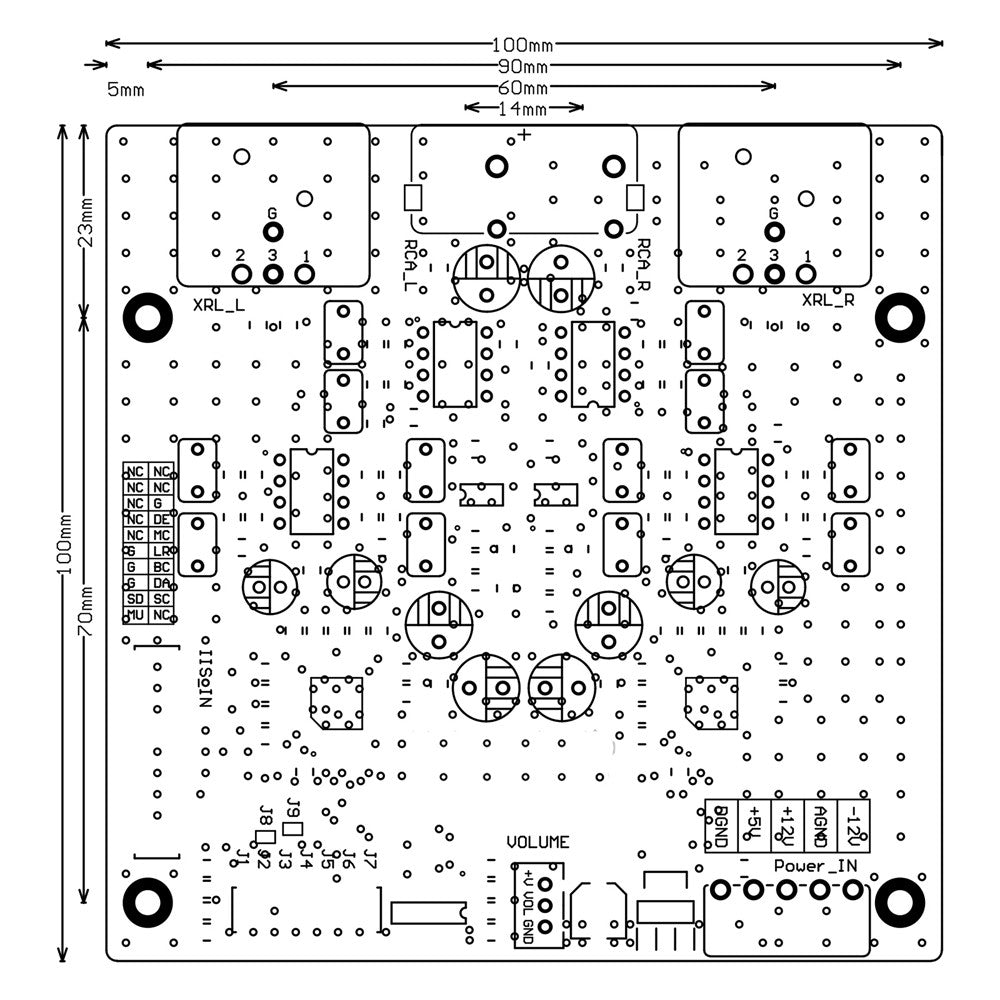

Dimensions:

Board length × width (excluding protruding parts): 100mm × 100mm
