Dual Axis 0.01° Resolution Meter Digital Angled Angle Inclinometer
Dual Axis 0.01° Resolution Meter Digital Angled Angle Inclinometer
Regular price
$234.00
Regular price
$260.00
Sale price
$234.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

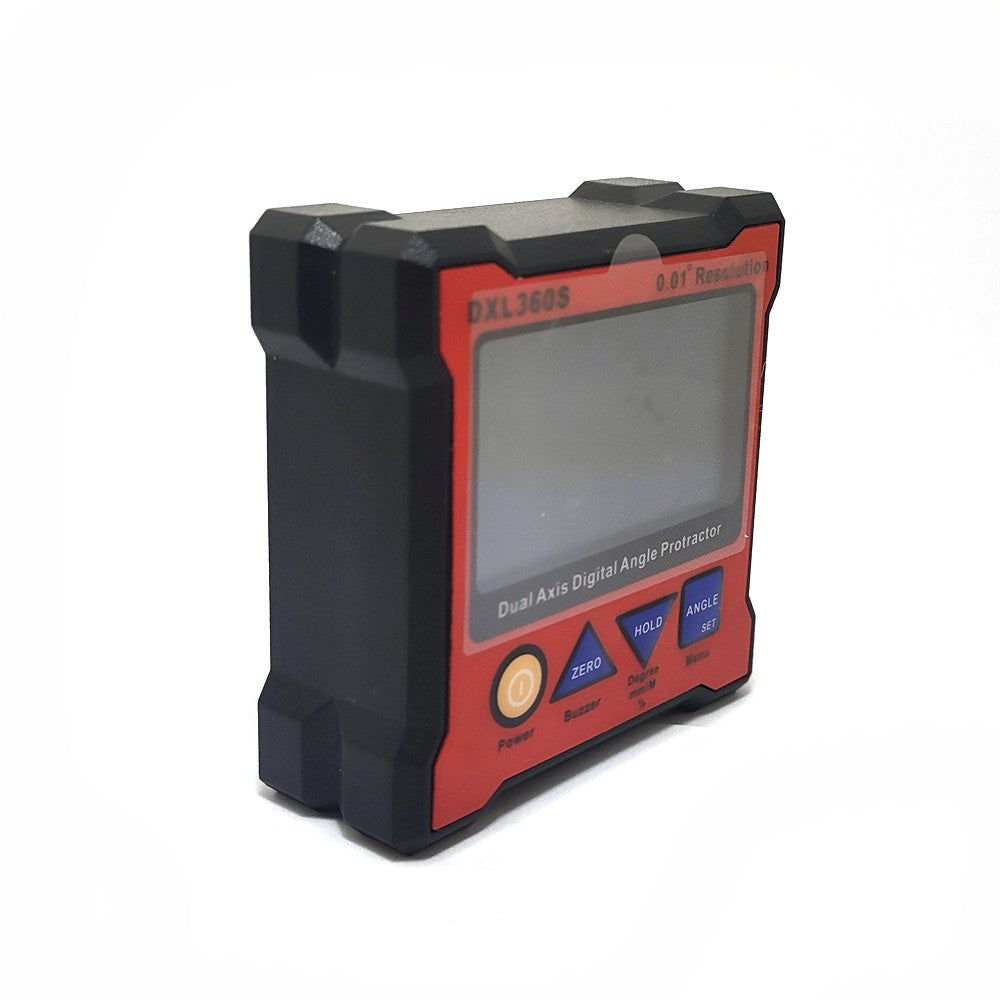

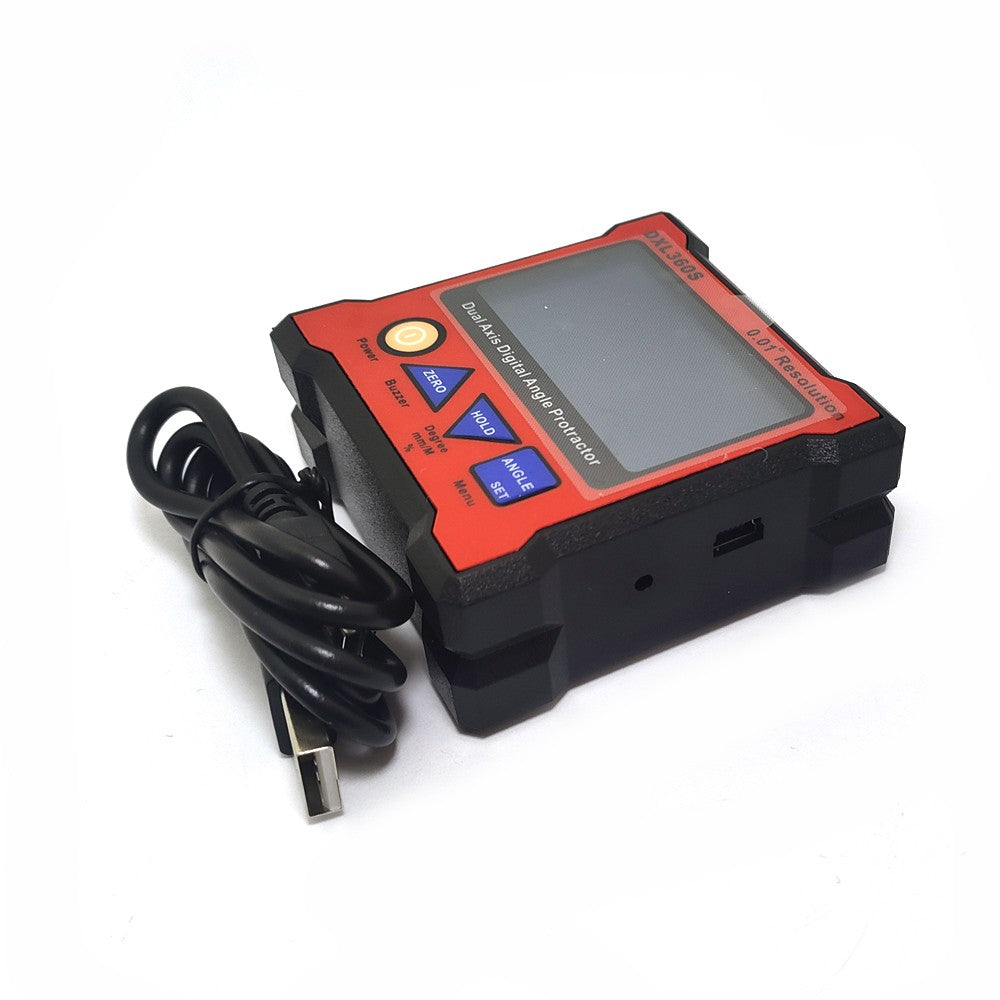

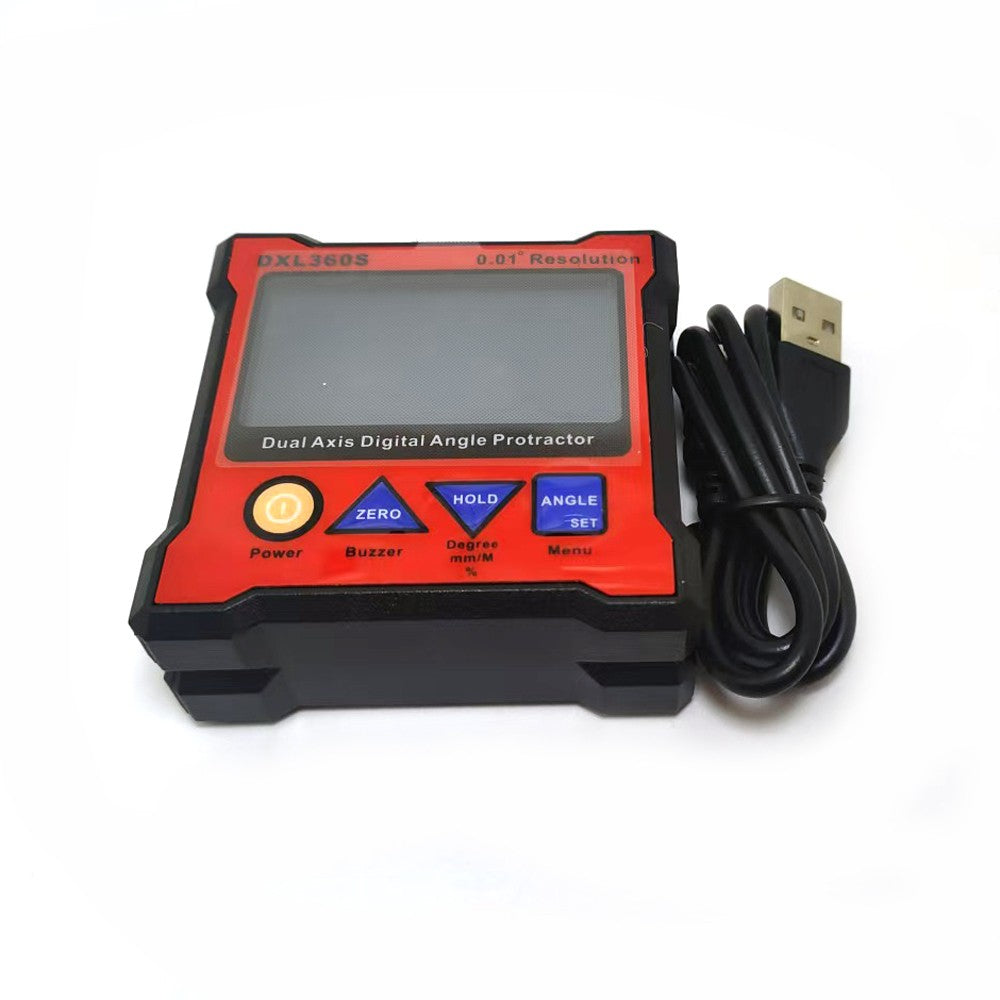

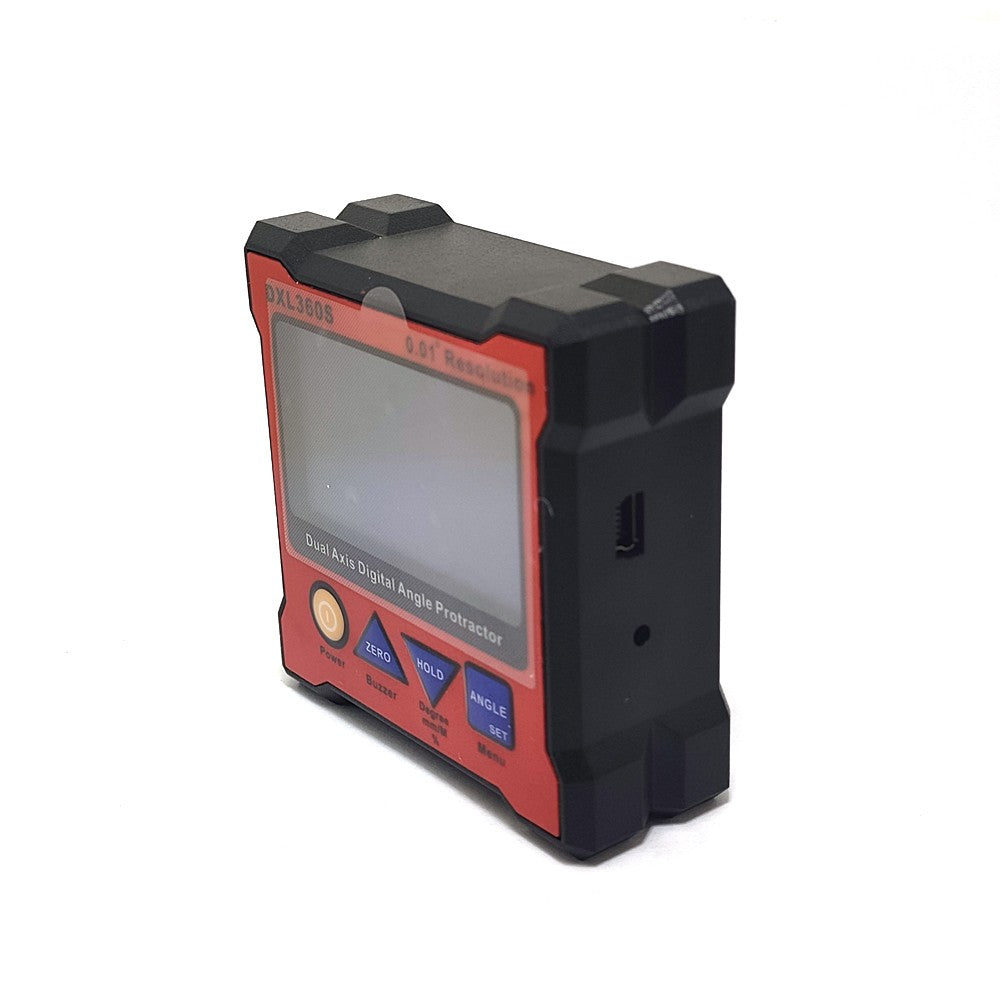

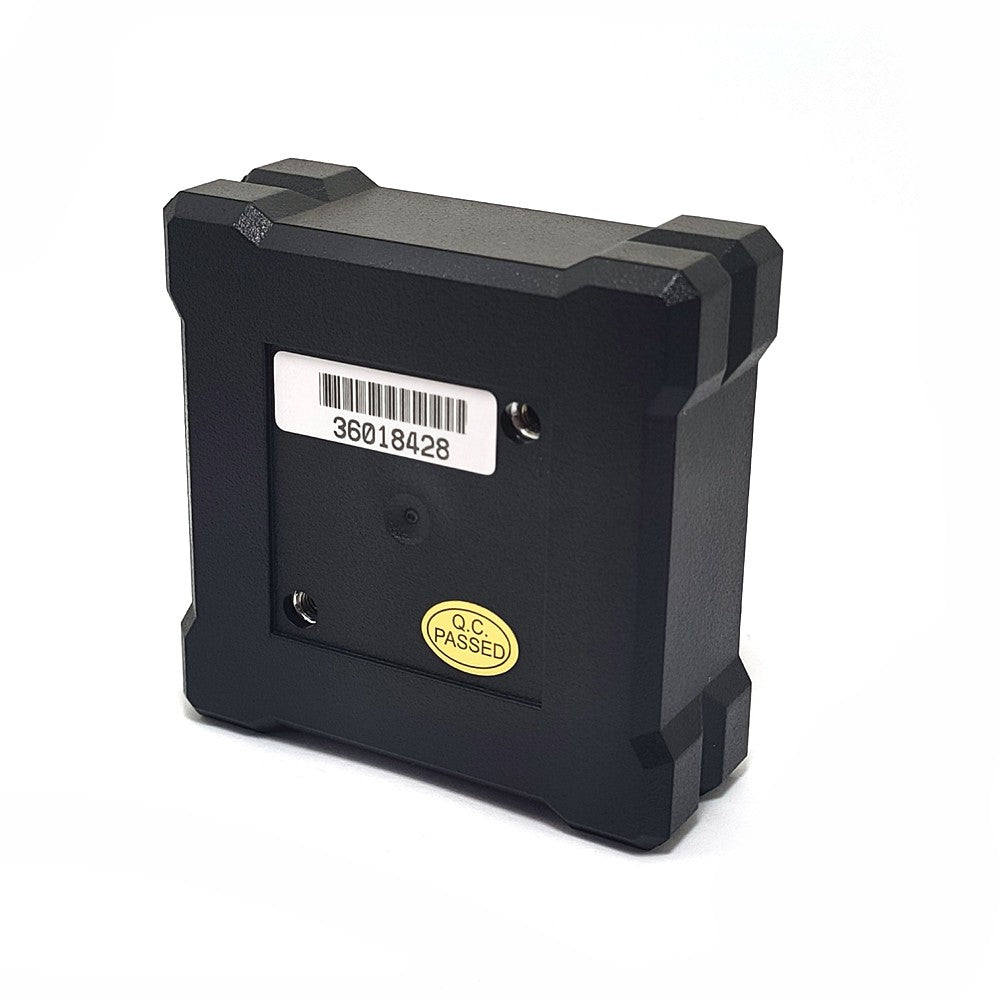

Dual Axis 0.01° Resolution Meter Digital Angled Angle Inclinometer
Features:
Accuracy: ± (0.05° + 1%)
Measuring range: single axis: 360°, double axis: 40 degrees.
Resolution: 0.01°
Response time: <0.4 seconds.
Audio Sound: 60dB at 30cm
Operating temperature: 0 to 50 °C.
Storage temperature: -10 to 60 °C.
User interface: single color LCD display with backlight
Power supply: 3.7V rechargeable Li-ion battery
Charging Port: 5V 500mA Mini USB Type B Port
Power Consumption: Standby: 200uA, Operation: 20mA
Standby time: 2000 hours.
Battery life: 40 hours.
Dimensions (in mm): 70 x 70 x 28 mm.
Magnetic base: bottom and back mounting
Features:
1) High accuracy ± (0.05° + 1%), high resolution 0.01°.
2) Dual and single axis with user-friendly LCD display angle.
3) Rechargeable.
4) V-shaped metal housing for easy mounting in corner or pipe.
5) Magnetic base.
6) Adjustable angle sound alarm.
Application:
- Interior decoration.
- Construction area.
- Plumbing
- Boards and stairs.
- Woodworking
Package includes:
1 x DXL360S Protractor
1 x USB cable (charging only, not for PC communication)
Accuracy: ± (0.05° + 1%)
Measuring range: single axis: 360°, double axis: 40 degrees.
Resolution: 0.01°
Response time: <0.4 seconds.
Audio Sound: 60dB at 30cm
Operating temperature: 0 to 50 °C.
Storage temperature: -10 to 60 °C.
User interface: single color LCD display with backlight
Power supply: 3.7V rechargeable Li-ion battery
Charging Port: 5V 500mA Mini USB Type B Port
Power Consumption: Standby: 200uA, Operation: 20mA
Standby time: 2000 hours.
Battery life: 40 hours.
Dimensions (in mm): 70 x 70 x 28 mm.
Magnetic base: bottom and back mounting
Features:
1) High accuracy ± (0.05° + 1%), high resolution 0.01°.
2) Dual and single axis with user-friendly LCD display angle.
3) Rechargeable.
4) V-shaped metal housing for easy mounting in corner or pipe.
5) Magnetic base.
6) Adjustable angle sound alarm.
Application:
- Interior decoration.
- Construction area.
- Plumbing
- Boards and stairs.
- Woodworking
Package includes:
1 x DXL360S Protractor
1 x USB cable (charging only, not for PC communication)
