| Title： |

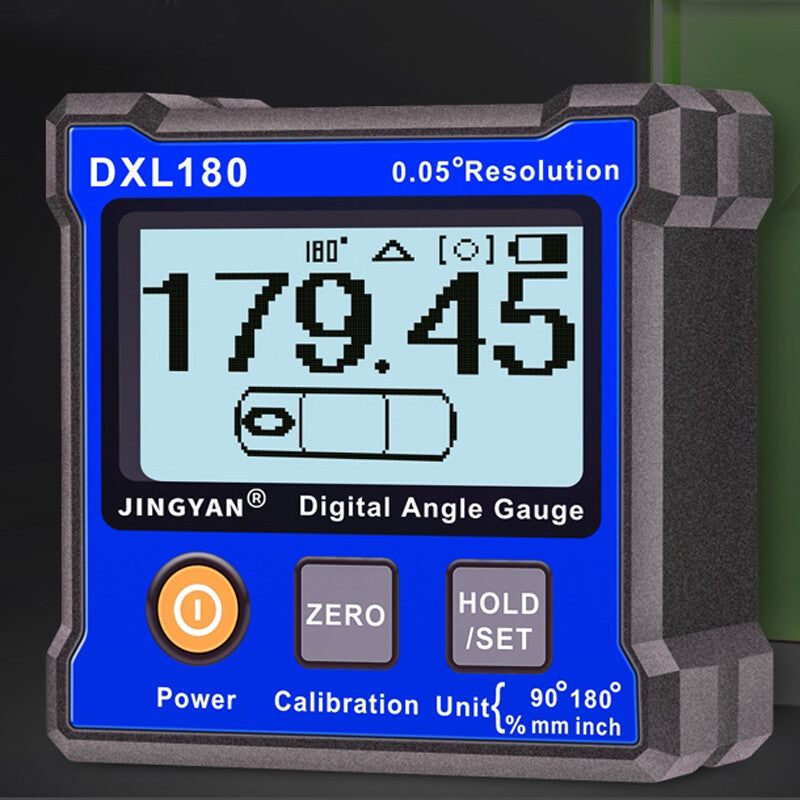

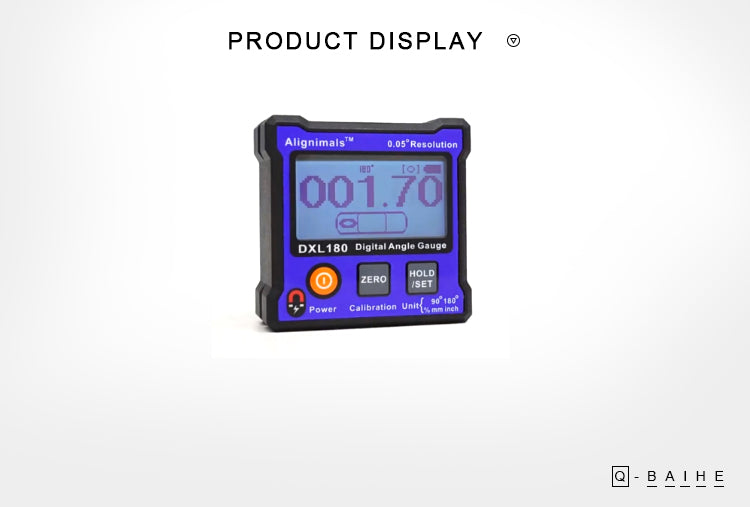

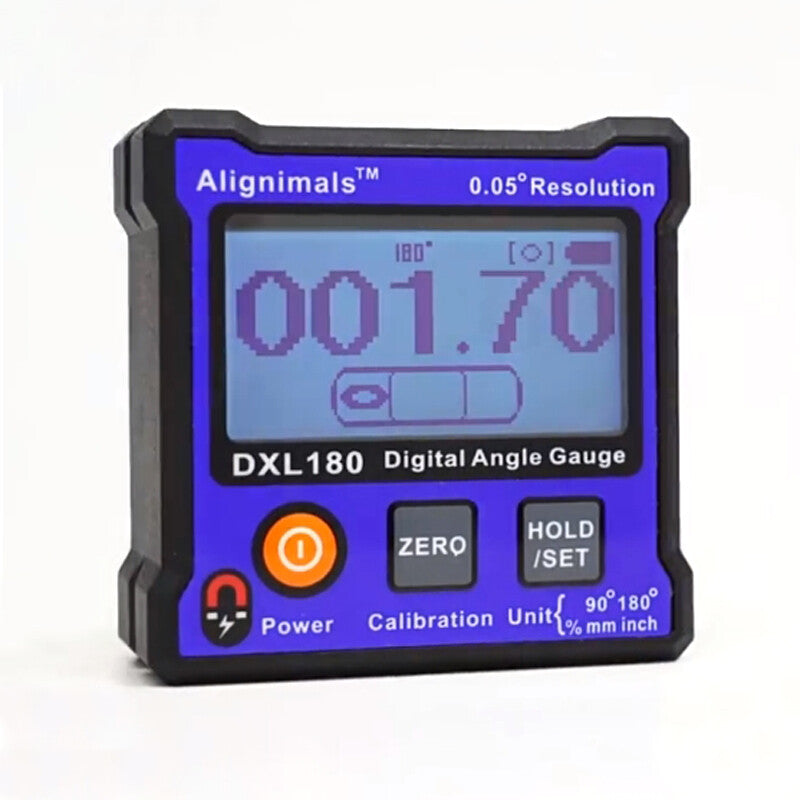

DXL180/DXL180C Dual Axis 0.05° Resolution Meter Digital Angle Inclinometer |

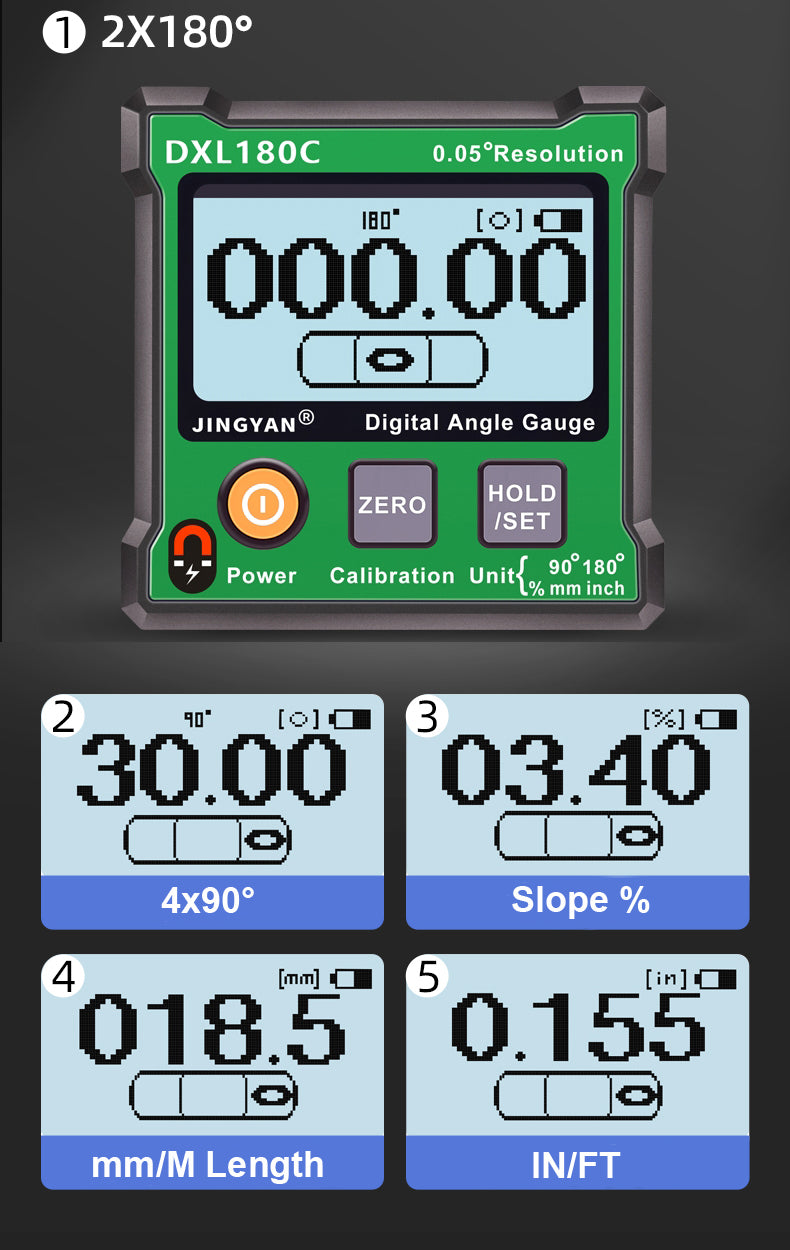

| Calibration Unit: |

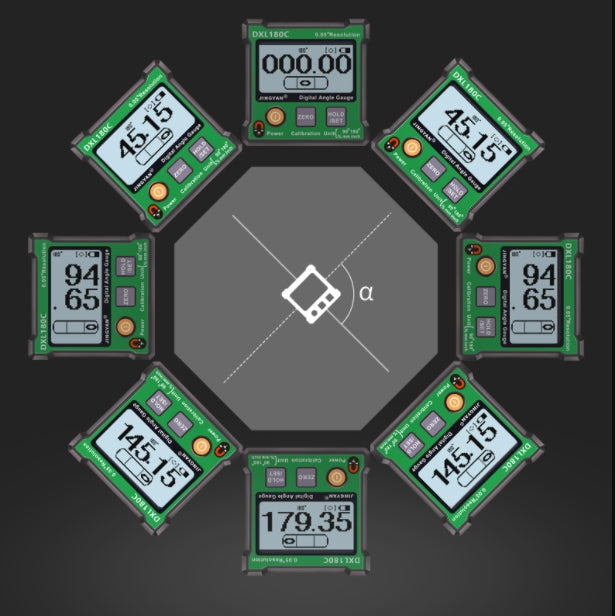

4X90 °, 2X180 °,%, Millimeters/Meters, Inches/Feet |
Measuring range: |
Angle 90 °: 4x0-90 °;

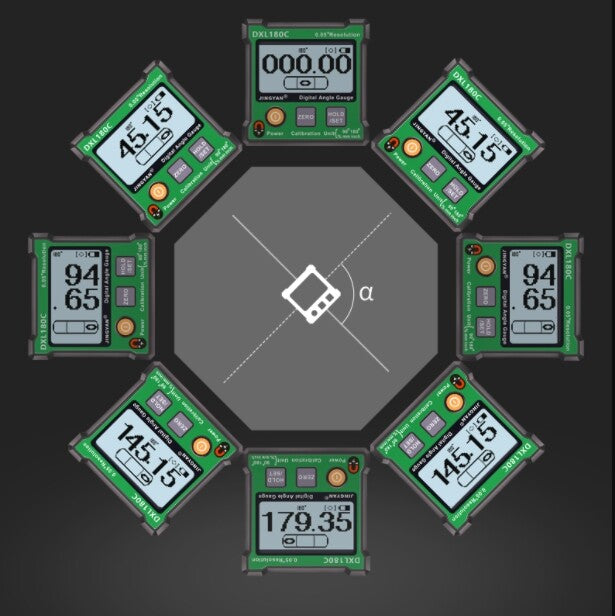

Angle 180 °: 2x0-180 °;
Slope%: 4x0-199.99%;
Millimeter/meter: 4x0-1999.9mm/m;
Inches/Ft: 4x0-24.00 "/Ft
|
| Angle Resolution: |
0.05degree |
Angle accuracy: |
± 0.1 °: 0 ° to 1 °, 89 ° to 91 °, 179 ° to 180 °,
± 0.2 °: Other angles
|
| Power Waste: |
Run time: 15mA |
Operating/Storage Temperature: |
0 to 50℃ |
| Operating/Storage Humidity: |
<85% relative humidity |
Operation/storage height: |
6562 feet(2000m) |

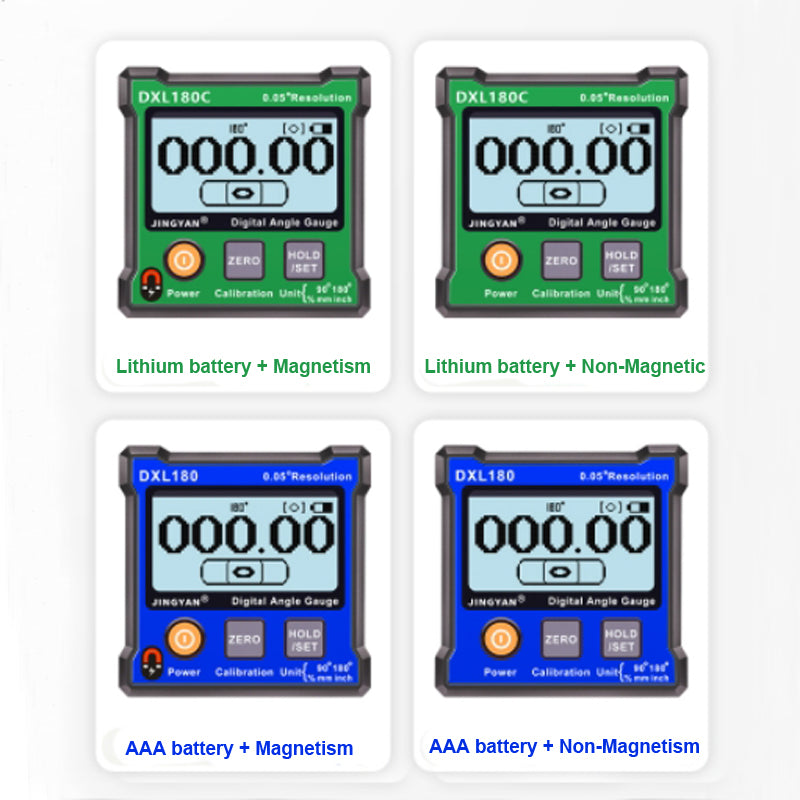

| Power supply: |
DXL180: 2pcs AAA battery.

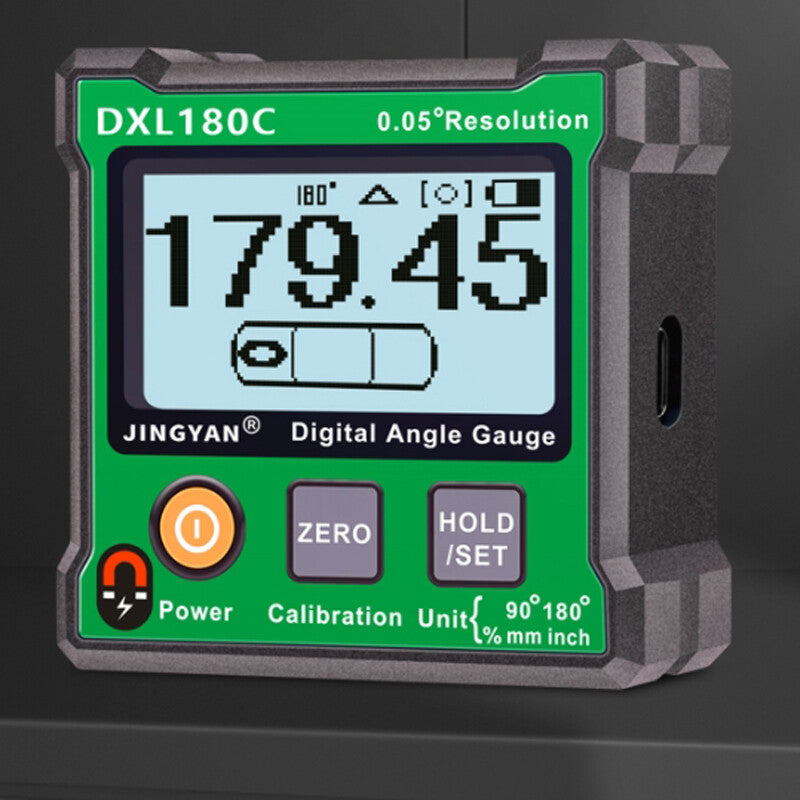

DXL180C: Li-ion battery rechargeable, 3.7 V.
|

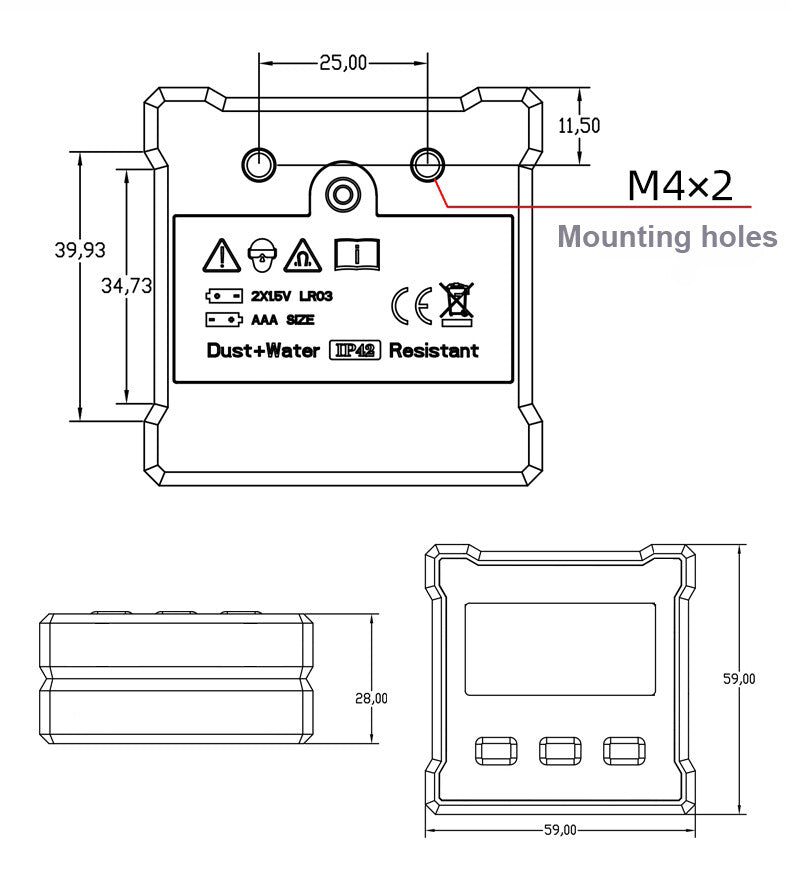

Size: |
60*60*31mm |
| Characteristics: |
1) high precision +/- (0.1 ° + 1%), high resolution 0.05degree
2) Double and single ax with user-friendly LCD screen angle display
3) Batteries
4) In the form of V Metal shell for easy to install at the corner or pipe.
5) With Magnetic base/Non-magnetic base
6) LCD large screen digital display, backlight available at night
|

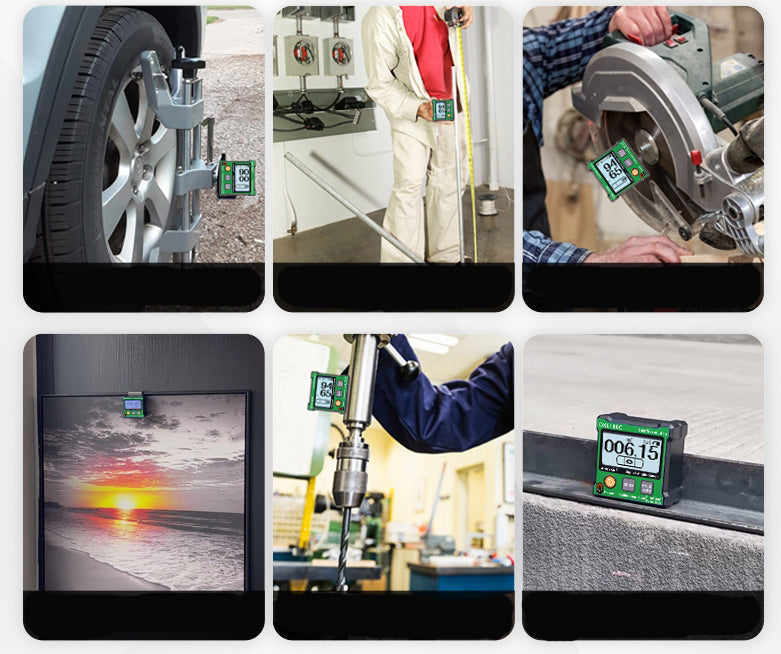

| Application: |
- Interior decoration
- Zone of construction
- plumbing
- floors and stairs
- The Woodcraft |

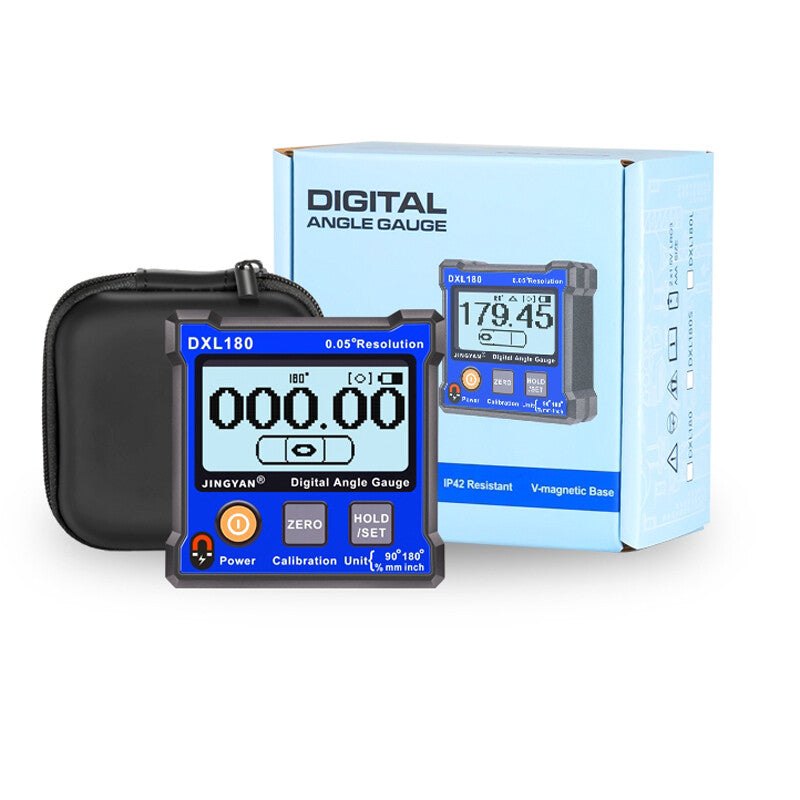

| Package: |
1 x DXL180/DXL180C Digital Angle Inclinometer
|
