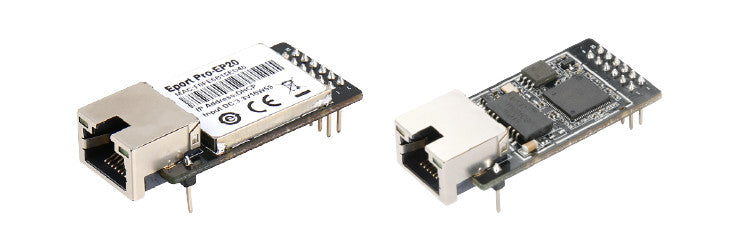

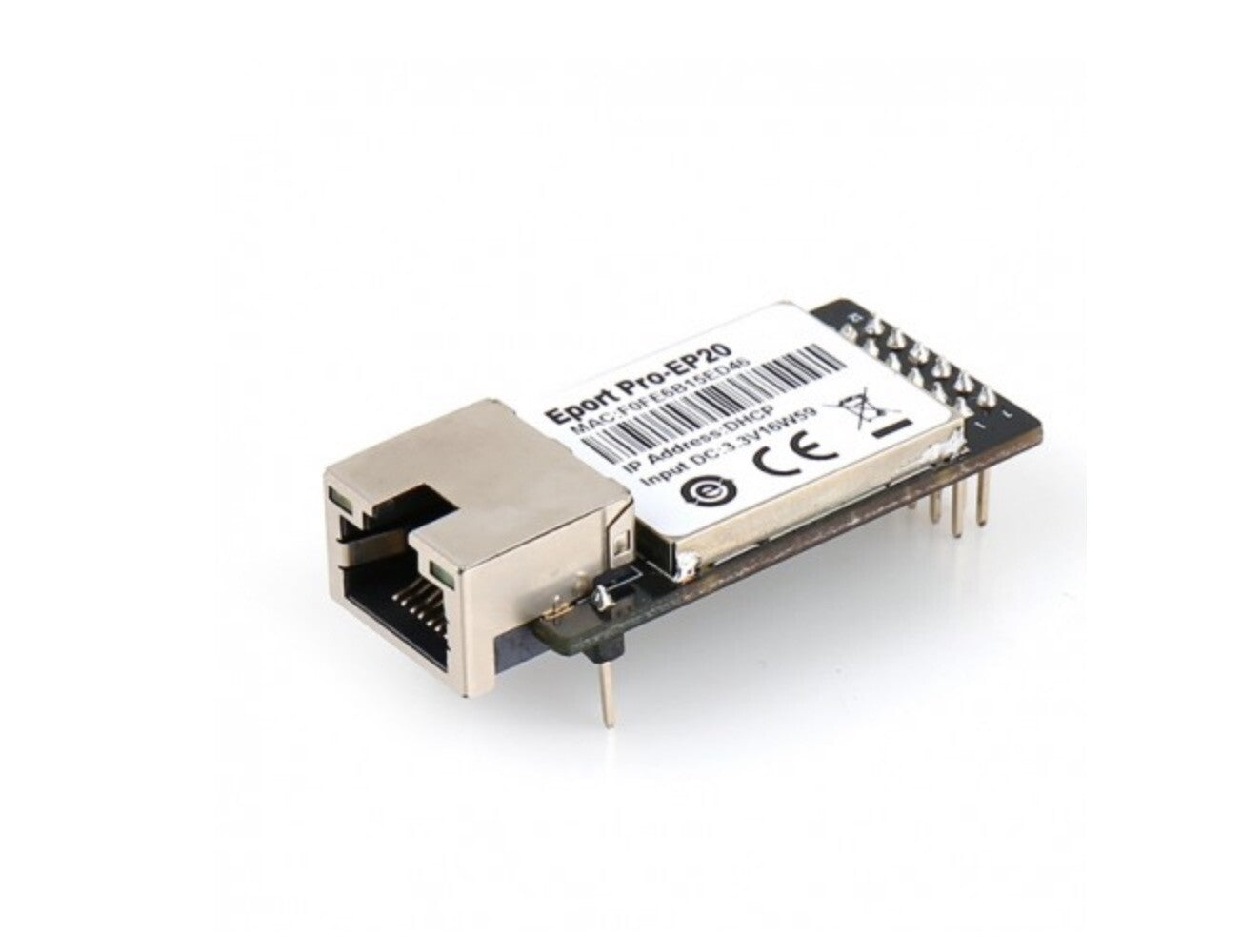

Eport Pro-EP20 Super Network TTL Serial Port to Ethernet Linux System Module





Description:



Overview of Characteristic

²  MIPS MCU with 16MB Flash and 32MB SRAM

²  Use Linux Operation System

²  Support TCP/IP/Telnet/Modbus TCPProtocol

²  Support Serial To 10/100M Ethernet Conversion, Serial Speed Upto 460800 bps

²  Support 10/100M Ethernet Auto-Negotiation

²  Support Easy Configuration Through a WebInterface

²  Support Security Protocol Such AsSSL/AES/DES3

²  Support  Web OTA Wirelss Upgrade

²  Single +3.3V Power Supply

²  Size: 50 x 23x 11 mm(L x W x H)

²  CE Certificated



Features:
Processor/Frequency: MIPS/320MHz
Flash/SDRAM: 16MB/32MB
Operating System: Linux
Ethernet
Port Number: 1 RJ45 with LED
Interface Standard: 10/100 Base-T Auto-Negotiation
Protection: 2KV Isolation
Network Transformer: Integrated
Network Protocol: IP，TCP，UDP，DHCP，DNS，HTTP Server/Client，ARP, BOOTP, AutoIP, ICMP，Web socket, Telnet, FTP,TFTP, uPNP, NTP, SNMP,Modbus TCP
Security Protocol SSL v3（2048）、 AES 128Bit、3DES、 SHA-1、MD5、Base-64、RSA、ECC
IPV6 Support: Support
Serial
Port Number: 1 + 1 debug
Interface Standard: 3.3V TTL: 2 wire（TX,RX）
Data Bits: 7,8
Stop Bit: 1,2
Check Bit: None,Even,Odd,Space,Mark
Baud Rate: TTL: 600 bps~460800bps
Flow Control: No Flow control Hardware RTS/CTS、DSR/DTR Software Xon/ Xoffflow control Software
Web Pages: Http Web Configuration Customization of HTTP Web Pages
Log: Remote Realtime Log
Configuration: Web CLI XML import Telnet IOTManager PC Software
PC Config Tools: IOTManager PC Software
SDK For Dev. Support
Basic Parameter
Size 50x 23x 11mm
Operating Temp. -45 ~ 70°C
Storage Temp. -45 ~ 105°C, 5 ~ 95% RH（no condensation）
Input Voltage 3.3V
Working Current ~200mA
Power <700mW



Package: 1pc Module
