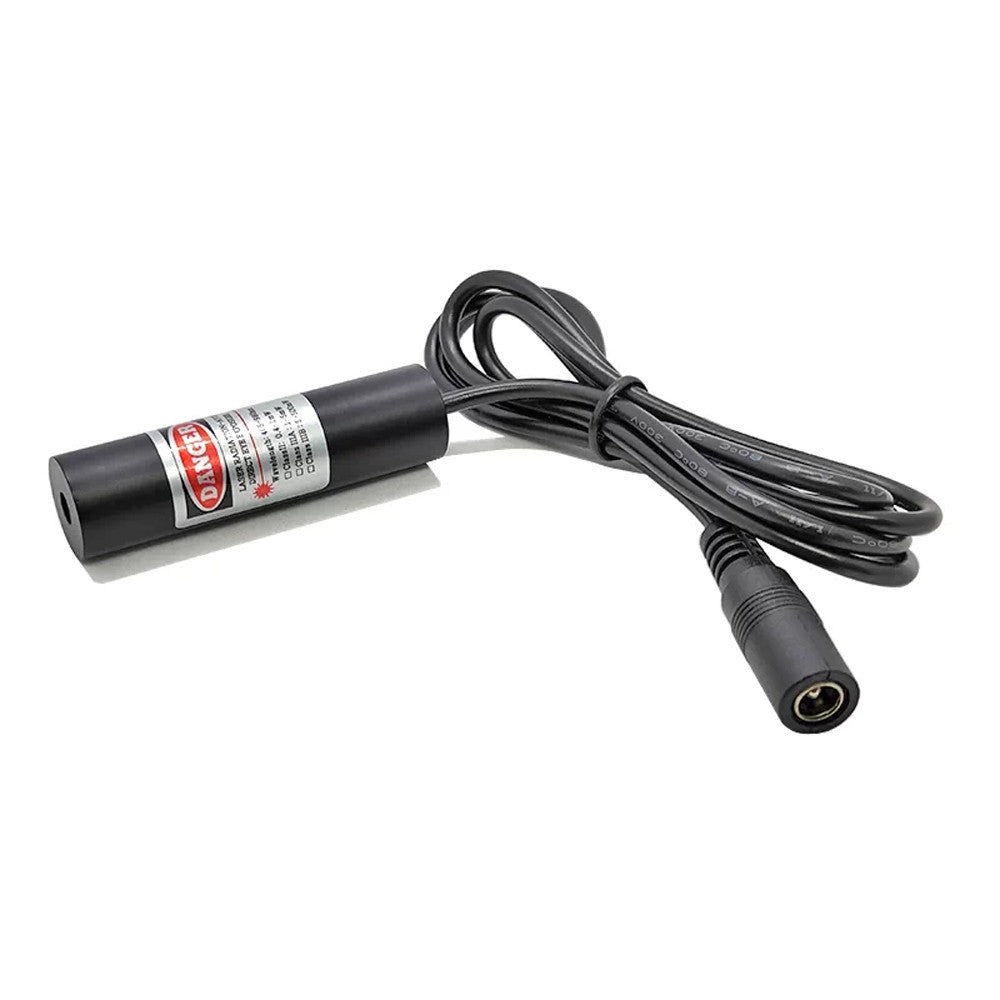

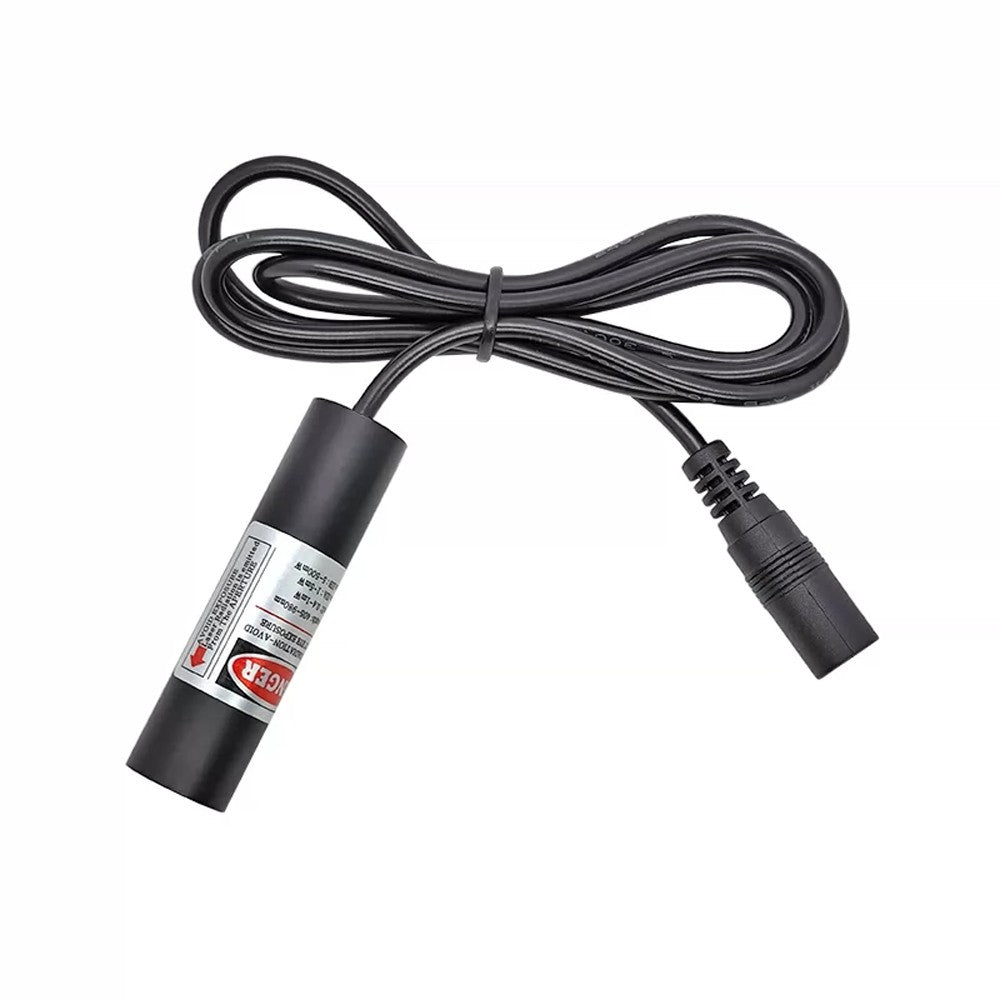

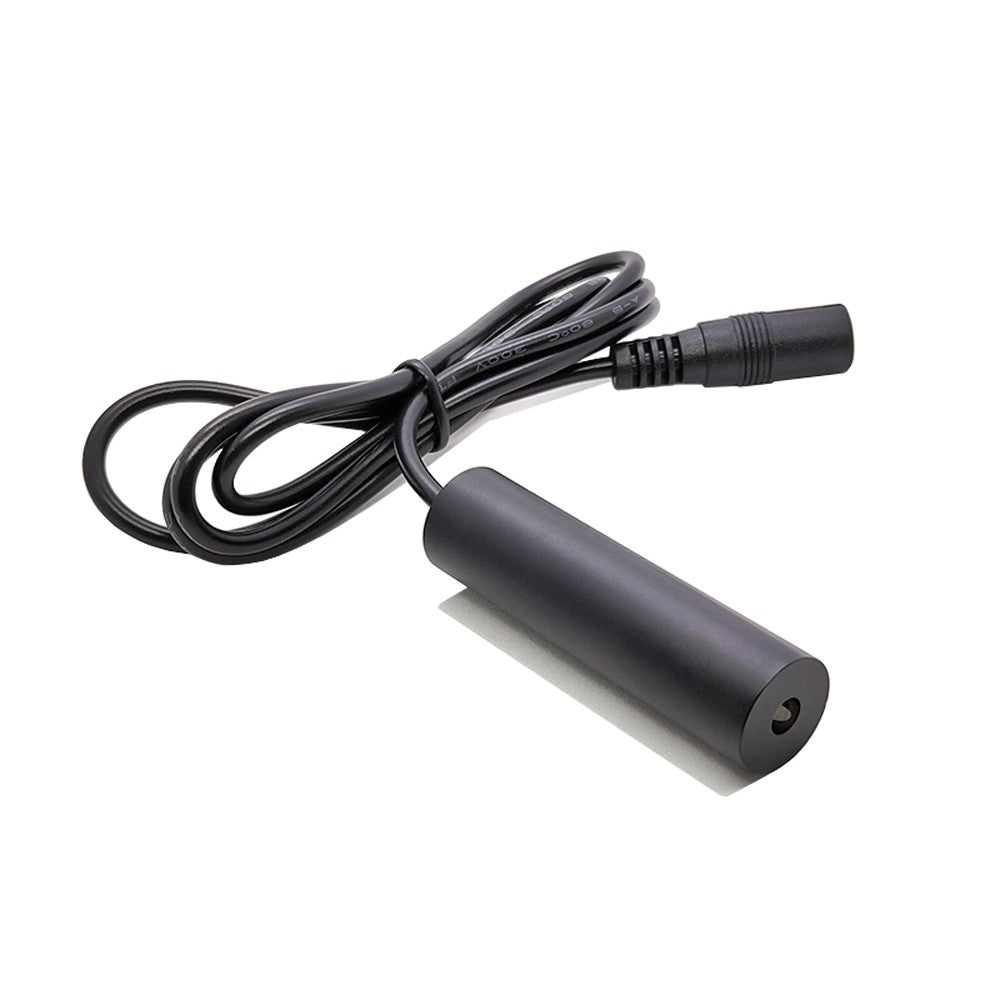

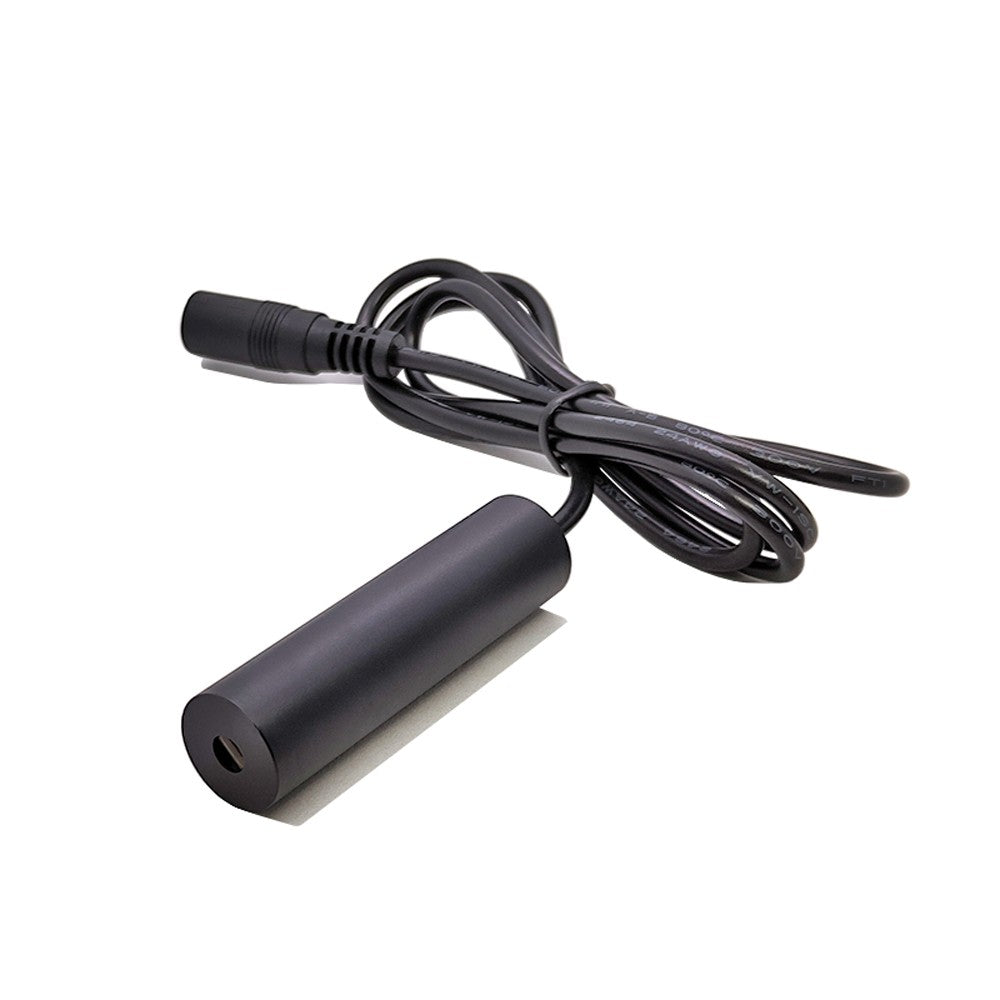

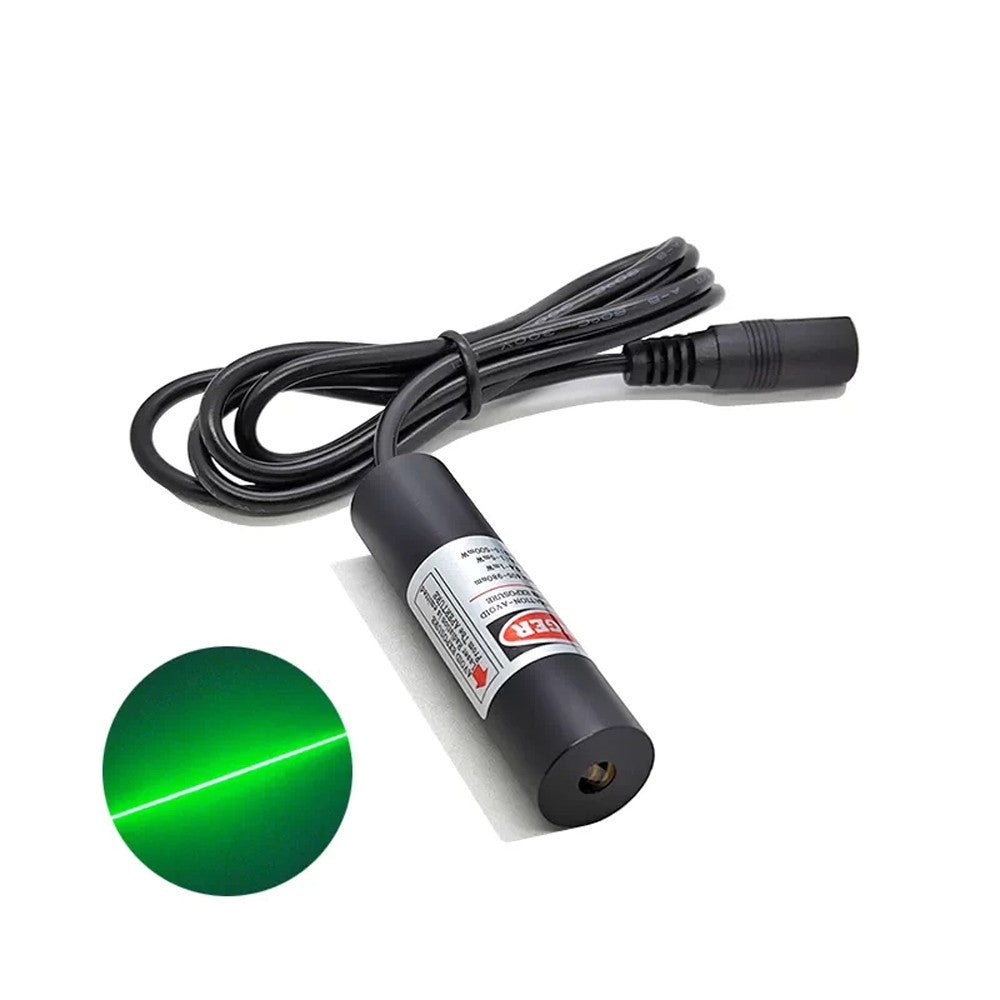

Fixed Focus 532nm Green Line Laser Module 50mW Positioning Locator Laser Light
Fixed Focus 532nm Green Line Laser Module 50mW Positioning Locator Laser Light
Couldn't load pickup availability
532nm Fixed Focus Glass Lens Green Line Laser Module | 20/30/50/80mW Industrial Positioning Locator
Our green line laser module adopts high-quality 532nm laser diode matched with fixed-focus glass lens. Compared with plastic lenses, glass lenses deliver higher light transmittance, thinner and straighter laser line, less light loss and better anti-scratch performance. Multiple power grades cover low-demand auxiliary positioning and high-brightness long-distance marking scenarios. The sturdy metal shell effectively dissipates working heat to guarantee stable long-term operation.
Core Advantages
✔ High-quality fixed focus glass lens: uniform thin green line, no blur, no distortion
✔ Multiple power selection: 20mW,30mW,50mW,80mW for diverse working distances
✔ Stable luminous performance, small brightness decay after long working hours
✔ Metal casing structure: heat resistant, drop resistant, suitable for harsh industrial environments
✔ High visibility 532nm green beam, easy to identify even in slightly bright environment
Key Specifications

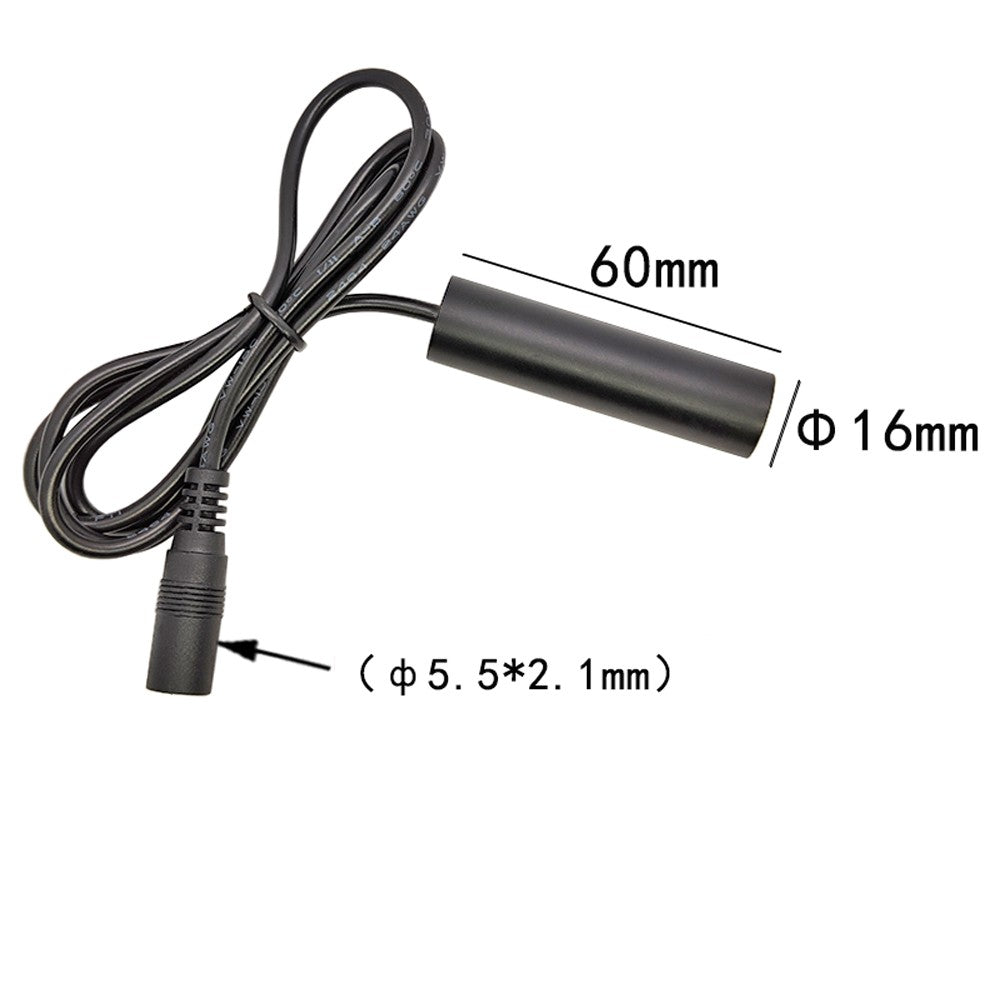

Size: Φ16X60mm
Materia: Aviation aluminum (all metal shell)
Surface Treatment/Color: Black shell, surface insulation, oxidation mist black treatment
Service life: Continuous output, continuous service life>8000 hours
Output wavelength: 532nm±10nm
Exit Pupil Power:＜20mW,＜30mW,＜50mW，＜80mW
Range:<5 meters(Indoor environment, laser will be affected by ambient light interference, and the distance will vary)
Spot shape/diameter: A straight line light shape; Spread angle>90 °
Focusing method: Fixed Focus
Circuit Control: ACC Circuit
Working voltage: DC3~5V
Working current: I<350mA(20-80mW)
Working temperature: -10 ℃ to+50 ℃
Storage temperature: -20 ℃ to+70 ℃
Application Scenarios
Woodworking cutting positioning, stone cutting line marking, construction decoration laying positioning, automated production line alignment, textile & printing machinery calibration, equipment maintenance calibration, engineering survey auxiliary line marking.
Safety Instructions
Direct laser exposure to eyes will cause irreversible eye injury; please avoid staring at the laser beam.
High power 50mW & 80mW modules require matched laser safety goggles during operation.
Do not overload the power supply, prolonged high-load operation will shorten the module service life.
Not a toy, strictly prohibit children from using or touching the product alone.
1x 532nm Laser Module
