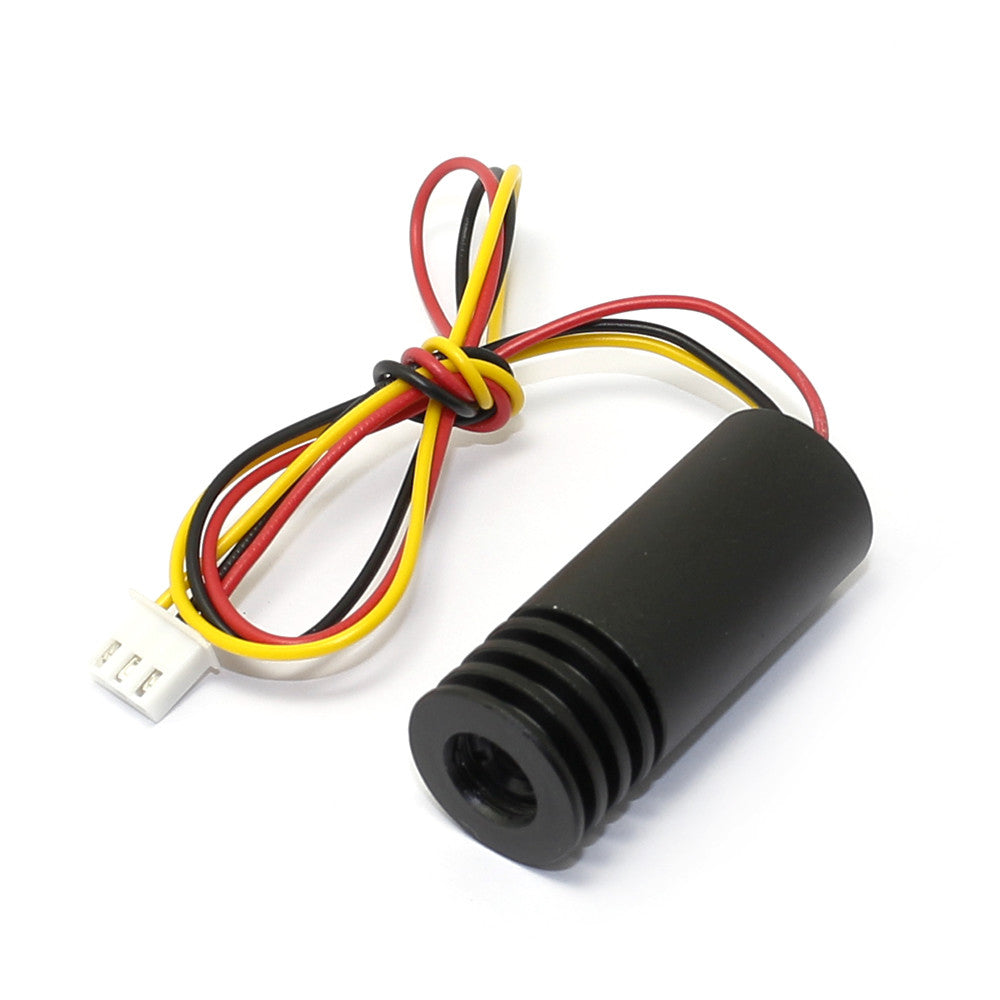

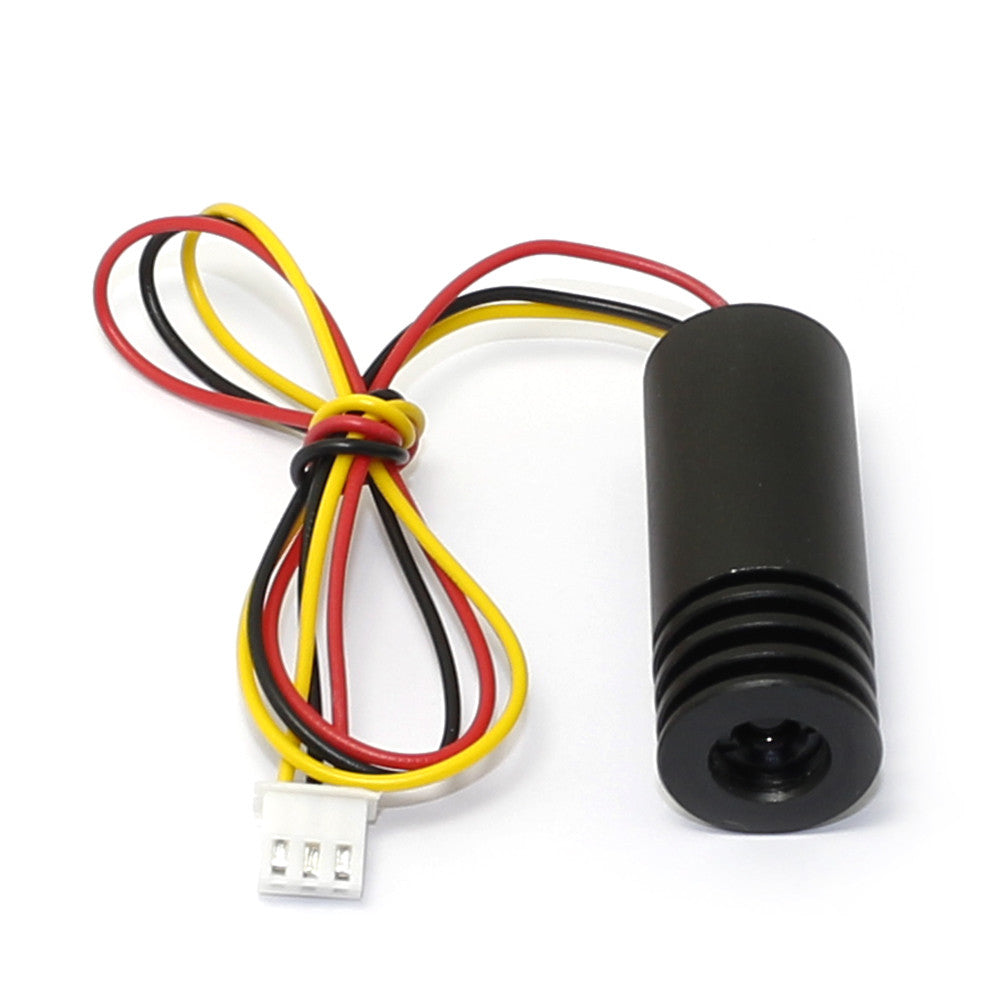

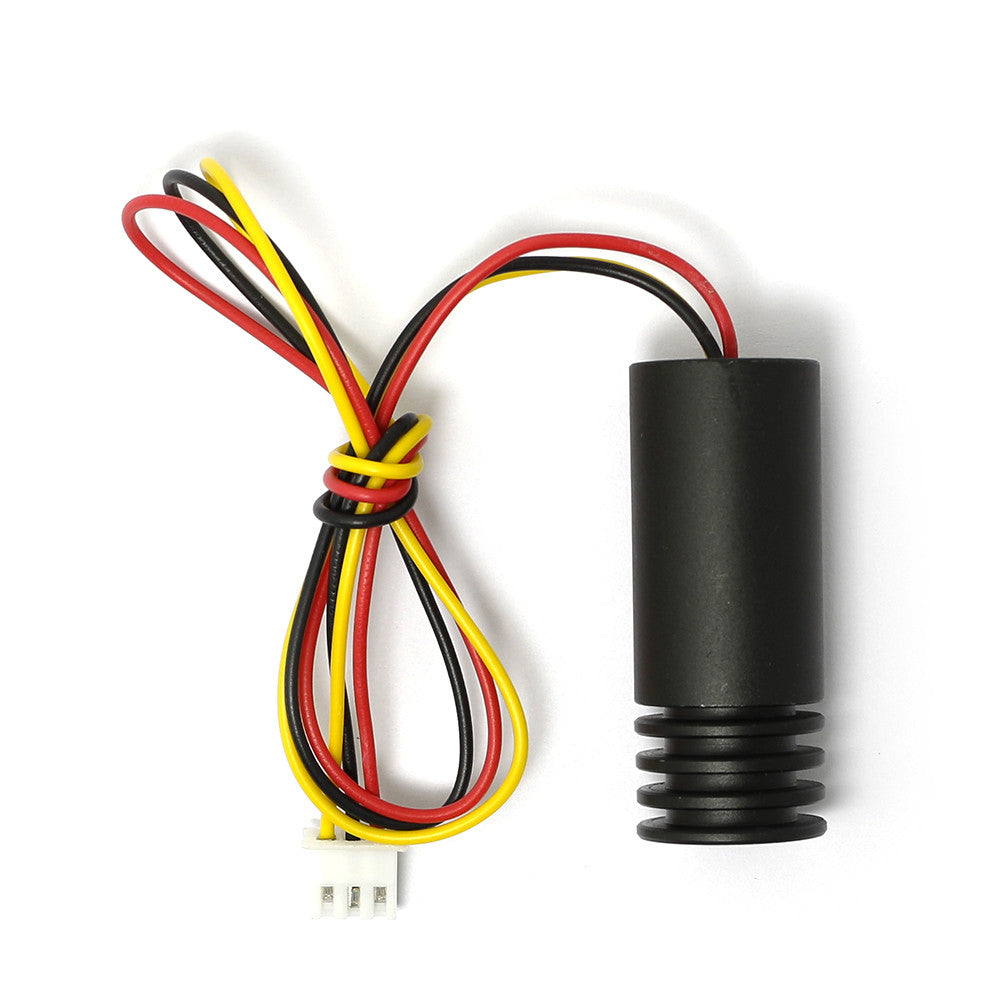

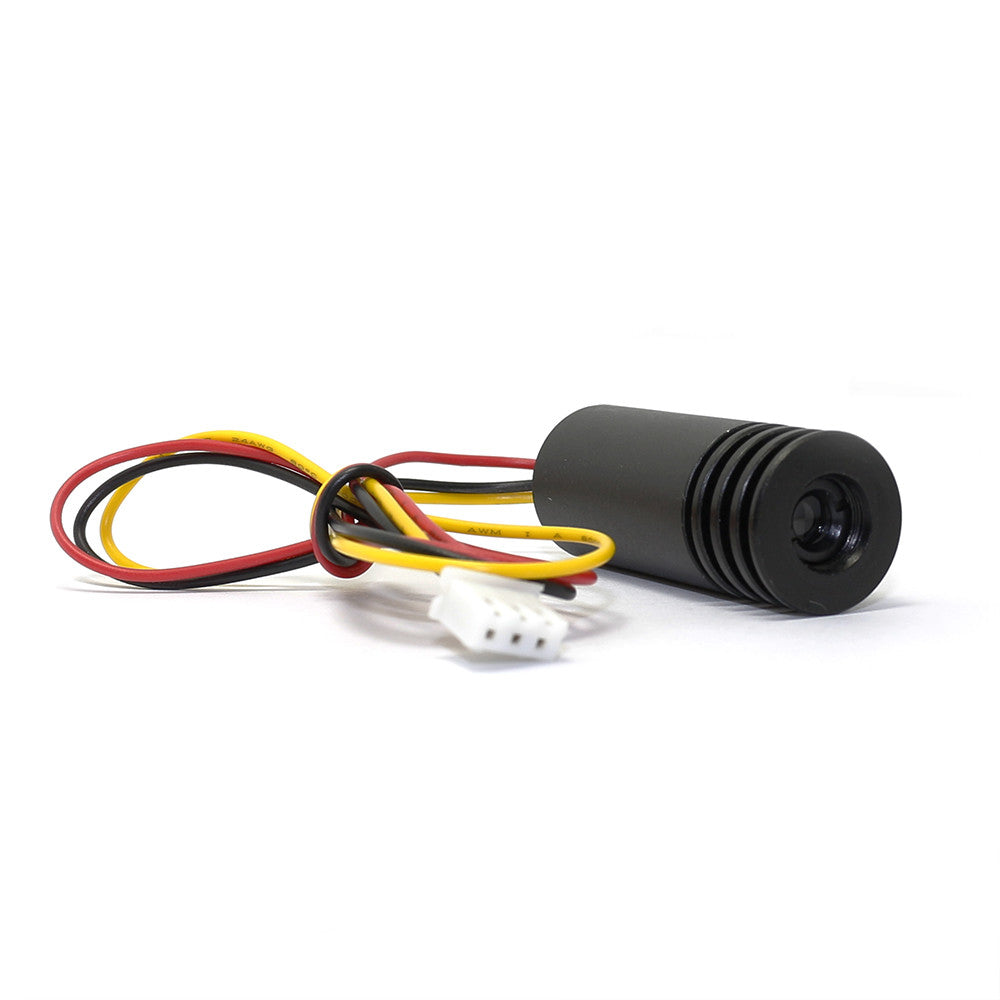

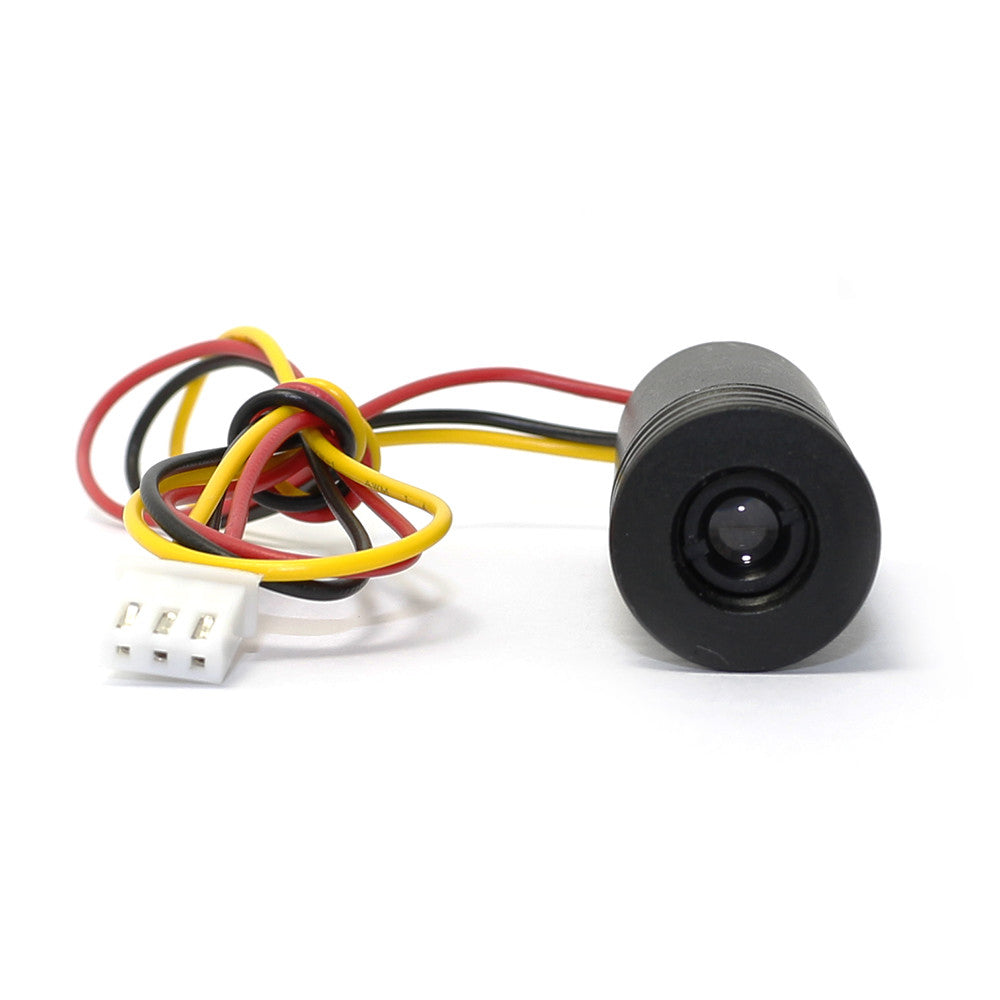

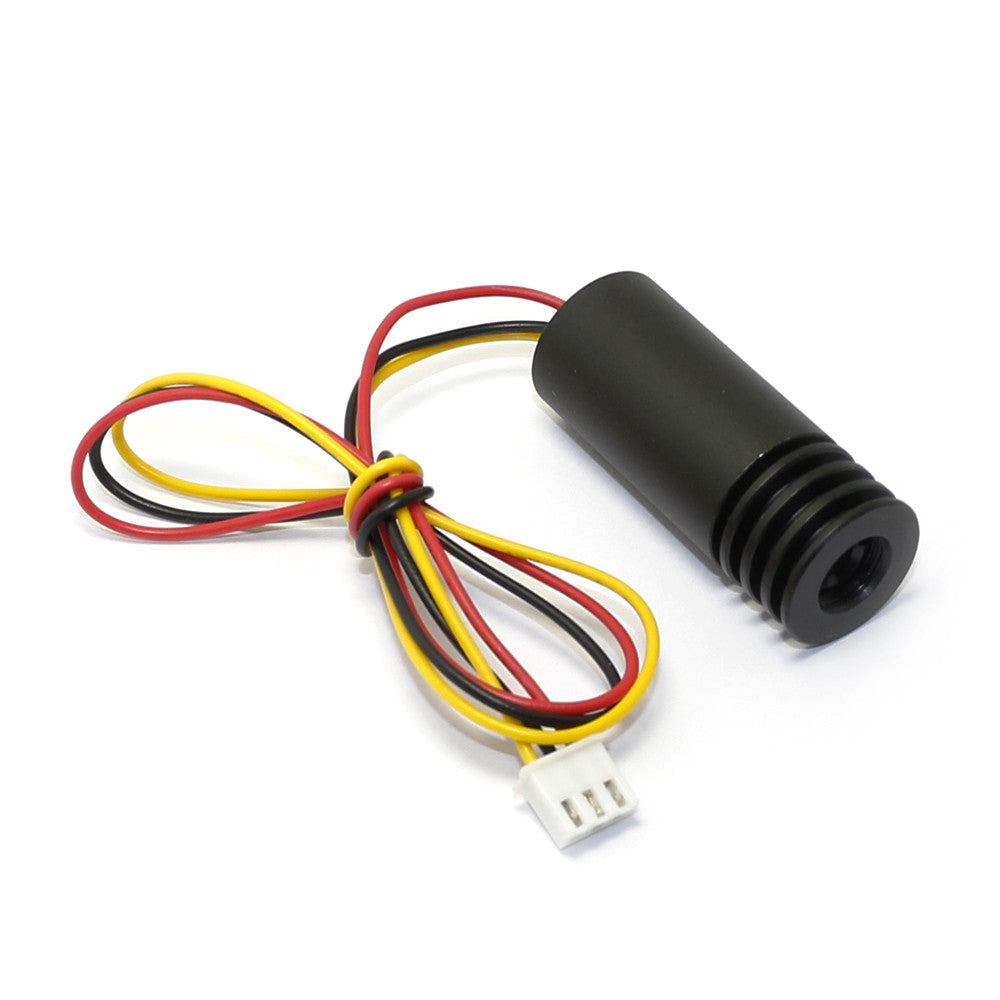

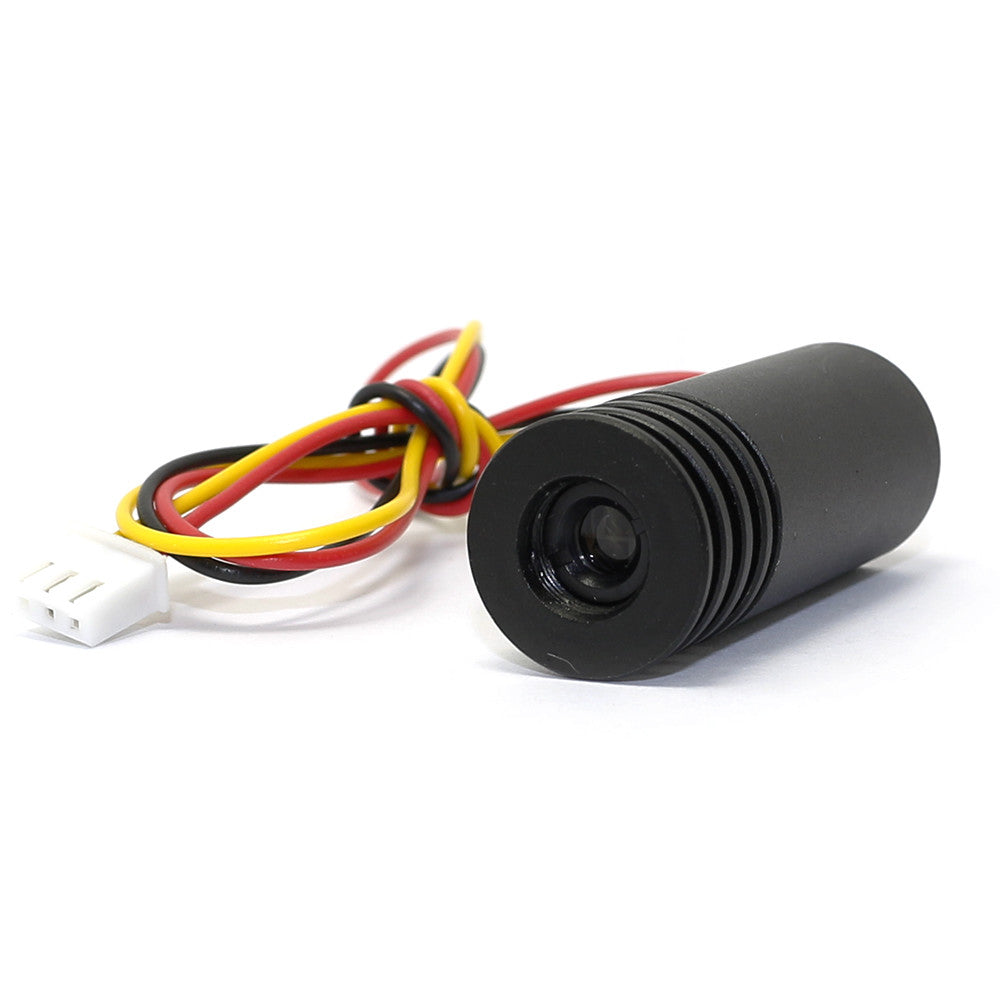

Focusable 18x45mm 5VDC 980nm 30mw Infrared IR Laser Dot Module w/TTL 0-15KHz
Focusable 18x45mm 5VDC 980nm 30mw Infrared IR Laser Dot Module w/TTL 0-15KHz
Regular price
$14.00
Regular price
$20.00
Sale price
$14.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Focusable 18x45mm 5VDC 980nm 30mw Infrared IR Laser Dot Module w/TTL 0-15KHz
Product Description :
Wavelength 980nmOuptut Power 30mW
Current <100mA
Power supply 5.0VDC
TTL modulation
Voltage 0-5V Off low, high open, normal status closeTTL frequency 0-15KHz Dimension: 18mmx45mm
Laser Shape:Dot (rectangular)
The Lens focus is adjustable, not fixed, can adjust to an appropriate spot size, and then fix it.
Three-wire input, the red line is positive, black line is negative, TTL signal yellow line is positive
Detail:
2.Working Voltage 5.0V, red wire for 5V+, black wire commonly for 5V- and also for TTL -, Yellow wire for TTL +. If you only connect its black wire and red wire, the laser would not work, you also need to connect its yellow wire (TTL+) to 5v+.
3.It is IR laser,the laser light cannot be seen by human bare eyes with only using DDC/infrared camera get it.Buyers who buy IR lasers please make sure you know it. The 980nm Laser is invisible, but can be seen by 980nm display board, it will be displayed as a green dot on the board. Please check here for the board:
https://www.ebay.com/itm/-/262049673924?ssPageName=STRK:MESE:IT
Package:
1x Focusable 18x45mm 5VDC 980nm 30mw Infrared IR Laser Dot Module w/TTL 0-15KHz
