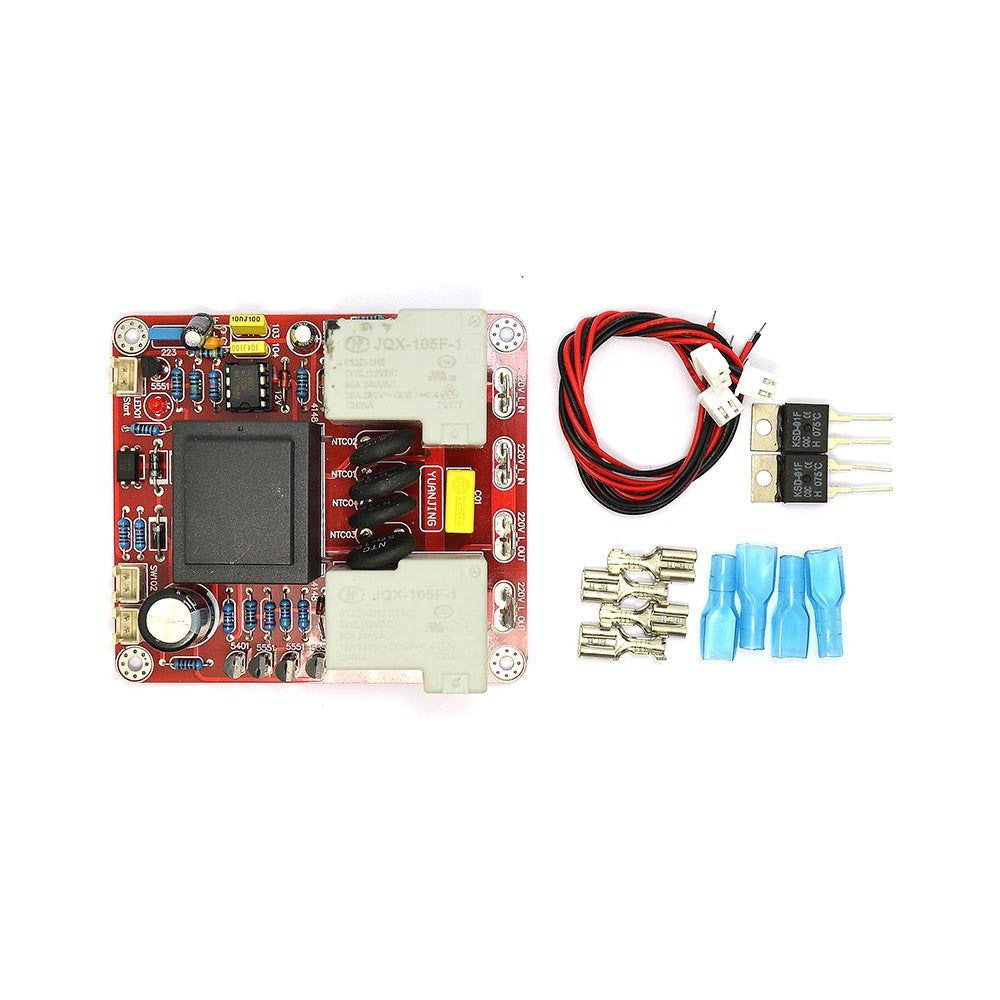

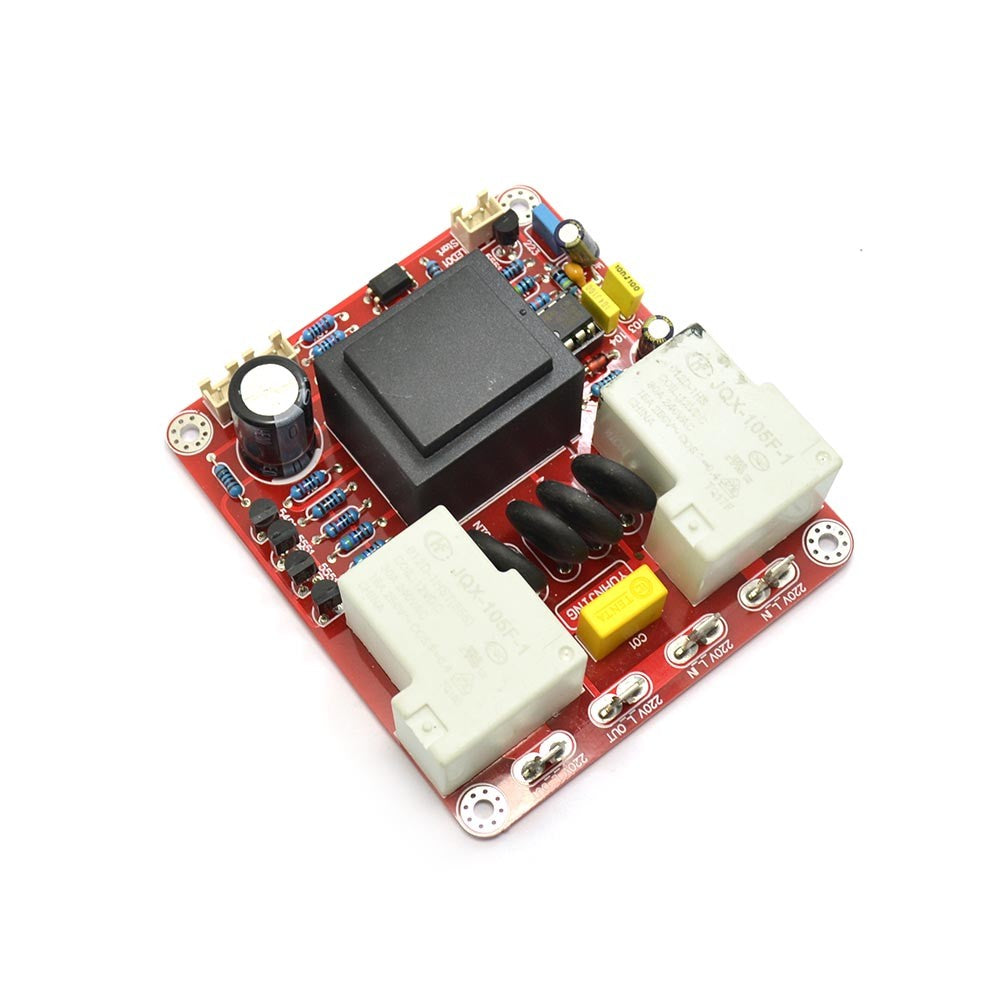

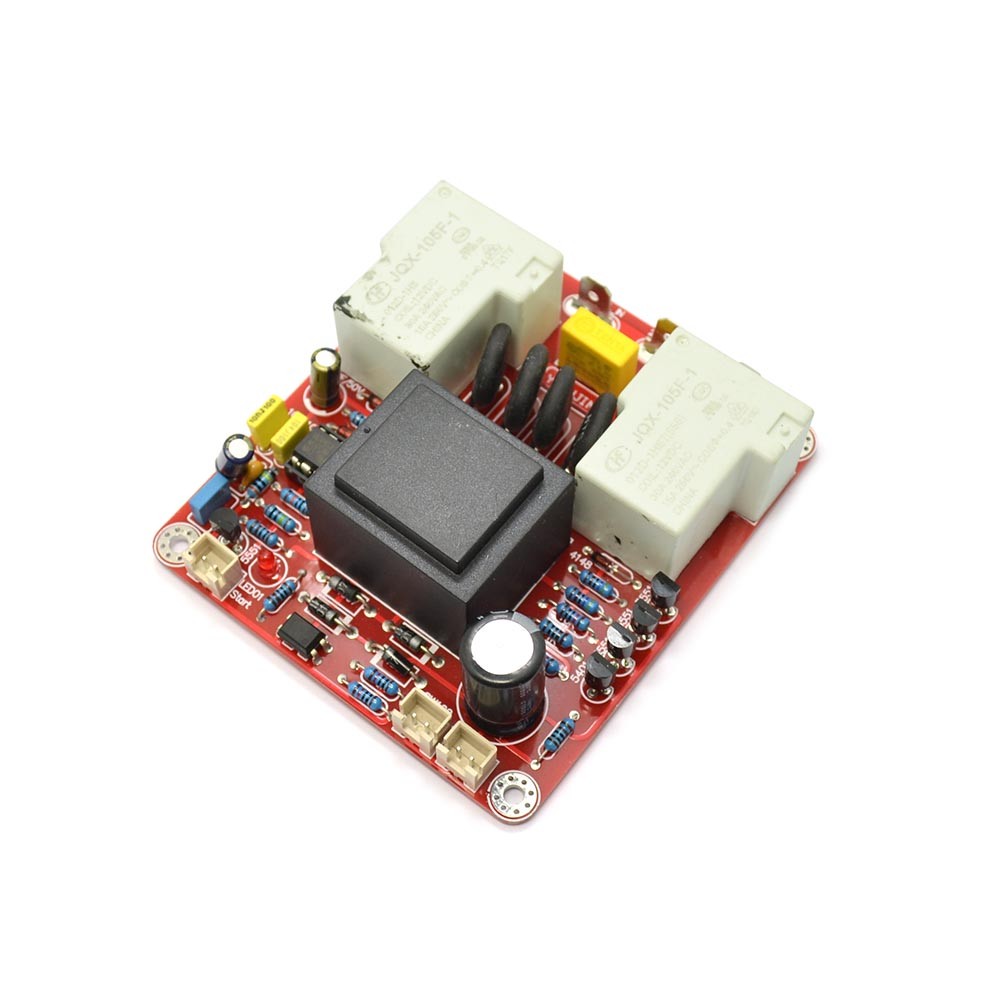

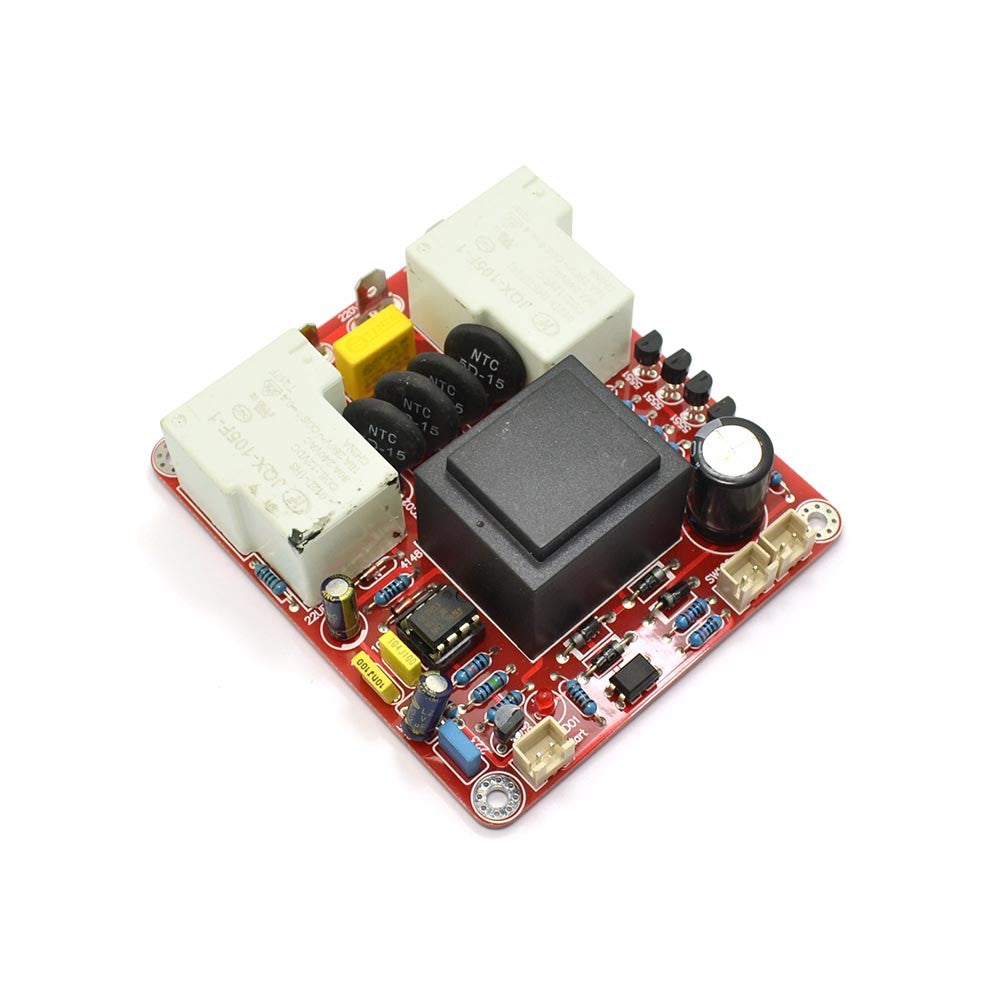

Group A Amplifier Power Delay Soft Start Temperature Protection Board 110V

Description:

1.For the CPI (A) or high-power amplifier, the maximum power of 2000W
2.Suppression amplifier boot transient inrush current, the power of the CPI (A) and high-power amplifier transformer, the load impedance ultra-low, and large power supply filter capacitance, resulting in the instantaneous current amplifier boot is too large, easy to damage the rectifier bridge and damage filter capacitor.
3.When the amplifier heat sink temperature exceeds 75 degrees, the board can immediately cut off power to the amplifier overheating. Until the heat sink temperature dropped to below 75 degrees, the amplifier before you can start, otherwise the amplifier can not be switched
4.Voltage: 110V

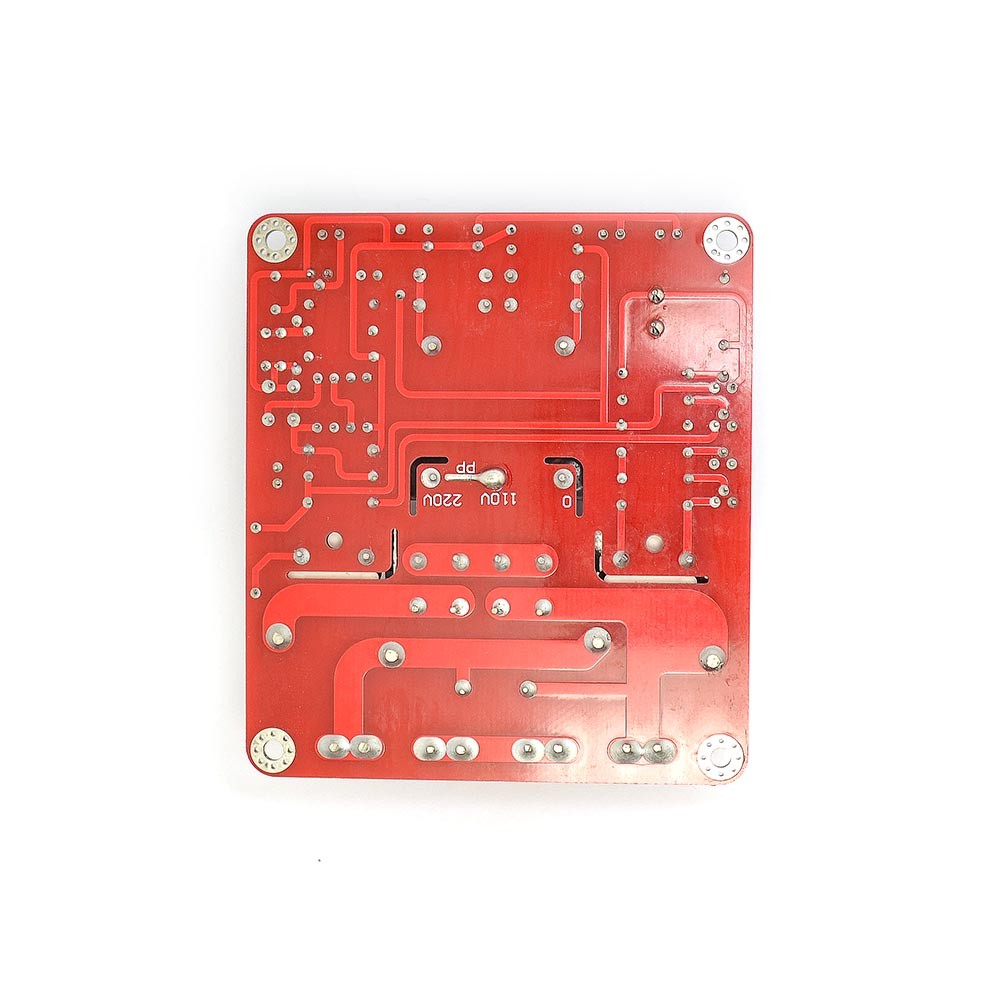

5.(According to the size of the input voltage of the PP + input voltage: input 220V, that is, the PP and 220V pin welded together, pay attention to the PP can not be connected to 110V and 220V)
6.Size: Width 78 × long 88 × 32 mm

Package:

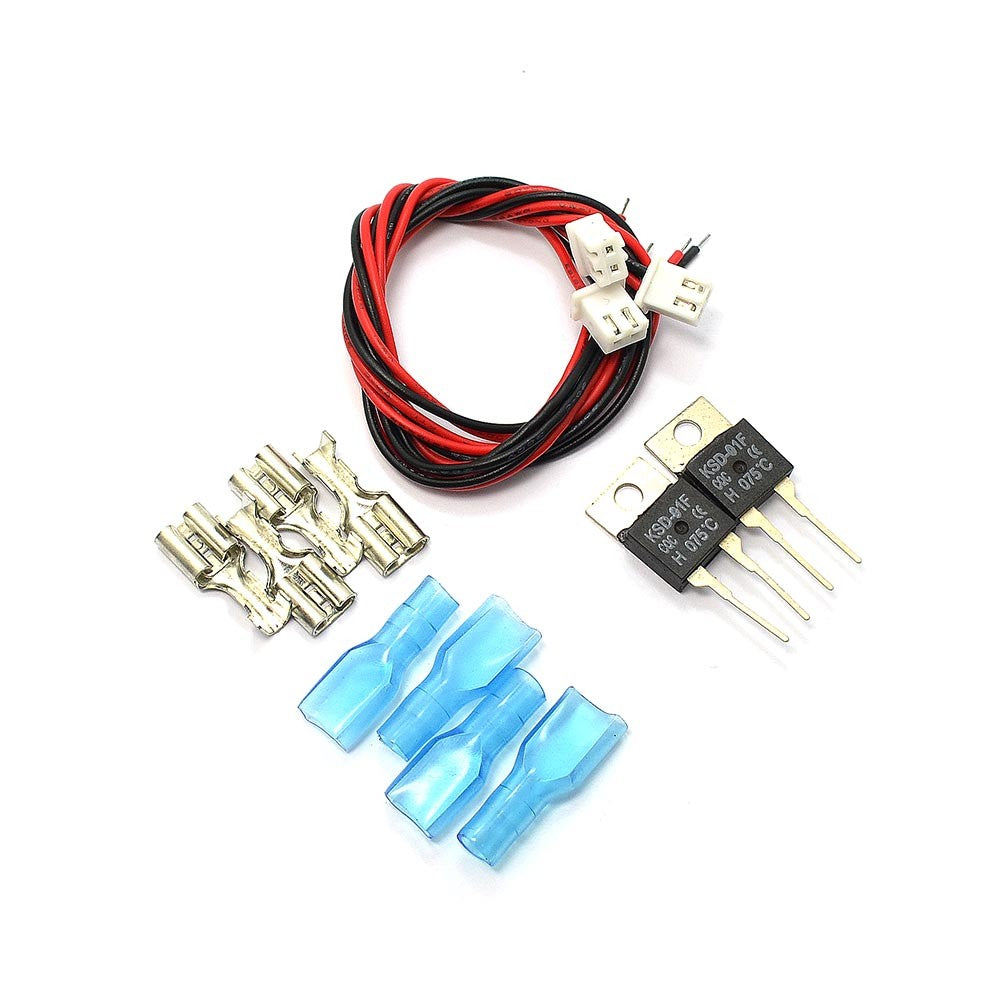

 1x Group A Amplifier Power Delay Soft Start Temperature Protection Board 110V
