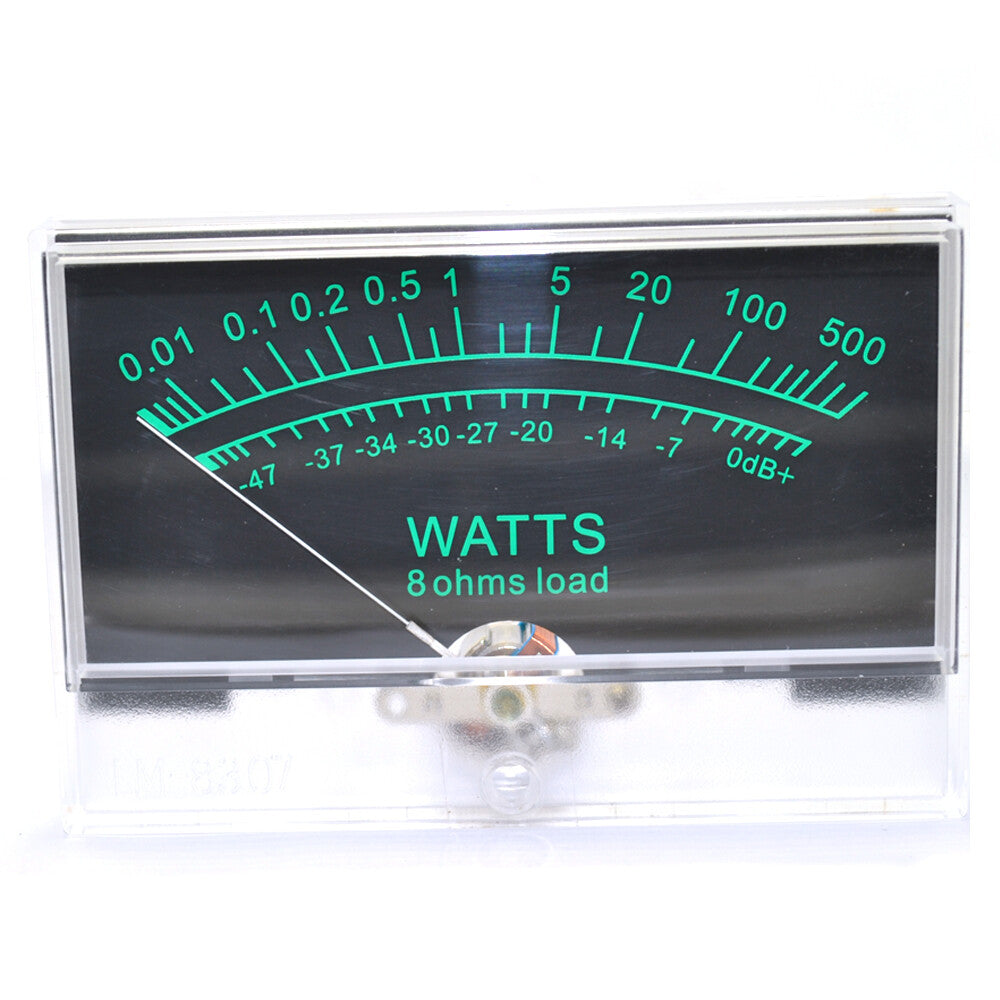

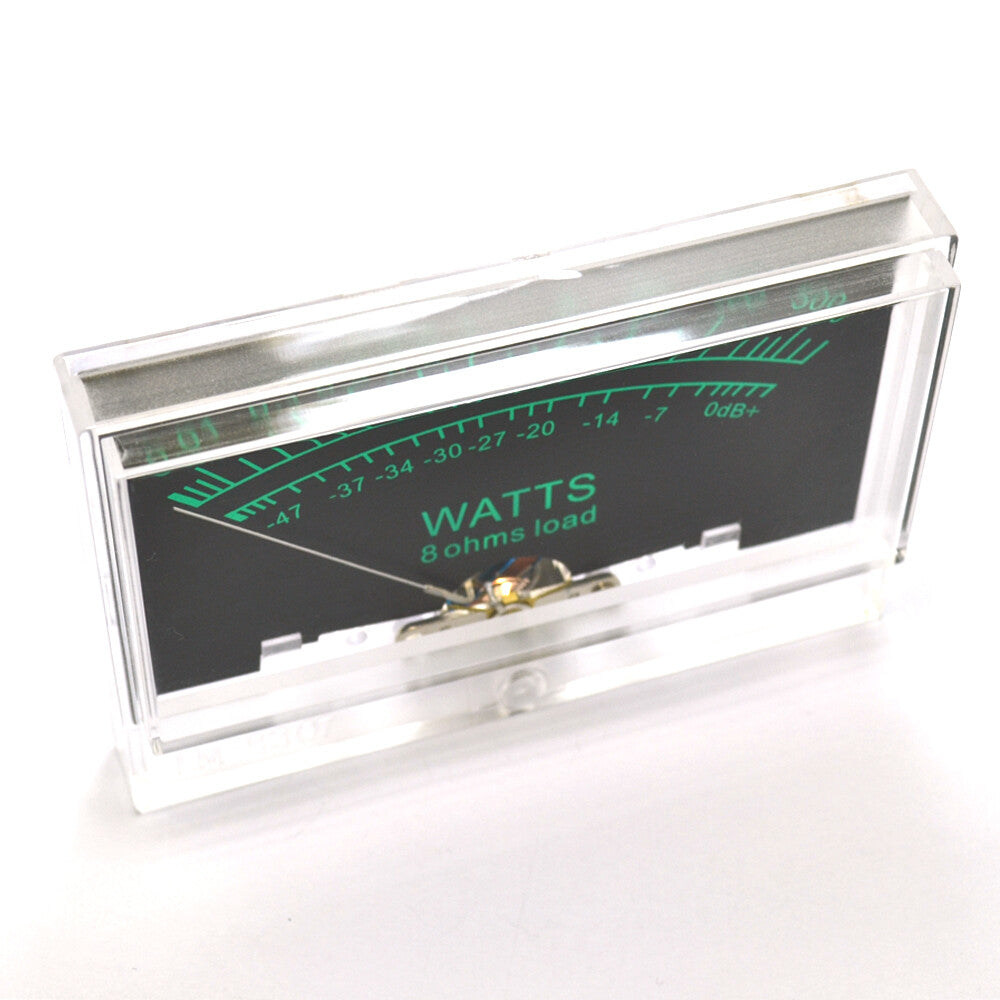

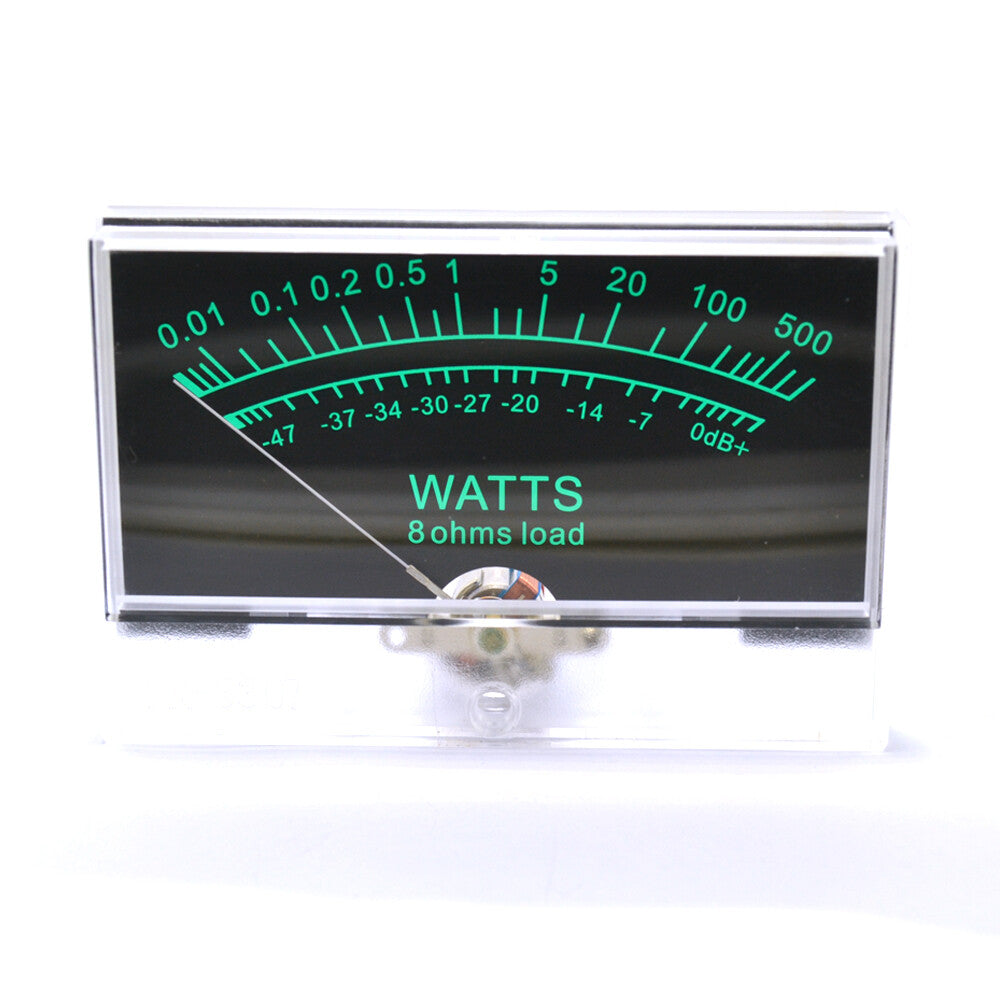

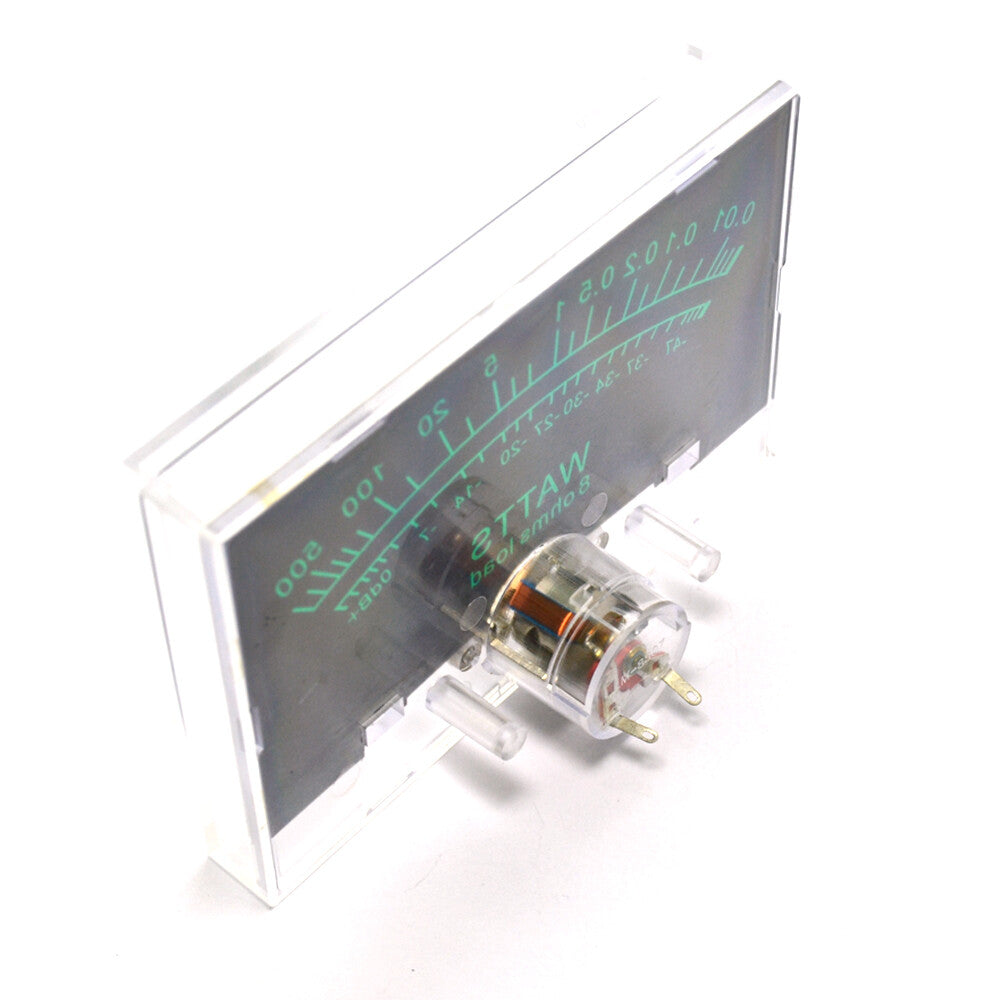

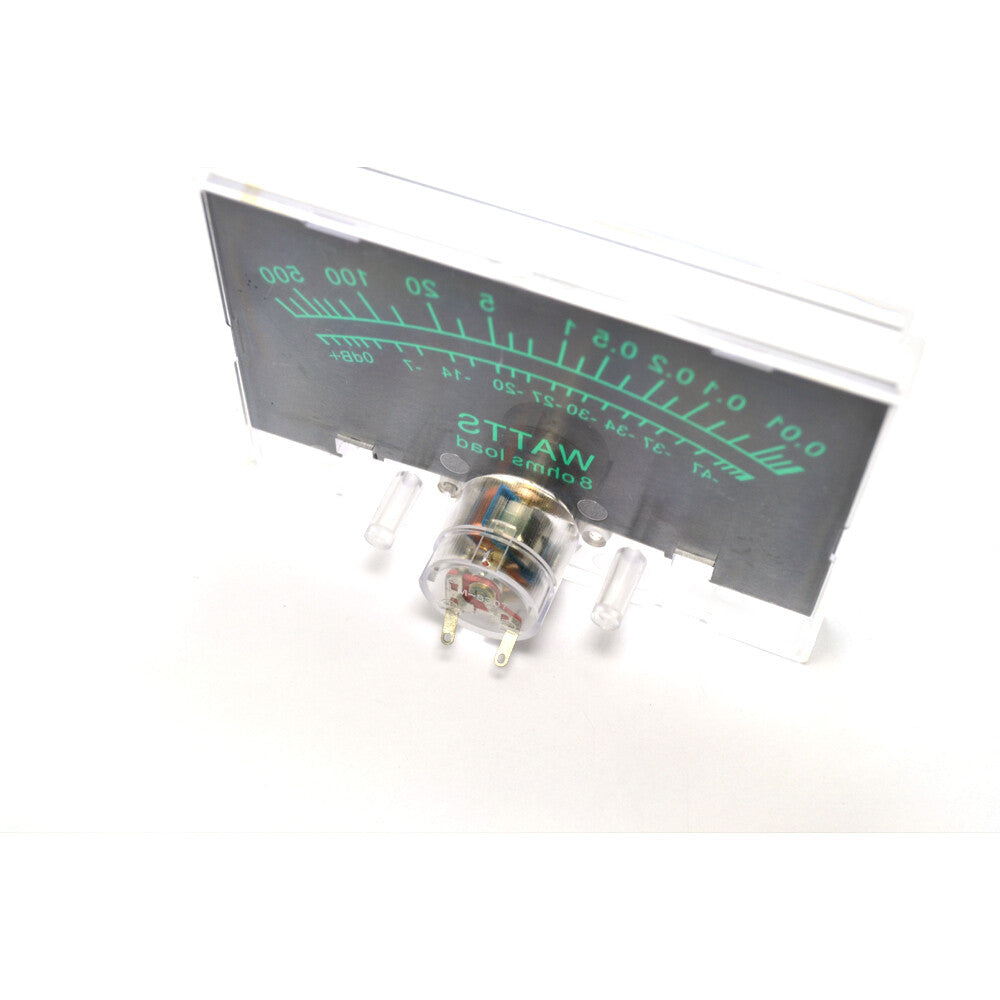

H-10050 Panel Meters Black And Green Background VU(DC 500uA) Audio Equipment Use

H-10050 Panel Meters Black And Green Background VU(DC 500uA) Audio Equipment Use

Specifications:

Core structure: magneto electric system (√)

Pointer Material: Aluminum Needle

Color: White

Length: 54.0 (± 1mm)

Width: 0.4 (± 1mm)

Pointer deflection direction: clockwise from left to right.

Upper cover material: Acrylic (PMMA)

Lower cover material: Acrylic (PMMA)

Material of nameplate: PC

Magnetic steel: High stability Class 8 magnetic steel (non-linear), please note if linear is required!

Light bulb: No internal light bulb, users can use a backlight panel on the back of the instrument panel for projection.

Meter usage location: vertical use

Internal DC impedance of the meter: 650 Ω± 10%

Friction error: ± 1mm

Balance error: ± 1.5mm

Relative error: ± 5%

Damping time: 2-3 seconds

Insulation strength: above 50M Ω

Package: 1 * H-10050 Sound Measuring Instrument
