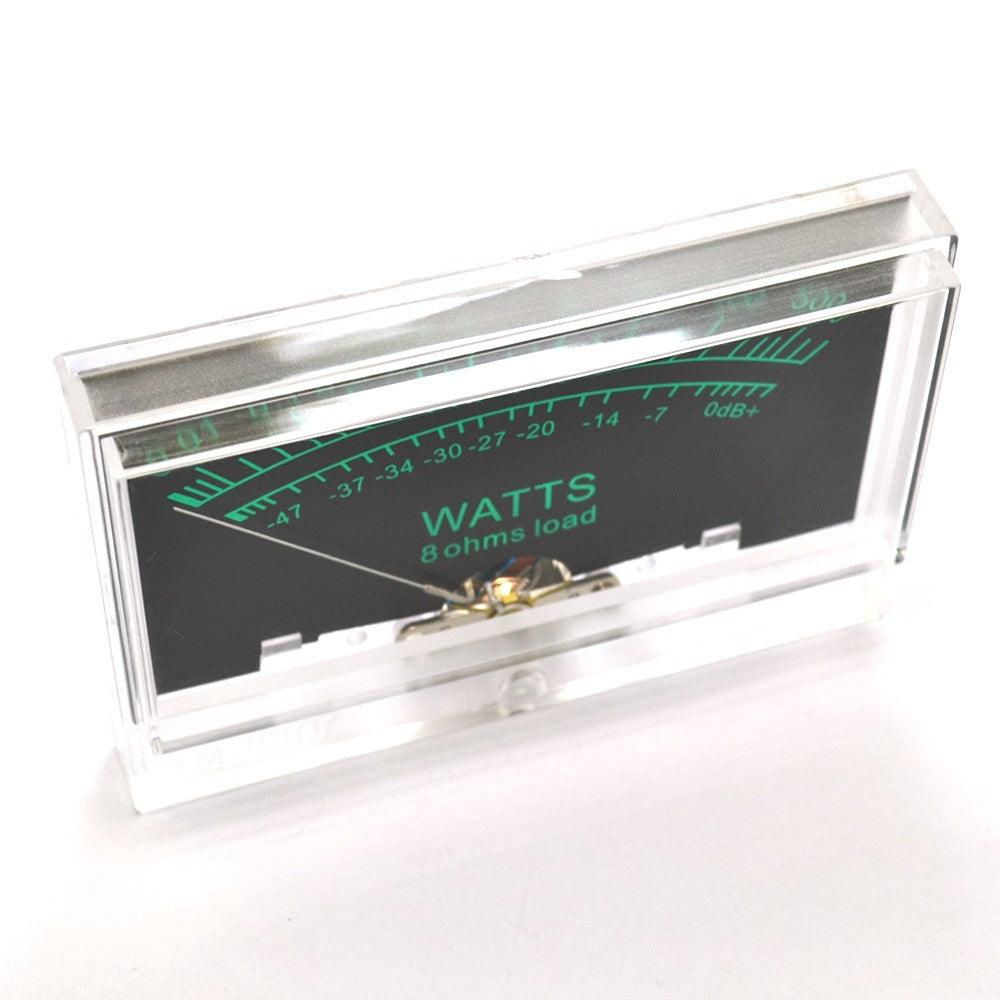

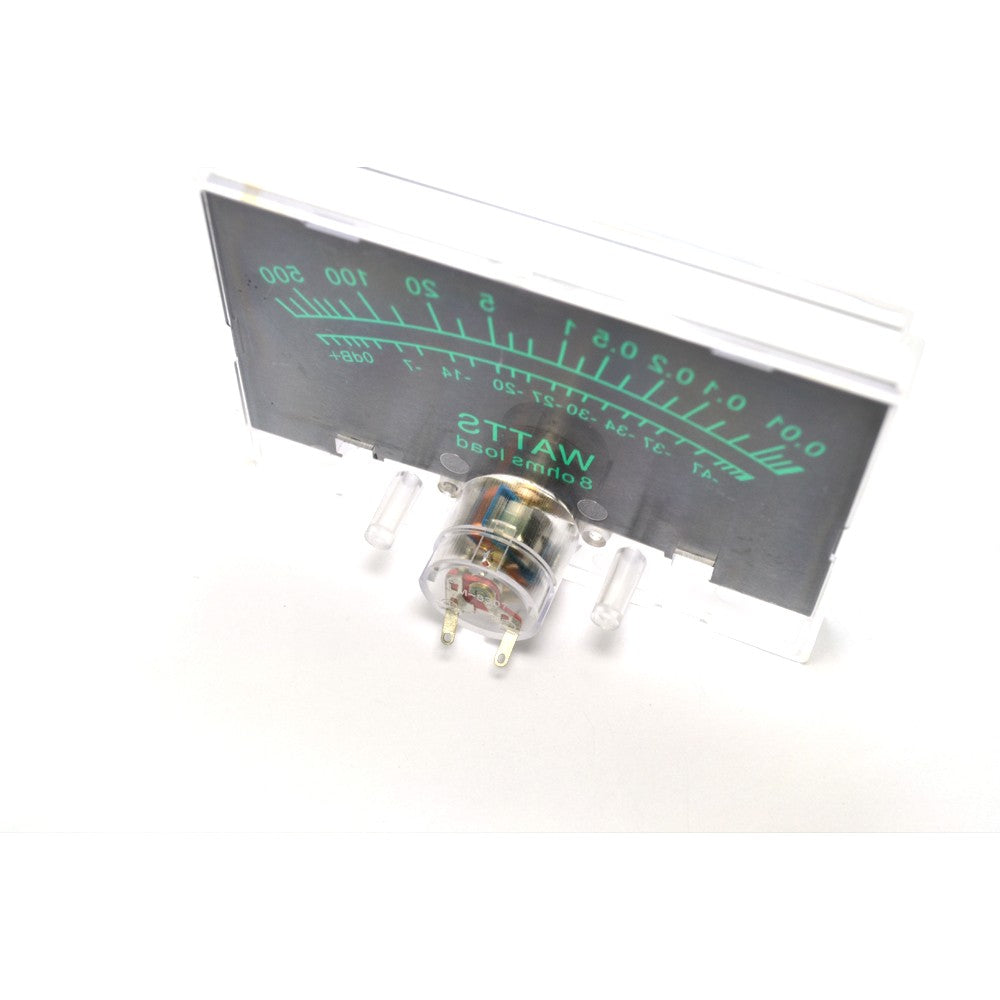

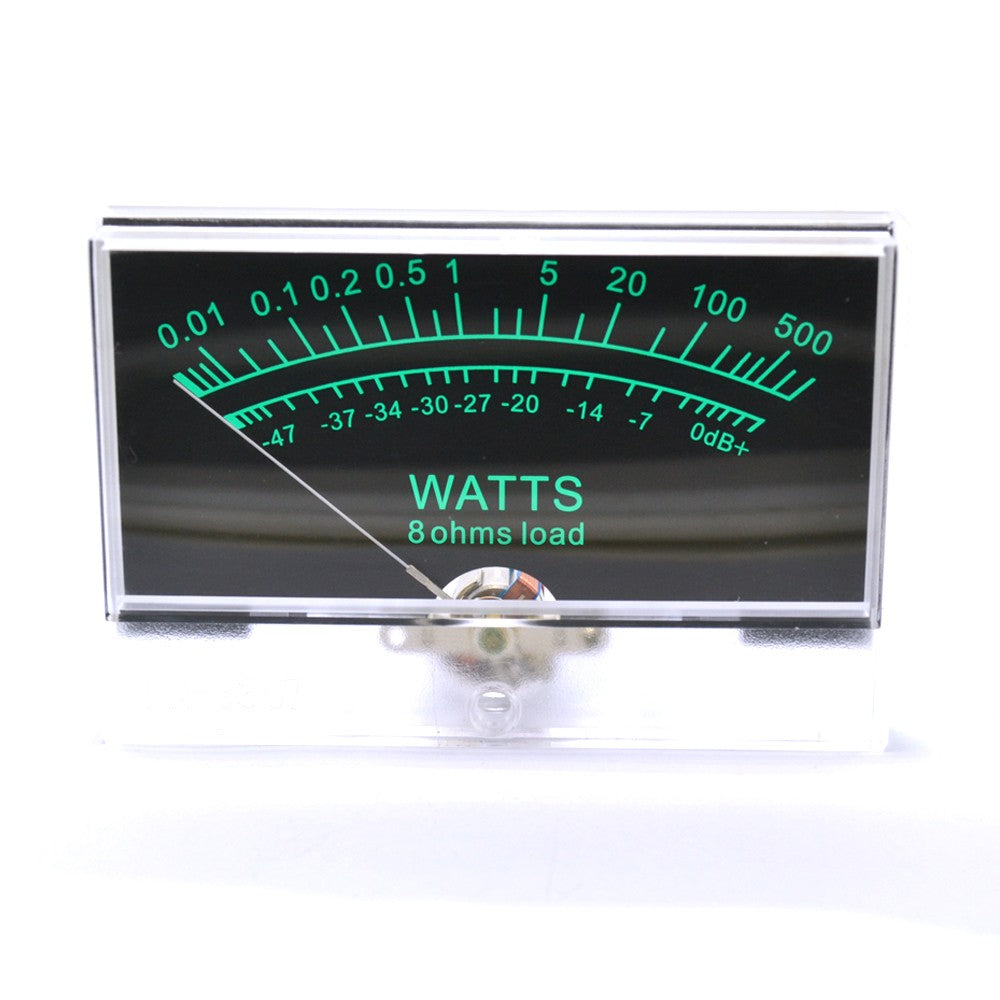

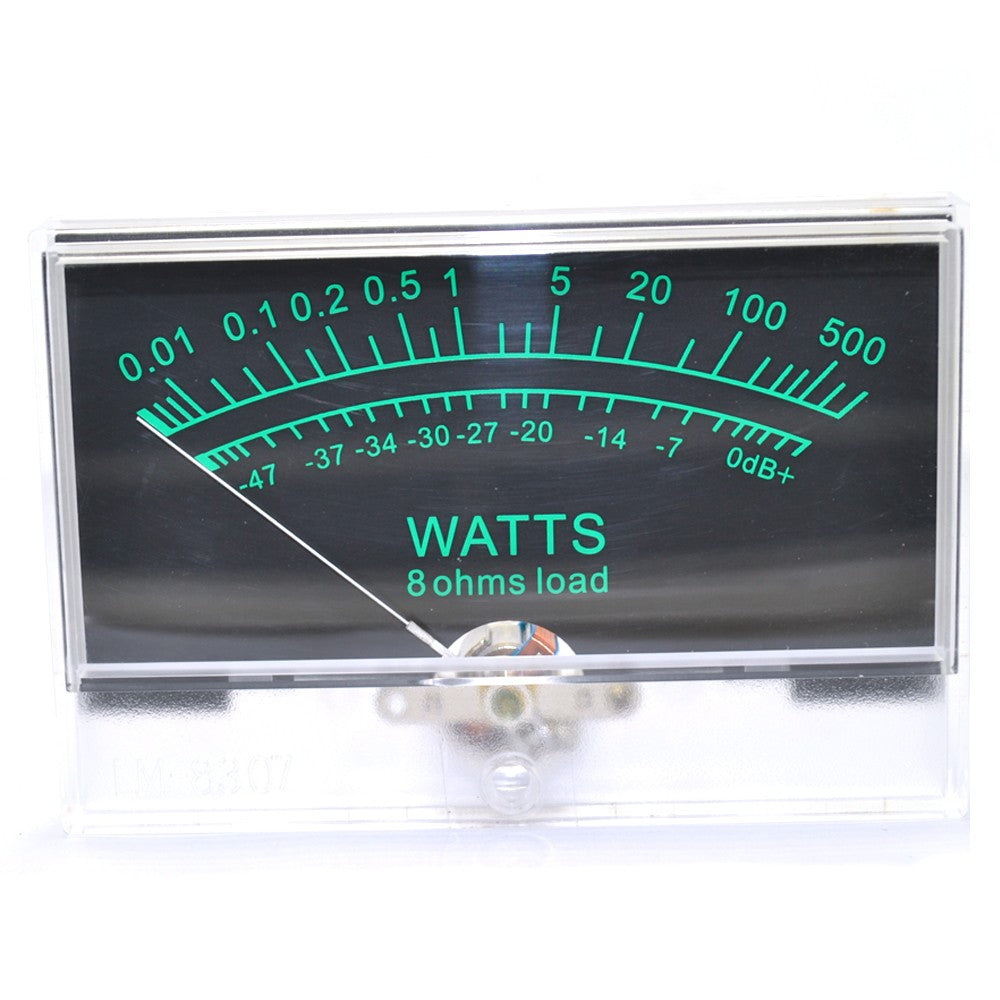

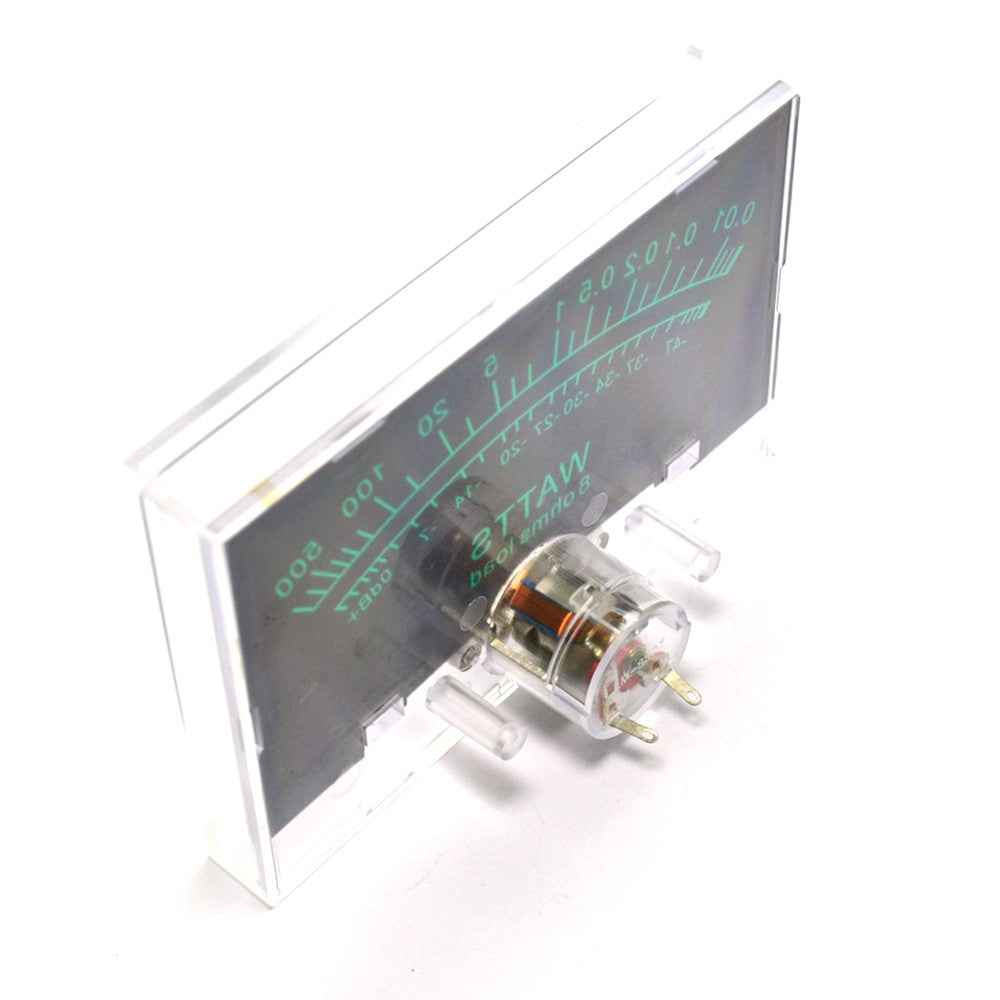

SD-H-10050 Panel Meters Sound Measuring Instrument Black And Green Background VU (500uA/650Ω) DC 500uA Audio Equipment with backlight
Table core structure: magnetoelectric system (√)
Pointer material: aluminum needle
Color: White
Pointer Length: 54.0 (±1mm)
Pointer Width: 0.4 (±1mm)
Pointer deflection direction: deflection clockwise from left to right.
Cover material: Acrylic (PMMA)
Lower cover material: Acrylic (PMMA)
Nameplate material: PC
Magnet: high stability 8 type magnet
Meter use position: Vertical use
Internal DC impedance of the meter head: 650Ω±10%
Friction error: ±1mm
Balance error: ±1.5mm
Relative error: ±5%
Damping time: 2-3 seconds
Insulation strength: above 50MΩ Calibration value: ±2.0%
Light bulb: With internal light bulb
Package:
1*SD-H-10050 Black And Green Bottom Meter with backlight
