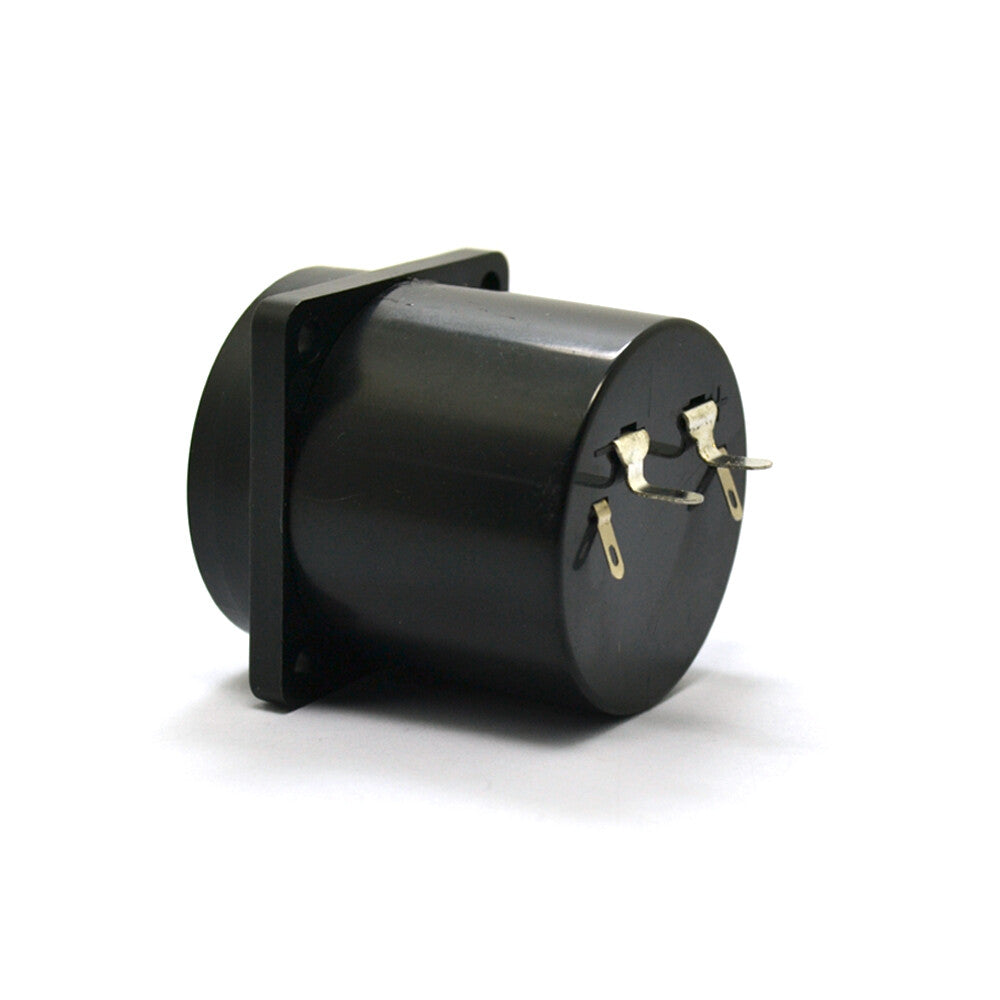

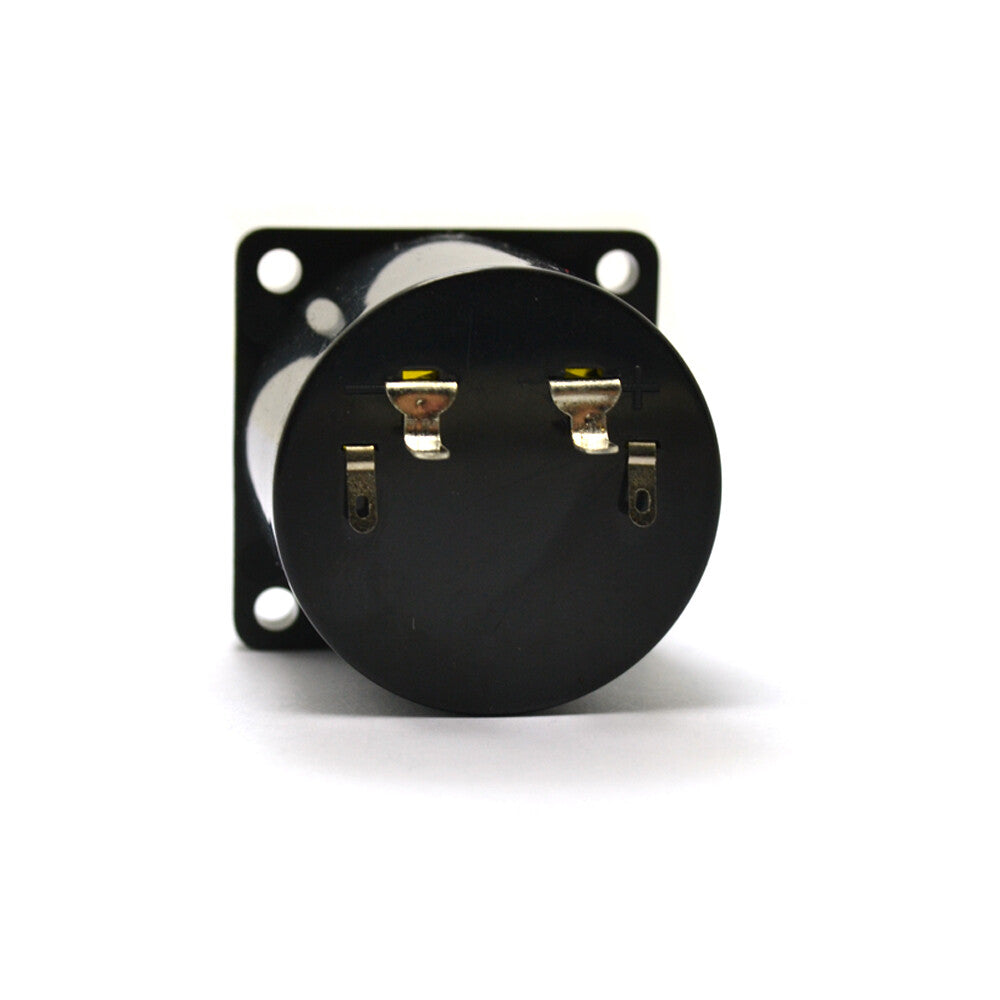

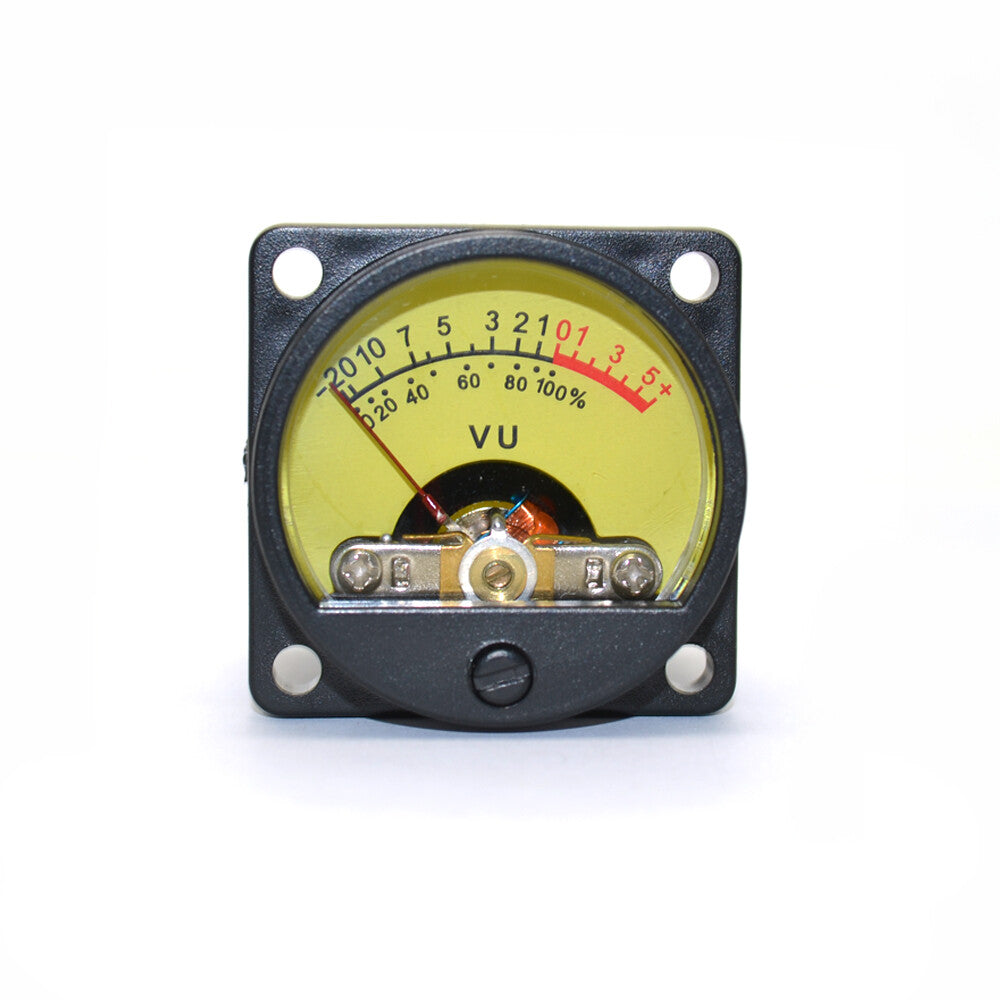

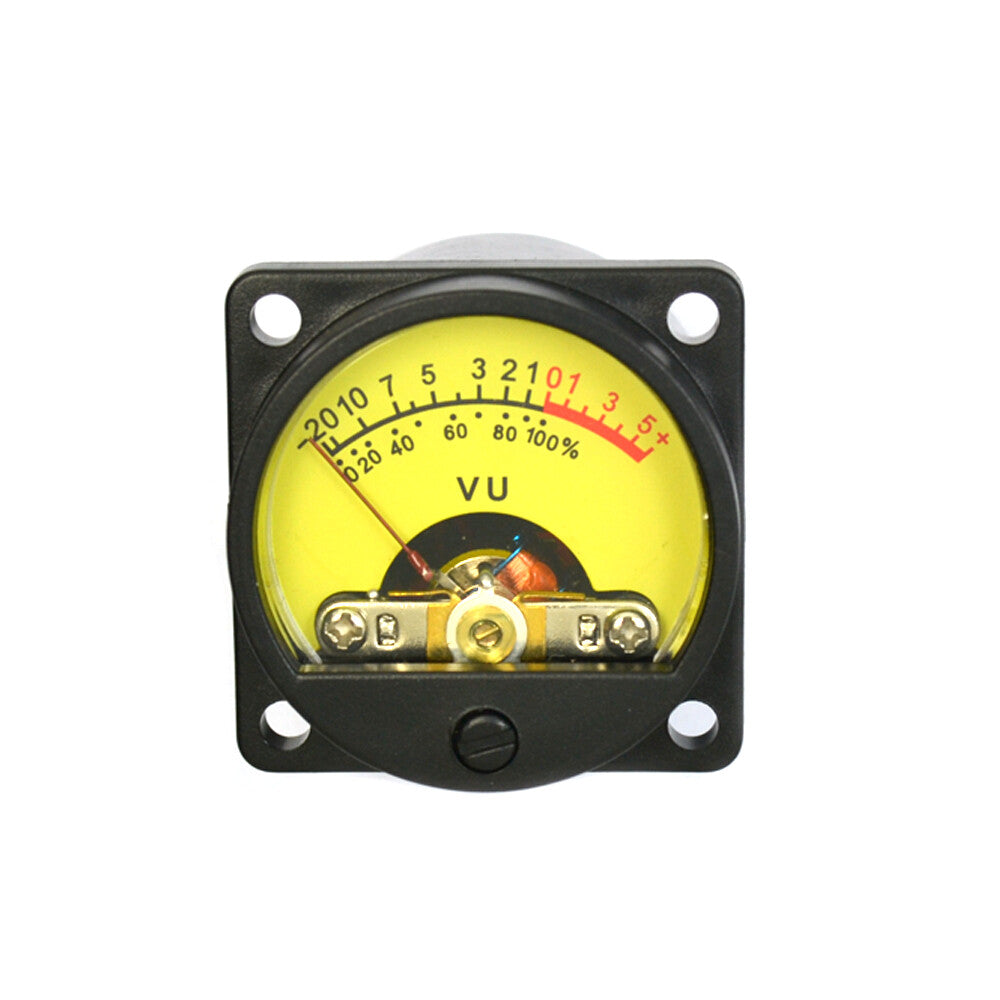

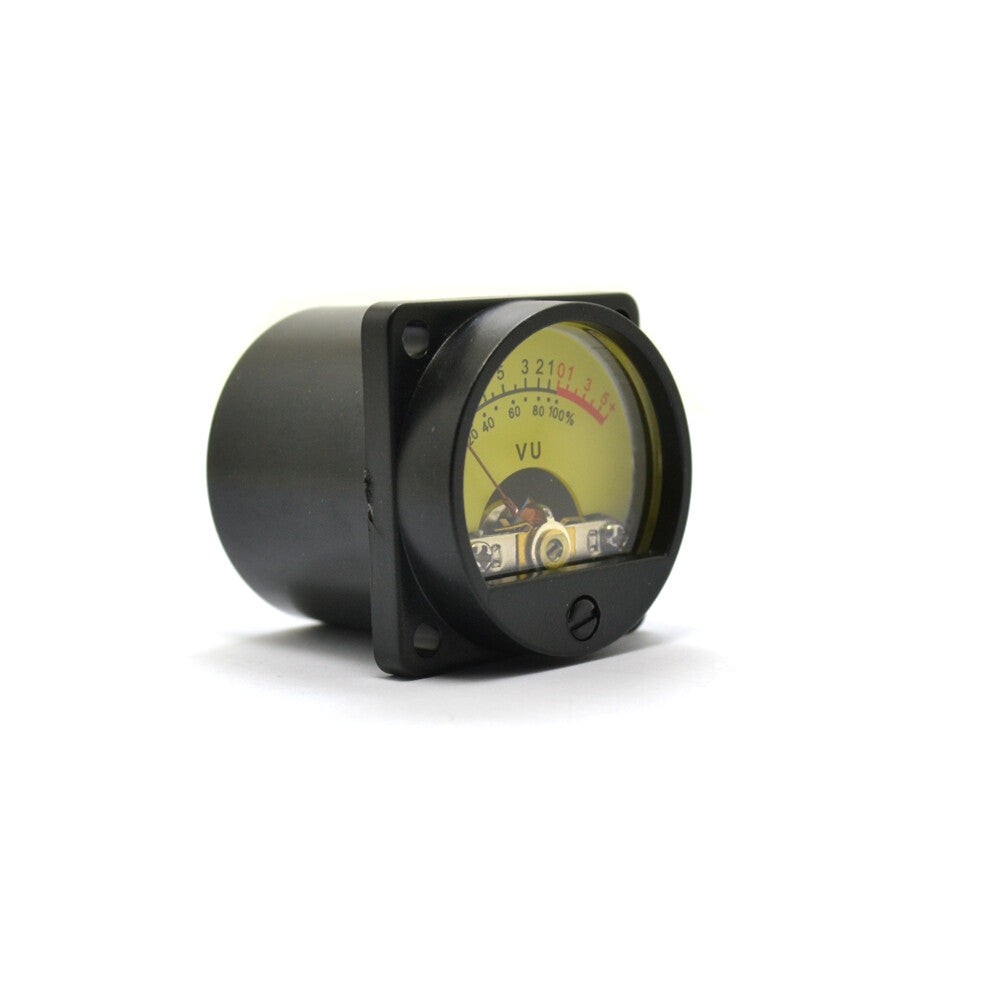

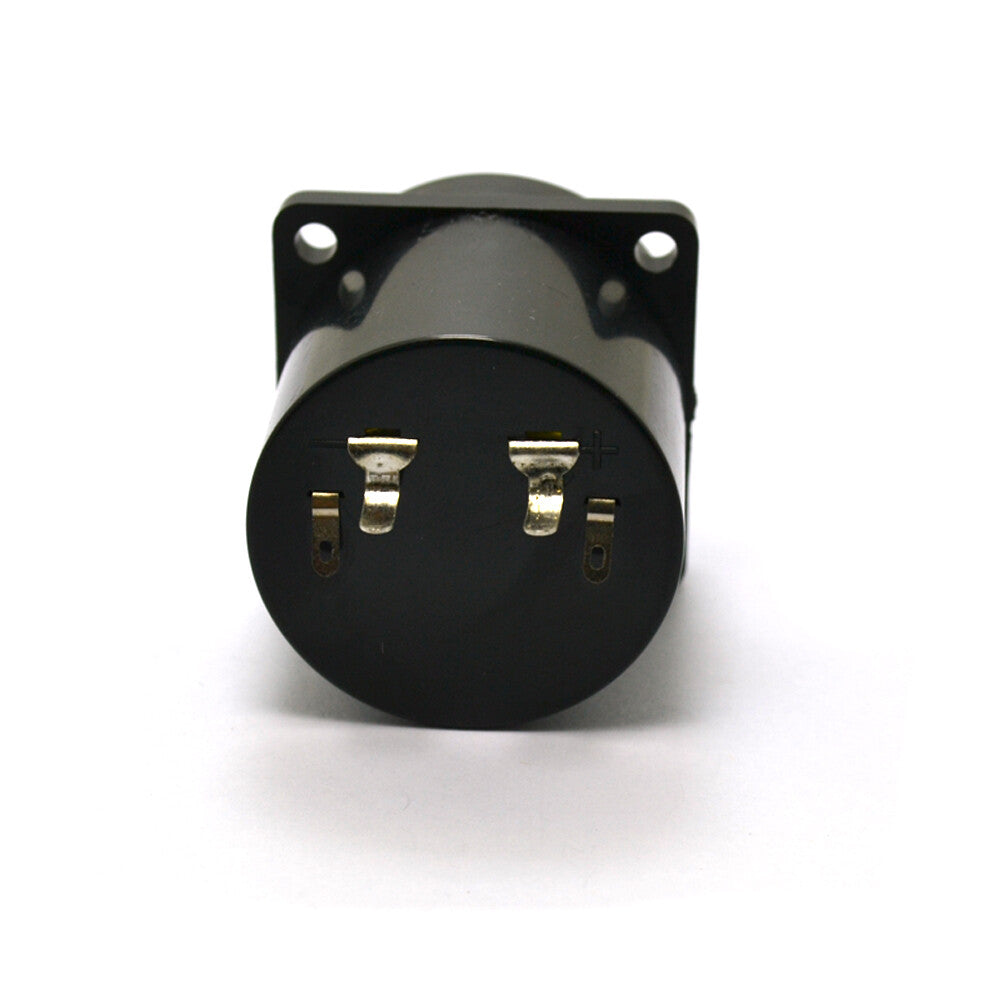

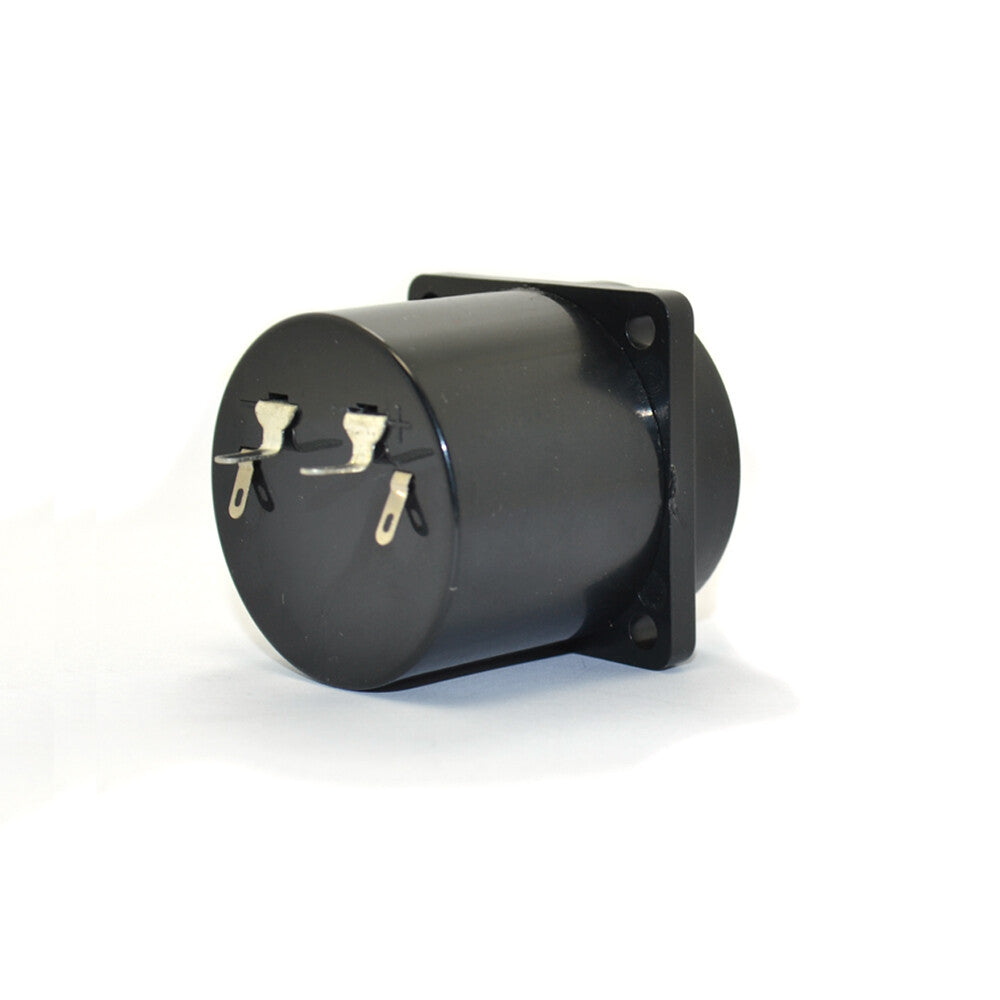

H-35 Panel Meters Sound Measuring Instrument VU (500uA/650Ω) for Audio Equipment

SD-H-35 Sound Measuring Instrument Yellow Bottom VU (500uA/650Ω) DC 500uA for Audio Equipment

Table core structure: magnetoelectric system (√)

Pointer material: nickel white copper

Color: Tan

Length: 18.0 (±1mm)

Width: 0.35 (±1mm)

Pointer deflection direction: deflection clockwise from left to right.

Cover material: ABS black (surface anodized)

Lower cover material: ABS black

Nameplate material: PC

Transparent window material: Acrylic

Meter use position: vertical use

Internal DC impedance of the meter head: 650Ω±10%

Friction error: ±1mm

Balance error: ±1.5mm

Relative error: ±5%

Damping time: 2-3 seconds

Insulation strength: above 50MΩ

Light bulb: 50mA/12V tungsten lamp (can be changed to LED light source according to customer requirements!)

Package:

1*H-35 sound measuring instrument
