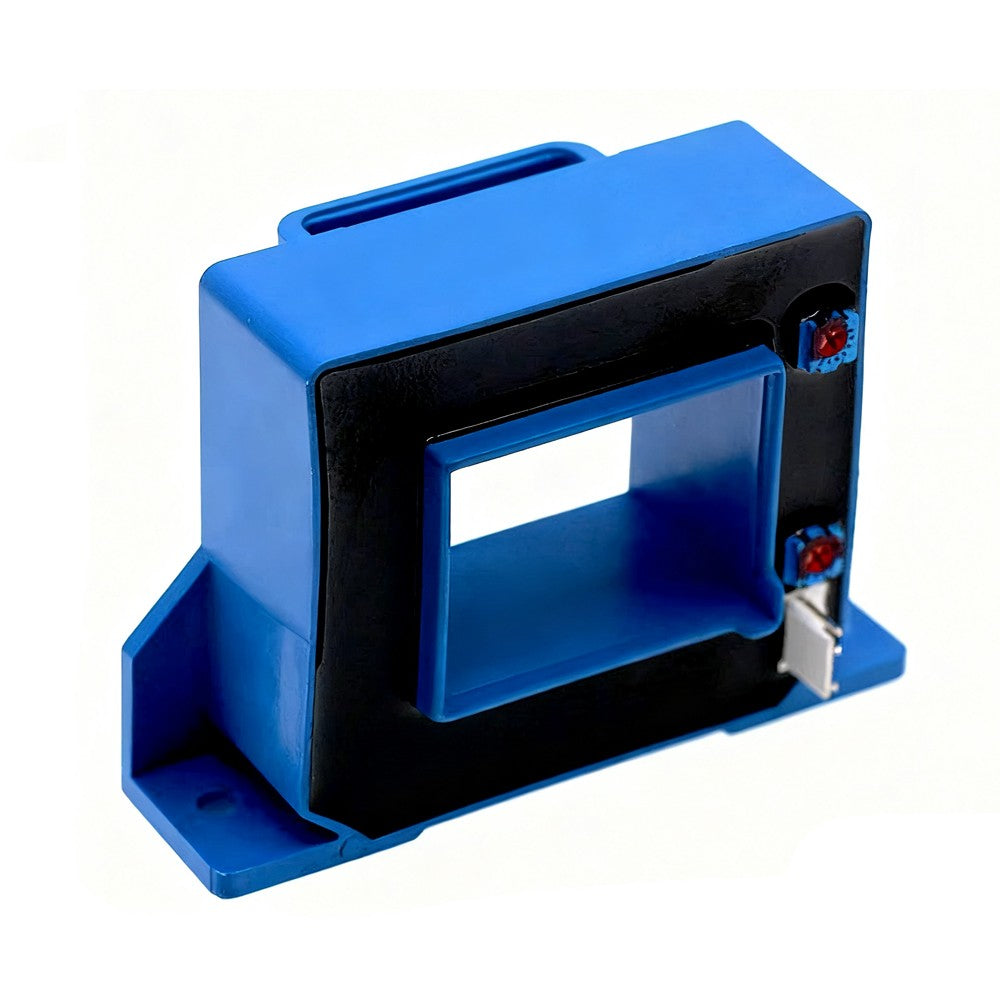

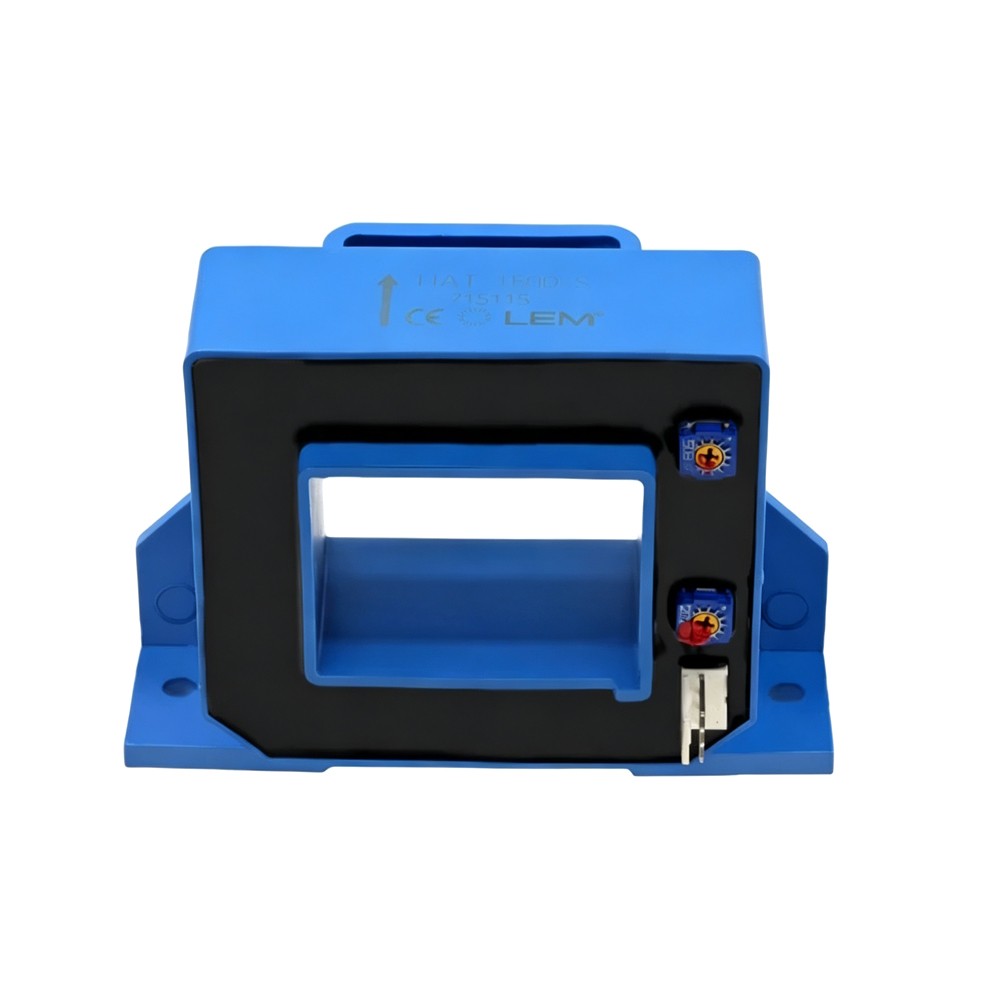

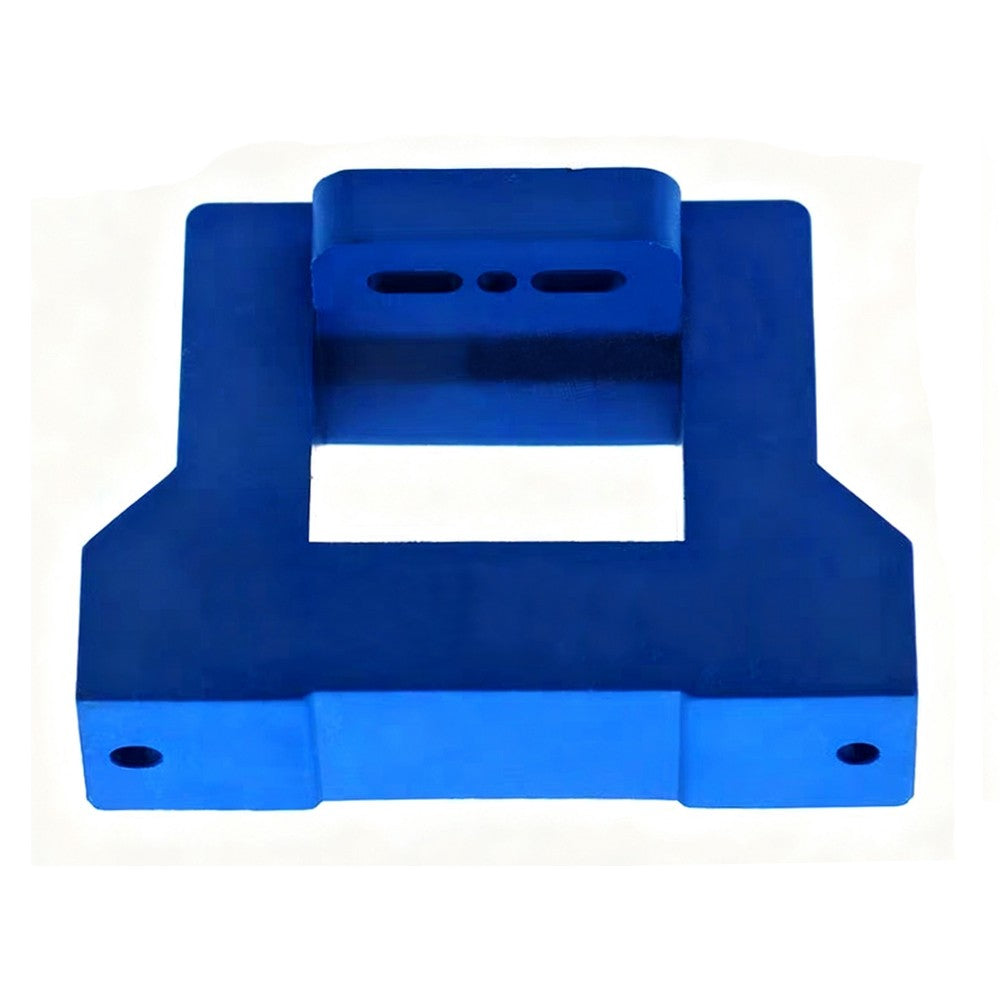

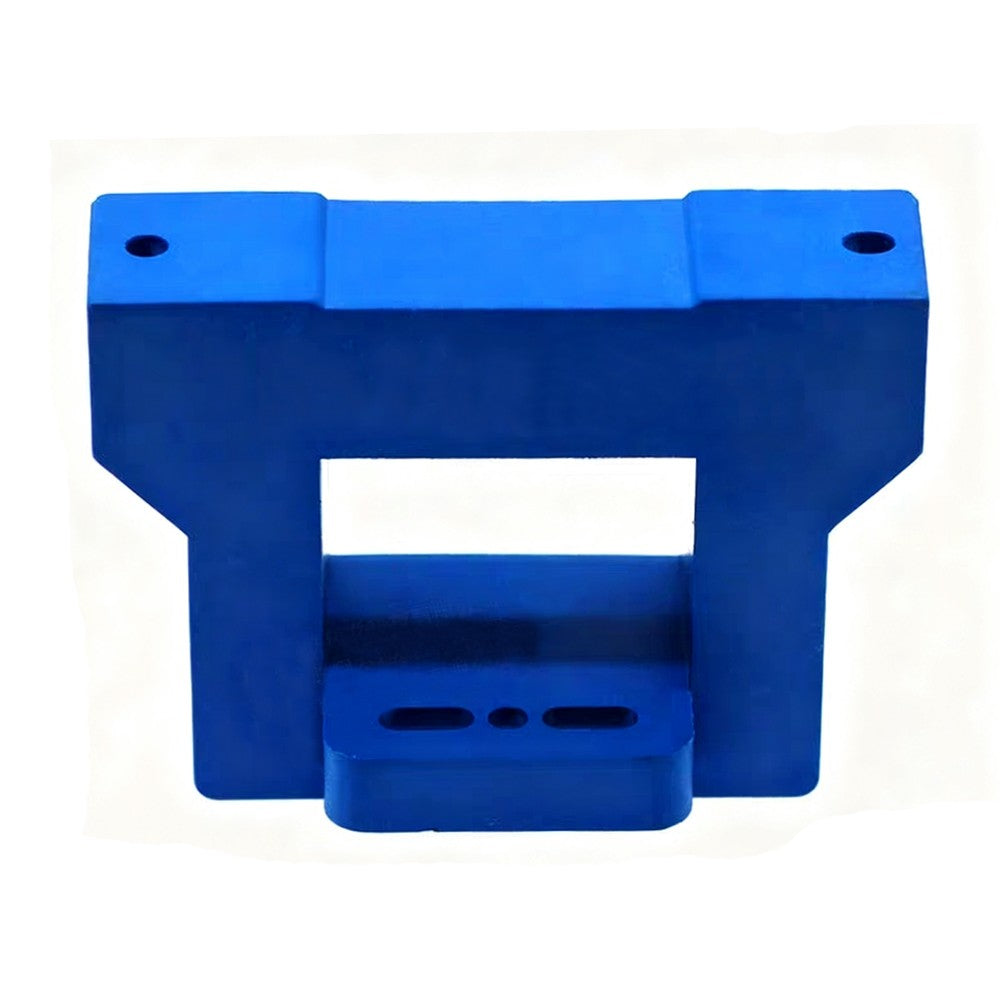

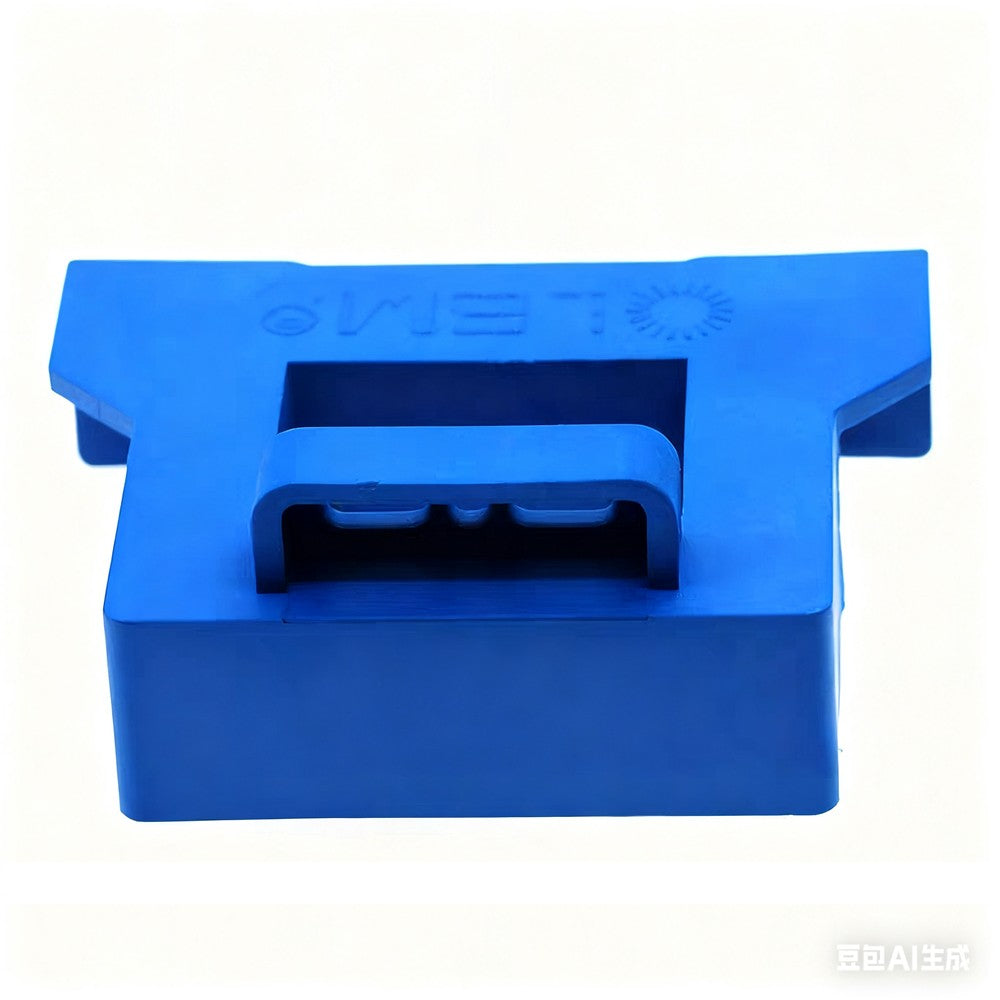

LEM HAT Series Hall Effect Current Transducer

Models: HAT200-S, HAT300-S, HAT400-S, HAT500-S, HAT600-S, HAT800-S, HAT1000-S, HAT1200-S, HAT1500-S

The LEM HATxx-S series is an open-loop hall effect current sensor designed for accurate AC and DC current measurement. It provides galvanic isolation between primary and secondary circuits to protect control systems.

Key Features

• Hall effect open-loop current transducer

• Measure AC, DC and pulsed current

• High accuracy and low temperature drift

• Galvanic isolation between primary and secondary

• Compact structure, easy installation

• Wide operating temperature range

• Good anti-interference performance

Typical Applications

✅ Uninterruptible Power Supply (UPS)
✅ Power Inverters & Converters
✅ Motor Drives
✅ Energy Storage System
✅ Welding Equipment
✅ Industrial Power Monitoring
✅ Battery Charging System

Available Models

• HAT200-S: 200A
• HAT300-S: 300A
• HAT400-S: 400A
• HAT500-S: 500A
• HAT600-S: 600A
• HAT800-S: 800A
• HAT1000-S: 1000A
• HAT1200-S: 1200A
• HAT1500-S: 1500A

Package & Notes

Each unit is carefully inspected before shipment. Please select the correct current range model according to your project requirement. If you need datasheet or technical support, feel free to contact us.
