High Power 355nm UV Pulse Laser Power Laser Module 20mW 50mW 100mW Can Couple Fiber Output

High Power 355nm UV Pulse Laser Power Laser Module 20mW 50mW 100mW Can Couple Fiber Output

$10,172.00
$141.00 $10,172.00
Sale Sold out
Shipping calculated at checkout.
Power

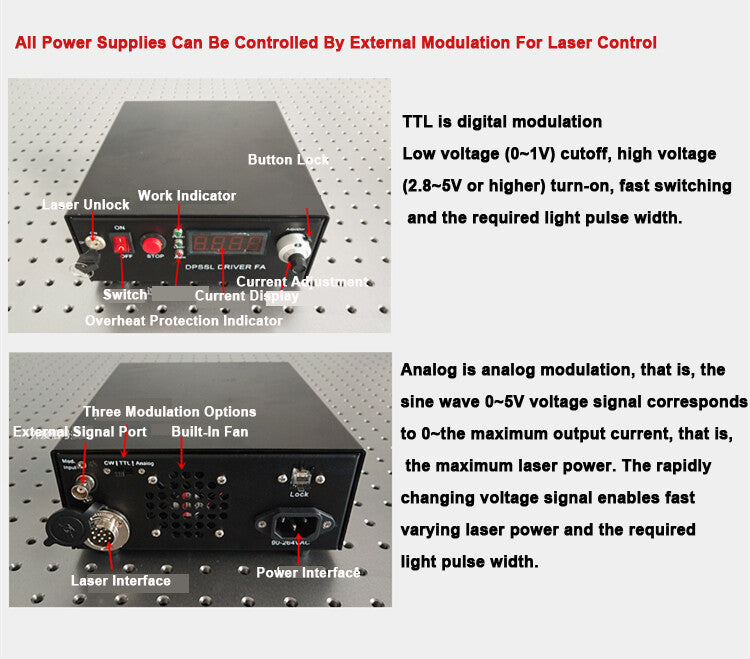

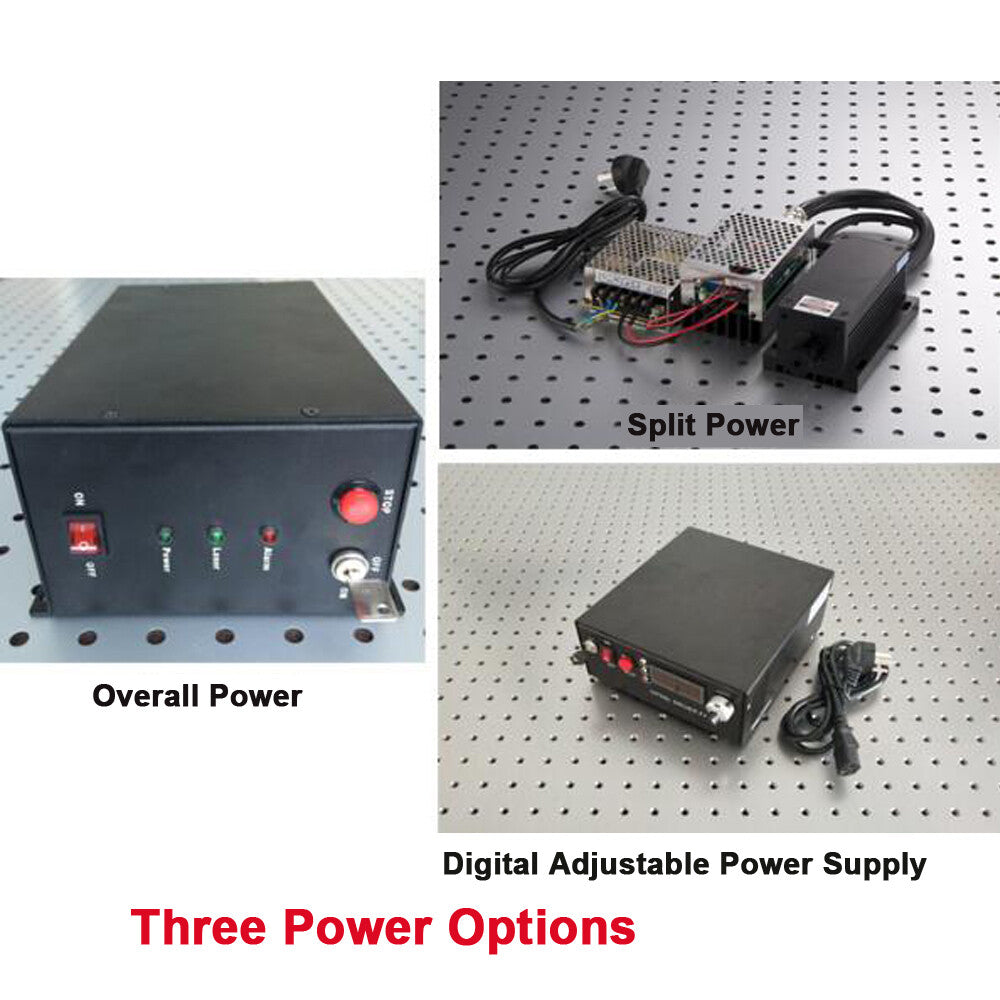

Power Supply
Adapter standard

High Power 355nm UV Pulse Laser Power Laser Module 20mW 50mW 100mW Can Couple Fiber Output

Specifications

Wavelength：355+/-1nm
Spatial Mode：near TEM00
Output Power(average)：>1.5,10,.,50mW
Operation Mode：Pulsed laser
Single pulse energy;1-10uJ
Pulse Width:5-10ns
Peak Power:100W~2KW
Repeat rate:1~10KHz
Polarization:>50:1
Beam Spot Shape:Circular,aspect ratio<1.1:1
Pointing Stability:<0.05 mrad
Beam Diameter(1/e2):2mm
Beam Divergence:<1.5 mrad
Beam Height from Base:45mm
Power Stability*:<±5%per 4 hrs
Temperature Stabilizing:TEC
Warm Up Time:<5 minutes
Optimum Operating Temperature:20~30℃
Storage Temperature:10~50℃
MTTF**:10,000 hrs

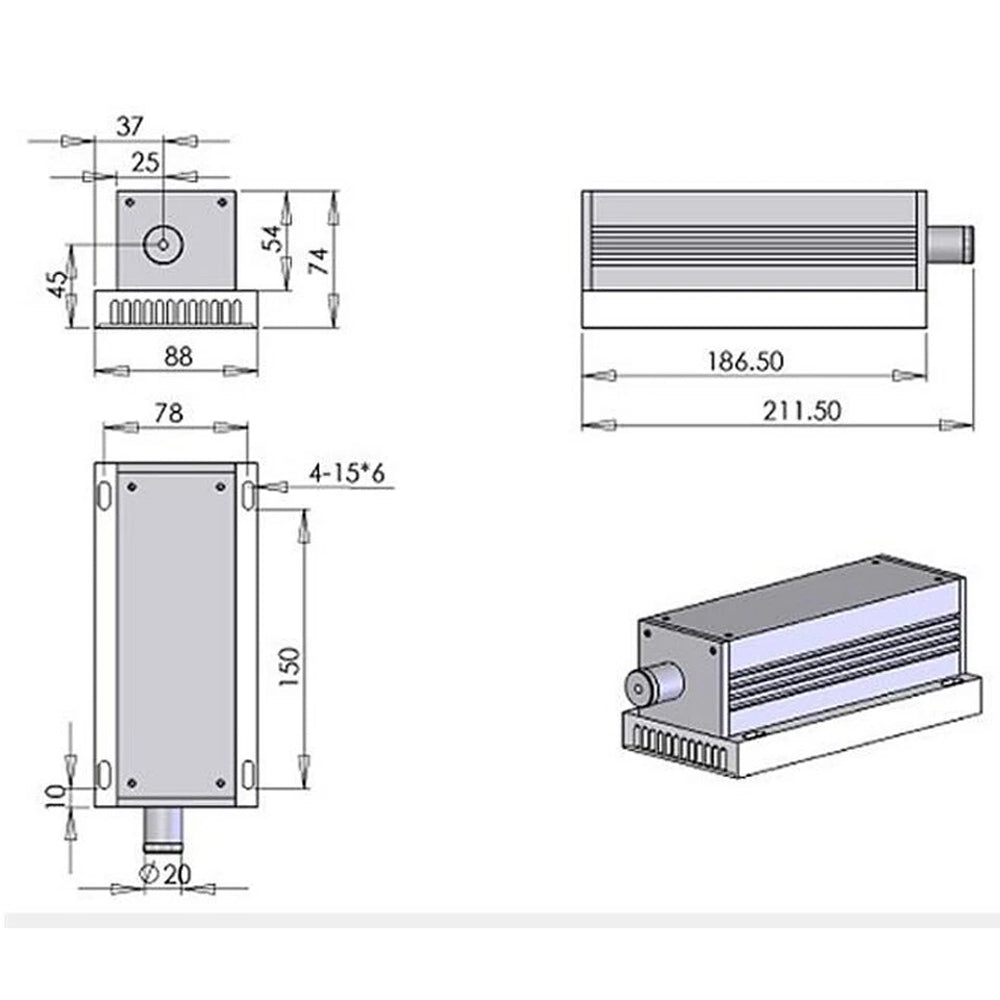

Dimensions:211(L)x88(W)x74(H) mm

Package
1* 355nm Power Laser Module
