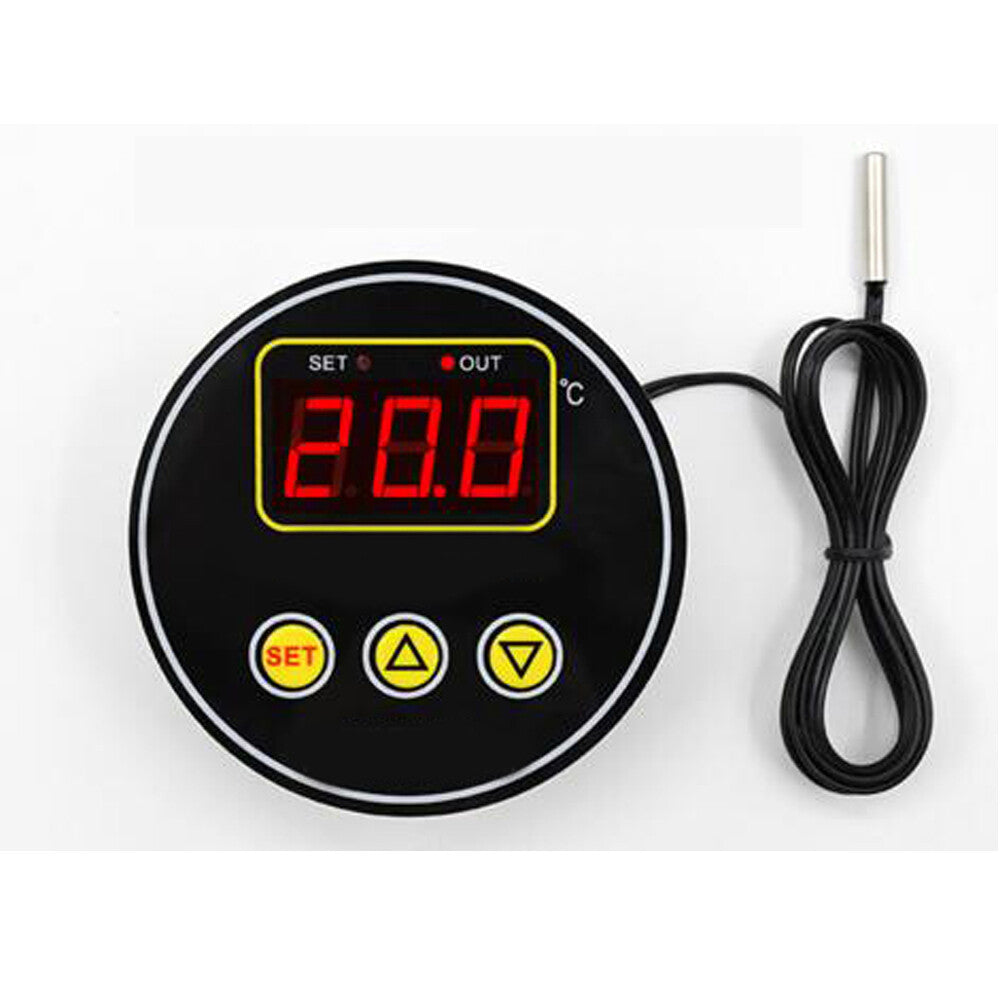

High Precision Temperature Controller Circular Digital Display Thermostat Round

High Precision Temperature Controller Circular Digital Display Thermostat Round Embedded

Temperature Range: -50-110 ° C Temperature Measurement accuracy: ±0.3°C

Temperature Control Range: -50-110 ° C Temperature Control Accuracy: 1 ° C

Temperature Probe:

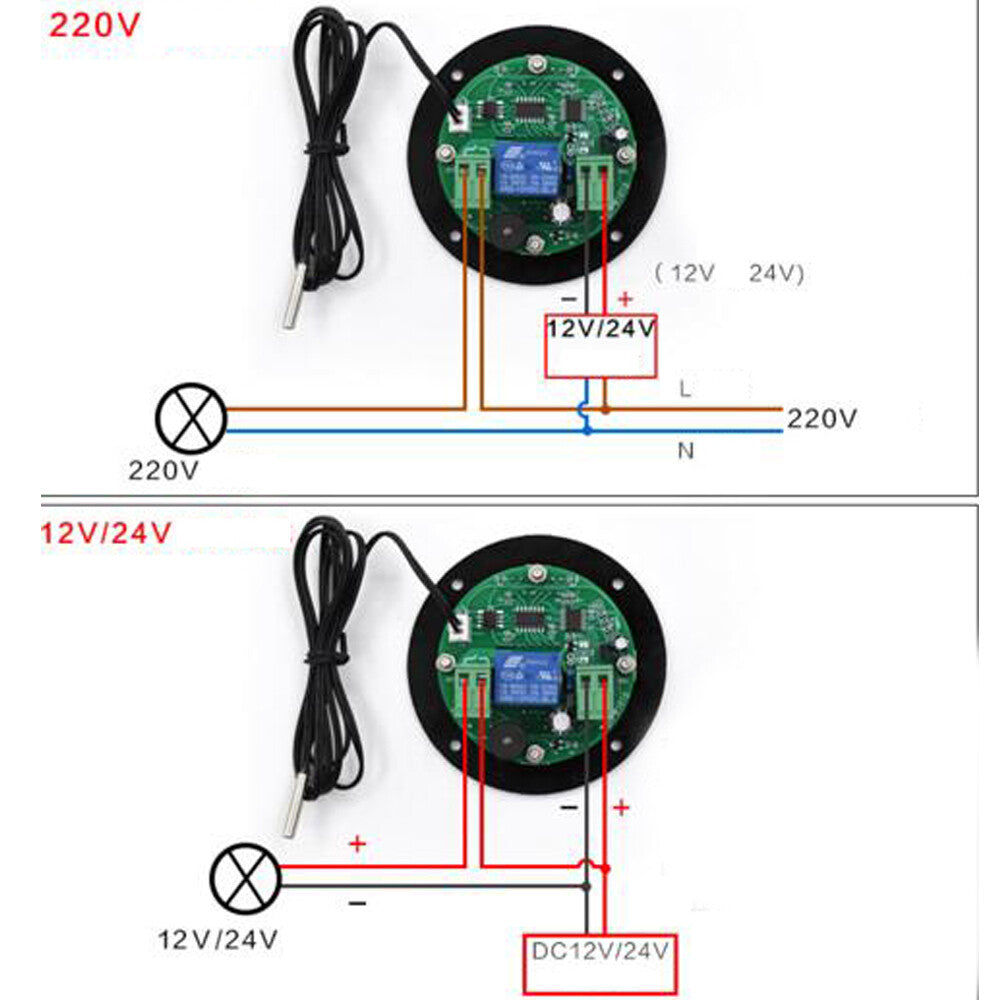

NTC10K (B3950) L=1M Power Supply Voltage: DC12V (24V/220V message optional)

Applicable Environment: -25-55 ° C Humidity: 50%-85%

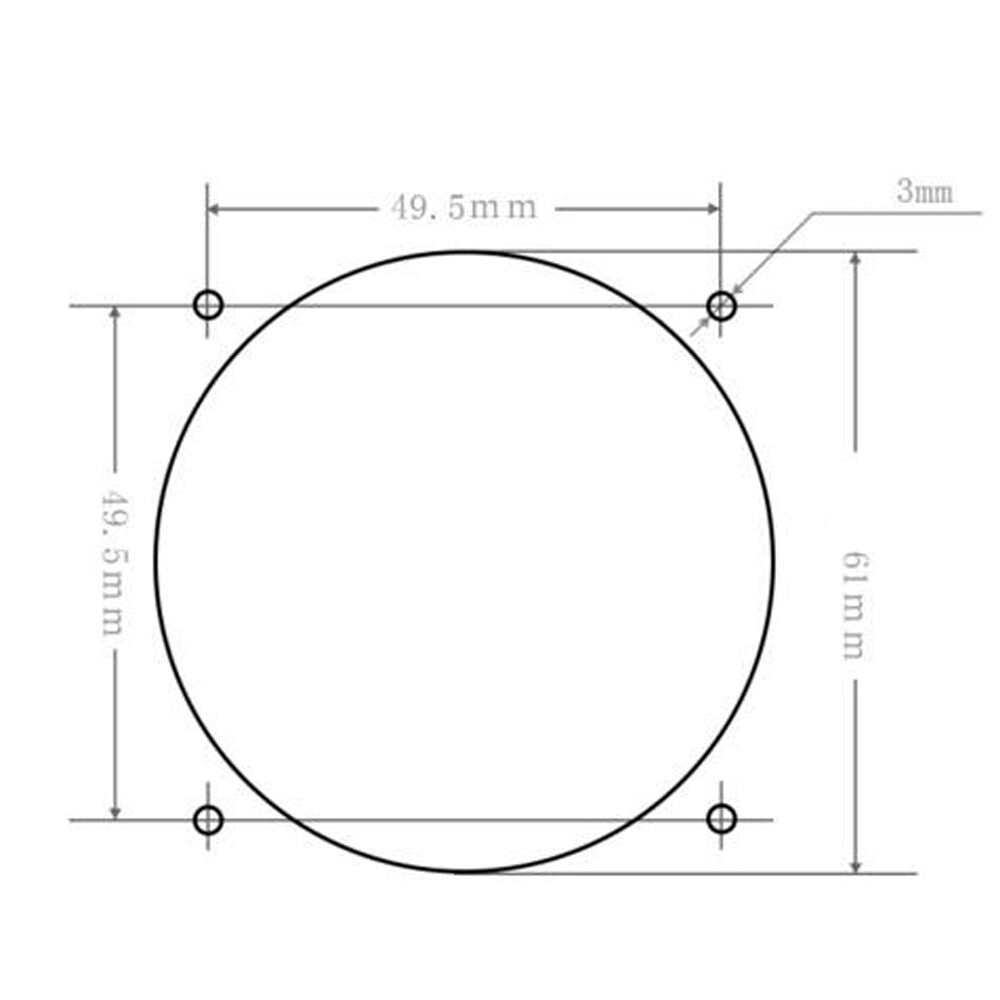

Output Type: 10A relay output Diameter: 80mm

Code Description:

P0: Working mode Heating H/C cooling Default H

P1: Hysteresis setting 0.1-30°C Default 2

P2: Set upper limit +5~110°C Default 110°C

P3: Set lower limit -50~-105°C Default -50°C

P4: Temperature correction -10~10°C default 0°C

P5: Delayed start 0-10 minutes Default 0 minutes

P6: High temperature alarm -50~110°C Default 110°C

P7: Data lock OFF/ON Default OFF

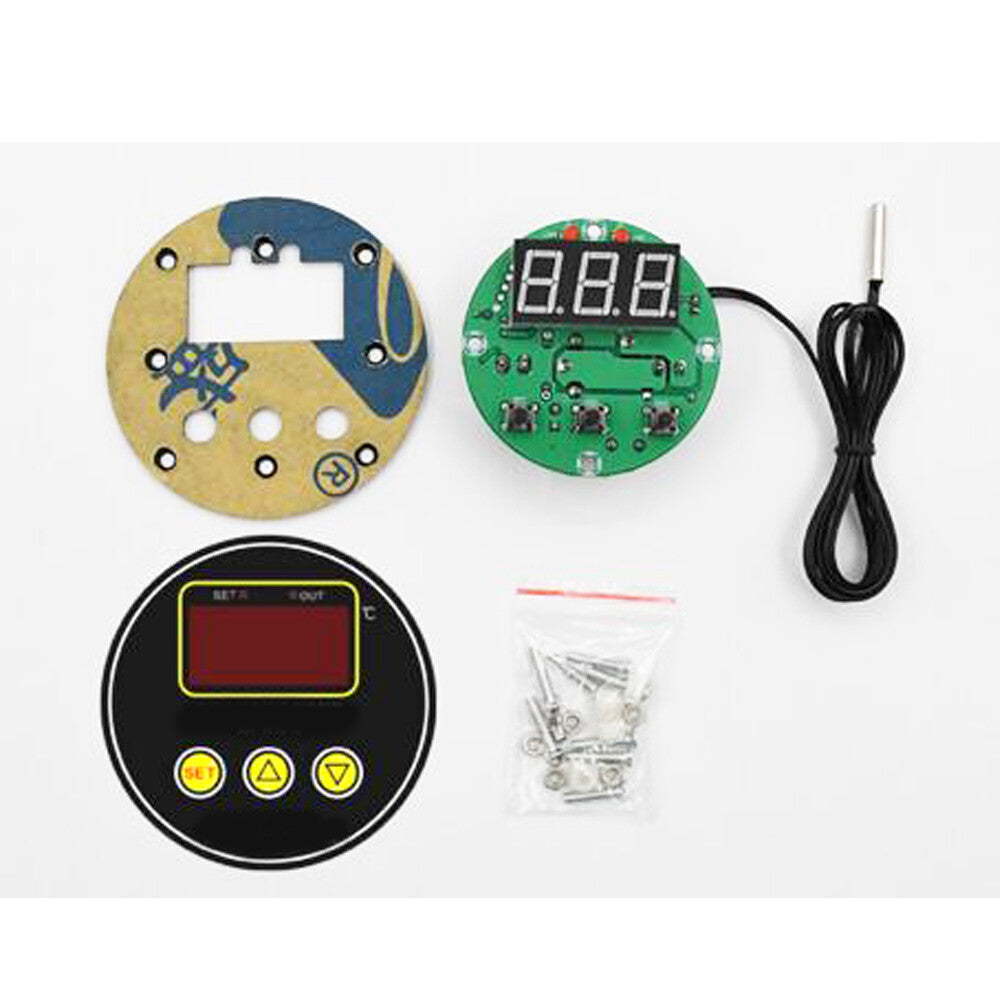

Package:

1* Temperature Controller
