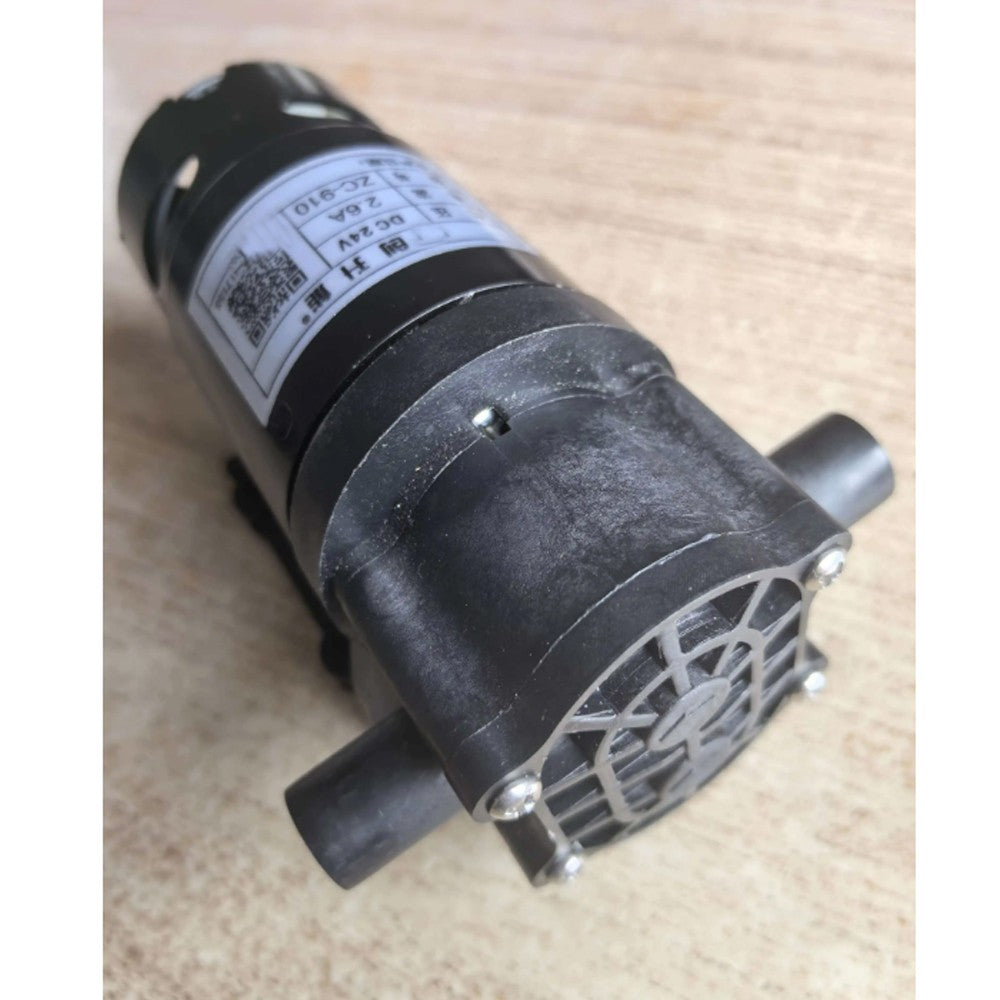

High Pressure Water Pump 24V Mini Gear Oil Pump Brushed Motor with Thread Head

High Pressure Water Pump 24V Mini Gear Oil Pump Brushed Motor with Thread Head

$97.00
$128.00 $97.00
Sale Sold out
Shipping calculated at checkout.
Options
Size

Specification:
The water pump does not come with a power supply and needs to be equipped separately (220V AC cannot be used directly)

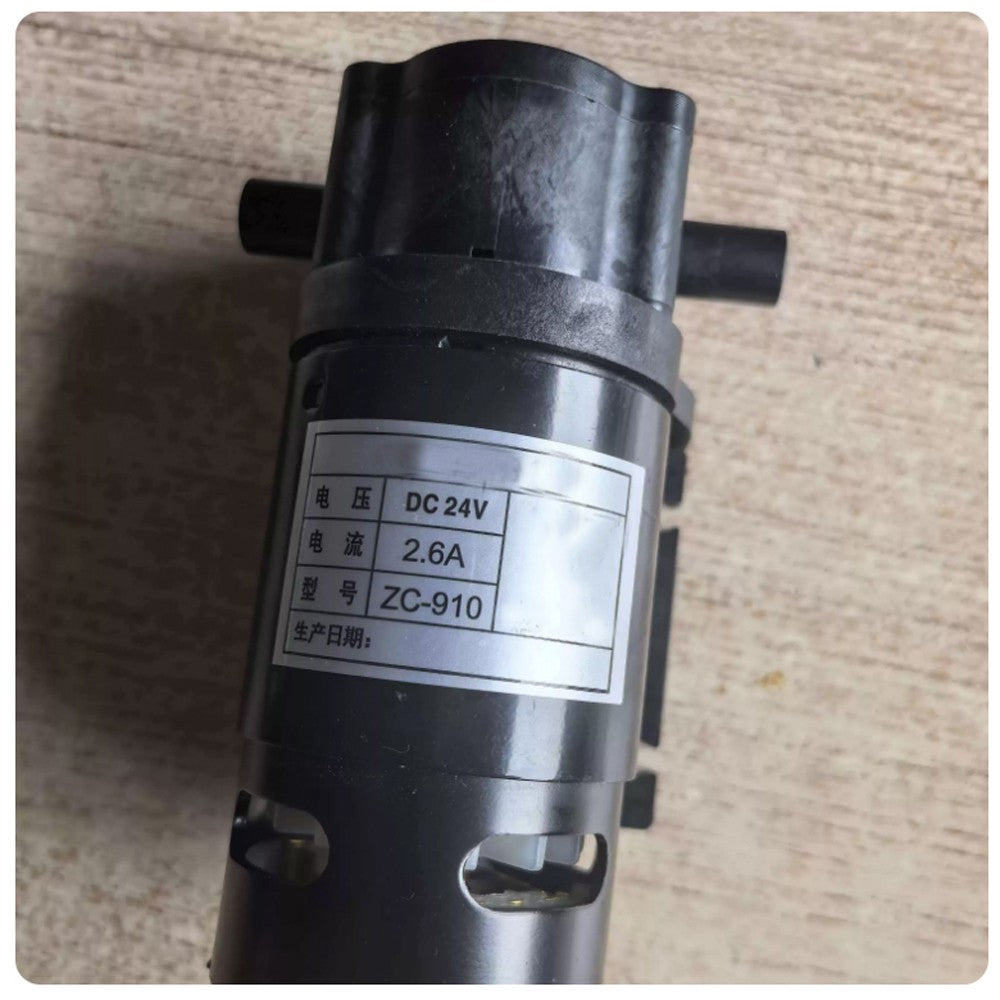

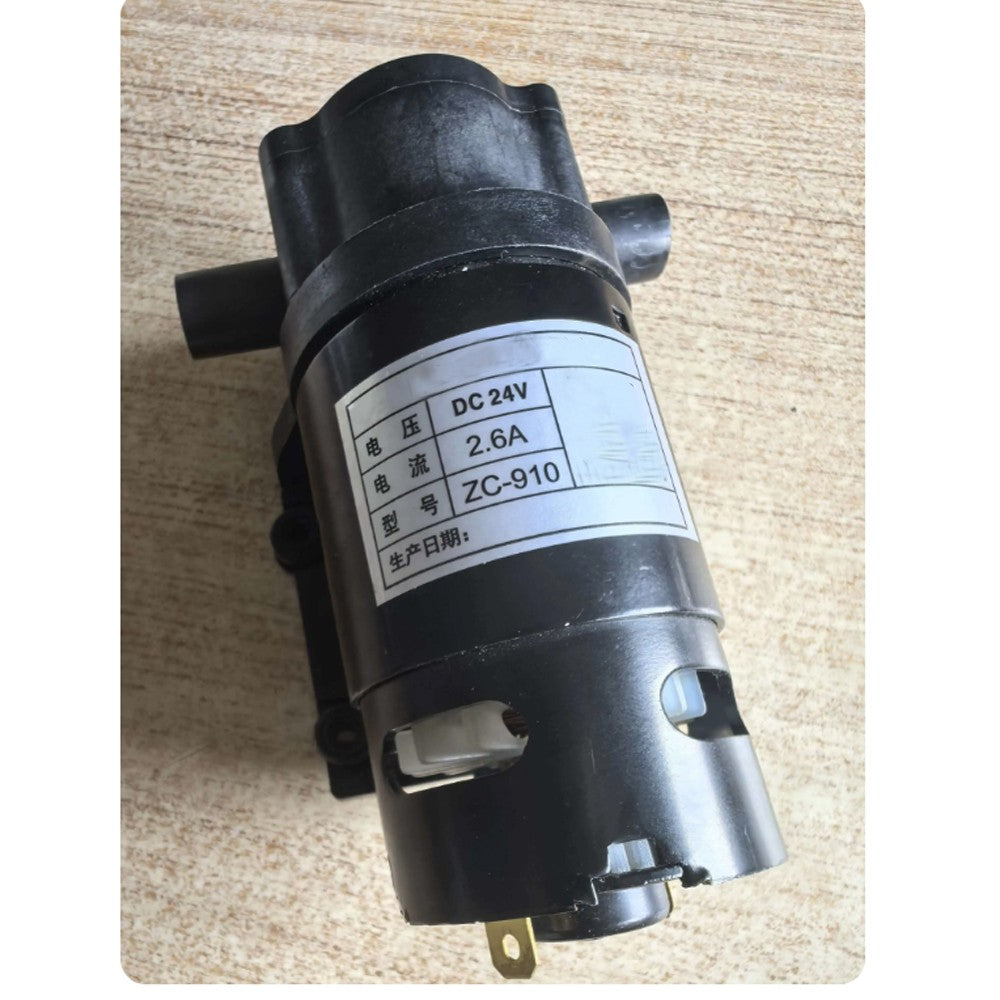

Model:ZC-910
1. Rated voltage: 24V (inlet and outlet 12mm, 16mm2 types)
2. Operating voltage: DC9V-24V
3. No load rated current: 2.4A ± 10%
4. No load water output: 10.3Lmin ± 10%
5. Pressure: 4.5.KG ± 10%
6. Rated current at 6.1KG load: 2.8A ± 10%
7. Rated water output at 7.1KG load 7.5Lmin ± 10%
8. Suction range:1. M
9. Noise: 50 decibels within 0.5M
10. Fluid usage: tap water, groundwater
11. Water temperature: 0 ° C~100 ° C
12. Environmental humidity: 45%~85%
13. Continuous service life of 1000 hours
14. Motor; Brushed motor

Model: ZC-908
1. Rated voltage: 24V (inlet and outlet 12mm, 16mm2 types)
2. Operating voltage: Dc9V-24V
3. No load rated current: 1.2A ± 10% 4. No load water discharge: 8Lmin ± 10%
5. Pressure: 4kg ± 10%
6.Rated current at 6.1KG load: 1.5A ± 10%
7.Rated water discharge capacity at 7.1KG load: 6Lmin ± 10%
8. Suction range:1. M
9. Noise: 50 decibels within 0.5M
10. Fluid usage: tap water, groundwater
11. Water temperature: 0 ° C~100 ° C
12. Environmental humidity: 45%~85%
13. Continuous service life of 1000 hours
14. Motor; Brushed motor


Please pay attention:
1.The best operate way:if the temperature is higher than 70degrees, every working 1 hour please let it stop for 10 minutes..
2.It can't be submerged under hot water,but can diving under normal temperature.
3.don't use continuously for a long time during hot water and don't idle it without water.
4.you'd better install the filter in the inlet of the pipeline.
5.the pump head is the perpendicular distance from the inlet to outlet.
6.the pump can't draw water by itself above water,it should be installed under water.

Package:
1x High Pressure Water Pump 24V Mini Gear Oil Pump Brushed Motor with Thread Head
