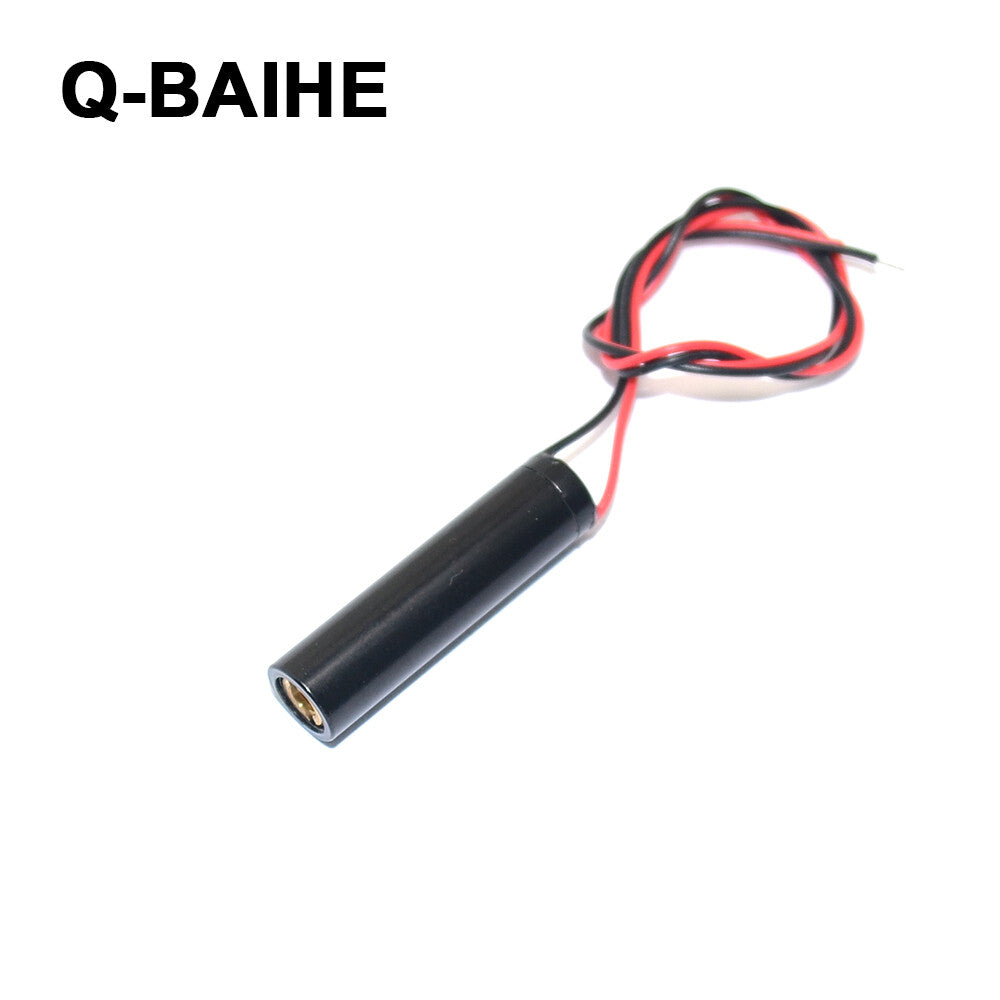

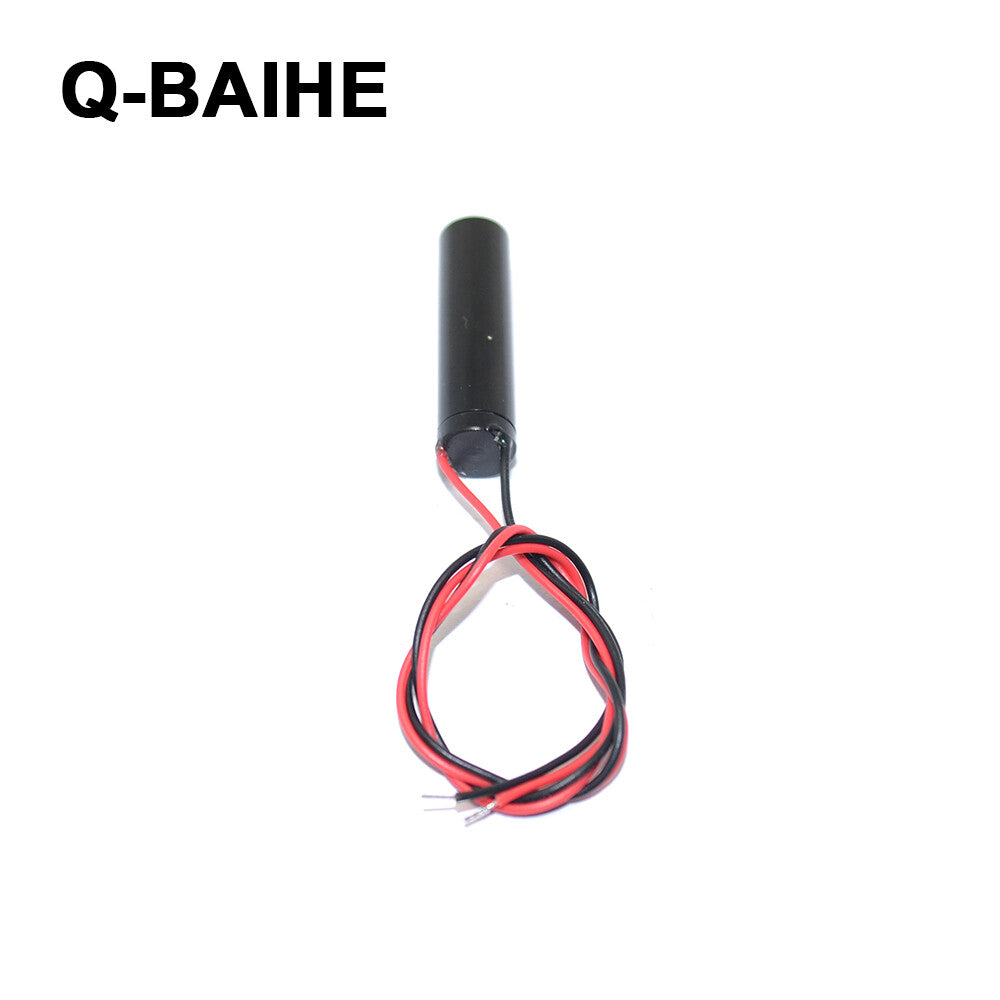

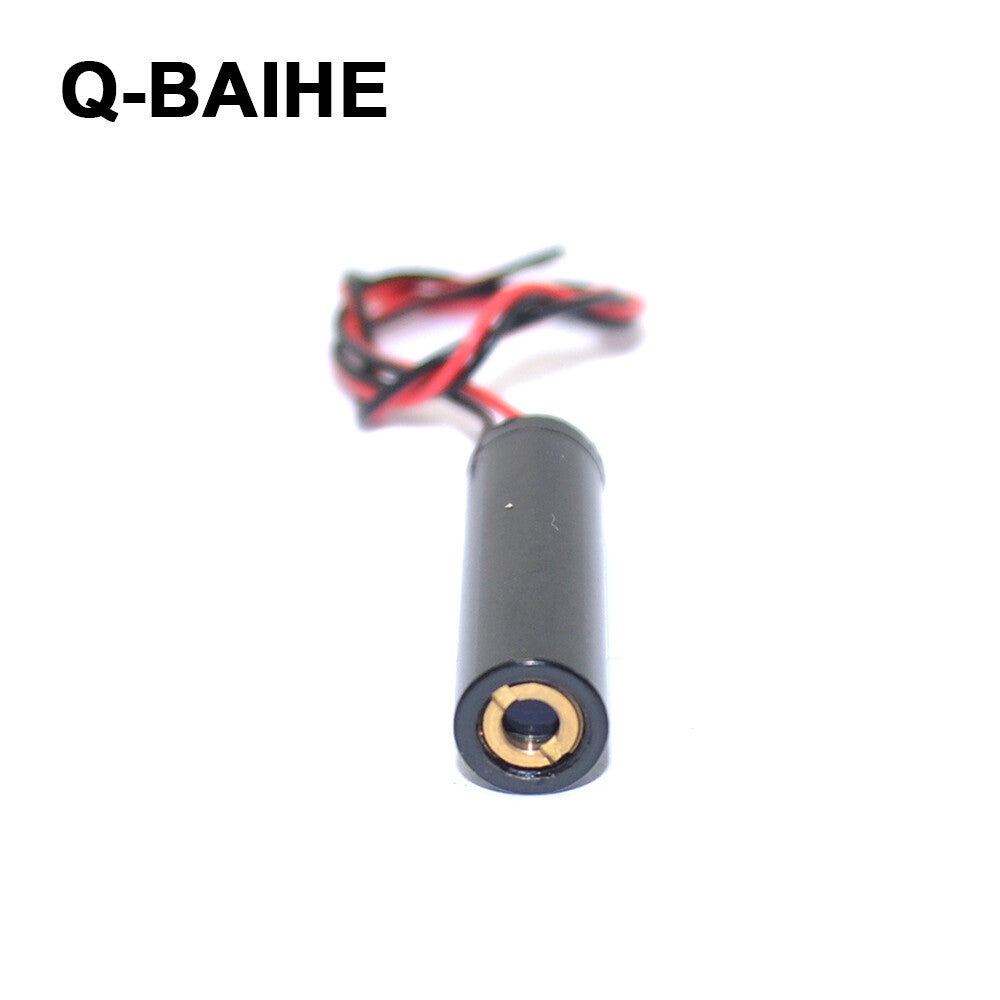

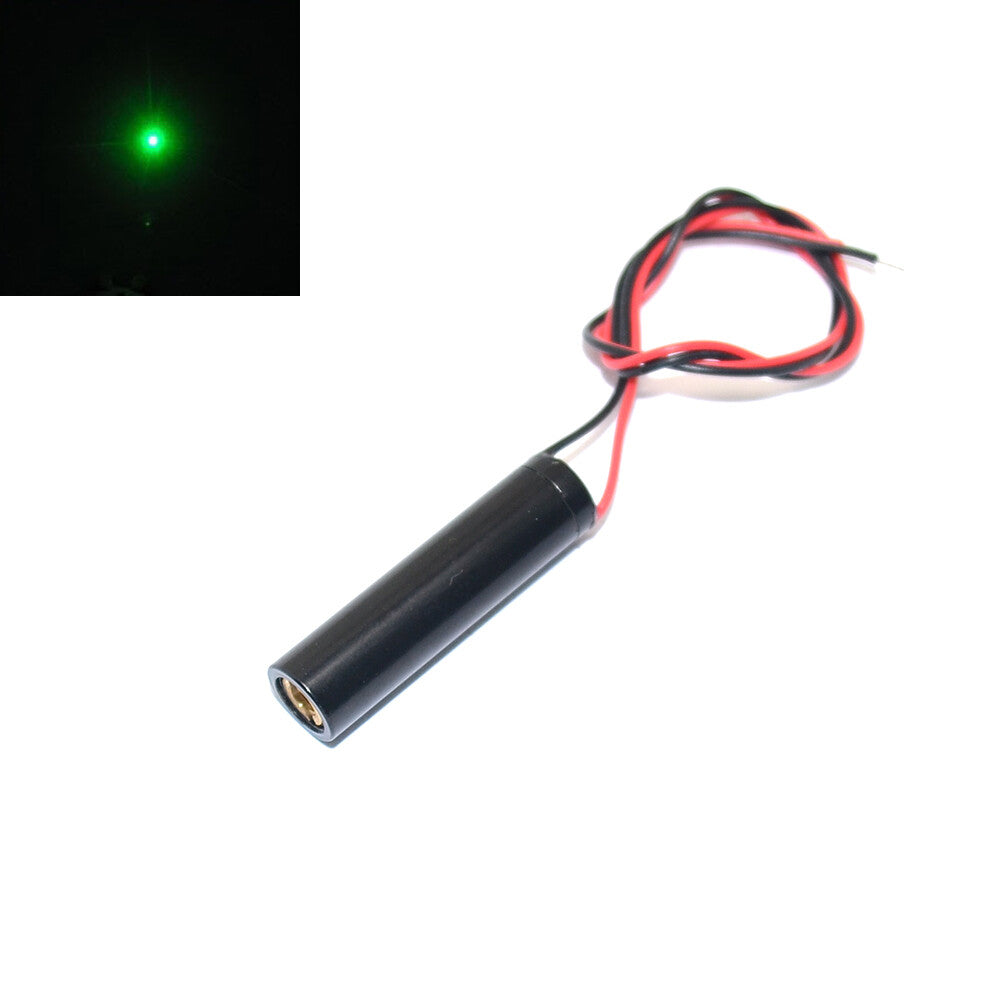

Highly Stable 532nm 0.4mw Green Spot Laser Module 8mm Diameter Green Dot Laser

Class Ⅱ Highly Stable 532nm 0.4mw Green Spot Laser Module 8mm Diameter Green Dot Laser Head

Product Parameters:

Wavelength: 532nm

OutputPower: 0.4mw/1mw/5mw

Supply Voltage: DC2.8-3.2V (Can Be Customized)

Working Current: ≤180mA

Spot Pattern： Dot (Customizable)

Spot Size: Adjustable (Both Indoor And Outdoor)

Dimensions: 8*30mm

Irradiation Distance: Outdoor Daytime 0-500M

Daytime Indoor 0-2000M

Dark Environment 0-5000M

Output Band: Visible Laser

Mode Of Operation: Continuous Laser

Excitation Mode: Electro-Active Laser

Working Medium:Semiconductor Laser

Structural Features: High Quality Laser Diode + Metal Case + High Quality Lens + Constant Power Circuit Board + Wire

Features:

1. Ultra-high brightness indoor and outdoor
2. The green dot size can be adjusted from 1 mm to several centimeters to meet your different usage requirements.
3. The interior is filled with heat-dissipating silicone and AB glue, which can fully dissipate heat and prevent earthquakes.
4. Intelligent driver board with imported IC. Wide range of power supply from 2.8-3.2V
5. Wavelength Power Wire length Working distance Spot effect, etc. can be customized according to customer requirements

Package:

1* Green Dot Laser Module
