Product Introduction

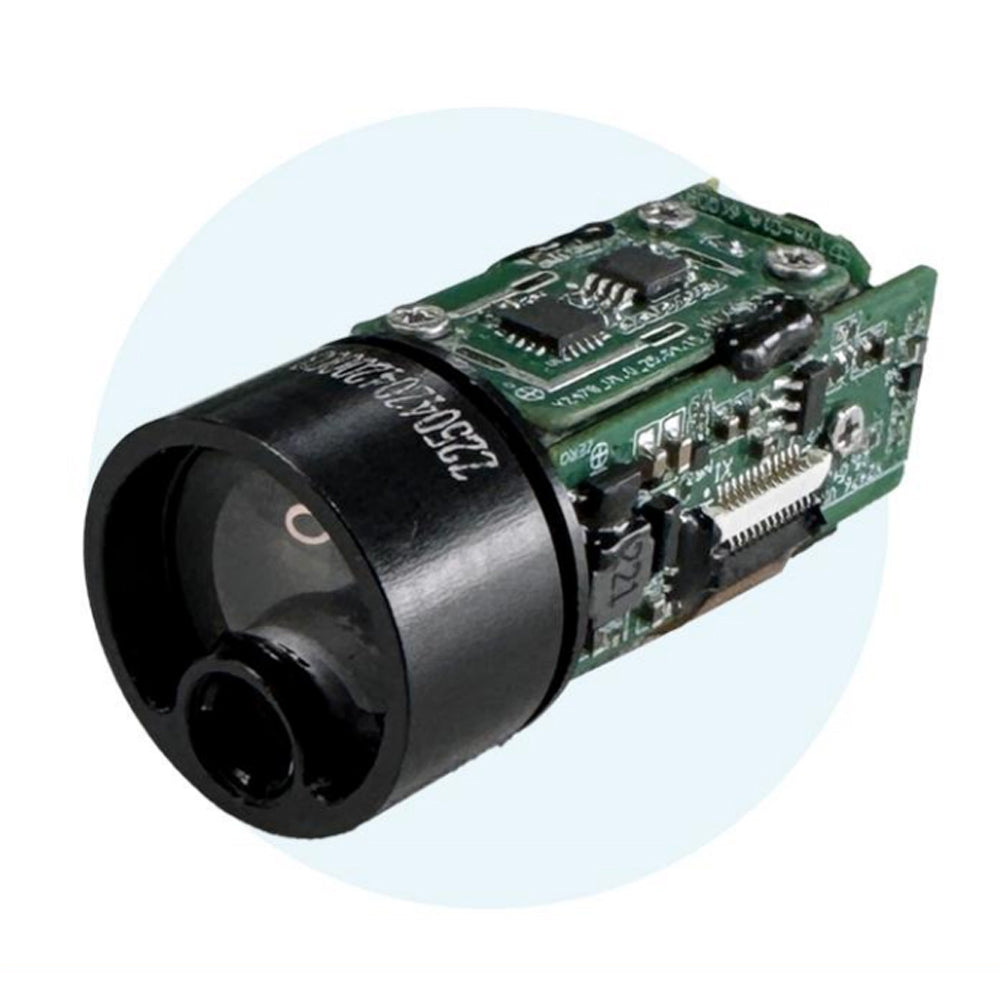

This 905nm industrial laser ranging sensor module adopts advanced TOF ranging algorithm, supporting up to 1000m long-distance measurement for large reflective targets. It features adaptive automatic ranging frequency, segmented high measurement accuracy, ultra-low standby power, compact cylindrical mini size and stable outdoor anti-interference performance. Equipped with standard TTL serial communication and wide 3.3V~5V power supply, it can be seamlessly integrated with drone flight control, industrial measuring equipment, intelligent robots, outdoor security monitoring and portable ranging devices. Stable operation from -20℃ to 60℃ meets all cold & hot harsh working environments.
Core Product Advantages
✅ 1000m Long Distance Detection
Max measuring distance reaches 1000m for typical large targets, perfect for long-range outdoor surveying, drone altitude measurement and perimeter monitoring.
✅ Adaptive Auto Ranging Frequency
Intelligent frequency switching automatically: 5Hz high-speed response within 400m; 2~3Hz stable low-power output over 400m; also supports single-shot manual ranging mode, balances response speed and power consumption.
✅ Segmented High Precision
≤±1m measurement error within 300m
-
≤±2m measurement error over 300m
Consistent reliable data output for industrial distance detection.
✅ Ultra Low Standby Power Design
Standby Power ≤0.06W under pull-down enable state, greatly reduces power loss and extends battery life of battery-powered portable equipment.
✅ Narrow Laser Beam & Strong Anti-Sunlight Interference
905nm invisible industrial laser band, divergence angle ≤3.5Mrad, concentrated laser beam effectively avoids light scattering and guarantees stable ranging under strong outdoor sunlight.
✅ Wide Voltage & Easy Secondary Development
3.3V~5V universal wide supply voltage, standard TTL UART interface with fixed 115200bps baud rate, compatible with most MCU, flight controllers and embedded systems without extra voltage conversion circuits.
✅ Compact Cylindrical Mini Structure
Tiny dimension Φ19mm × 37mm (Diameter 0.748" × Length 1.457"), slim cylindrical design easy to embed into drone pods, small robots and mini measuring instruments with limited installation space.
✅ Wide Temperature Adaptability
-20℃ ~ 60℃ full working temperature range, stable performance in cold winter outdoor and high-temperature factory workshops.
✅ 5m Blind Range
5m detection blind zone, covers most short-distance industrial obstacle avoidance and close-range measurement demands.

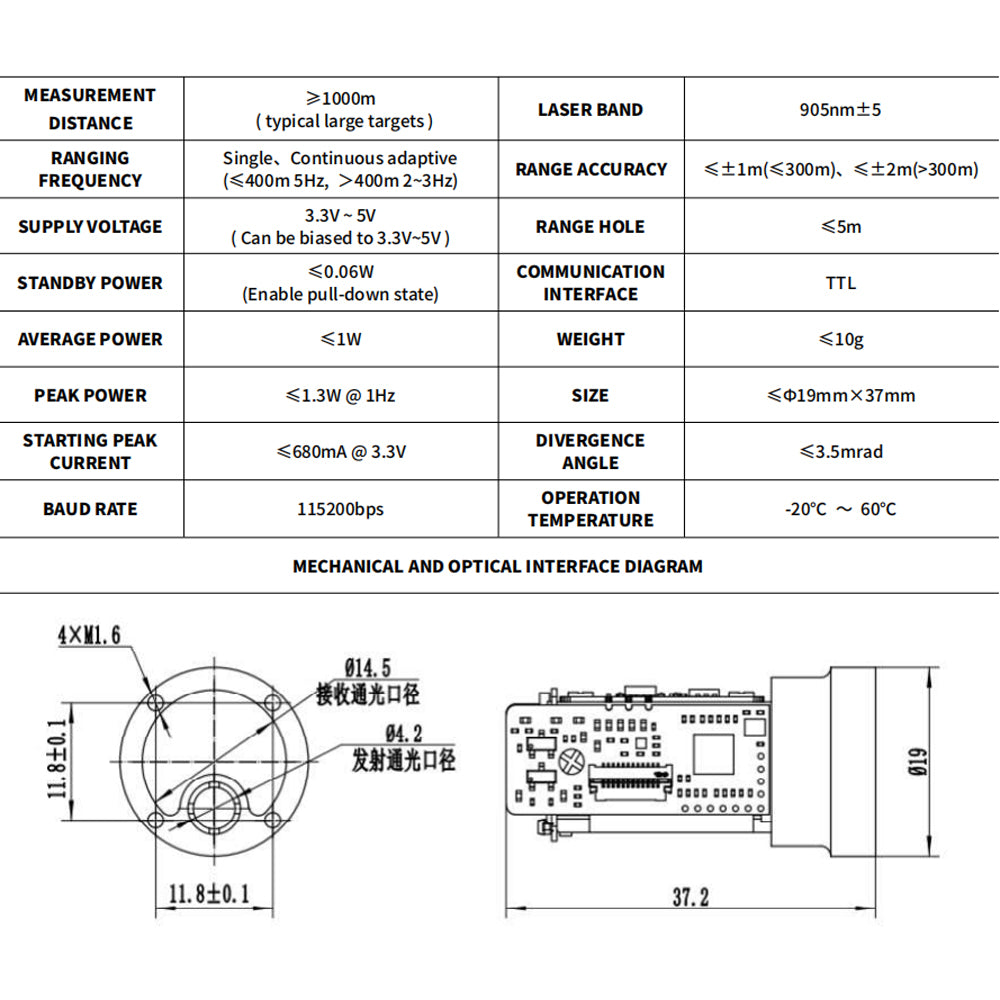

Full Technical Specifications
Measurement Distance：≥1000m (Typical Large Targets)
Laser Band：905nm±5
Ranging Frequency：Single, Continuous Adaptive (≤400m 5Hz, ＞400m 2~3Hz)
Range Accuracy：≤±1m(≤300m)、≤±2m(>300m)
Supply Voltage：3.3V ~ 5V (Can Be Biased To 3.3V~5V)
Range Hole：≤5m
Standby Power：≤0.06W (Enable Pull-Down State)
Average Power：≤1W
Peak Power：≤1.3W @ 1Hz
Communication Interface：TTL
Baud Rate：115200bps
Divergence Angle：≤3.5Mrad
Size：≤Φ19mm×37mm (0.748" × 1.457")
Operation Temperature：-20℃ ～ 60℃
Wide Application Scenarios
UAV drone gimbal pod altitude & obstacle detection
Industrial long-distance distance measuring equipment
Outdoor security perimeter monitoring & early warning
Autonomous robot obstacle avoidance & navigation
Engineering surveying and mapping instruments
Automated machinery position sensing
Portable intelligent laser rangefinder device
