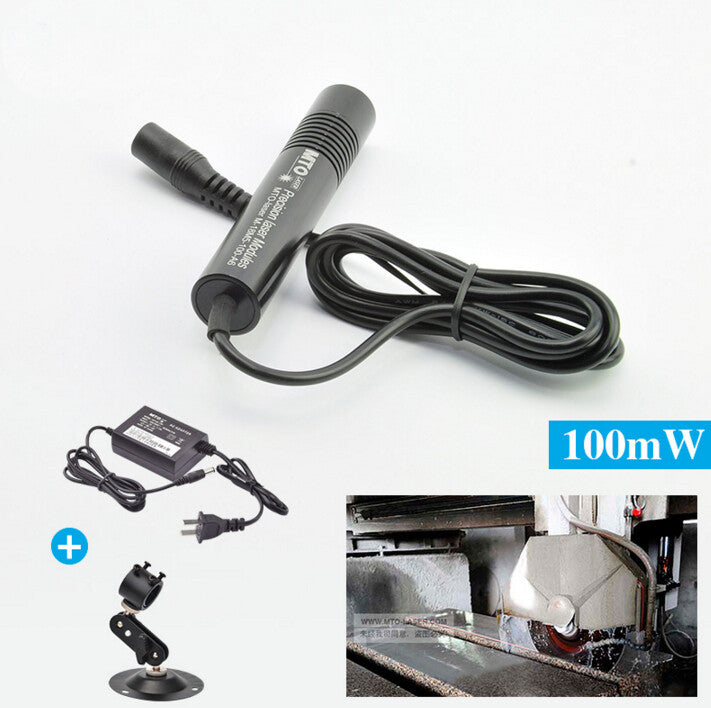

Infrared Word Laser For Stone Bridge Cutting Machine Red Laser Word Positioning

Infrared Word Laser For Stone Bridge Cutting Machine Red Laser Word Positioning

Wavelength: 648nm

Output power: 100mW
Supply voltage: 5V

Working current: 160mA
Spot mode: a word line

Optical part: glass focus + glass column mirror

Product material: aviation aluminum

Working temperature: plus or minus 50 degrees Celsius

Working life: 8000 hours

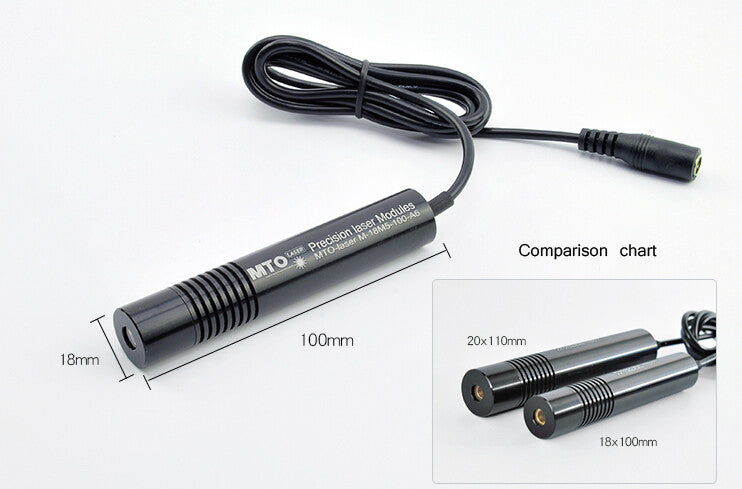

Dimensions: 18mm * 100mm (not adjustable)
Best working distance: 0-5 meters

Weight: laser 0.08kg / bracket 0.13kg / power supply 0.13kg

Best use distance: 50mW word line cross line indoor use within 3 meters (can be used for a long time)

100mW word line cross line indoor use within 5 meters (can be used for a long time)

150mW word line cross line indoor use within 8 meters (can be used for a long time)

200mW word line cross line Indoor use within 10 meters (can be used for a long time)

Remarks: The choice of power is not as big as possible. Choose according to your actual working distance and light intensity!

Laser structure: The laser adopts the imported diode, which is small in size, clear in light, large in exit angle and high in straightness.

Package:

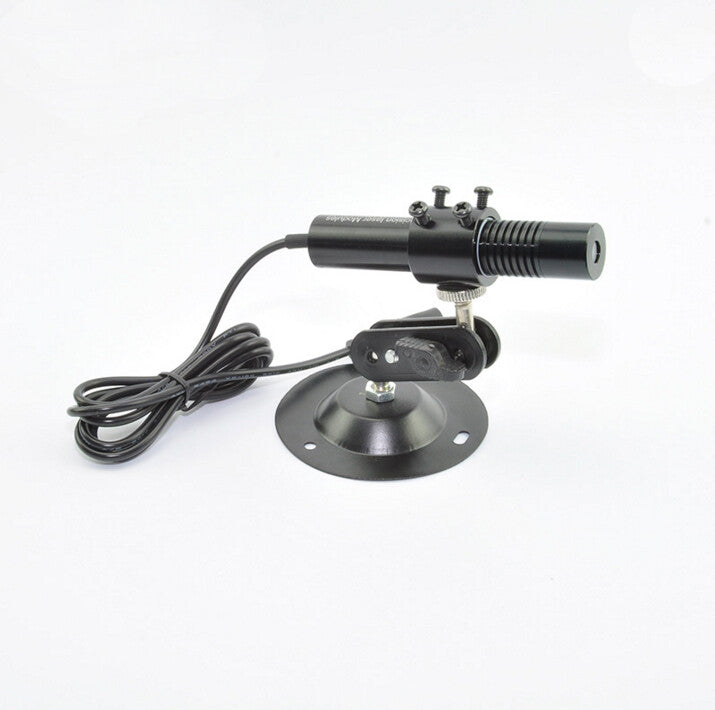

1pc 648nm 100mw 18*100mm laser module with power supply and holder
